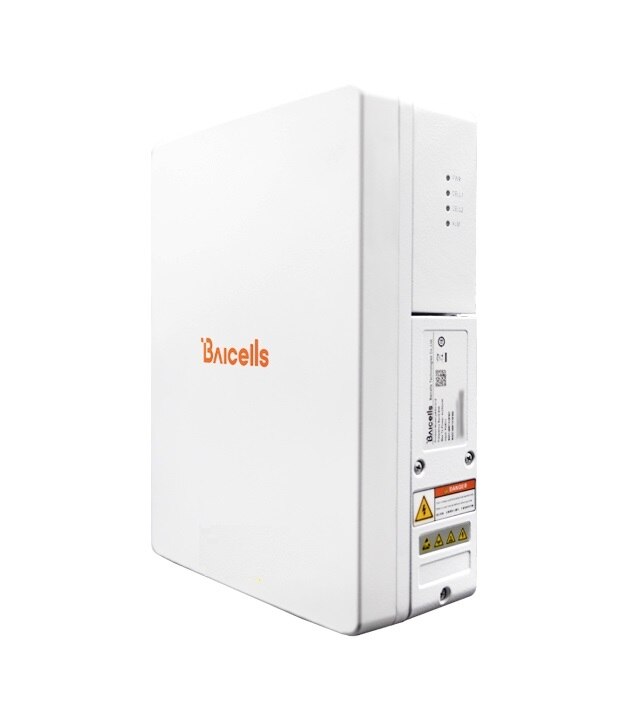

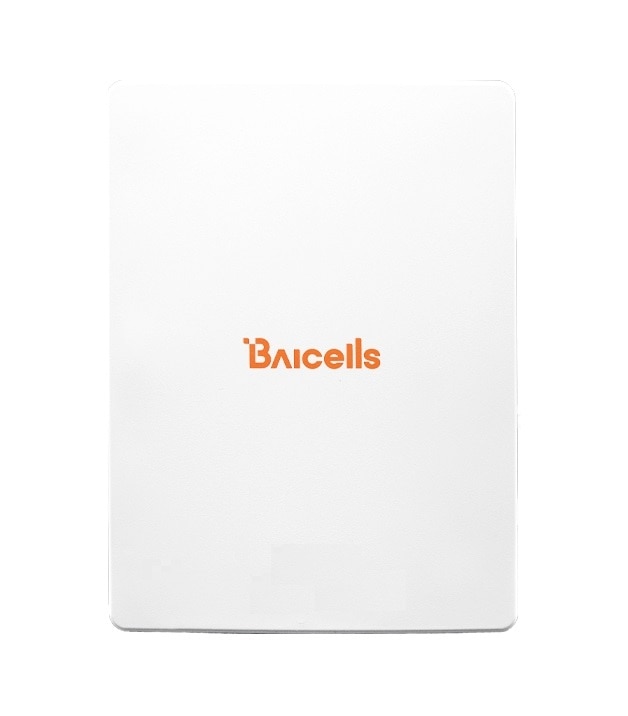

Baicells Nova 430H Outdoor TDD eNB – LTE Release 15, 4x250mW (24 dBm), 1 FE/GE, PoE++, 3.5 GHz (3550 MHz–3700 MHz), B48, Built-in Antenna
- SKU: pBS3101SH
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
Baicells pBS3101SH
Nova 430H Outdoor TDD eNB – LTE Release 15, 4x250mW (24 dBm), 1 FE/GE, PoE++, 3.5 GHz (3550 MHz–3700 MHz), B48, Built-in Antenna
The Baicells Nova 430H is the sweet spot between high power and installation complexity. The integrated antenna, all-in-one form factor, and power output of up to 40 dBm/10 MHz make the Nova430H an excellent option for easy outdoor Helium coverage.
The Nova 430H supports two Carrier Aggregation (CA mode); contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all CAT6 or higher user equipment.
The Nova 430H is pre-loaded with FreedomFiapproved software, ready to plug-and-play with a FreedomFi or Powered by FreedomFi Helium 5G hotspot.
Dual Carrier mode is not supported on the Nova430H.
This product has a standard one-year warranty; an extended warranty is available.
Features:
- Compact, all-in-one design of internal antenna and GPS
- Excellent Non-Line-of-Sight (NLOS) coverage
- Peak rate: Up to DL 290 Mbps and UL 68 Mbps with 2x20 MHz bandwidth
- 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
- 96 RRC connected users upgradeable to higher capacity in future releases
- Integrated small cell form factor for quick and easy installation
- Configured out-of-the-box to work with FreedomFi and Powered-By-FreedomFi 5G Hotspots
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperable with FreedomFi Decentralized Wireless Core technology
- Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS
Specifications
Specifications
Standard | LTE TDD RAN (3GPP Release 15 compliant) |
TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
Frequency Band | B48 (3550 MHz–3700 MHz) |
Channel Bandwidth | "SC: 5/10/15/20 MHz CA: 40 MHz as maximum aggregated bandwidth |
Multiplexing | MIMO: 2x2 (DL) |
Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
INTERFACE | |
Ethernet Interface | 1 RJ-45 Ethernet interface (1 FE/GE) |
Power Supply | PoE++ (IEEE 802.3bt compliant) |
Protocols Used | IPv4, UDP, TCP, ICMP, NTP |
Network Management | FreedomFi Decentralized Wireless Core |

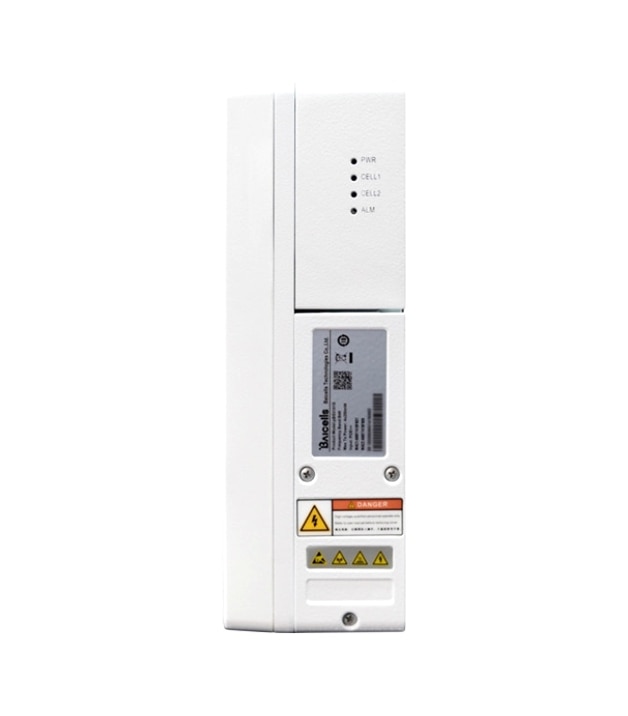

LED Indicators | 4 x status LED CELL1/CELL2/ALM/PWR |
Maximum Deployment Range | 5 kilometers (requires line of sight and high power fixed wireless CPE, range is smaller when serving mobile handsets) |
Latency | 30 milliseconds |
Receive Sensitivity | -100 dBm (per channel) |
Modulation | MCS0 (QPSK) to MCS27 (256 QAM) DL: QPSK, 16 QAM, 64 QAM, 256 QAM UL: QPSK, 16 QAM, 64 QAM |
Transmit Power Range | 0 to 24 dBm per channel (combined +30 dBm, configurable) (1 dB interval) |
Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
ARQ/HARQ | Yes |
Synchronization | GPS (built-in) |
LINK BUDGET | |
Antenna | 13.5 dBi built-in 4-port antenna Horizontal Beamwidth 65 ± 10° Vertical Beamwidth 17° Polarization: ±45° |
Electrical Downtilt | 6° at Band 48 |
Antenna Gain | 13 ± 1 dBi |
Maximum EIRP | 43 ± 1 dBm |
Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
Surge Suppression | Yes |
Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
MTBF | ≥ 150000 hours |
MTTR | ≤ 1 hour |
Ingress Protection Rating | IP65 |
Operating Temperature | -40°F to 131°F / -40°C to 55°C |
Storage Temperature | -49°F to 158°F / -45°C to 70°C |
Humidity | 5% to 95% RH |
Atmospheric Pressure | 70 kPa to 106 kPa |
Power Consumption | Typical 20 W, maximum 25 W |
Weight | 10.7 lb/4.85 kg (without bracket) |
Dimensions (HxWxD) | 12.6 x 8.9 x 4.1 inches 319 x 227 x 104 millimeters |
Installation | Pole or wall mount |
PERFORMANCE | ||
Peak Data Rate (CA) | ||
2x20 MHz | DL (Mbps) | UL (Mbps) |
UL/DL Config 1 | 210 | 56 |
UL/DL Config 2 | 290 | 28 |
UL/DL Config 6 | 174 | 68 |
2x10 MHz | DL (Mbps) | UL (Mbps) |
UL/DL Config 1 | 105 | 28 |
UL/DL Config 2 | 145 | 14 |
UL/DL Config 6 | 87 | 34 |
20 MHz + 10 MHz | DL (Mbps) | UL (Mbps) |
UL/DL Config 1 | 154.5 | 42 |
UL/DL Config 2 | 213 | 21 |
UL/DL Config 6 | 126 | 51 |
20 MHz + 15 MHz | DL (Mbps) | UL (Mbps) |
UL/DL Config 1 | 185 | 48 |
UL/DL Config 2 | 253 | 24 |
UL/DL Config 6 | 151 | 60 |
User Capacity | Up to 96 RRC connected users per cell (4 users per TTI): SC/CA: 96 RRC connected users |
