Baicells Nova 436H Helium Bundle Kit
- SKU: mBS31001H-FFG-HL-4-64
- Manufacturer: Baicells
- Data Sheet: Download
Product Information

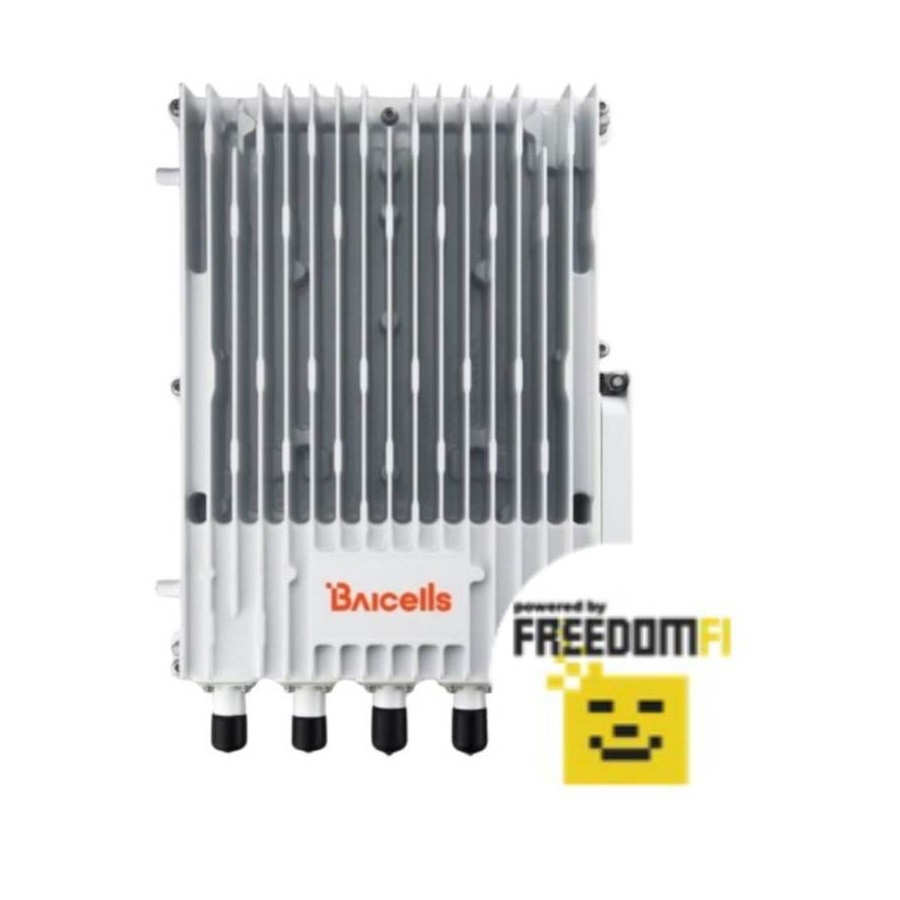

Baicells mBS31001H-FFG-HL-4-64
Nova 436H Helium Bundle Kit
Nova 436H Outdoor TDD eNB – LTE Release 15, 4x1W (30 dBm), 1 GE+1 OPT, 3.5 GHz (3550 MHz–3700 MHz), B48, external antenna
The Nova 436H is the highest-power outdoor radio for the Helium network. With four external antenna ports, this radio transmits at the highest power allowed in the CBRS band when mated to the appropriate antenna.
The Nova 436H is pre-loaded with FreedomFi-approved software, ready to plug-n-play with a FreedomFi or Powered by FreedomFi Helium 5G hotspot. The Nova436H supports two-carrier aggregation (CA mode); contiguous or non-contiguous channels are aggregated to provide up to 40 MHz bandwidth. This doubles the downlink capacity when CA mode is used with all CAT6 or higher user equipment.
Dual Carrier mode is not supported on the Nova436H. External antenna sold separately.
This product has a standard one-year warranty; an extended warranty is available.
Features:
- Excellent Non-Line-of-Sight (NLOS) coverage
- Peak rate: Up to DL 290 Mbps and UL 68 Mbps with 2x20 MHz bandwidth
- 2CC DL/UL CA improves the spectrum efficiency of fragmented spectrum resources
- 96 RRC connected users upgradeable to higher capacity in future releases
- Supports 4-port antenna
- Integrated small cell form factor for quick and easy installation
- Configured out-of-the-box to work with FreedomFi Decentralized Wireless Core
- Supports Citizens Broadband Radio Service (CBRS)
- Plug-and-play with Self-Organizing Network (SON) capabilities
- Interoperable with FreedomFi Decentralized Wireless Core
- Lower power consumption, which reduces OPEX, can be powered easily by Baicells compact outdoor SmartUPS
FreedomFi 5G Gateway Helium Miner, HNT & MOBILE, Works with Helium-Certified CBRS Small Cell Radios
Ignite open 5G revolution
Expand your FreedomFi Gateway over time as the Helium blockchain evolves to support 5G and Wi-Fi by connecting certified cellular antennas and Wi-Fi access points.
Stay up to date
Zero-touch auto-update system ensures that the software on your FreedomFi Gateway will always run the latest version with no manual intervention required.
Expand over time
With a 4-core Intel CPU and 3 Gigabit Ethernet ports, the FreedomFi Gateway is the most powerful Helium miner on the market, and it is expandable with up to 3 CBRS small cells and/or Wi-Fi access points.
Troubleshoot locally
Local device status dashboard makes it possible to troubleshoot and report issues quickly, such as Internet connectivity problems.
Deploy indoor or outdoor
All-aluminum, fanless chassis looks beautiful and has been ruggedized for a variety of deployment scenarios, including outdoors using compatible IP-rated enclosures.
Mount on the wall or ceiling
Wall/ceiling mounting gear, included in the packaging, makes it easy to install securely on any vertical or horizontal surface.
Specifications
Specifications mBS31001H
| Weight | 20 lbs |
| Dimensions (L x W x H) | 15’x15’x10’ ( 180 x 180 x 120 inches) |
| Standard | LTE TDD RAN (3GPP Release 15 compliant) |
| TDD UL/DL Configuration | 1, 2, 6 (with Special Subframe Configuration 7) |
| Frequency Band | B48 (3550 MHz–3700 MHz) |
| Channel Bandwidth | SC: 5/10/15/20 MHz CA: 40 MHz as maximum aggregated bandwidth |
| Multiplexing | MIMO: 2x2 on each carrier, 2 carriers (DL) |
| Security | Radio: SNOW 3G/AES-128 Backhaul: IPsec (X.509 AES-128, AES-256, SHA-128, SHA-256) |
| INTERFACE | |
| Ethernet Interface | 1 optical (SFP) and 1 RJ-45 Ethernet interface (1 GE) |
| Power Supply | +/-48 VDC AC adaptor (multi-national standards) |
| Protocols Used | IPv4, UDP, TCP, ICMP |
| Network Management | FreedomFi Decentralized Wireless Core |
| LED Indicators: | 4 x status LED CELL1/CELL2/ALM/PWR |
| User Capacity | Up to 96 RRC connected users per cell (4 users per TTI): SC/CA: 96 RRC connected users |
| Maximum Deployment Range | 12 kilometers (requires line of sight and high power fixed wireless CPE, range is smaller when serving mobile handsets) |
| Latency | 30 milliseconds |
| Receive Sensitivity | -100 dBm (per channel) |
| Modulation | MCS0 (QPSK) to MCS27 (256 QAM) DL: QPSK, 16 QAM, 64 QAM, 256 QAM UL: QPSK, 16 QAM, 64 QAM |
| Transmit Power Range | 0 to 33 dBm per channel (combined +36 dBm, configurable) (1 dB interval) |
| Quality of Service | Nine-level priority indicated by QoS Class Identifiers (QCI) |
| ARQ/HARQ | Supported |
| Synchronization | GPS |
| LINK BUDGET | |
| Antenna Connection | External high-gain antenna with N-Type connectors, supports one 4-port antenna |
| GPS Antenna | External GPS antenna, N-Type connector |
| Power Control | UL Open-loop/Closed-loop Power Control, DL Power Allocation (3GPP TS 36.213 compliant) |
| PHYSICAL | |
| Surge Suppression | Yes |
| Power Interface Lightning Protection | Differential mode: ±10 KA Common mode: ±20 KA |
| MTBF | ≥ 150000 hours |
| MTTR | ≤ 1 hour |
| Ingress Protection Rating | IP66 |
| Operating Temperature | -40°F to 131°F / -40°C to 55°C |
| Storage Temperature | -49°F to 158°F / -45°C to 70°C |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Power Consumption | Typical 60 W, maximum 100 W |
| Weight | 16.5 lb/7.5 kg |
| Dimensions (HxWxD) | With joint: 13.1 x 9.4 x 4.1 inches 333 x 240 x 105 millimeters Without joint and handle: 11.8 x 9.4 x 4.1 inches 300 x 240 x 105 millimeters |
| Installation | Pole or wall mount |
| PERFORMANCE | ||
| Peak Data Rate (CA) | ||
| 2x20 MHz | DL (Mbps) | UL (Mbps) |
| UL/DL Config 1 | 210 | 56 |
| UL/DL Config 2 | 290 | 28 |
| UL/DL Config 6 | 174 | 68 |
| 2x10 MHz | DL (Mbps) | UL (Mbps) |
| UL/DL Config 1 | 105 | 28 |
| UL/DL Config 2 | 145 | 14 |
| UL/DL Config 6 | 87 | 34 |
| 20 MHz + 10 MHz | DL (Mbps) | UL (Mbps) |
| UL/DL Config 1 | 154.5 | 42 |
| UL/DL Config 2 | 213 | 21 |
| UL/DL Config 6 | 126 | 51 |
| 20 MHz + 15 MHz | DL (Mbps) | UL (Mbps) |
| UL/DL Config 1 | 185 | 48 |
| UL/DL Config 2 | 253 | 24 |
| UL/DL Config 6 | 151 | 60 |
Specifications FFG-HL-4-64
| Weight | 2.8 lbs |
| Dimensions (L x W x H) | 5.31 in. × 5.12 in. × 1.77 in |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Technology | 4G/LTE, 5G, LoRaWAN, LTE |
| Frequency | US915 |
| CPU | Intel® Celeron® J1900 2.42 GHz |
| System Memory | 4 GB DDR3L-1333 SO-DIMM |
| Antenna Type | External Antennas |
| Power | 12 V DC |
| Storage | 1× 64 GB SSD |
| Certifications | FCC (US) |
