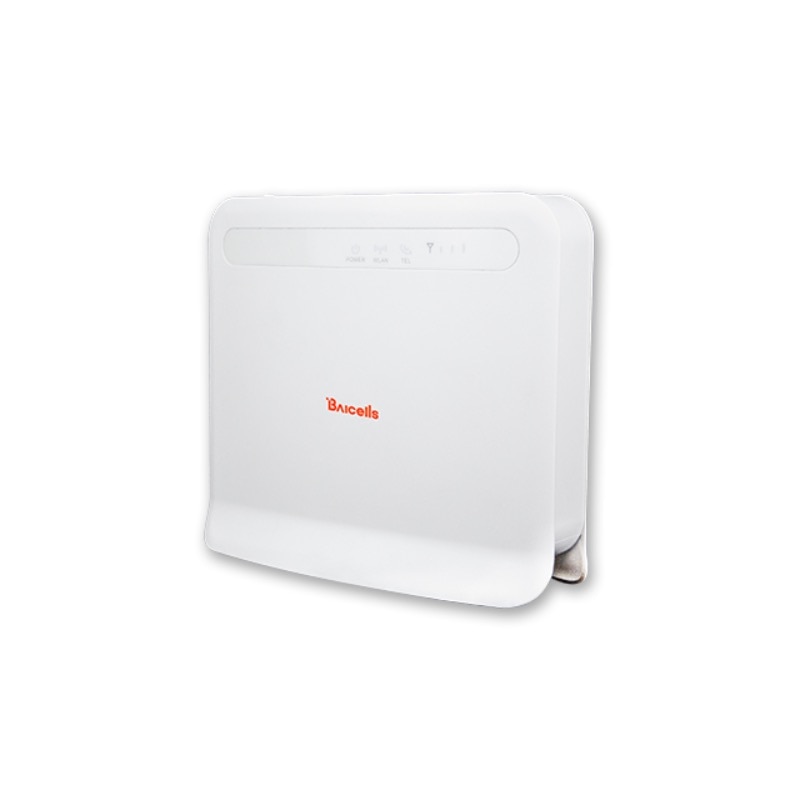

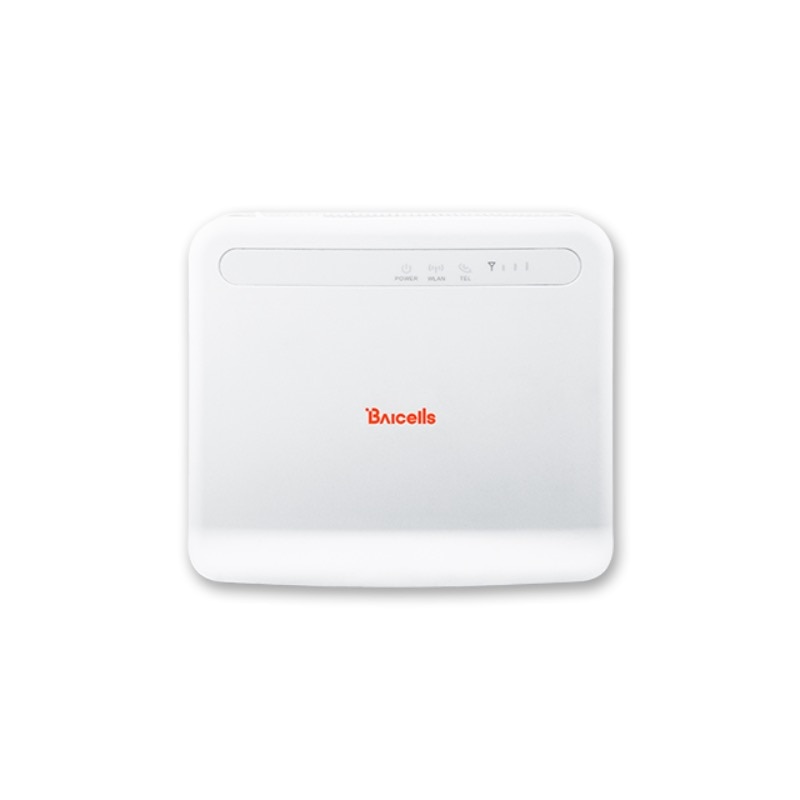

Baicells Atom ID06 3.5GHz 6.5dBi CAT6/7 Indoor CPE
US$195.00
- SKU: EG2013B-M11
- Manufacturer: Baicells
- Data Sheet: Download
Product Information
Baicells EG2013B-M11
Atom ID06 3.5GHz 6dBi, 2T4R,CAT6/7 Indoor CPE Band 42/43/48 UE
Baicells Atom ID06-6.5 Indoor User Equipment (UE) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and voice services to end-users. It converts high-speed LTE FDD or TDD signals to Wi-Fi signals on the local area network. Wireless and wired devices, including mobile phones, laptops, tablets, and other smart devices, can access the UE simultaneously. 3GPP Release 10 provides additional frequency bands to this UE, and it supports VoIP.
Features:
- Supports LTE TDD Bands 40/41/42/43/48
- 2.5 GHz or 3.5 GHz models
- Complies with 3GPP Release 10 Cat6/7 standards
- 1000 Mbps Ethernet interface, POTS interface
- IEEE 802.11b/g/n Wi-Fi, 2.4 GHz
- VoIP with fax and POS equipment connectivity
- GUI-based local and remote Web management
- TR069 network management protocol support
- Cell lock, SIM lock, and pin lock
- User-friendly LED status indicators
Specifications
Specifications EG2013B-M11
| Basic Specifications | |
| LTE Standard | 3GPP Release 10, CAT 6/7 |
| Ethernet LAN Port | One RJ-45 port 10/100/1000 autosensing, auto-MDX |
| LED Indicators | Power/WLAN/LTE (TEL)/LTE Signal |
| POTS | One RJ-11 interface |
| USIM | 1.8V/3V 2FF |
| Restore Button | Tactile button. Press for at least 10 seconds to restore UE to factory settings |
| Power Switch | On/off |
| Battery | Customization |
| Power Supply | Input: Universal range 100V-240V AC Output: 12VDC, 1.5A |
| Dimensions (H/W/D) | 7.6 x 6.6 x 2.9 inches 193x168 x74 millimeters |
| Weight | 14 oz (400 g) |
| RF Specifications | |
| LTE Mode | TDD / FDD |
| Channel Bandwidth | 5/10/15/20 MHz |
| TXRX* | 1T4R 2T4R |
| Carrier Aggregation | 2CC CA |
| MAX Output Power* | 23 ± 2 dBm per transmit antenna |
| Frequency Bands* | 40/41/42/43/48 |
| Peak Rate | DL 220 Mbps, UL 15 Mbps (2:7) |
| Modulation | DL: QPSK, 16QAM, 64QAM UL: QPSK, 16QAM, 64QAM |
| Receive Sensitivity | - 94 dBm @ QPSK, 20 MHz, 25°C |
| Antenna Type | Internal omni |
| Antenna Gain | 6.5 dBi @ 3.x GHz 5 dBi @ 2.x GHz |
| Polarization | Linear, vertical |
| Antenna Efficiency | > 70% |
| Isolation | N/A |
| VSWR | ≤ 2 |
| Horizontal Beamwidth (3 dB) | N/A |
| Vertical Beamwidth (3 dB) | N/A |
| SW Specifications | |
| Network Mode | NAT / Bridge / Tunnel |
| IP Protocol | IPv4/IPv6 |
| SIM | PIN management SIM lock |
| Network Connection Management | Auto / Manual |
| LTE Scan Mode | Full band scan, frequency lock |
| WLAN | WPS MSSID isolation |
| VPN | L2TP L2/L3 GRE L2/L3 |
| NAT | Port forwarding/triggering, DMZ, ALG |
| Firewall | IP/MAC/URL filter; access control; block port scanner / SYN flood; SPI filter |
| Network Management | TR069 TR104 SNMP |
| Diagnostics | TCP dump, ping, traceroute |
| Statistics | LTE status; connnection, system up time; device status; DHCP client list; Wi-Fi station list; LTE status; firewall status |
| Maintenance | Date and time setting; reboot; restore factory settings; restore or back up configuration files; firmware upgrade locally or OTA |
| System Logs | Operating, run-time, filter / select / display / export |
| VoIP | Dual-APN, SIP ALG, G711 fax passthrough, T38 fax relay |
| Environmental Specifications | |
| Operating Temperature | 14°F to 113°F / -10°C to 45°C |
| Storage Temperature | -4°F to 158°F / -20°C to 70°C |
| Operating Humidity | 5% to 95% |
| Wi-Fi Specifications | |
| Standard | IEEE 802.11b/g/n |
| Channel Bandwidth | 20/40 MHz |
| Frequency | 2.5 GHz |
| MIMO | 2x2 |
| Peak Rate | 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 300 Mbps |
| Modulation | DSSS/CCK, OFDM |
| Receive Sensitivity | • -64 dBm @ 65 Mbps, typical for 802.11n • -65 dBm @ 54 Mbps, typical for 802.11g • -76 dBm @ 11 Mbps, typical for 802.11b |
| Max Output Power | 17±3dBm |
| Antenna Type | Internal omni, 2T4R |
| Antenna Gain | 2 dBi |
| Active Users | 32 |
