Baicells Nova-227 Outdoor Base Station, 13 dBi, 3.5GHz, 24dBm, 2 port, integrated antenna
- SKU: PBS2120
- Manufacturer: Baicells
- Data Sheet: Download
Product Information

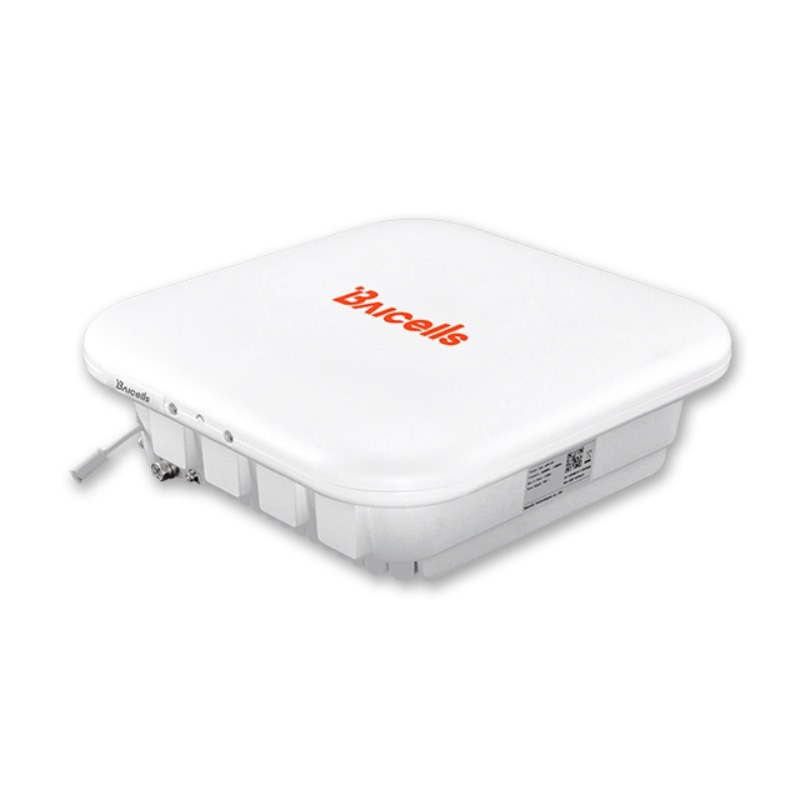

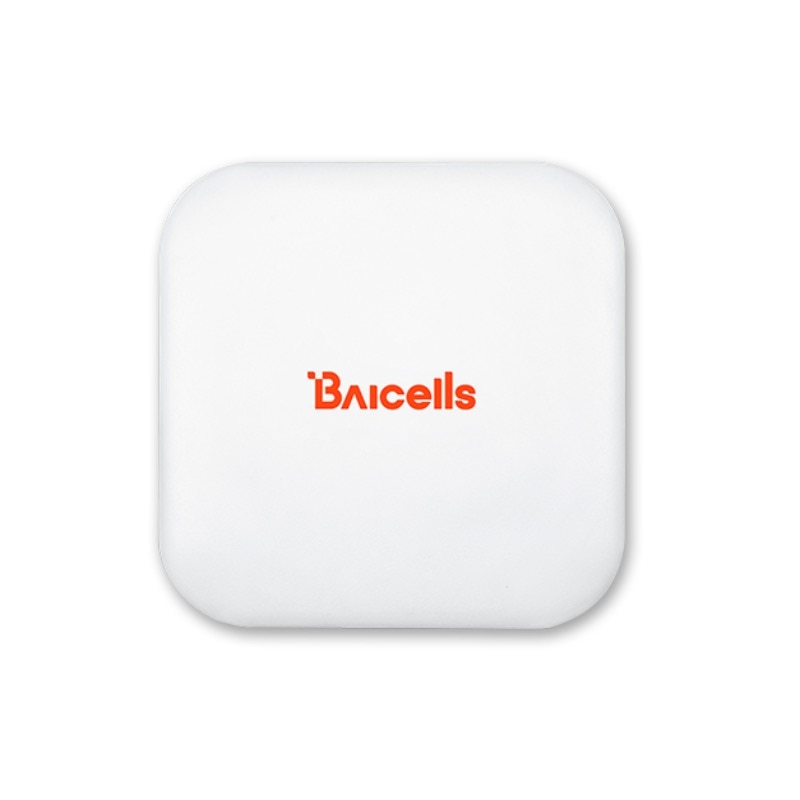

Baicells PBS2120 Nova-227 Outdoor Base Station
LTE Release 9, 250 Milliwatt (24 dBm), 2 Port, 13 dBi antenna, 3.5 GHz, Band 42/43, Integrated 65 Degree Antenna
Ideal for micro-pops with the the enhancement of LTE, the Baicells Nova 227 Outdoor Base Station is a high performance outdoor micro base station based on TD-LTE technology and which operates at 3550 - 3700 MHz frequencies.
The Nova base station makes use of the current LTE transmission resources to reduce the operator’s investment with low-cost, enhanced indoor or outdoor coverage. This solution can be used widely by telecom operators, broadband operators, and enterprises to promote the user experience in residential and commercial settings.
Applications:
- Expands existing LTE networks into micro-pop areas that can’t support a full blown LTE base station.Integrates int existing Baicells LTE NLOS network with a low cost LOS solution
- Great forklift replacement for existing line of sight installations that can no longer support requirements or load due to 5 GHz interference.
Features:
- Integrated design of baseband and RF
- Internal antenna, 65 degree 13.5 dBi
- Standards-based international 3GPP TDD LTE technology that provides high-speed voice and data services. Supports a maximum transfer rate of DL: 110 Mbps, UL: 20 Mbps.
- Flexible uplink and downlink time slot ratio: 2:2 and 1:3
- Supports 10 MHz / 20 MHz operation bandwidth
- Internal antenna and integrated GPS
- PoE+ power supply; only one Ethernet cable required for data transmission and power supply
- Security services to provide timely protection against potential security risks and illegal intrusion Convenient, simple, GUI-based local and Web management
- LTE integration that quickly provides accurate coverage and improved network capacity
- Intuitive network management functions for managing, monitoring, and maintaining operations
Specifications
Specifications PBS2120
| TECHNICAL SPECIFICATIONS | |
| LTE Mode | TDD |
| LTE Frequency | 3550 MHz ~ 3700 MHz |
| Channel Bandwidth | 10 MHz, 20 MHz |
| Output Power | 24 dBm ± 2dB |
| Receiving sensitivity | -101 dBm |
| Synchronization Mode | GPS synchronization |
| Backhaul Mode | RJ-45 Ethernet backhaul |
| MIMO | 2*2 MIMO |
| Dimensions | 9.8 in (H) x 9.8 in (W) x 3.2 in (D) 248mm (H) * 248mm (W) * 80mm (D) |
| Installation Method | Pole mounted, wall mounted |
| Antenna | Internal Antenna, 65 Degree 13.5 dBi |
| Overall Power | < 20 W |
| Weight | About 4.4 lbs (2.0 kg) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -40°F to 131°F -40°C ~ 55°C |
| Humidity | 5% ~ 95% |
| Atmospheric Pressure | 70 kPa ~ 106 kPa |
| IP Protection Grade | IP66 |
| SOFTWARE SPECIFICATIONS | |
| LTE Standard | TDD 3GPP Release 9 |
| Maximum Throughput | 20 MHz: DL 110 Mbps, UL 20 Mbps 10 MHz: DL 55 Mbps, UL 9 Mbps |
| Business Capacity | 32 concurrent users (supports software upgrade to 96) |
| Modulation Mode | QPSK, 16QAM, 64QAM |
| Traffic Offload | Supports LIPA/SIPTO, which is Local IP Access and Selected IP Traffic Offload for short |
| SON | Self-Organizing Network: supports plug-andplay, automatic start, optimization, and configuration |
| RAN Sharing | Supported |
| Network Management Interface | TR069 interface protocol |
| Northbound Interface | Web service, Socket, FTP, and other interface modes |
| MTBF | ≥ 50000 hours |
| MTTR | ≤ 1 hour Remote/local maintenance, based on SSH protocol Remote maintenance Online status management Performance statistics Failure management |
| Maintenance | Configuration management Local or remote software upgrading and loading Logging Connectivity diagnosis Automatic start and configuration Alarm reporting |
