Cambium ePMP 3000 5 GHz Access Point Radio (FCC) (US cord)

(0)No Reviews yet
  • SKU: C058910A102A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download

Out of Stock

Product Information

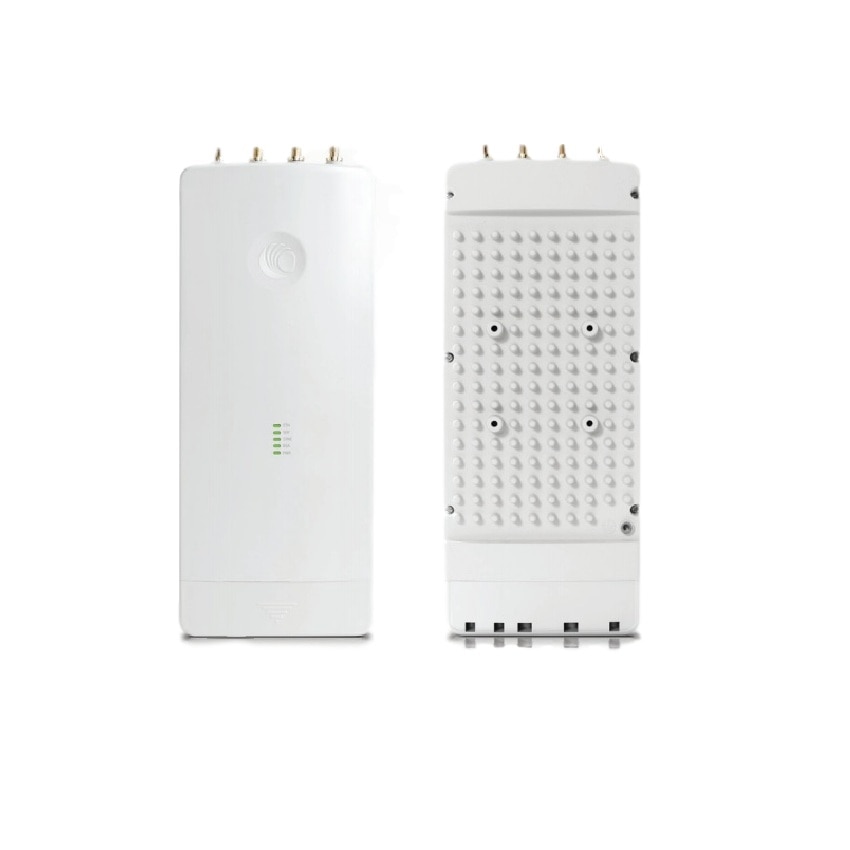

Cambium Networks C058910A102A

ePMP 3000 5GHz Connectorized MU-MIMO 4x4 Access Point with GPS Sync, FCC. US power cord

Cambium Networks' ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time. In addition, the ePMP 3000 continues interference mitigation techniques with support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and a 25 dBi and 16 dBi subscriber modules.

The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.



Key Advantages:

  • Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
  • Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
  • Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 2000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
  • Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.


Key Specifications:

  • MU-MIMO support with peak throughput of 1.2 Gbps
  • 256QAM-5/6, 80 MHz support
  • Supports a wide frequency range: 4910-5970 MHz
  • 802.3at compliant 100/1000BaseT interface
  • Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering
ePMP Capacity Planning Tool

Specifications

Specifications C058910A102A

Channel Spacing Configurable on 5 MHz increments
Frequency Range 4910 – 5980 MHz (exact frequencies as allowed by local regulations)
Channel Width 20 | 40 | 80 MHz
INTERFACE
MAC (Media Access Control) Layer Cambium Proprietary
Physical Layer 4X4 MUMIMO/OFDM
Ethernet Interfaced 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port
Powering Methods Supported 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter
Protocols Used IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
PERFORMANCE
Subscribers per Sector Up to 120
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel MCS 0 , -92 MCS 8 supported by Wi-Fi -68
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0, -89 MCS9, -64
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0, -86, MCS9 - 61
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS 9 (256 QAM 5/6)
GPS Synchronization Yes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna)
Quality of Service Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support*
DSO* Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel
Fast DFS* Change to alternate radar free channel with background availability check
LINK BUDGET
Antenna Sector Antenna (C050910D301A ) Available
Transmit Power Range 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval)
PHYSICAL
Sector Antenna Connection 4 x 50 ohm, RP (Reverse Polarity) SMA
Beamforming Antenna Connection 2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
GPS Antenna Connection 1 x 50 ohm, RP (Reverse Polarity) SMA
Surge Suppression 1 Joule Integrated. C000000L033A - 56V Gigabit surge suppressor recommended for optimal surge protection
Environmental IP55
Temperature -30°C to +55°C (-22°F to +131°F)
Power Consumption 25 W Maximum 1
Input Voltage 44 V to 59 V
Weight 0.7 kg (1.5 lbs) without brackets
Dimensions (L x W x H) 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets
SECURITY
Encryption 128 bit AES (CCMP mode)
CERTIFICATIONS
FCCID Z8H-89FT0024**
INDUSTRY CANADA 109W-0024**
CE EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
