Cambium 6 GHz 450v 4x4 SM – Radio Only 6 GHz 450v 4x4 SM – Radio Only 4-pack priced per unit

(0)No Reviews yet
  • SKU: C060045C401A
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
116 in stock
College Station
116 In stock

Product Information

Cambium Networks C060045C401A

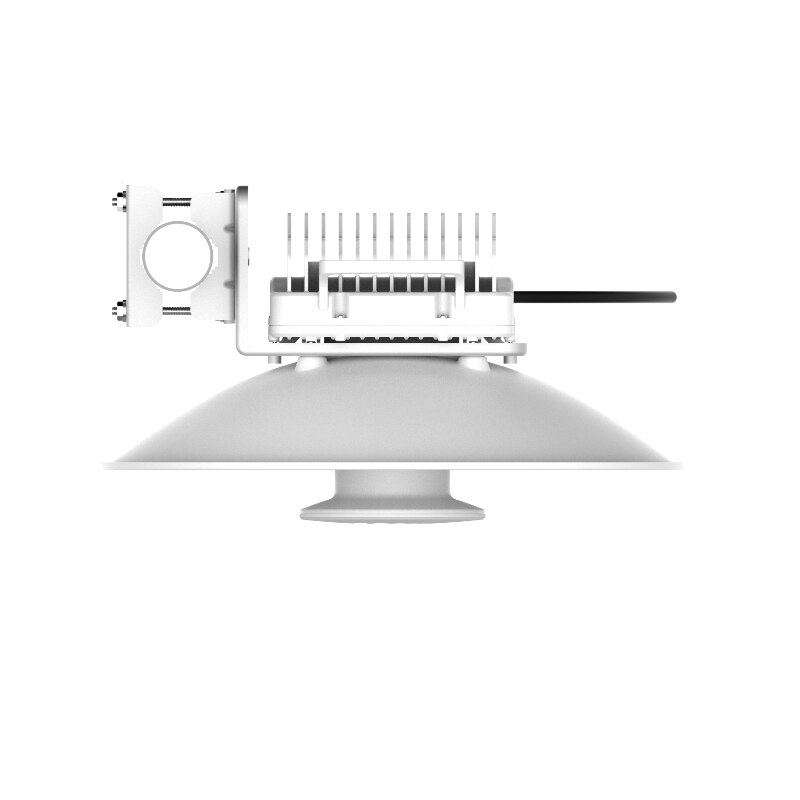

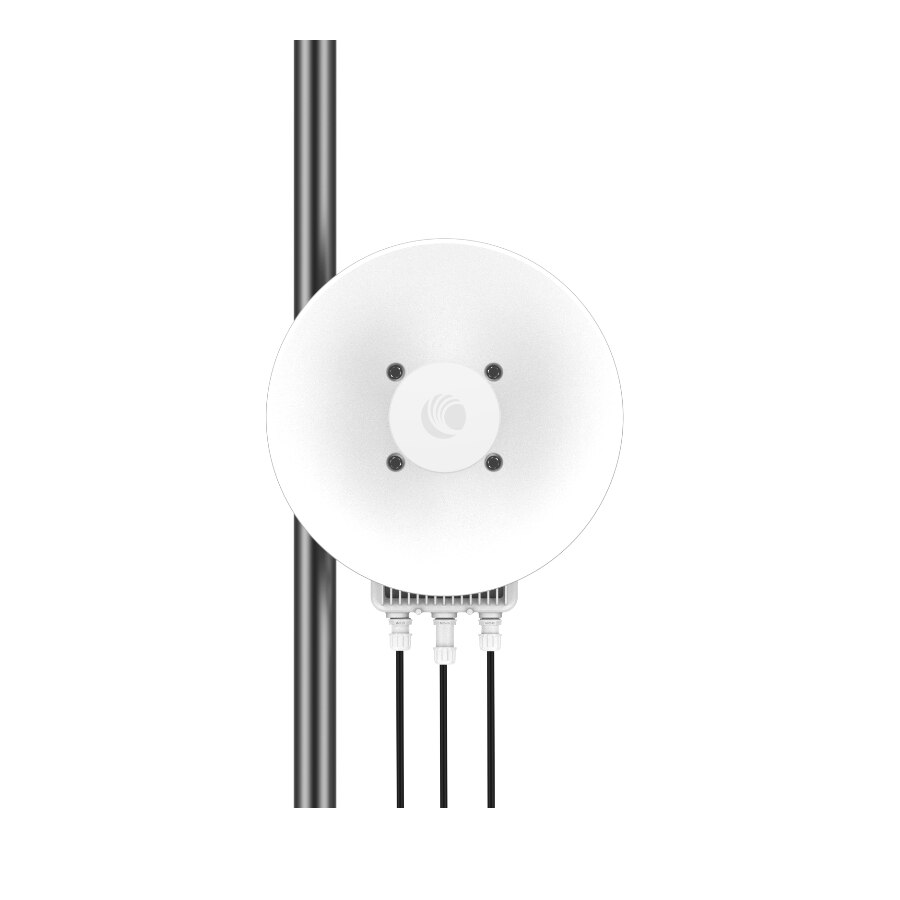

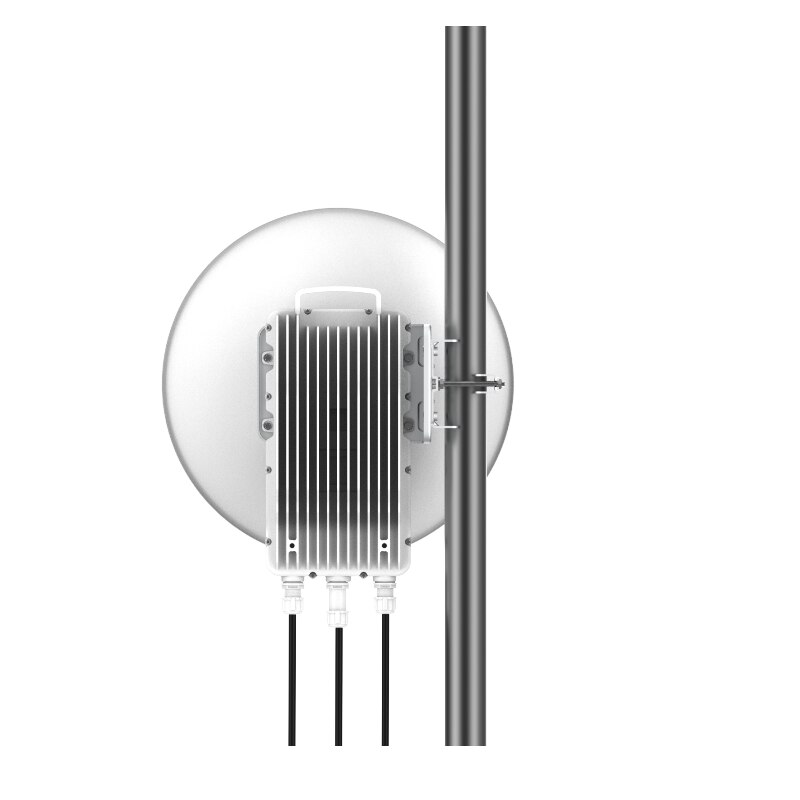

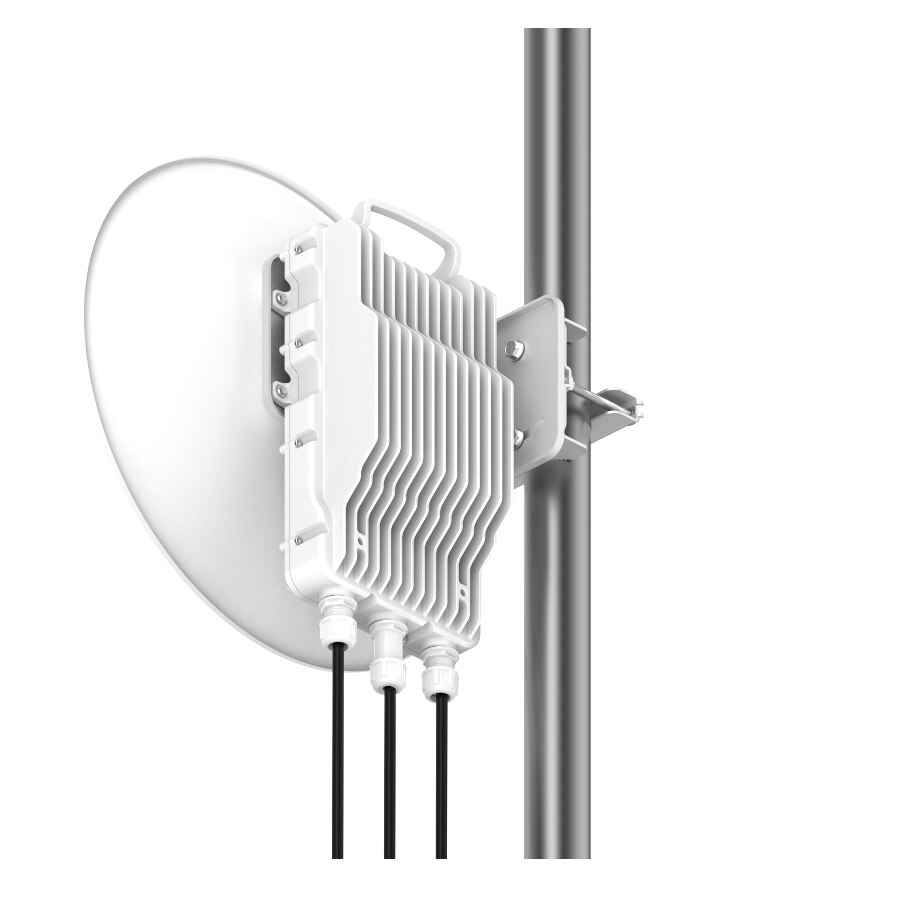

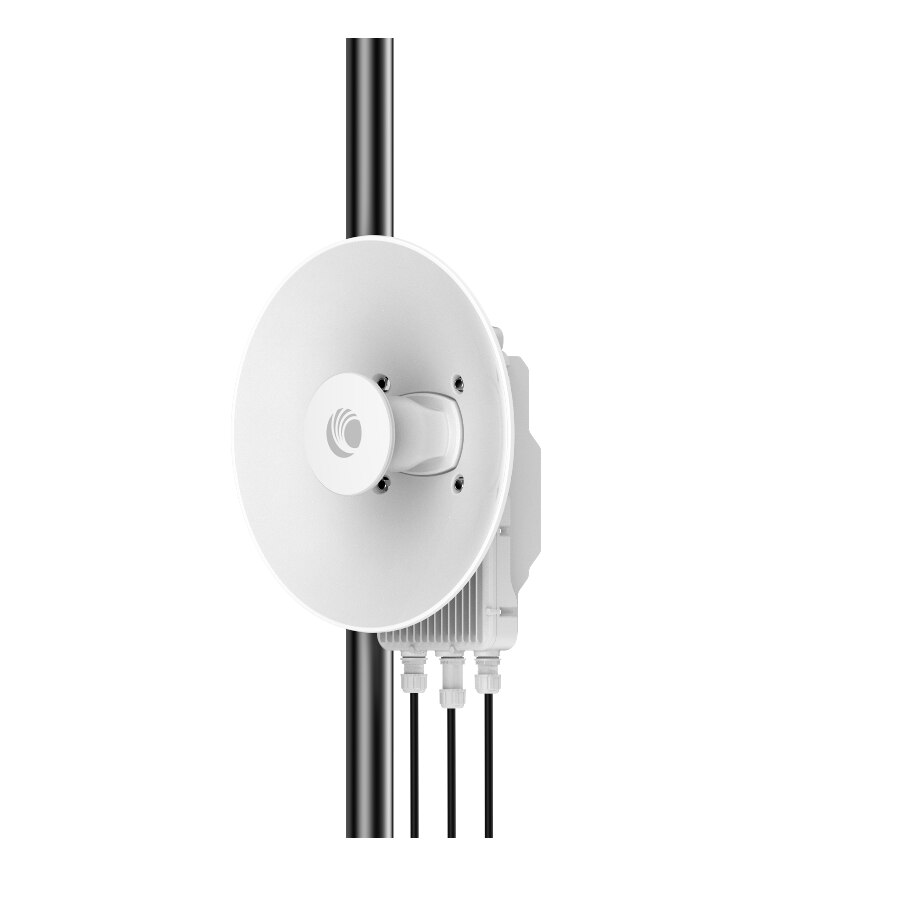

PMP450v 6GHz SM, 450v 4x4 Connectorized Subscriber Module or PTP Backhaul - Radio Only 6 GHz 450v 4x4 SM – Radio Only 4-pack priced per unit

Deliver higher performance to business and residential locations. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth.

Features:

  • Operates from 5.15 to 7.125 GHz
  • 4x4 MIMO Subscriber Module
  • Can be deployed as Point-to-Point (PTP) backhaul link
  • 5 GHz to 7 GHz support in same hardware
  • Easily stock and maintain a single SKU
  • Ultra-Wide-band support (up to 2x100 MHz channels)
  • Achieve a total capacity increase with more bandwidth to offer
  • Achieve flexibility in spectrum usage using with 5 GHz or 6 GHz frequency bands

Specifications

Specifications

Channel SpacingConfigurable on 2.5 MHz increments
Frequency Range5.150 GHz - 7.125 GHz
Channel Bandwidths5, 10, 15, 20, 30, 40, 50*, 80, 100*, 120*, 150*, 160*, 200*
MAC (Media Access Control) LayerCambium Networks proprietary
Physical Layer2x2 MIMO OFDM
Ethernet Interface100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant)
Protocols UsedIPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP
Network ManagementIPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro
MTU1700 bytes
VLAN802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
Ultimate Sensitivity-94 dBm
Maximum Deployment RangeUp to 40 miles (64 km), in PMP mode, up to 124 miles (200 km) in PTP mode
Latency3-5 ms, typical
GPS SynchronizationYes, via embedded GPS
Quality of ServiceDiffserve QoS
Integrated Antenna Peak Gain22 dBi @ 5 GHz, 24 dBi @ 6 GHz
3 dB Beamwidth - Azimuth
3 dB Beamwidth - Elevation
PolarizationDual Linear, H+V
Front-to-Back Isolation> 30 dB (> 25 dB at sector edge)
Cross Polarization15 dB
VSWR< 2
Maximum Transmit Power+28 dBm (MIMO, Combined H+V) for 5 GHz, +20 dBm for 6 GHz
Maximum EIRP+50 dBm combined output (may be limited by regulations) for 5 GHz, +44 dBm for 6 GHz
Power ControlATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC
Physical
Antenna ConnectionN/A - Integrated Dish antenna
Surge SuppressionEN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air
Recommended external surge suppressor: Cambium Networks Model # C000000L033A
Mean Time Between Failure> 40 Years
Dust and Water Ingress Protection RatingIP67, IP66
Temperature / Humidity-40°C to +60°C (-40°F to +140°F), 0-100% condensing
Weight4.5 kg (9.9 lbs), 6.5 kg (14.3 lbs) with bracket
Wind Survival200 kph (124 mph)
VibrationNEMA TS2 Section 2.1.9 and Section 2.2.3
ShockNEMA TS2 Section 2.1.10 and Section 2.2.4
External IcingNEMA 250-2003 Section 5.6
Dimensions (Dia x Depth)462 mm (diameter) x 264 mm (18.1" diameter x 10.4" depth)
Power Consumption45W Typical, 55W Max
Input Voltage48-59 VDC, 802.3bt type 4 class 8 (also accepting passive PoE)
Security
EncryptionFIPS-197 128-bit AES,
256-bit AES (Requires Optional License)
Certifications
ISED Canada109W-0082
FCC IDZ8H89FT0082
CEEN 301 893 V2.1.1, EN 302 502 V2.1.1
