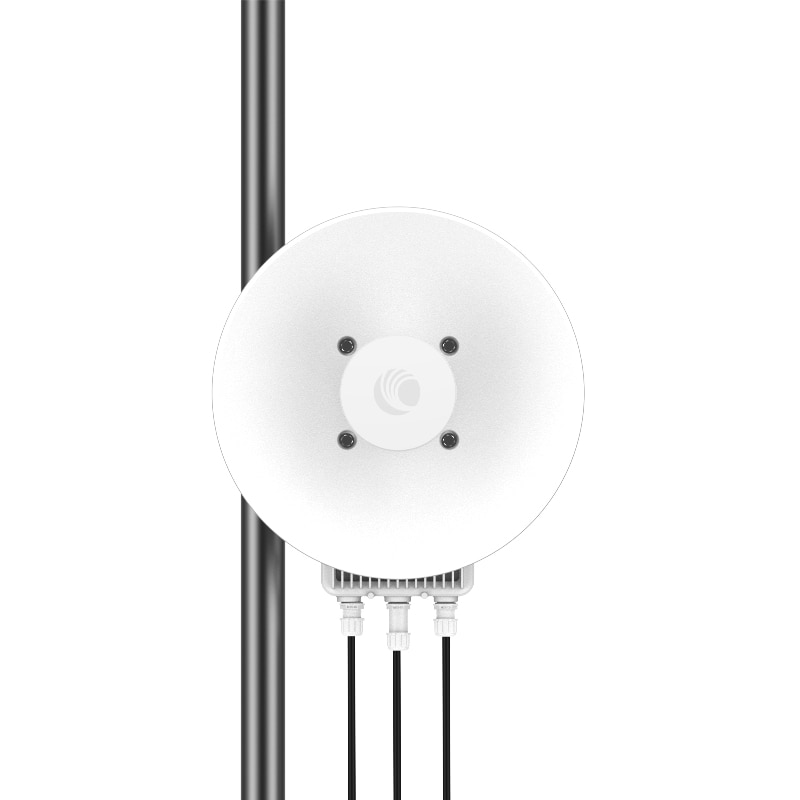

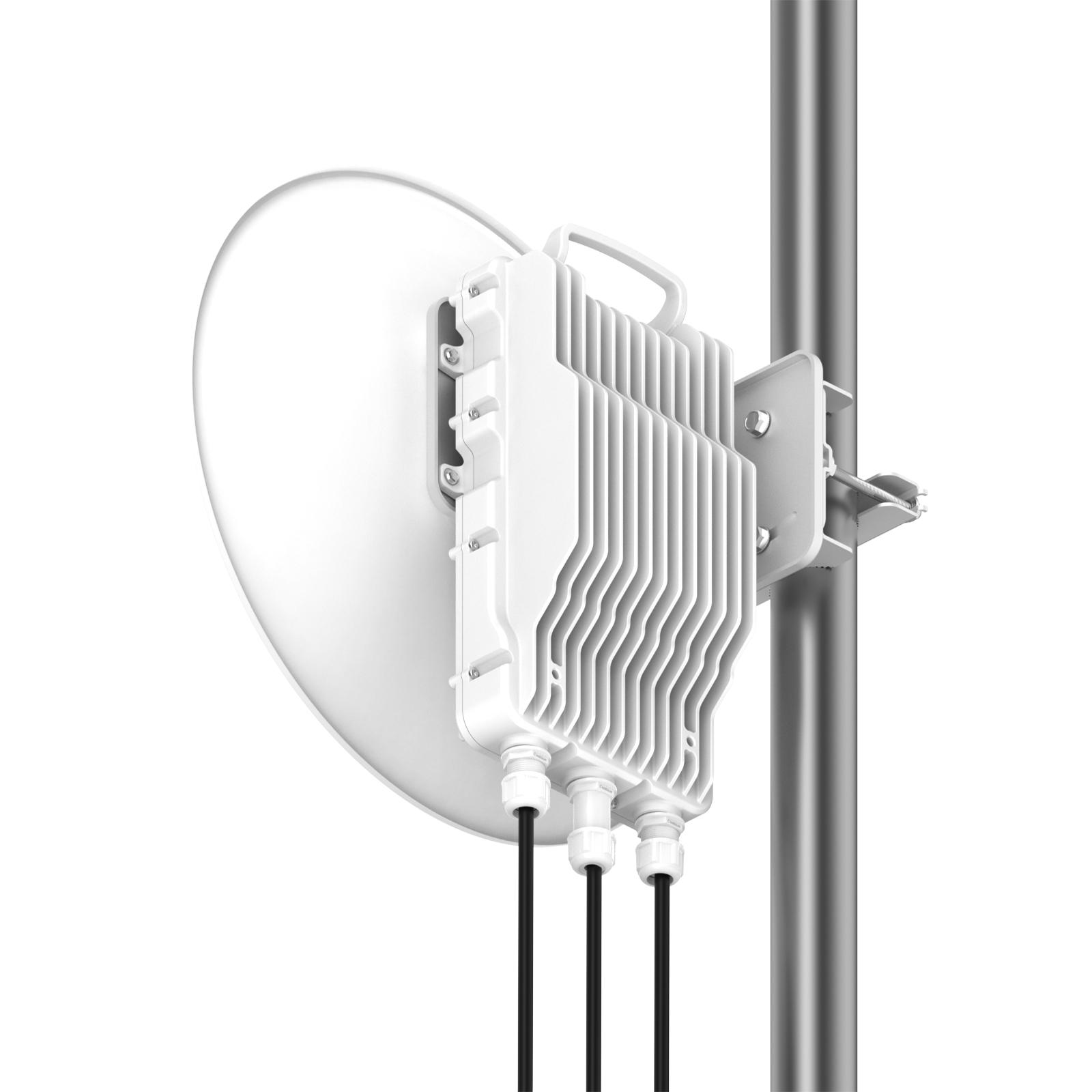

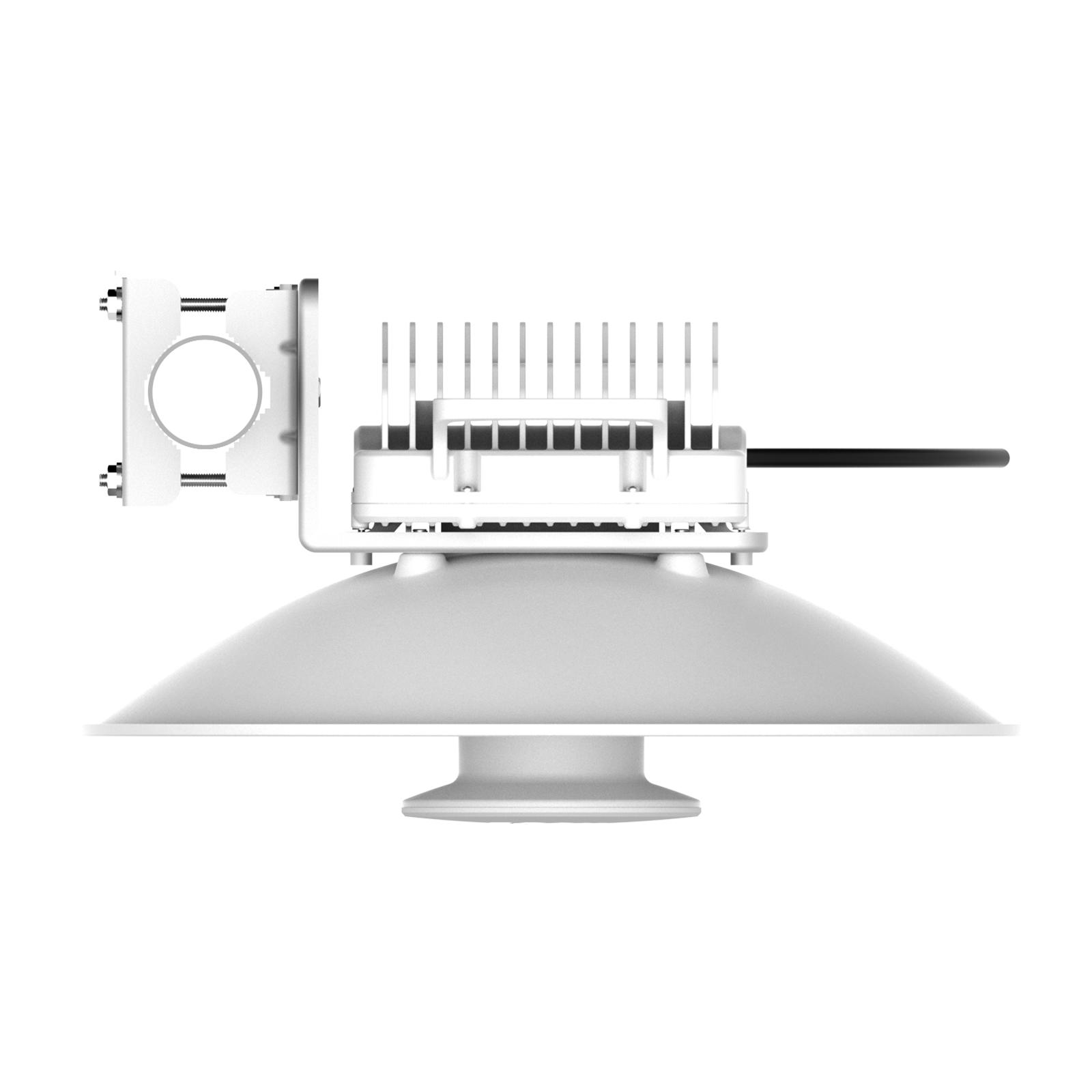

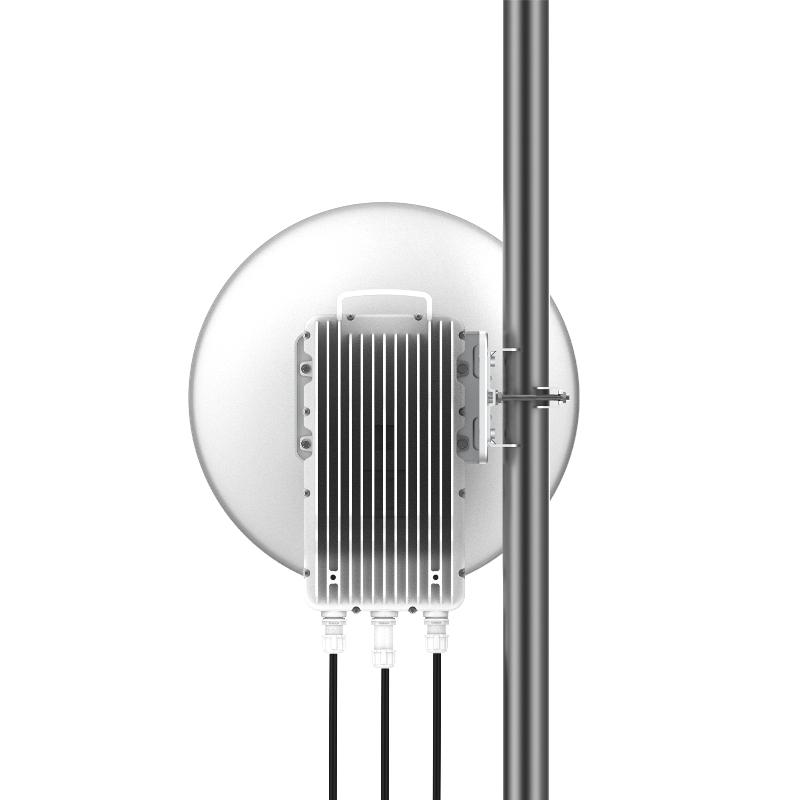

Cambium 6 GHz 450v 4x4 BH-SM Mechanical Dish Assembly, 4-pack, priced per unit
US$122.00
- SKU: N060045D401A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks N060045D401A
Cambium 6 GHz 450v 4x4 BH-SM Mechanical Dish Assembly, 4-pack, priced per unit
Deliver higher performance to business and residential locations. Reduce churn and remain competitive by offering enhanced service plans by providing more bandwidth.
Features:
- Operates from 5.15 to 7.125 GHz
- 4x4 MIMO Subscriber Module
- Can be deployed as Point-to-Point (PTP) backhaul link
- 5 GHz to 7 GHz support in same hardware
- Easily stock and maintain a single SKU
- Ultra-Wide-band support (up to 2x100 MHz channels)
- Achieve a total capacity increase with more bandwidth to offer
- Achieve flexibility in spectrum usage using with 5 GHz or 6 GHz frequency bands
Specifications
Specifications
| Channel Spacing | Configurable on 2.5 MHz increments |
| Frequency Range | 5.150 GHz - 7.125 GHz |
| Channel Bandwidths | 5, 10, 15, 20, 30, 40, 50*, 80, 100*, 120*, 150*, 160*, 200* |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant) |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 40 miles (64 km), in PMP mode, up to 124 miles (200 km) in PTP mode |
| Latency | 3-5 ms, typical |
| GPS Synchronization | Yes, via embedded GPS |
| Quality of Service | Diffserve QoS |
| Integrated Antenna Peak Gain | 22 dBi @ 5 GHz, 24 dBi @ 6 GHz |
| 3 dB Beamwidth - Azimuth | 7° |
| 3 dB Beamwidth - Elevation | 7° |
| Polarization | Dual Linear, H+V |
| Front-to-Back Isolation | > 30 dB (> 25 dB at sector edge) |
| Cross Polarization | 15 dB |
| VSWR | < 2 |
| Maximum Transmit Power | +28 dBm (MIMO, Combined H+V) for 5 GHz, +20 dBm for 6 GHz |
| Maximum EIRP | +50 dBm combined output (may be limited by regulations) for 5 GHz, +44 dBm for 6 GHz |
| Power Control | ATPC (Automatic Transmit Power Control) at system level, all Subscribers implement ATPC |
| Physical | |
| Antenna Connection | N/A - Integrated Dish antenna |
| Surge Suppression | EN 61000-4-5: 10x700 μs, 6 kV, EN 61000-4-2: ESD 8 kV contact / 15 kV air |
| Recommended external surge suppressor: Cambium Networks Model # C000000L033A | |
| Mean Time Between Failure | > 40 Years |
| Dust and Water Ingress Protection Rating | IP67, IP66 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-100% condensing |
| Wind Survival | 200 kph (124 mph) |
| Vibration | NEMA TS2 Section 2.1.9 and Section 2.2.3 |
| Shock | NEMA TS2 Section 2.1.10 and Section 2.2.4 |
| External Icing | NEMA 250-2003 Section 5.6 |
| Dimensions (Dia x Depth) | 462 mm (diameter) x 264 mm (18.1" diameter x 10.4" depth) |
| Power Consumption | 45W Typical, 55W Max |
| Input Voltage | 48-59 VDC, 802.3bt type 4 class 8 (also accepting passive PoE) |
| Security | |
| Encryption | FIPS-197 128-bit AES, |
| 256-bit AES (Requires Optional License) | |
| Certifications | |
| ISED Canada | 109W-0082 |
| FCC ID | Z8H89FT0082 |
| CE | EN 301 893 V2.1.1, EN 302 502 V2.1.1 |
