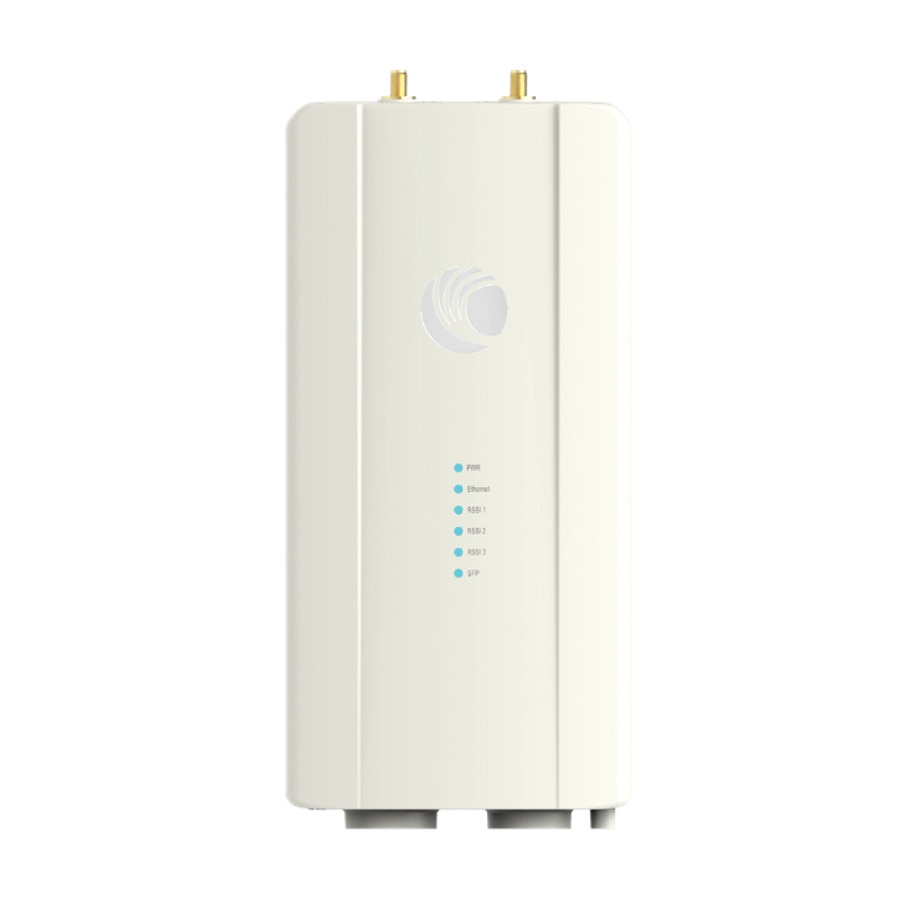

Cambium ePMP 6 GHz Force 4600C Subscriber Module Radio (FCC/IC) (US Cord) (COO - Vietnam)
- SKU: C068940C122C
$569.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks C068940C122C
ePMP 6 GHz Force 4600C Subscriber Module Radio (FCC/IC) (US Cord) (COO - Vietnam)
GPS receiver is included
- Broad selection of high-performance subscriber modules (SM) for point-to-point (PTP) and point-to-multipoint (PMP) fixed wireless broadband applications
- Gbps capacity leveraging 160 MHz channels and 802.11ax technology
- SM in PMP applications interoperates with ePMP 4600 Access Points
- 3-year hardware warranty
Service providers face ever-increasing demand for capacity in a limited amount of spectrum. The Force 4600 series of subscriber modules (SM) meets this demand offering high performance and low latency across both PMP and PTP deployments.
The Force 4600 Series of SM's is available in two form factors: connectorized with 2 x RP-SMA connectors and integrated with a 25 dBi dish antenna. Both models include the following:
- High capacity and latencies less than 5 ms when using ePTP technology
- Proven air interface on top of 802.11ax technology
- Interoperability with the ePMP 4600 Series Access Points
- Force 4600C provides 2 Gbps capacity in point-to-point applications meeting the requirements of enterprise, industrial, government and service provider users
- Management by Cambium Networks cnMaestro[tm] element management system for easy provisioning, monitoring and upgrades
- Network planning with LINKPlanner and cnHeat
- 3-year hardware warranty and support from Cambium Networks
- Each SM comes with a Power over Ethernet injector and pole mount hardware included
Specifications
Specifications C068940C122C
| Weight | 3.5 lbs |
| Dimension | 14" x 7" x 4" |
| HTS Code | 8517.62.0090 |
| COO | Vietnam |
| Available Models | Force 4600C |
| Channel Width MHz | 20 | 40 | 80 | 160 MHz |
| Proprietary Physical Layer | ePMP air interface with 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Force 4600C: 5725–7125 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, rate auto negotiated, 802.3at compliant; 4600C has SFP+ port |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTP/HTTPS, SNMPv1/2, SNMPv3, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -92 dBm to MCS 13 (4096 QAM-5/6) = -53 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -89 dBm to MCS 13 (4096 QAM-5/6) = -50 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -86 dBm to MCS 13 (4096 QAM-5/6) = -47 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @160 MHz Channel | MCS 0 = -83 dBm to MCS 13 (4096 QAM-5/6) = -44 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 13 (4096 QAM-5/6) |
| Geolocation | Integrated GPS with antenna puck |
| Transmit Power Range | +3 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Quality of Service (QoS) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support |
| Physical | |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 28W |
| Input Voltage | 44V–59V |
| Antenna | External Dish, PN# 2 x 50 ohm, RP SMA (Reverse Polarity) |
| GPS Antenna Connection | 1 x 50 ohm, SMA; external GPS; GPS Puck Antenna: Part # N000900L030A Included |
| FCCID | Z8H89FT0069 |
| FCC Regulatory Part # | C068940P151A |
| ETSI Regulatory Part # | C060940P051A |
| Industry Canada Cert | 109W-0069 |
