Cyclone Timing Unit CTM5 56V Power & Sync Injector UL
- SKU: CTM-5-56V
US$717.80
- Manufacturer: Cyclone
- Data Sheet: Download
Product Information

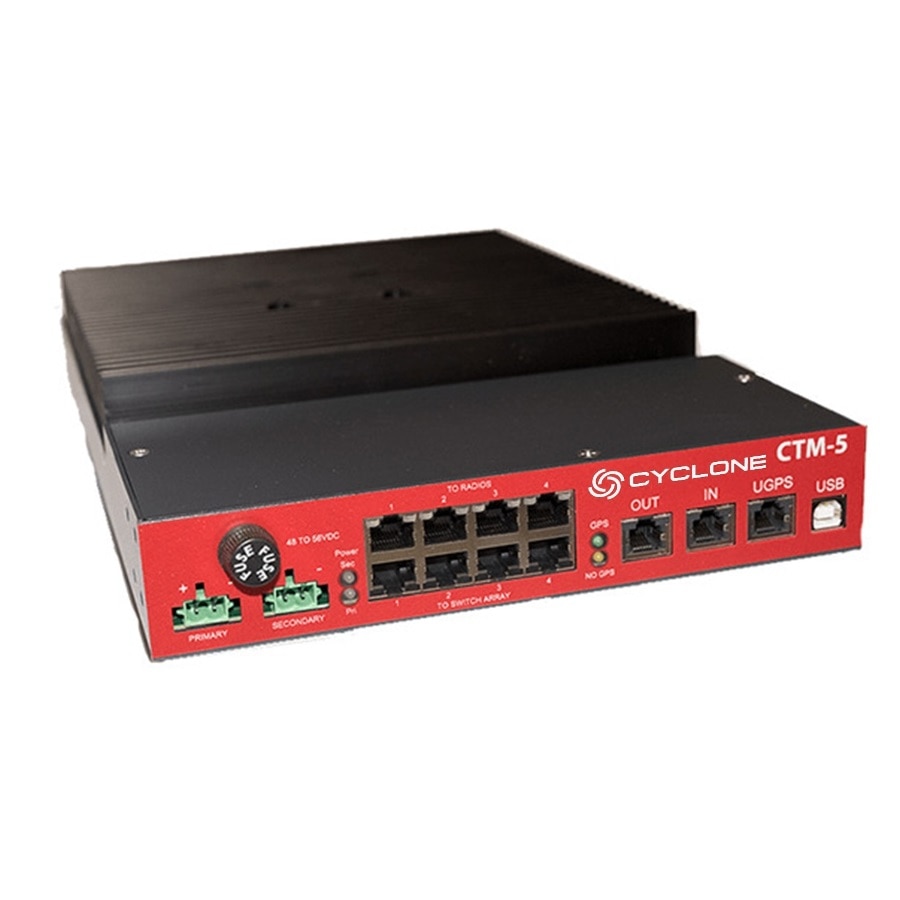

Cyclone CTM-5-56V
Timing Unit CTM5 56V Power & Sync Injector UL
The Cyclone CTM-5 is the affordable solution for anyone looking to optimize the circulation of their TDD Synchronization signals, power over ethernet and overall network. The CTM-5 has a modular design that features 5 individual port power injectors. You can also use the controller for remote management. The Cyclone-CTM5 Controller is a timing unit for the CTM-5 and can run up to 8 CTM-5s.
Features:
- Support for Gigabit Ethernet
- Modular and scalable from 4 ports to 32 ports
- Dual resilient power inputs
- Rack-mountable
- Secure remote management when used with the optional CTM-5 Controller Module
- Compatible with Cambium Networks Products
Specifications
Specifications CTM-5-56V
| Interface | • Four RJ-45 Gigabit Powered Output Ports “To Radios” • Four RJ-45 Gigabit Data Input Ports “To Switch Array” • One GPS timing port (RJ-12) – connection to uGPS • One CMM5 USB Serial port for local administration • One RJ-12 Daisy Chain port “IN” • One RJ-12 Daisy Chain port “OUT” • Two power input ports +/- 48 VDC |
| Power | |
| Input Voltage | + or - 48 VDC |
| Power Consumption | up to 400 watts (85% efficiency); 10A Fuse |
| Output Voltage | +55 VDC |
| Output Current | 0 - 1.8 A per channel |
| Output Power | 0 - 90 Watts per channel |
| Operating Temperature | -40° C to +55°C (-40° F to +131° F), 90% humidity, condensing |
| Weight | 6.6 lbs. (3 kg) |
| Dimensions | 8.85” W x 15.75” D x 2.25” H (225 mm x 400 mm x 57 mm) |
| Power Supply Options | N000000L101A – CMM5 600W Power Supply N000000L054B – CMM5 240W Power Supply |
