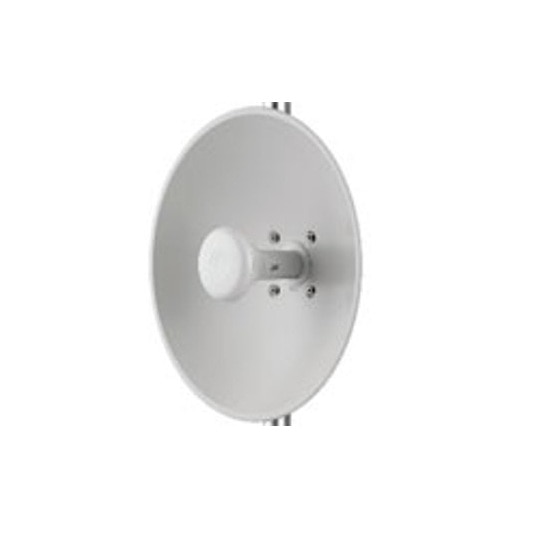

Cambium 5GHz 4-Pack High-Gain Antenna Assembly for PMP450b / PTP450b High-Gain Radios, IP55
US$121.59
Shipping surcharge: US$11.25
- SKU: N050045D002A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks N050045D002A
5GHz 4-Pack High-Gain Antenna Assembly for PMP450b / PTP450b High-Gain Radios, IP55
Cambium Networks 450 platform increases performance with the addition of the 450b Subscriber and Backhaul Module.
Features:
- Ultra-wide band radios support the entire band, from 4.9 to 5.925 GHz.
- Gigabit Ethernet Interface provides the maximum transfer rates to the device.
- 3.5 mm audio jack allows direct connection of headphones without any adapters.
- New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM.
- Capable of up to 300 Mbps aggregate in a 40 MHz channel.
- Backhaul radios can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM).
Specifications
Specifications N050045D002A
| Channel Spacing | Configurable on 0.5MHz increments |
| Frequency Range | 4900 to 5925MHz |
| Channel Width | 5 / 10 / 15 / 20 / 30 / 40MHz |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | HTTP, HTTPS, Telnet, FTP, SNMP v2 and v3 |
| VLAN | 802.1ad (DVLAN QinQ), 802.1Q with 802.1p priority, dynamic port VID |
| Encryption | 56-bit DES, FIPS-197 128-bit AES |
| PPS | 45,000 |
| ARQ | Yes |
| Ultimate Sensitivity | -94dBm |
| Maximum Deployment Range | Up to 40 miles (64km) |
| Latency | 3 to 5ms, typical |
| GPS Synchronization | Yes, synchronized by Access Point |
| Quality of Service | Diffserve QoS |
| Transmit Power Range | 22dB dynamic range (to EIRP limit by region) (1dB step) |
| Maximum Transmit Power | +27dBm combined output (+24dBm @ 256QAM) |
| Integrated Antenna Peak Gain | 24 dBi |
| 3dB Beamwidth (Azimuth) | 7° |
| 3dB Beamwidth (Elevation) | 7° |
| Polarization | Dual linear, H+V |
| Front-to-Back Isolation | >25dB |
| Cross Polarization | 15dB |
| Surge Suppression | EN61000-4-5: 1.2us/50ys, 500V voltage waveform |
| Mean Time Between Failure | 40 Years |
| Environmental | IP55 |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 0 to 95% non-condensing |
| Weight | 3.1 kg (7 lb.) (includes mounting bracket) |
| Wind Survival | 190km/hour (118mi/hour) |
| Dimensions (including mount) | 45 cm diameter x 28 cm (17.8” diameter x 11.2”) |
| Pole Diameter Range (w/ included mount) | 2.5 - 7.6 cm (1” to 3”) ± 20 degrees mechanical tilt |
| Power Consumption | 9W nominal, 12W peak |
| Input Voltage | 20 to 32VDC |
