Jirous JRMC-680 10-11GHz 36 dBi Parabolic Dish Antenna
- SKU: JRMC-680-10/11Ra NG
$549.00
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
Jirous JRMC-680-10/11-NG

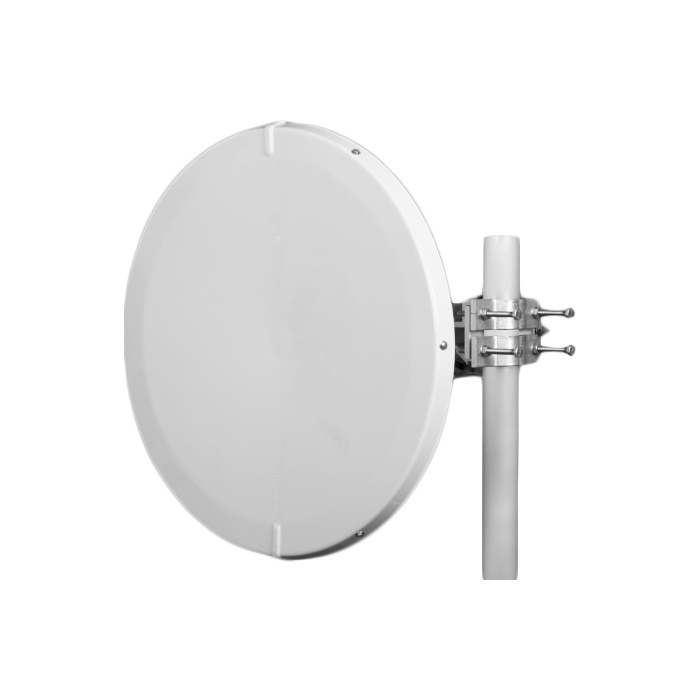

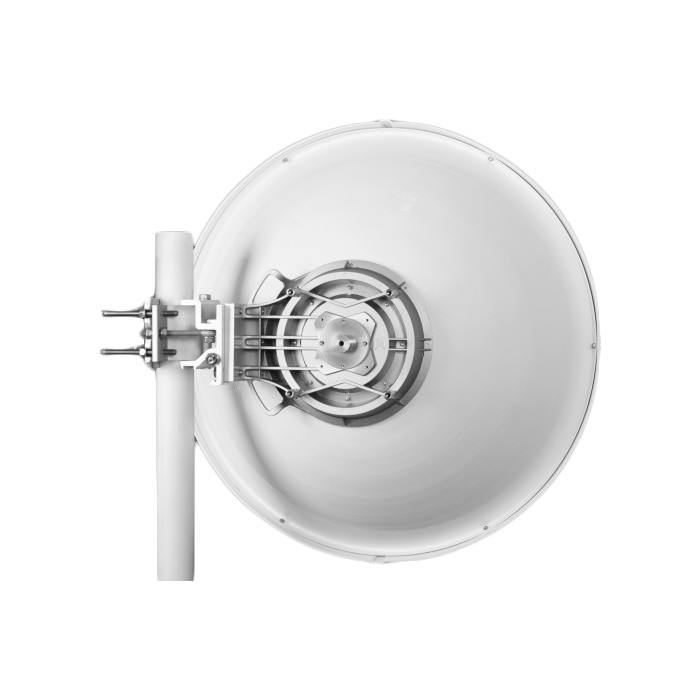

JRMC-680 10-11GHz 36 dBi Parabolic Dish Antenna
Antenna JRMC – 680 – 10/11 is designed for microwave links at the frequency band 10 and 11 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3.
Features:
- Deep parabola with great resistance to interference and high mechanical strength
- High neighboring links isolation
- Radom included

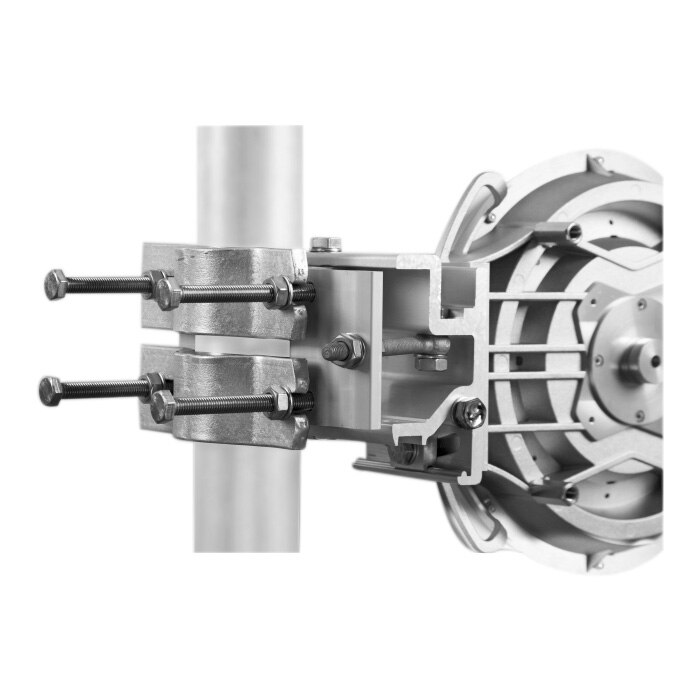

- Massive bracket JDMW-900 with accurate elevation and azimuth setting
- Right and left side mounting
- Extreme wind stability
Design for MW units:
- Mimosa
- Racom
- Alcoma
- Summit
- UBNT AF-11 - necessary to use JXAF-11 adapter
Specifications
Specifications JRMC-680-10/11-NG
| Frequency range | 310.0 - 12 GHz |
| Gain Low band | 334.1 ± 1 dBi |
| Gain High band | 336.0 ± 1 dBi |
| Beamwidth -3 dB | 33.0° ± 0.5° |
| Return loss | 3± 18 dB(10.3 - 11.7 GHz) |
| Front to back ratio | 3≥61 dB |
| FCC standard | 3US FCC Part 101A (10.0-10.7 GHz); US FCC part 101B (10.7 - 11.7 GHz) |
| ETSI EN 302-217-4-2 | 3Class 3 |
| Polarization | 3depends on the Unit installation; linear - horizontal and vertical |
| Parabola | 3ø 680 mm - Aluminium alloy, powder coated |
| Cover | 3UV steady plastic ABS |
| Conection | 3waveguide ø 19 mm |
| Installation on mast | 3ø 40 - 120 mm |
| Operating wind load | 3max. 180 km/h |
| Survival wind load | 3max. 240 km/h |
