Ubiquiti airFiberX 11GHz Full-Duplex No Duplexor
- SKU: AF-11
$999.00
Product Information
Ubiquiti Networks AF-11
airFiberX 11GHz Full-Duplex No Duplexor
Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing, by introducing the airFiber® AF‑11, a radio purpose-built for outdoor PtP bridging and carrier-class network backhauls using the licensed 11 GHz radio band.
The AF‑11 breaks free from the congested 5 GHz band to help meet the growing need for broadband capacity. For maximum flexibility, the airFiber AF‑11 works with the Ubiquiti® AF-11G35 antenna, or with most third-party antennas using an optional adapter kit (not included).
Features:
- 11 GHz, 300+ km link range
- 1.2+ Gbps throughput
- Distinct RX and TX frequencies
- 1+ Mpps processing
Specifications
Specifications AF-11

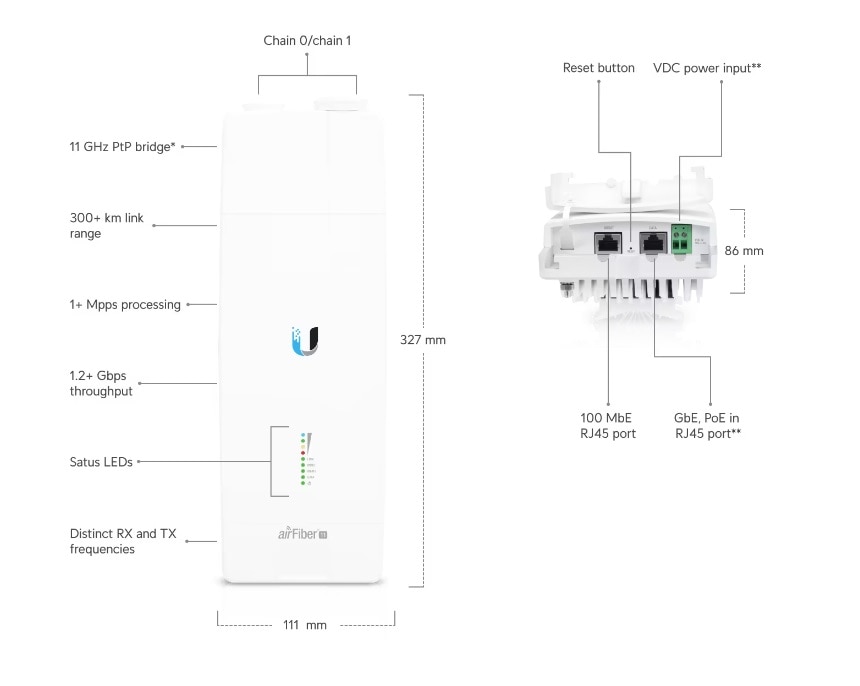

Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39") |
Weight | 2.260 kg (5 lb) |
RF Connectors | (4) SMA Weatherproof: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
Power Supply | 50VDC, 1.2A PoE Gigabit Adapter (Included) |
Power Method | Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block |
Max. Power Consumption | 36W |
Supported Voltage Range | 38-56VDC |
Automatic Transmit Power Control (ATPC) | Yes |
Mounting | Integrated Pole Mount Included Oversized Rocket Mount Compatible |
LEDs | (8) Status LEDs: Data Port Link/Activity Management Port Link/Activity MIMO Mode RF Link (4) Autoscaling Signal Strength Bar Graph |
Operating Temperature | -40 to 55° C (-40 to 131° F) |
Certifications | CE, FCC, IC |
Networking Interface | |

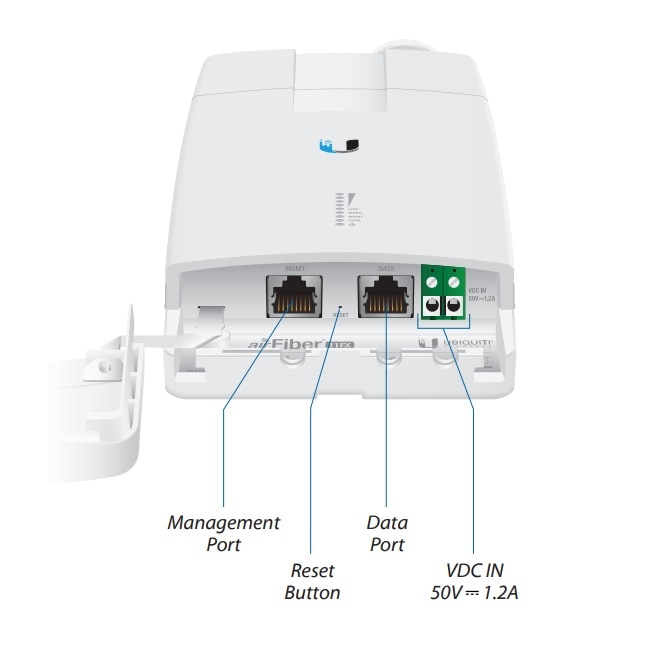

Data Port | (1) 10/100/1000 Ethernet Port |
Management Port | (1) 10/100 Ethernet Port |
System | |
Processor | INVICTUS 2 IC |
Maximum Throughput | 1.2+ Gbps1 |
Maximum Range | 300+ km1 |
Encryption | 128-bit AES |
OS | airOS® F |
Wireless Modes | SISO/MIMO |
Latency Full Duplex Mode | < 200 µs at Full Throughput |
MTU (Maximum Transmission Unit) | Up to 9600 |
Radio | |
Frequency Range | 10.7-11.7 GHz2 |
Max. Conducted TX Power | 30 dBm2 (Dependent on Regulatory Region) |
Frequency Accuracy | ± 2.0 ppm |
Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable3 |
