LightSaber Optics 6U Fixed Wall Mount Cabinet with Perforated Front & Side Panels,18-inches Deep | Black

  • SKU: LSO-6UID-18
  • Manufacturer: LightSaber
  • Data Sheet: Download
  • Availability: 9 In Stock    (updated live)
    9 In stock at College Station

Add-Ons (click to select)

LightSaber Optics LSO-6UID-18

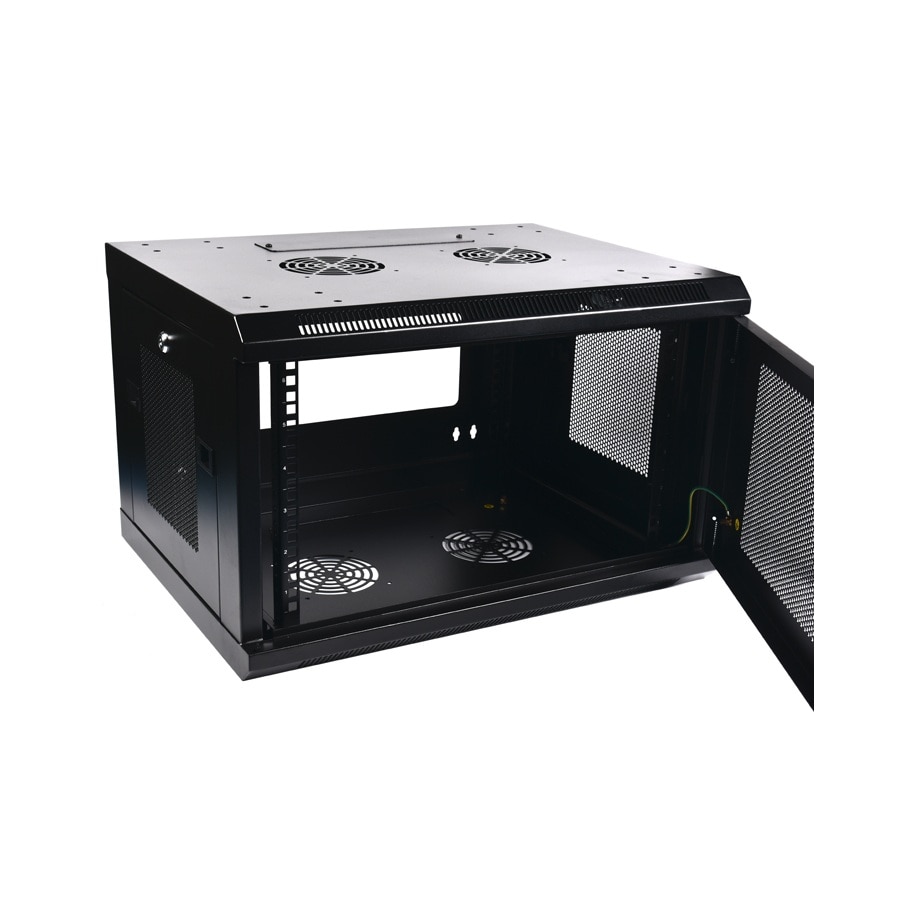

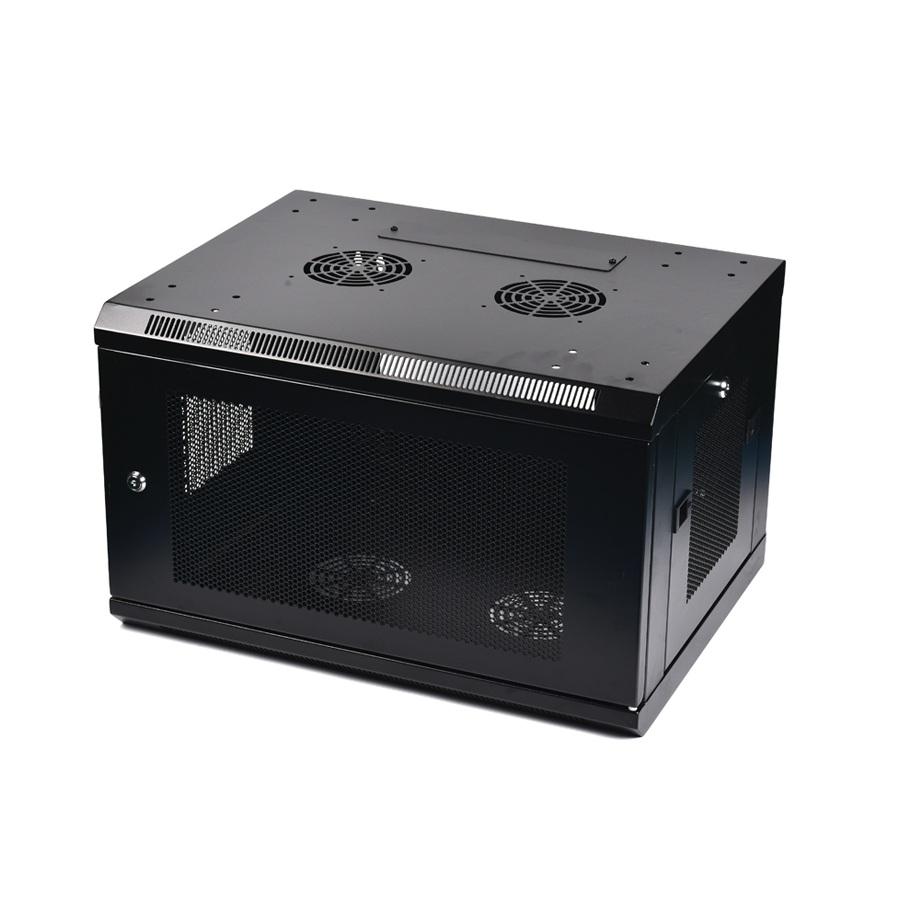

6U Fixed Wall Mount Cabinet with Perforated Front & Side Panels,18-inches Deep | Black

Wall-mount cabinet secures and organizes 6U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 16.5 inches deep.

The 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 100 pounds.

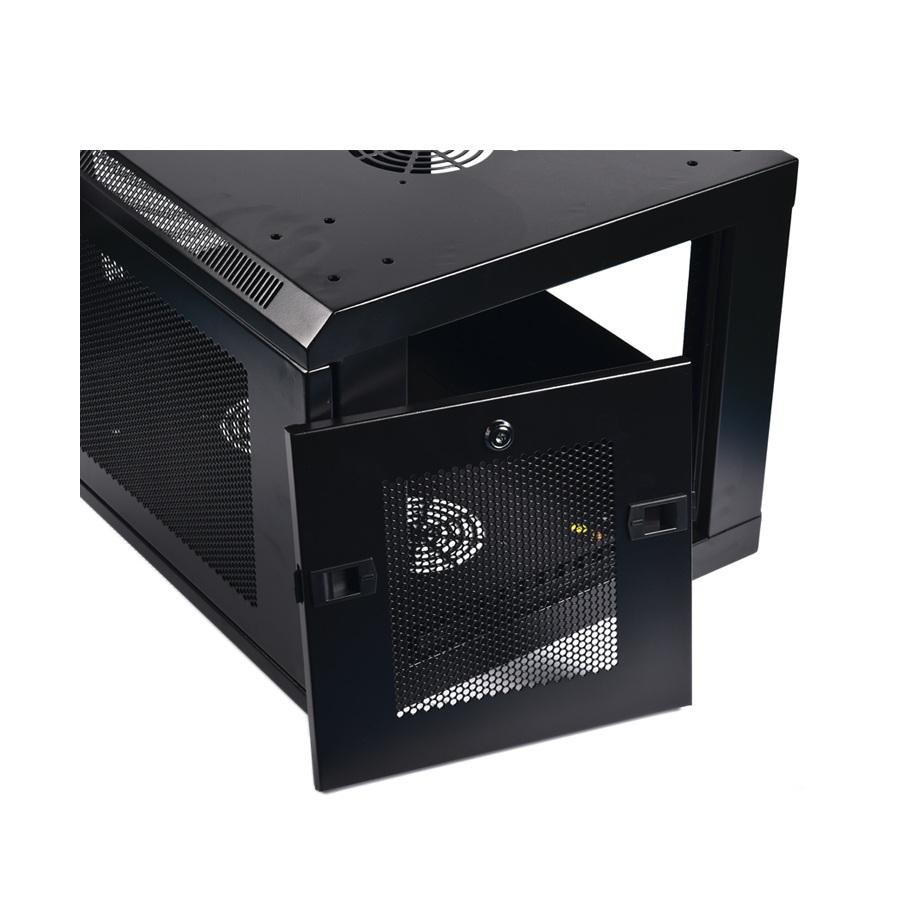

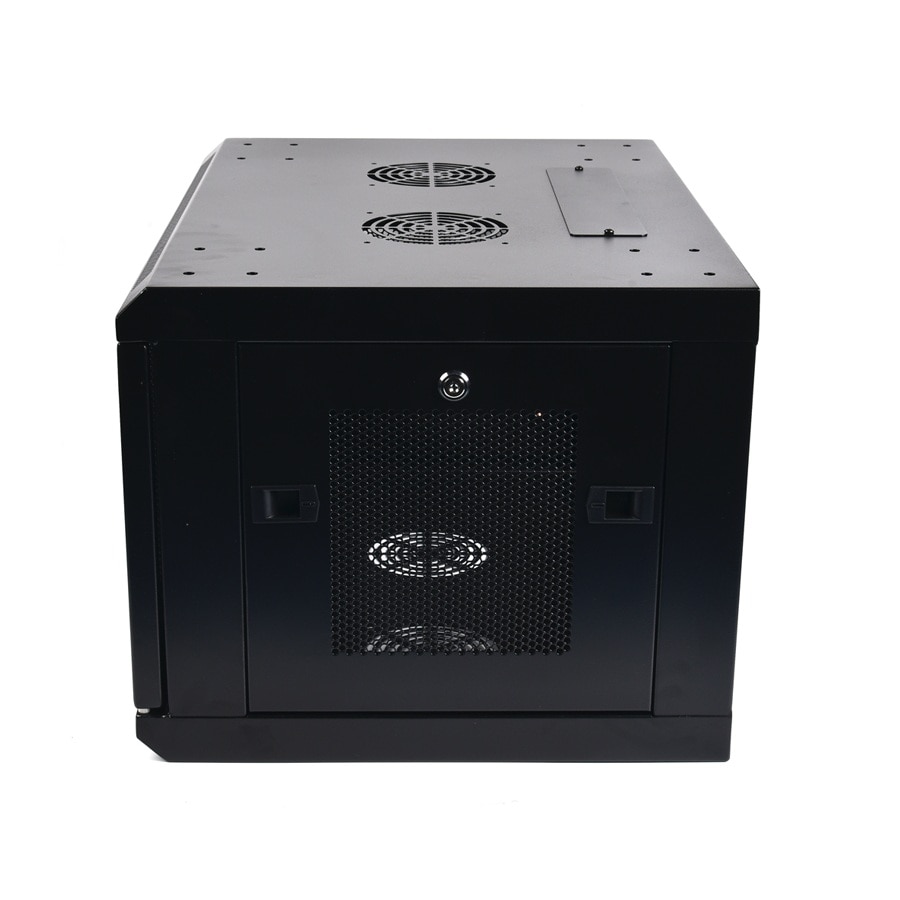

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The Wall Mount Enclosure comes fully assembled and ready to mount to the wall, or use optional rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment , such as network switches and patch panels.


  • Fully assembled
  • Secures 6U of 19 in. rack equipment up to 16.5 in. deep
  • Locking, reversible front perforated door and locking, removable side panels (perforated)
  • 6U with adjustable front vertical rackmount rails
  • Front door opening access
  • Grounding wires
  • Mounts to wall or rolls on floor(with optional casters kits)
  • Cable Entry hole with metal panel covered on the top and bottom
  • Cable entry hole on the back cabinet

Also comes with:

  • 2x L-shaped Equipment support bracket
  • 4 x Wall mounting explosure bolt
  • 12 x M6 cagenut
  • 2 x Keys

Specifications LSO-6UID-18

Model name LSO-6UID-18
Protection Glass NEMA 4X
Rack Unit Size 6U
Cabinet Type Wall-Mount Cabinet
Color Black RAL9005
Material Cold-rolled Steel
Unit Dimension(WxDxH) 23.62 x 17.71 x 14.57 inches
Unit Weight(lbs.) 29.75
Internal Depth (Front Rail to Back Door) 15.74 inches
Rail to Rail Depth 11.22 inches
Shipping Dimension(WxDxH) 25.6 x 19.69 x 16.34 inches
Shipping Weight(lbs.) 33.06
Cooling Optional
Safety CE
Approvals DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Product Warranty 1 Year
