  • LightSaber Optics 6RU 24" Wide x 18" Deep OUTDOOR POLE Mount Cabinet, NEMA 4X Rated|Grey

LightSaber Optics 6RU 24" Wide x 18" Deep OUTDOOR POLE Mount Cabinet, NEMA 4X Rated|Grey

(0)No Reviews yet
US$‎403.32 US$‎605.00
  • SKU: LSO-6UOD-600450PM
110 in stock
College Station
110 In stock

Product Information

LightSaber Optics LSO-6UOD-600450PM

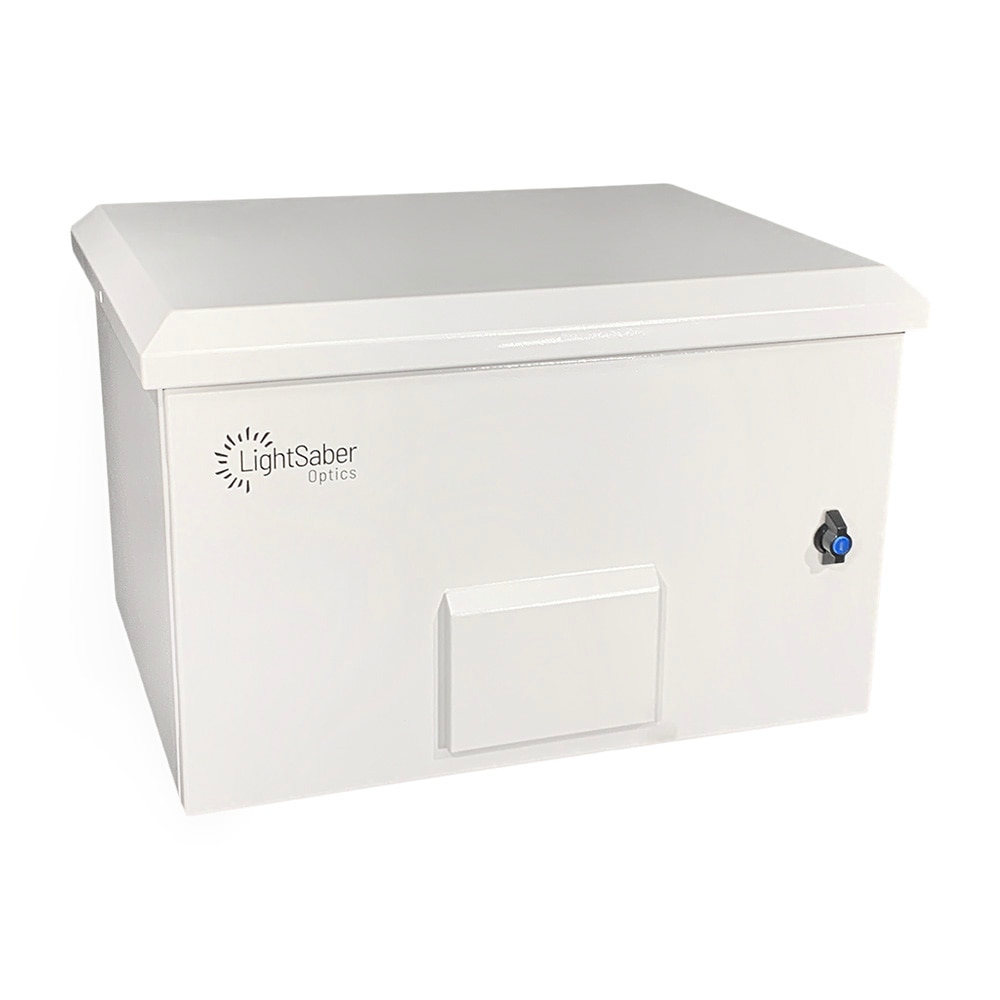

6RU 24" Wide x 18" Deep OUTDOOR POLE Mount Cabinet, NEMA 4X Rated|Grey

The 6U 16-INCH lockable outdoor wall mount server rack cabinets are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water. The cabinet design allows natural wind cooling through filtered vents on the front door. For added protection, there is a water and dust proof polyurethane door joint strip. they come in a variety of sizes with NEMA 4X rating for extra protection from the elements.

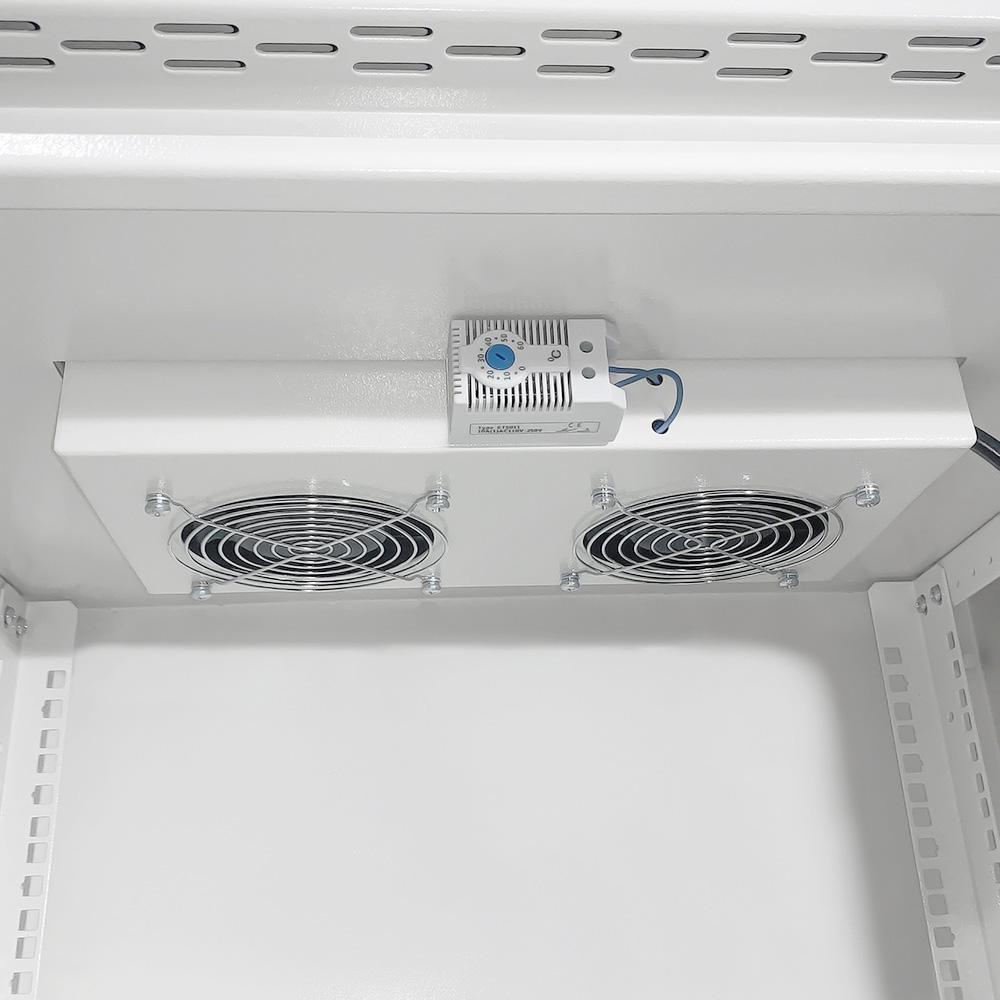

The outdoor server rack also has a dual fan kit included in the roof with a dust proof cover greater airflow/cooling. The fans are serviceable by lifting pivoting rain hood, and the front door dust filters are easily accessible for cleaning. All fixtures are internal to the cabinet to provide a secure solution.


Features:

  • Fully assembled
  • 6U equipment space,NEMA 4X Rated

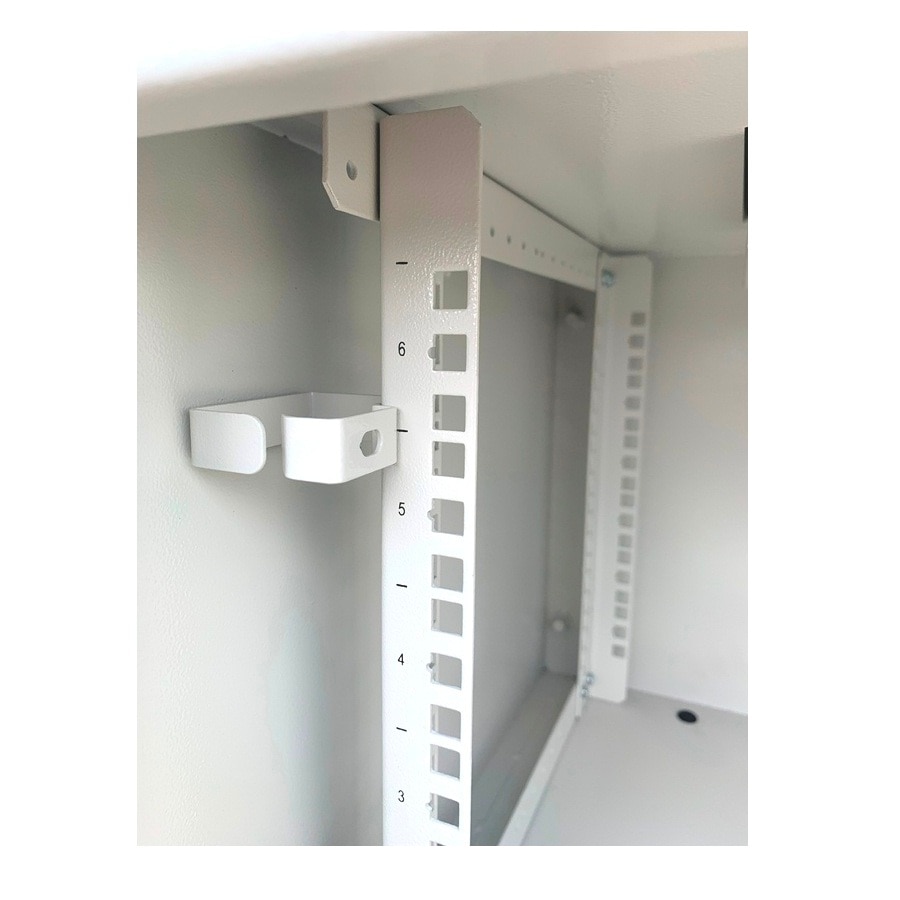

  • Reversible adjustable 19inch equipment rail, with cable rings included
  • AC110V 60Hz Cooling Fan Unit (2 pcs) on the top roof(with temperature controller)
  • Front door opening access
  • Grounding wires
  • Cable entry holes with grommet on the bottom

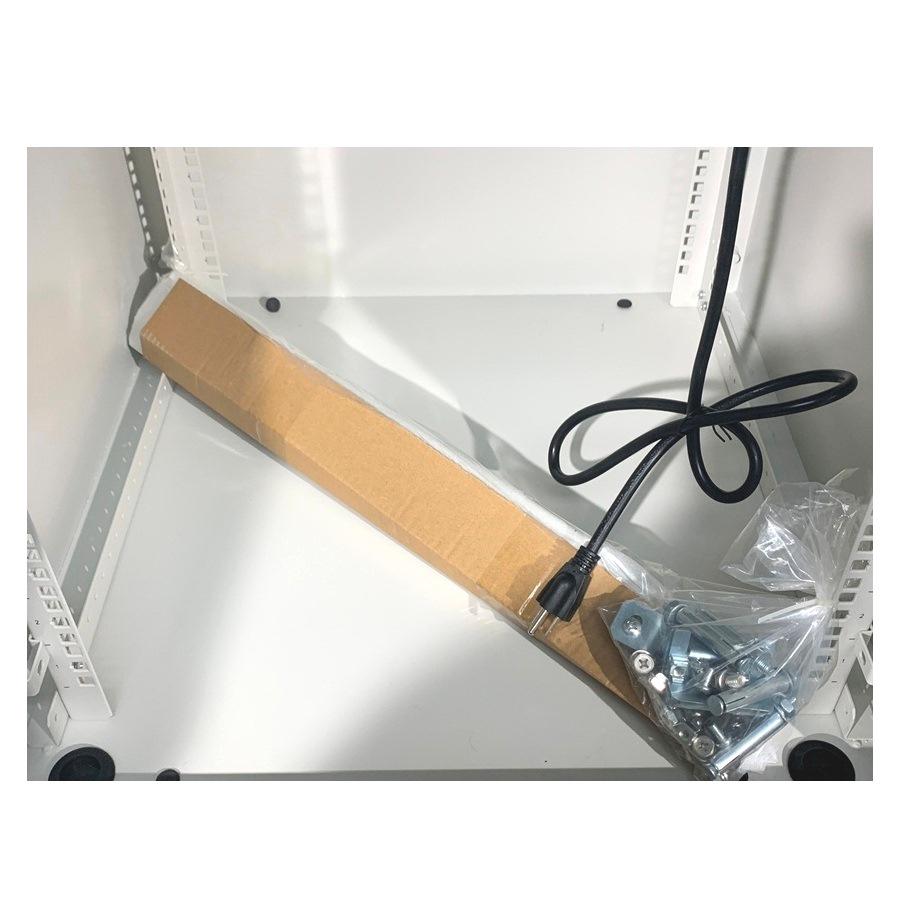

Also comes with:

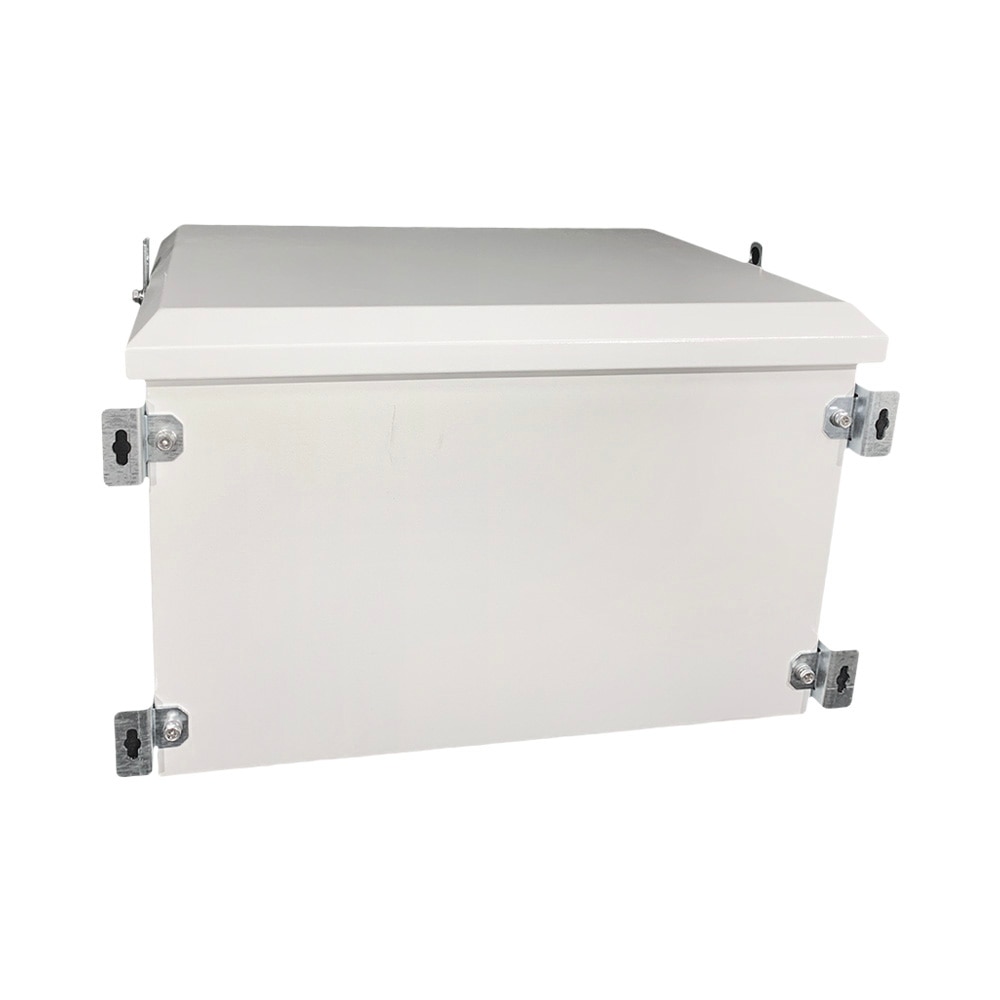

  • 4 x wall mount bracket(includes mounting hardware)

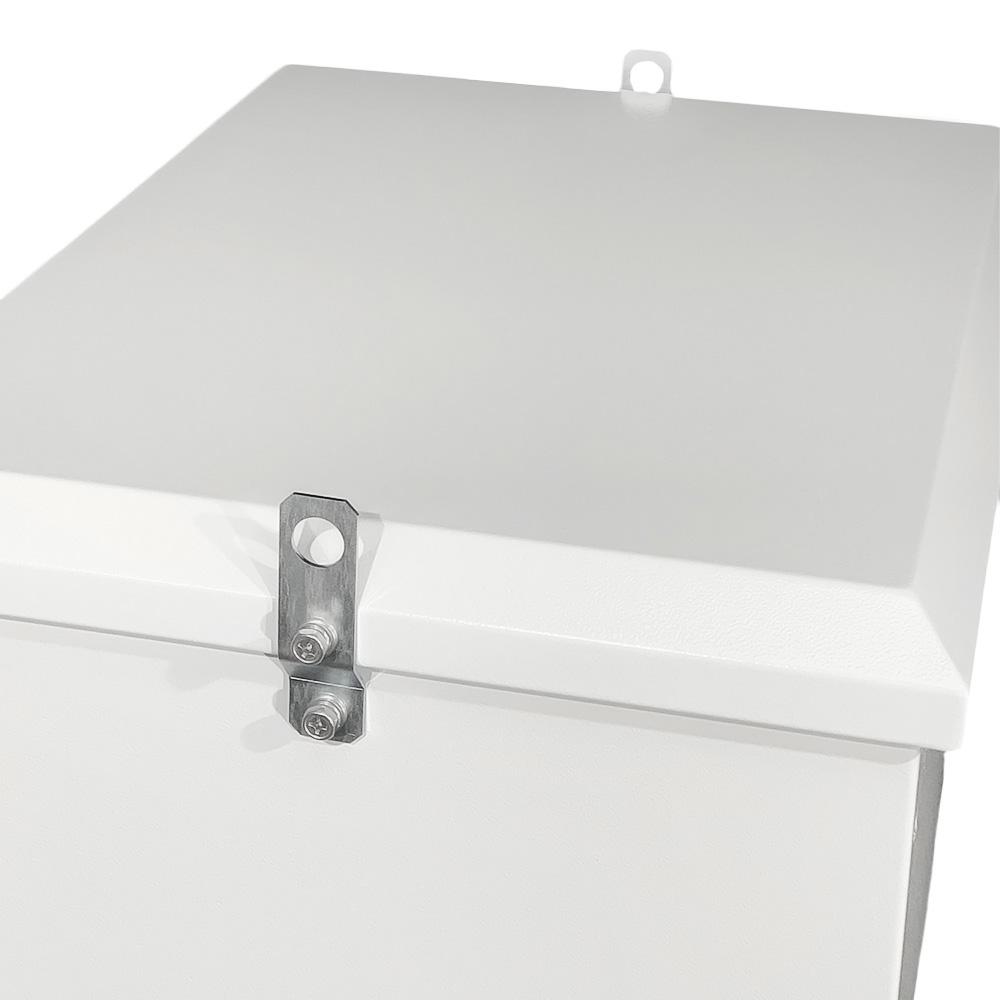

  • 2 x side lifting bracket (includes mounting hardware)

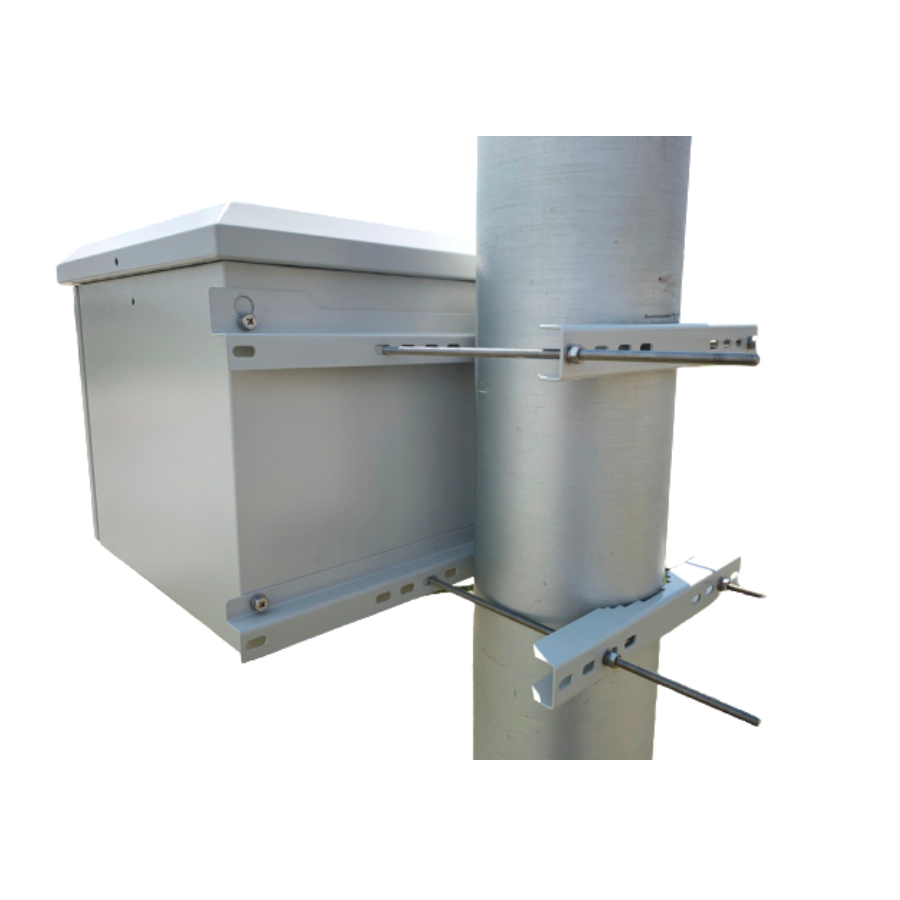

  • 1 x pole mount bracket kits (includes mounting hardware)
  • 10 x M6 cagenuts
  • 2 x Keys

Physical:

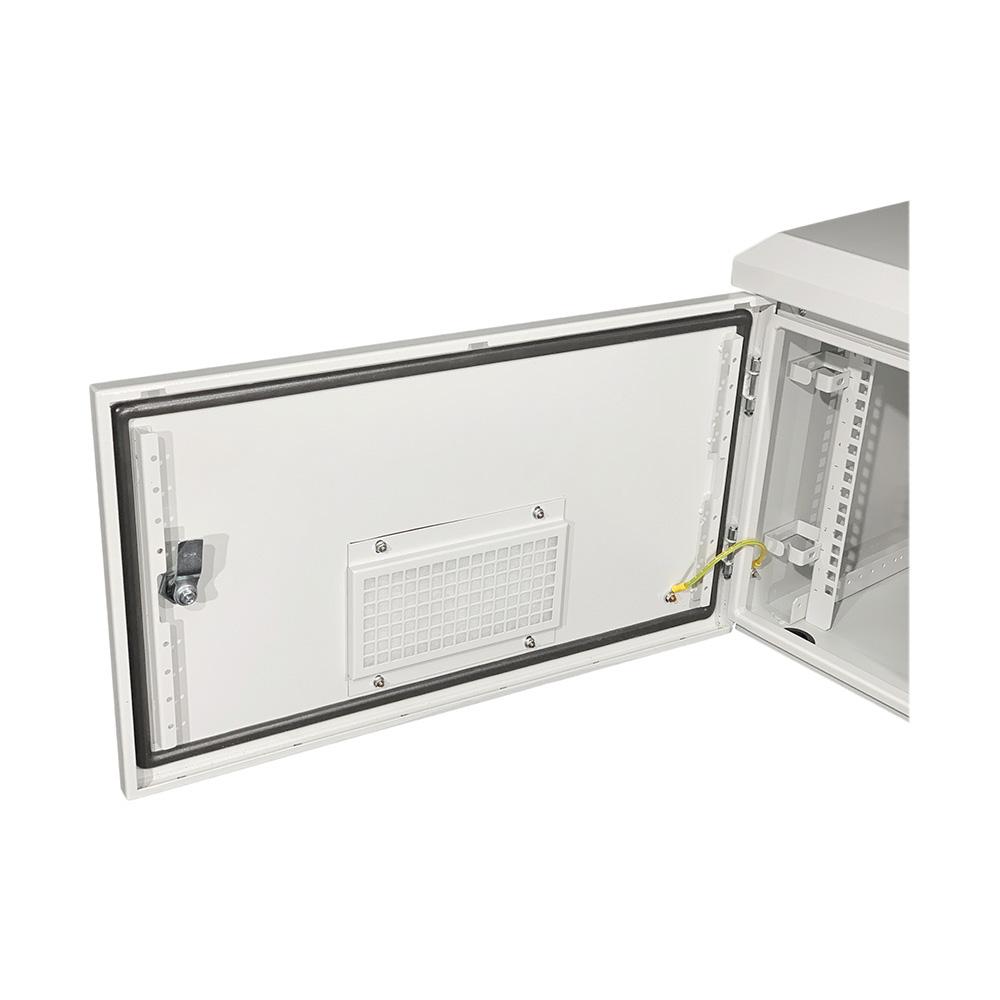

  • Water and dust proof polyurethane door joint strip
  • Wall mount accessories included
  • Fully welded design, supplied complete, no assembly required
  • Made from cold rolled steel
  • Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

Specifications

Specifications LSO-6UOD-600450PM

Physical
Model name LSO-6UOD-600450PM
Protection Glass NEMA 4X
Rack Unit Size 6U
Cabinet Type Pole-Mount Outdoor Cabinet
Color Grey RAL7035
Material Cold-rolled Steel
Unit Dimension(WxDxH) 23.62 x 17.71 x15.75 inches(without extrude rain roof dim.)
Unit Weight(lbs.) 67.66
Internal Depth (Front Rail to Back Door) 15.74 inches
Rail to Rail Depth 11.22 inches
Shipping Dimension(WxDxH) 26.77 x 20.87 x 18.90 inches
Shipping Weight(lbs.) 72.95
Electrical
Cooling AC110V Cooling Fans x 2 (with tem. controller)
Certifications
Safety CE
Approvals DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty 1 Year

Accessories

LSO-RAILKITS-6ULightSaber 6U 19inch Rack Mount Rails, Suitable for Wall Mount or Pole Mount Outdoor Cabinet
11 in stock
College Station
11 In stock
US$‎9.40 US$‎14.00
  • SKU: LSO-RAILKITS-6U
LSO-FANHEATER-100WLightSaber Optics 100 Watt Fan Heater 110 Volt w/ Thermostat
Pre-Order Now!
US$‎76.35
  • SKU: LSO-FANHEATER-100W
LSO-KEY2-WMLightSaber Optics Keys for NEMA 4X Rated Wallmount/Pole Mount Outdoor Cabinet, 2pcs per set
99 in stock
College Station
99 In stock
US$‎1.50 US$‎2.00
  • SKU: LSO-KEY2-WM
LSO-CamLockLightSaber Optics LSO-CamLock, Cam lock for LSO-xxOD-PM series
Pre-Order Now!
US$‎4.20 US$‎6.00
  • SKU: LSO-CamLock
