Outdoor Armored Fiber Patch Cable
- SKU: LSO-FJ-ODA-OS2-LC/PC-LC/PC-DX-SM
$20.19 to $261.97Select options
- Manufacturer: LightSaber Optics
- Data Sheet: Download
Product Information

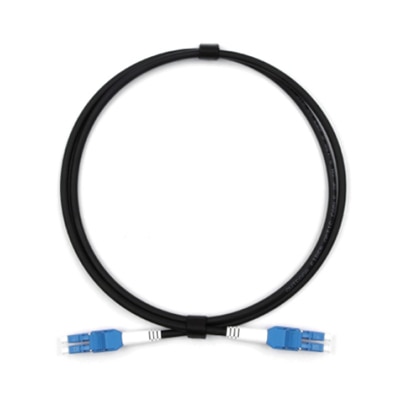

Outdoor Armored Fiber Patch Cable
FTTA patch cable is designed for high reliability in heavy industrial and harsh environment applications, including fiber to the antenna solution. Consisting of fiber cable and LC UPC Uniboot duplex connectors, the cable features superior crush resistance and a high degree of flexibility with the armored tube. Furthermore, the cable features a flame retardant LSZH jacket which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, also suitable for both indoor and outdoor industrial installations.
Features:
- G.657.A1 bend insensitive fiber
- Excellent flexibility for remote traction
- Insertion loss and return loss testing
- End-face inspection
- Rugged armored cable
- Designed for FTTA application
- For wireless horizontal and vertical cabling in outdoor environment
Specifications
Specifications LSO-FJ-ODA-OS2-LC/PC-LC/PC-DX-SM
| Physical Characteristics | |
| Fiber Count | Duplex |
| Fiber Mode | Single Mode: OS2 9/125µm |
| Fiber Grade | G.657.A1 |
| Connector | LC UPC UNIBOOT |
| Cable Jacket | Low Smoke Zero Halogen (LSZH) |
| Optical Characteristics | |
| Insertion Loss (dB) | ≤0.3 |
| Return Loss (dB) | ≥50 |
| Wavelength (nm) | 1310/1550 |
| Attenuation (dB/km) | ≤0.36 at 1310nm, ≤0.22 at 1550nm |
| Physical Characteristics | |
| Cable Diameter (mm) | 5.0/0.9 (Outer/Inner) |
| Min. Bend Radius (D) | 20/10 (Dynamic/Static) |
| Tensile Strength (N) | 200/400 (Long Term/Short Term) |
| Crush Resistance (N) | 1100/2200 (Long Term/Short Term) |
| Operating Temperature | -20 to +70°C |
| Storage Temperature | -40 to +80°C |
