MikroTik wAP LR2 kit 2.4Ghz WLAN with 650 MHz CPU, 64MB RAM 1x 10/100 Ethernet port (PoE-in) RouterOS L4
- SKU: RBwAPR-2nD&R11e-LR2
- Manufacturer: MikroTik
- Data Sheet: Download
- Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock.

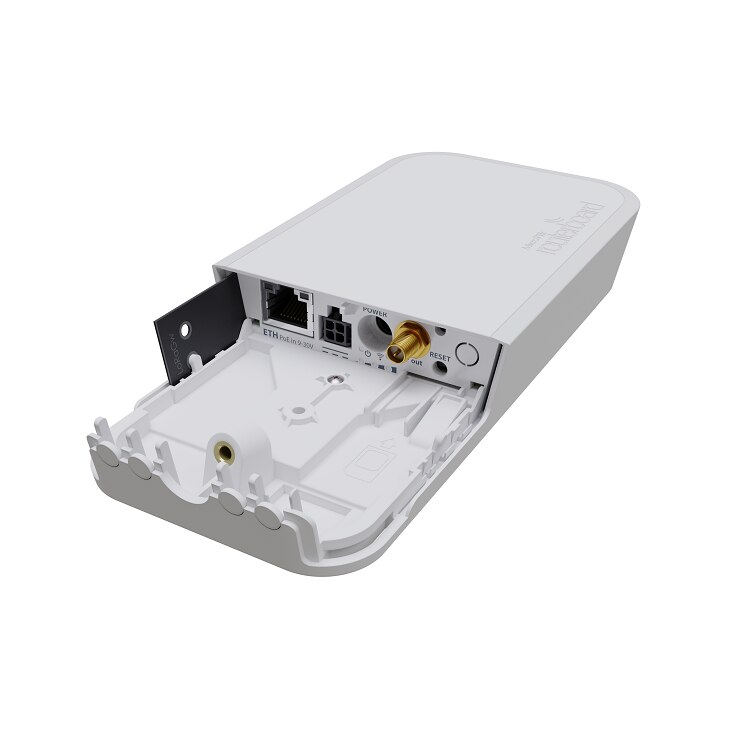

MikroTik RouterBOARD RBwAPR-2nD&R11e-LR2
wAP LR2 kit 2.4Ghz WLAN with 650 MHz CPU, 64MB RAM 1x 10/100 Ethernet port (PoE-in) RouterOS L4
Our newest out-of-the-box solution for LoRa® technology. Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.
Here’s the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn’t interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.
There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage. We suggest using the TOF-2400-8V-4 Omni antenna for best results.
We’ve decided to keep the classic wAP form-factor that has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions. Functional and non-intrusive design, astonishing durability, and great value remain at the core of this design.
The whole IoT community is exploring the 2.4 GHz LoRa® possibilities – join them and be among the first ones to benefit from the increased data rates.
|CPU core count||1|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Tested ambient temperature||-40°C to 60°C|
|Number of DC inputs||3 (Automotive, DC jack, PoE-IN)|
|DC jack input Voltage||9-30 V|
|Automotive input Voltage||9-30 V|
|Max power consumption||8 W|
|PoE in||Passive PoE|
|PoE in input Voltage||9-30 V|
|Wireless 2.4 GHz Max data rate||300 Mbit/s|
|Wireless 2.4 GHz number of chains||2|
|Wireless 2.4 GHz standards||802.11b/g/n|
|Antenna gain dBi for 2.4 GHz||2|
|Wireless 2.4 GHz chip model||QCA9531|
|Wireless 2.4 GHz generation||Wi-Fi 4|
|10/100 Ethernet ports||1|
|Number of SIM slots||1 Modem (Mini SIM)|
|PCB temperature monitor||Yes|
|Certification & Approvals|
|Certification||CE, EAC, ROHS|
|2.4 GHz||Transmit (dBm)||Receive Sensitivity|
