MikroTik 2.4 GHz 8 dBi Omni Antenna for the wAP LR2 kit
- SKU: TOF-2400-8V-4
$47.53 $49.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

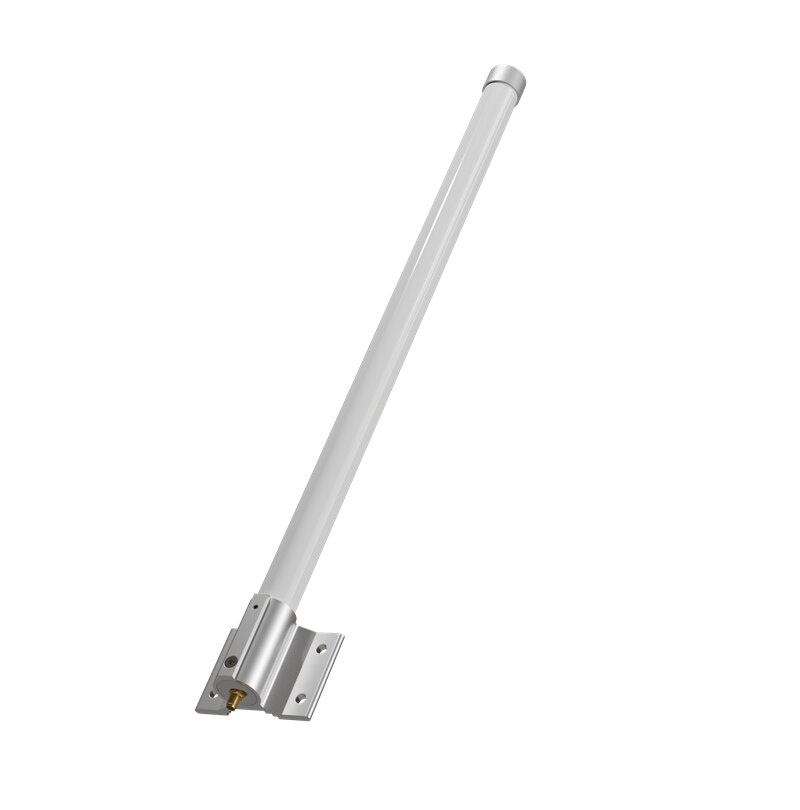

MikroTik TOF-2400-8V-4
2.4 GHz 8 dBi Omni Antenna for the wAP LR2 kit
Working with the wAP LR2 kit or similar setups? For extra network coverage (up to 3-4km in the line of sight), we suggest adding an external 8dBi Omni antenna - the TOF-2400-8V-4.If necessary, this antenna can be used for any 2.4 GHz device. Not only it works with the 2.4 GHz LoRa® connectivity, it also supports the regular 2.4 GHz WLAN.
It comes with a 1m long SMA cable and a mechanical holder for quick and easy mast attachment – when you need that extra network coverage. Compact size and increased durability without sacrificing the power – this antenna will get the job done.
Specifications
Specifications TOF-2400-8V-4
Frequency | 2400 - 2500 MHz |
Gain | 8 dbi |
Horizontal beamwidth | 360° |
Vertical beamwidth | 18° |
Nominal impedance | 50 Ω |
Lightning protection | DC ground |
Connector | SMA female |
Weight | 0,6 kg |
Dimensions | Ø 25 x 550 mm |
Mast diameter | Ø 40 x 50 mm |
