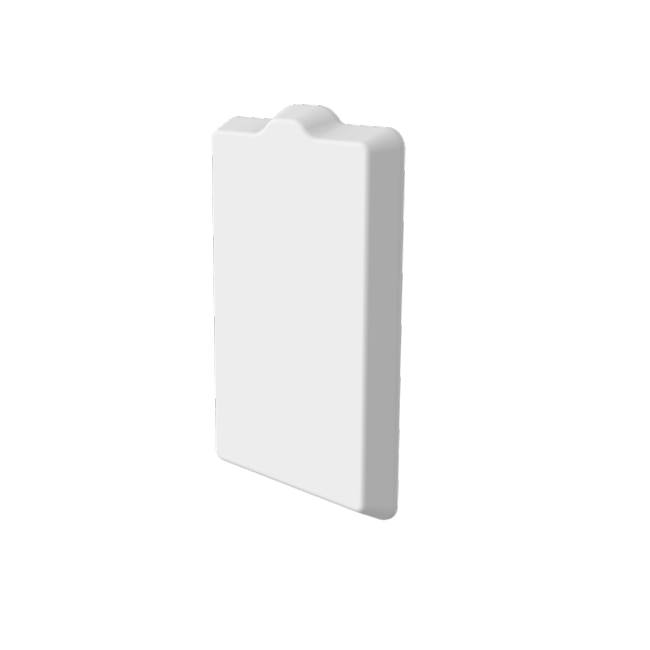

Mimosa 5.15-6.425 GHz, 802.11ax Wi-Fi 6E, 8x8 MU-MIMO, OFDMA PTMP access point with GPS - (POE NOT INCLUDED)

(0)No Reviews yet
US$‎1,999.00
  • SKU: A6 100-00113
  • Manufacturer: Mimosa Networks
  • Data Sheet: Download

+ Pre Order

+ Pre Order

Product Information

Mimosa Networks 100-00113

5.15-6.425 GHz, 802.11ax Wi-Fi 6E, 8x8 MU-MIMO, OFDMA PTMP access point with GPS - POE NOT INCLUDED

Supercharged Point-to-Multipoint (PTMP) Wi-Fi 6E-Based, 8x8, Beamforming, A6 Access Point

The A6 fixed wireless access point delivers up to 7 Gbps capacity, unbelievable subscriber capacity, and synchronized network scalability for unlicensed, outdoor, fixed wireless PTMP networks. The first future-proof solution delivering fiber fast gigabit speeds to subscribers via wireless, the A6 extends beyond the traditional 5 GHz band to take advantage of expanded 160 MHz channels in the new, low-noise 6 GHz band.

Scalable, Low-Noise 6 GHz Band

Previous OFDM-based fixed wireless solutions lacked subscriber scalability, requiring costly investment in too many AP sites, introducing massive interference in an already crowded 5 GHz band, with no noise mitigation capabilities.

Superior Wi-Fi 6E Technology

Armed with the latest Wi-Fi 6E technologies, including 8x8 MU-MIMO, 1024-QAM, noise fighting beamforming, massively reduced resource unit size, low-latency OFDMA, and network wide GPS sync, the A6 resets nearly every performance and scalability bar in the industry.

Extreme Performance and Value

Pairing these incredible innovations with brand new, interference-free 6 GHz spectrum, the A6 can deliver gigabit+ subscriber speeds needed for advanced rural broadband projects, and the high-scalability to tackle the most dense, urban NLOS areas cost effectively.

Specifications

Specifications 100-00113

Performance
Max Throughput7 Gbps IP aggregate UL/DL (9608 Mbps PHY)
Wireless ProtocolsWiFi Interop; TDMA (future release)
Power
Max Power Consumption40 W
System Power MethodOutdoor PoE or DC
System Lightning & ESD Protection6 kV
PoE Power SupplyPassive PoE compliant, 48–56 V (not included)
Radio
MIMO & Modulation8x8 MU-MIMO; OFDMA, BPSK-1024QAM
BandwidthSingle or dual 20/40/80/160 MHz channels
Frequency Range5150–6425 MHz Restricted by country of operation
Max Output Power29 dBm
Rx Sensitivity@ 1024 QAM -47 dBm @ 160 MHz -50 dBm @ 80 MHz -53 dBm @ 40 MHz -56 dBm @ 20 MHz
Physical
Dimensions
Height490 mm (19”)
Width295 mm (11.6”)
Depth75 mm (3”)
Weight3.95 kg (8.7 lbs)
Enclosure CharacteristicsOutdoor UV-stabilized, engineered polymer with integrated metal mounting back
Wind Survivability200 km/h (125 mph)
Wind Loading39 kg @ 160 km/h (86 lbs @ 100 mph)
MountingDual standard pole straps for 30 mm (1.18”) to 90 mm (3.54”) OD pipes
Network Interface2(1) GbE copper PoE, (2) 10 GbE SFP+ (optical)
Environmental
Outdoor Ingress Protection RatingIP67
Operating Temperature-40°C to +55°C (-40°F to 131°F)
Operating Humidity5 to 100% condensing
Operating Altitude4,420 m (14,500’) maximum
Shock and VibrationETS 300-019-2-4 class 4M5
Antenna
Gain24 dBi with adaptive beamforming
Beamwidth90º azimuth, 7º elevation
Front-to-Back Ratio>30 dB
Cross-Polar Isolation>20 dB
PolarizationDual-linear XPIC
Regulatory and Compliance
ApprovalsFCC Part 15.407; IC RSS210; CE (RED, EMCD, LVD, RoHS); ETSI 301 893/302 502
RoHS ComplianceYes
SafetyEN 62638-1
