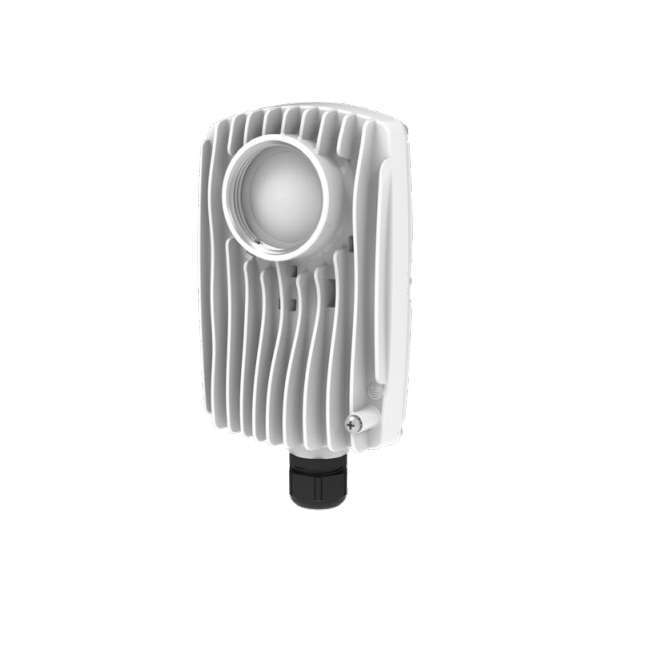

Mimosa C6x 5.15-6.425 GHz 8 dBi Modular Radio for PTMP (PoE Not included)

(0)No Reviews yet
  • SKU: C6x 100-00111
  • Manufacturer: Mimosa Networks
  • Data Sheet: Download

+ Pre Order

+ Pre Order

Product Information

Mimosa Networks 100-00111

C6x, Mimosa 5.15-6.425GHz 8 dBi Modular Radio for PTMP, 802.11ax Wi-Fi 6E, uses N5-X Antennas, PoE Not included

Super Flexible, Super Fast, Super Value Gigabit PTMP Client



Building on the popular X-series family of modular directional antenna options for flexible distance deployments, the new rugged C6x sets a new bar for affordable speed and interference reduction. With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands1, the C6x achieves extremely low latency speeds of up to 1.75 Gbps and high reliability with new noise fighting features. Supporting the Wi-Fi 5/6/6E standards, the C6x can be deployed as a standard Wi-Fi interoperable client, and provide smooth transitioning in the field for legacy Mimosa and standard Wi-Fi deployments. The C6x can be used as a PTMP (point-to-multipoint) client radio.



Integrated Radio with Modular Antenna Options



The C6x radio's native 8 dBi gain can be increased to 12, 16, 20 or 25 dBi using modular, X-series, twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.



Noise Just Met Its Match



The link reliability of the C6x starts with the high isolation design of the X-series antennas - but there's so much more that's new. Based on Wi-Fi 6E OFDMA technologies, the C6x reduces in-band noise impact across the operating channel with dramatically smaller 2 MHz resource units (RU) sizes instead of legacy OFDM solutions, where any noise impacted the full channel.



Incredible Speed and PTMP Scale



Previous OFDM technologies limited the scale of client deployments and the ability to deploy in dense, noisy areas. In PTMP client deployments, the C6x pairs together with new multi-user OFDMA scheduling and beamforming technologies on the A6 access point to enable massive subscriber scaling, advanced noise management, and access to the new low-noise 6 GHz band1.



Carrier Grade



While the C6x rugged IP67 design is built to withstand the elements, carrier-grade management capabilities with Airspan ACP and MMP enable operators to deploy and monitor with ease. Together with nextgen RF noise fighting features and new low-noise 6 GHz band support, C6x leads the way in dependable connectivity.





Features:

  • Gigabit Ethernet: 10/100/1000-BASE-T
  • Management Services: MMP support; Netconf (future support); SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; IPv4 and IPv6
  • Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across all channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
  • Security: AES; RADIUS; 802.1x authorization
  • QoS: WiFi Interop Mode WMM; SRS mode supports 4 user configurable QoS levels supporting both CBWFQ and PQ
  • VLAN: Q-in-Q, double tagging, management VLAN, PTMP per client VLAN

Specifications

Specifications 100-00111

Performance
Max Throughput1.75 Gbps IP aggregate UL/DL (2402 Mbps PHY)
Wireless ProtocolsWiFi Interop; Auto-TDD (future release); PTMP TDMA (future release)
ModesDefault mode: PTMP client, 1.75 Gbps
Radio
MIMO & Modulation2x2, PTMP MU-MIMO client support, OFDMA, BPSK-1024QAM
Bandwidth20/40/80/160 MHz channels, tunable to 5 MHz increments
Frequency RangePTMP: 5150–6425 MHz1 3 (restricted by country of operation)
Max Output Power27 dBm
Sensitivity (MCS 0)-87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz
Power
Max Power Consumption20 W
System Power MethodPassive PoE
PoE Power SupplyPassive POE compliant, 24–56 V 20W or higher (PoE injector not included)
Physical
DimensionsHeight: 178mm (5”)
Width113mm (4.5”)
Depth67mm (2.6”)
Weight0.7 kg (1.54 lbs)
RF Connector TypeX-series twist-on
Enclosure CharacteristicsDie-cast aluminum, UV stabilized paint, with outdoor UV stable plastic radome lens.
MountingDual attached pole mount straps
GroundingGround lug
Environmental
Outdoor Ingress Protection RatingIP67
Operating Temperature-40°C to +55°C (-40°F to 131°F)
Operating Humidity5 to 100% condensing
Operating Altitude4,420 m (14,500’) maximum
Shock and VibrationETS 300-019-2-4 class 4M5
Regulatory and Compliance
ApprovalsFCC Part 15.407; IC RSS210; CE (RED, EMCD, LVD, RoHS); ETSI 301 893/302 502
RoHS ComplianceYes
SafetyEN 62638-1
