Mimosa NID ESD protection, Gigabit Network Interface Device

Tariff Fee: US$2.50
  • SKU: 100-00039
  • Manufacturer: Mimosa Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

Specifications NID

Data Transfer RateGigabit rated
ConnectorsTwo (2) RJ-45
Protection ModeLine-to-line and line-to-ground
Surge ArrestorGTD (Gas Discharge Tube)
Nominal Voltage20V @ 1A
DC Sparkover90V @ 100V/s
Impulse Sparkover550V @ 1000V/µs
Impulse Discharge Current10kA
Capacitance< 1.0pF @ 1 MHz
Dimensions42 mm (1.6”) x 131 mm (5.1”) x 84 mm (3.3”)
Weight0.13 kg (4.8 oz)
Operating Temperature-40 to +55 C
Humidity5 to 100% condensing
Environmental ProtectionIP54 (Dust and Water Intrusion Protection)
MountingWall mount. Two screw mounting points for secure access to flat surface with optional rear feed point for clean installations.

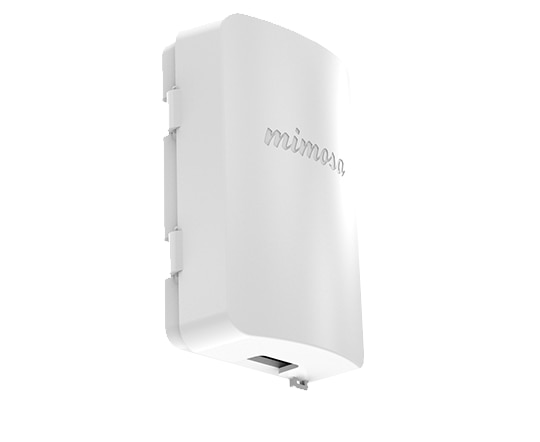

Mimosa Gigabit Network Interface Device

The sleek and affordable Mimosa Gigabit Network Interface Device (NID) is designed for exterior wall mounting, providing outdoor technician access, ESD protection and grounding point for C5 and C5c installation. The dust and water resistant design has a foam cable entry seal and a security fastener tie point.
