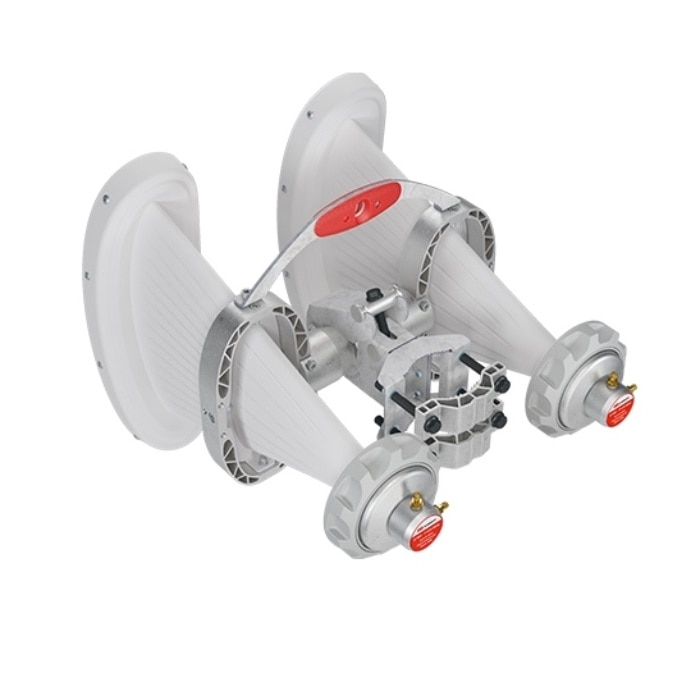

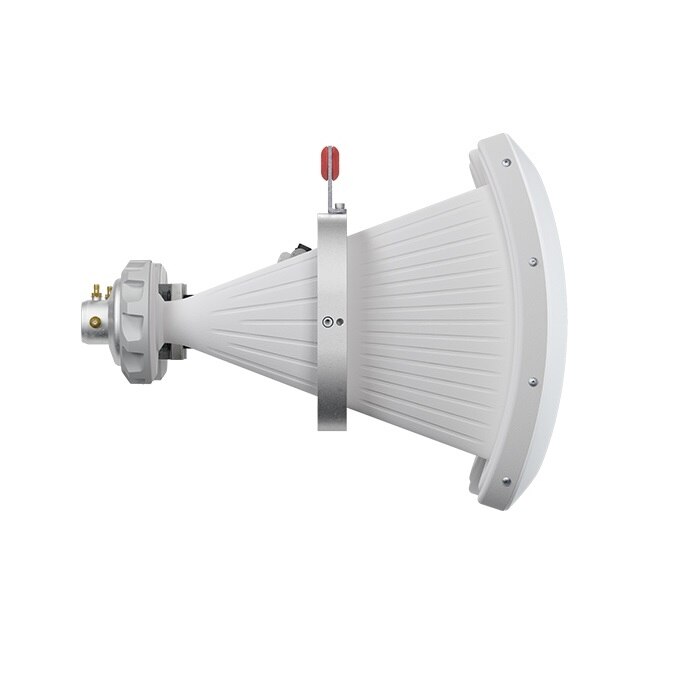

RF Elements 90° 6 GHz 4x4 Asymmetrical Horn WB
- SKU: AH90WB-4x4-SMA
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements AH90WB-4x4-SMA
90° 6 GHz 4x4 Asymmetrical Horn WB
4x4 Horn Antenna With Wideband Performance
Asymmetrical Horn Antennas have asymmetrical beam patterns with highly suppressed sidelobes. They offer excellent noise rejection and supreme scalability options. They are perfect for high-density AP clusters and dense co-location deployments.
Ultimate Wideband Performance in 4x4
AH90WB-4x4-SMA provides unique wideband performance covering 5 & 6 GHz unlicensed spectrum bands with balanced H+V beams and stable gain and radiaton patterns. This 4x4 Horn Antenna is designed for excellent wideband performance with 4x4 radios.
Ultimate Versatility
AH90WB-4x4-SMA provides TwistPort™ waveguide connectors as well as specific coaxial RP-SMA interface tuned for 6 GHz band. Antenna allows mounting of two connectorized radios as well as using two TPA of choice, while covering full 4900 - 7125 MHz. This makes it a highly versatile tool for any deployment within the antenna working band. Antenna can by used as 4x4, dual or single 2x2, 5 GHz, 6 GHz, wideband 5 & 6 GHz using connectorized radios with pigtails or with TPA.
New Innovative Design
AH90WB-4x4-SMA has completely new industrial design and is built using highly resistant materials for reduced weight, ultimate outdoor resistance and durability.
Features:
- Wideband performance covering 5 and 6 GHz unlicensed spectrum bands
- TwistPort™ waveguide connector.
- Included in package: TPA with RP-SMA connectors specifically tuned for 6 GHz unlicensed band, set of pigtails
Industry leading industrial design with innovative materials
- Built of high grade aluminum for extreme outdoor resistance including harsh salt water environments
- Innovative mounting bracket made of aluminum and stainless steel
- Integrated handle for better ergonomics
- Integrated mount for ePMP 4600 4x4 radio
- Stainless steel hardware with anti-seize coating
Specifications
Specifications AH90WB-4x4-SMA
| Radio Connection | TwistPort™ Waveguide Connector, 2x RP-SMA Female |
| Pigtails in Package | 4x RP-SMA Male Connector 750mm (29.5 inch) |
| Antenna Type | Horn |
| Materials | Aluminium, Stainless Steel, ABS, PMMA, Zinc Alloy |
| Enviromental | IP65 |
| Pole Mounting Diameter | 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible, recommended mounting on stand off bracket |
| Temperature | -35°C to +60°C (-31°F to +140°F) |
| Wind Survival | 160 km/h (100 mi/h) |
| Wind Load | 118/74 N - Front/Side at 160 km/h (100 mi/h) |
| Effective Projected Area | 1115/602 cm2 - Front/Side (173/93.3 in2 ) |
| Mechanical Adjustment | ± 20° Elevation, ± 20° Azimuth |
| Weight | 5.6 kg / 12.3 lbs – single unit ** 9.0 kg / 19.8 lbs – single unit incl. package ** |
| Single Unit | Retail Box: 490 × 435 × 435 mm (19.2 x 17.1 x 17.1 inch) ** |
| PERFORMANCE | |
| Frequency Range | 4900 - 7125 MHz with waveguide port 5700 - 7125 MHz with RP-SMA in package Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Gain | 15 dBi |
| Azimuth Beam Width -3 dB/-6dB | H 55°, V 73° / H 90°, V 90° |
| Elevation Beam Width -3 dB/-6dB | H 17°, V 17° / H 25°, V 25° |
| Beam Efficiency | 96 %* |
| Front-to-Back Ratio | 27 dB |
| VSWR | 1.4 (5700 - 7125 MHz) with RP-SMA in package Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Polarization | Dual Linear H + V |
| Impedance | 50 Ohm |
