Ubiquiti TOUGHCable Outdoor Shielded Ethernet Cable

(0)No Reviews yet
  • Manufacturer: Ubiquiti Networks
  • User Guide: Download
  • Data Sheet:Download
33 in stock
College Station
9 In stock
24 In stock

Product Information

Ubiquiti TOUGHCable Carrier

Outdoor Shielded Ethernet Cable

Increased Performance

TOUGHCable™dramatically increases your Ethernet link states, speeds and overall performance.

Extreme Weatherproof Design

TOUGHCable™has been built to perform in even the harshest weather and environments.

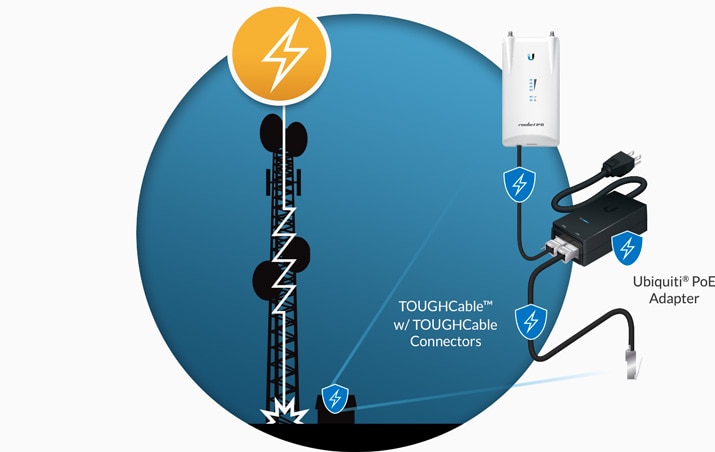

ESD Damage Protection

TOUGHCable™protects your networks from devastating electrostatic discharge attacks.

Extended Cable Support

TOUGHCable™has been developed to increase power handling performance for extended cable run lengths.

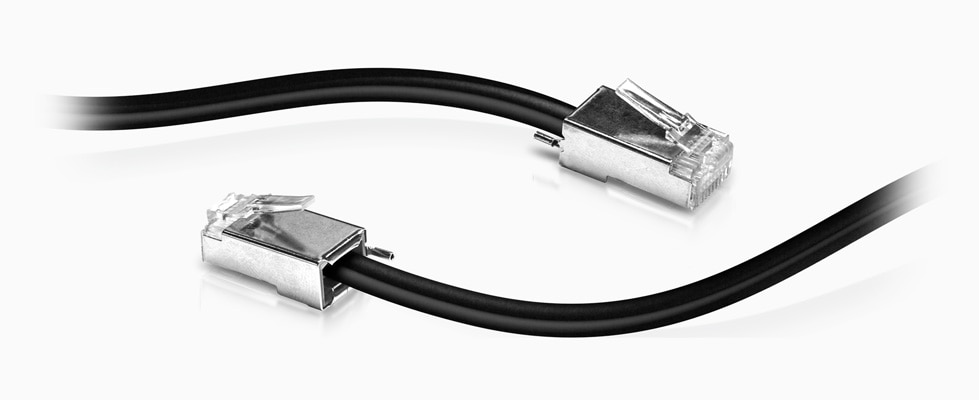

Specifically designed for use with TOUGHCable™, the TOUGHCable Connectors protect against ESD attacks and Ethernet hardware damage, while allowing rapid field deployment without soldering.

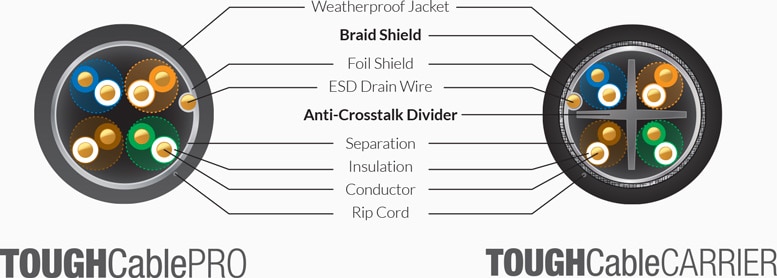

Specifications TC-Carrier

CableCAT5e, Shielded
Ethernet SupportUp to 1 Gbps
Conductor Wire Gauge24 AWG
ConductorSolid Bare Copper
Conductor Diameter0.500 ± 0.005 mm
Insulation TypeSolid PE
Insulation ThicknessAVG: 0.295 mm, MIN: 0.29 mm
Insulation Diameter1.16 ± 0.02 mm
Separation (Polyester Wrapping)Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk DividerLDPE: 4.2*0.3 mm
Cable Shield (Aluminum Foil)Thick: 0.060 mm, Extent: 20 mm
ESD Drain Wire0.4 TC
Rip CordYes
Secondary Cable Shield (Braid)16*8*0.16AA Density: 95%
Jacket MaterialPE
Jacket ThicknessAVG: 0.52 mm, MIN: 0.46 mm
Jacket Outer Diameter6.8 ± 0.30 mm
Jacket ColorGray
Reference StandardISO/IEC 11801, TIA/EIA568B.2
Installation Temperature-20 to 60° C (-4 to 140° F)
Storage Temperature-30 to 75° C (-22 to 167° F)
OperationTemperature -40 to 80° C (-40 to 176° F)
