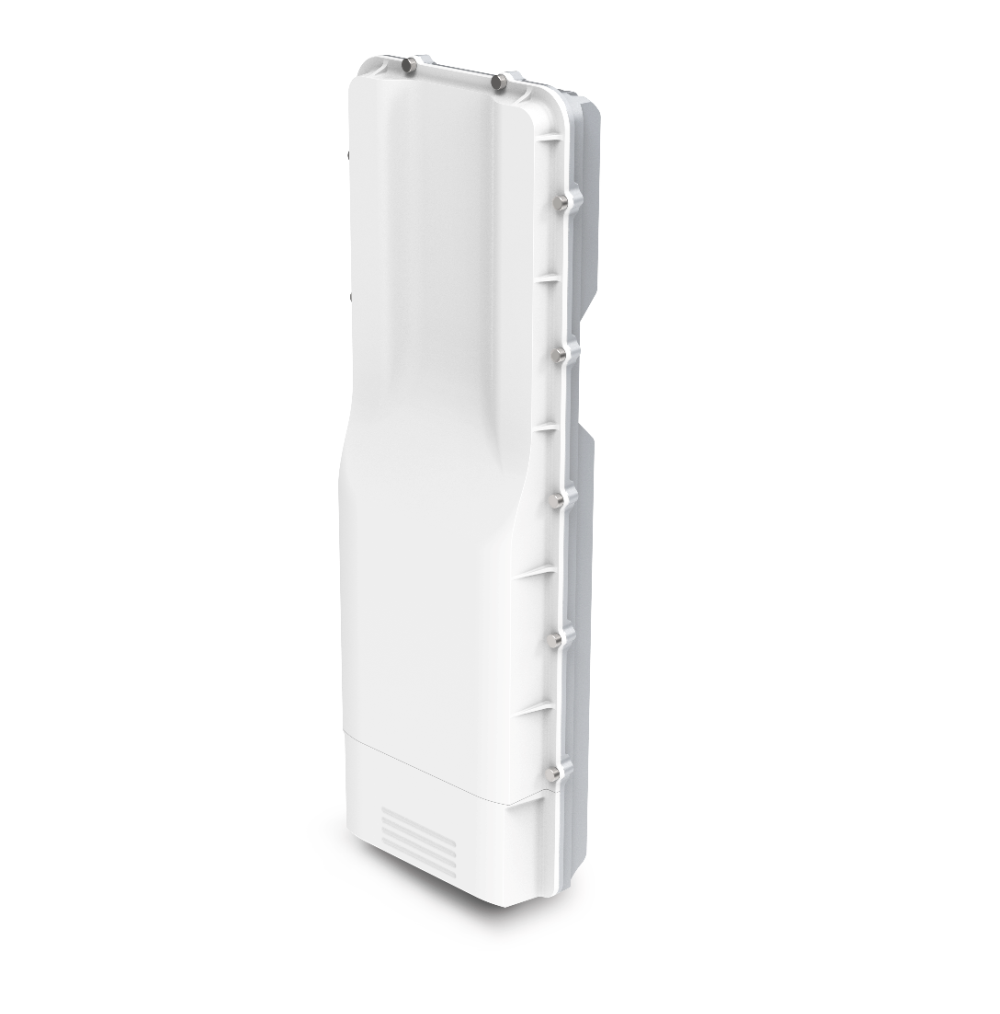

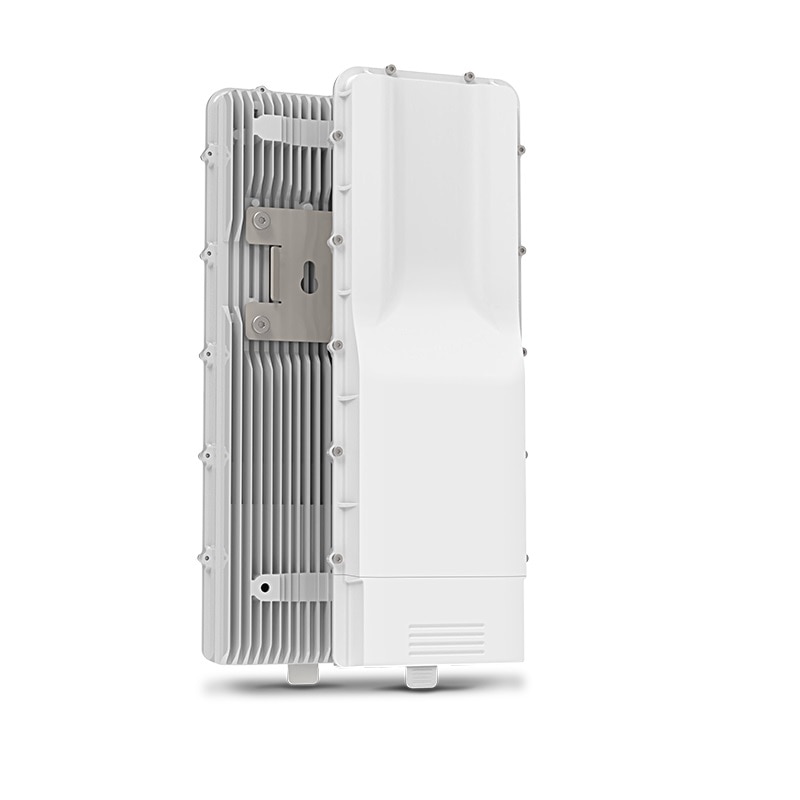

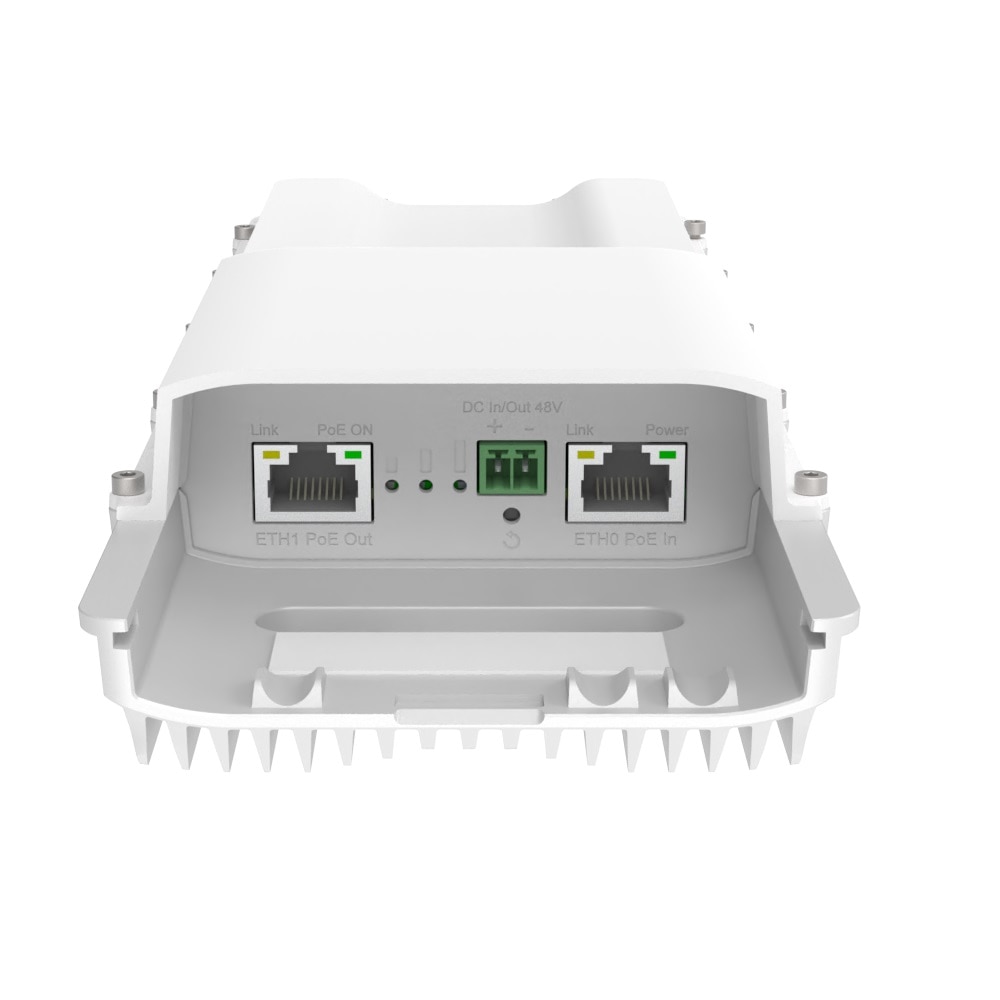

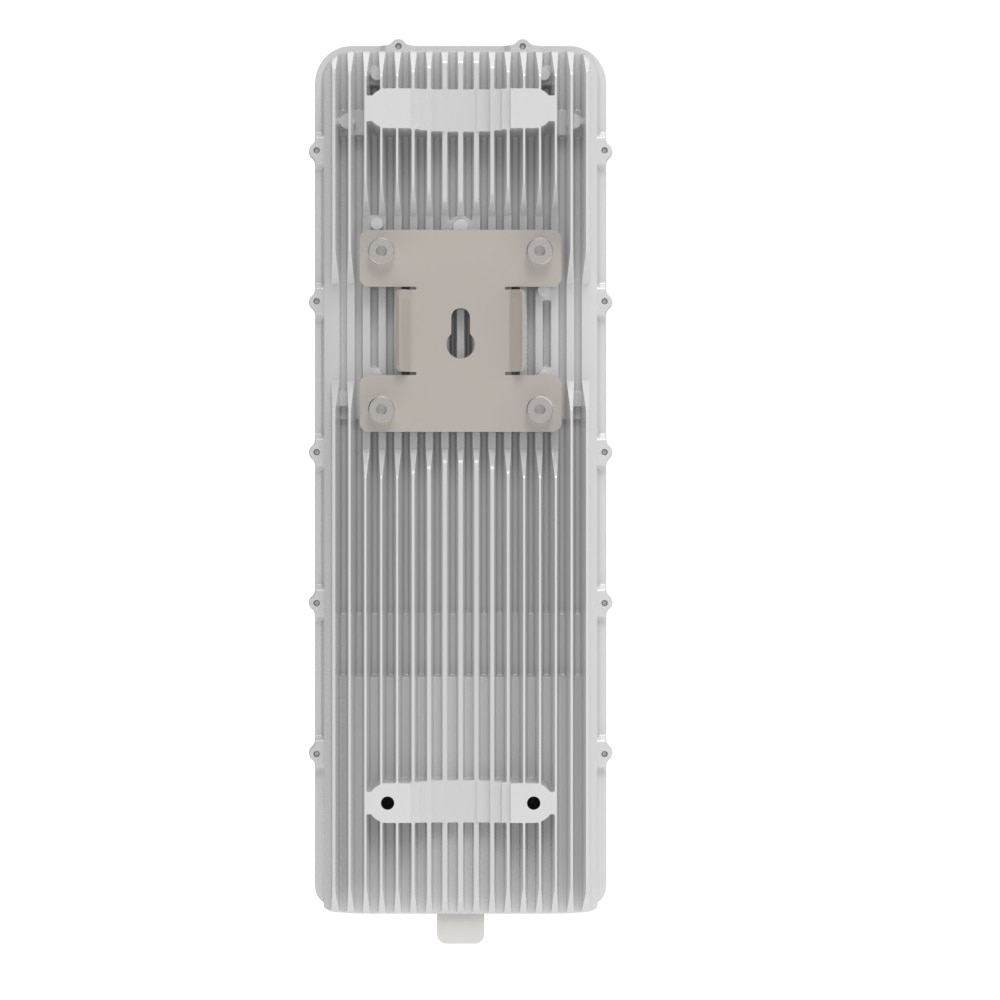

Tachyon Networks Tachyon Networks 60GHz Outdoor Access Point

Tachyon Networks TNA-301

60GHz Outdoor Access Point 20dBi 3D beamforming phased array with +/- 60° azimuth (120° total) and +/- 25° elevation (50° total)

Fiber-like speeds using the 60GHz band: 2+ Gbps can be achieved and distances of up to 1 km without trenching, permits, or licenses - all with quick and easy aiming using 3D beamforming.

Upper-band support: All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.

3D beamforming makes installation easy: The TNA-301 and TNA-302’s 3D beamforming antennas enable automatic alignment decreasing installation times from hours to minutes.

Best overall affordability: The low cost of the TNA-30x product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.

Features:

• 60GHz PTP+PTMP AP/Client
• Default operating mode: Access point
• Beamforming antenna range: 120° x 50°
• Operation mode options: Access Point/Client (software controllable)
• Channels 1-6 (57-71GHz)

Applications:

• Sub-6GHz offload Because the sub-6GHz spectrum is scarce and prone to interference, the TNA-30x models are perfect for offloading clients within range, leaving the low bands for hard-to-reach customers.
• Deploying fiber-like service The TNA-30x product family can deliver multi-Gigabit speeds to up to 32 clients per sector at a fraction of the cost of deploying fiber.
• High speed point-to-point Use the TNA-302 to easily create point-to-point connections between buildings in urban environments.
• High bandwidth video surveillance The TNA-30x units feature a proprietary TDMA scheduling protocol which is perfect for video surveillance networks requiring high-capacity upload bandwidth.
