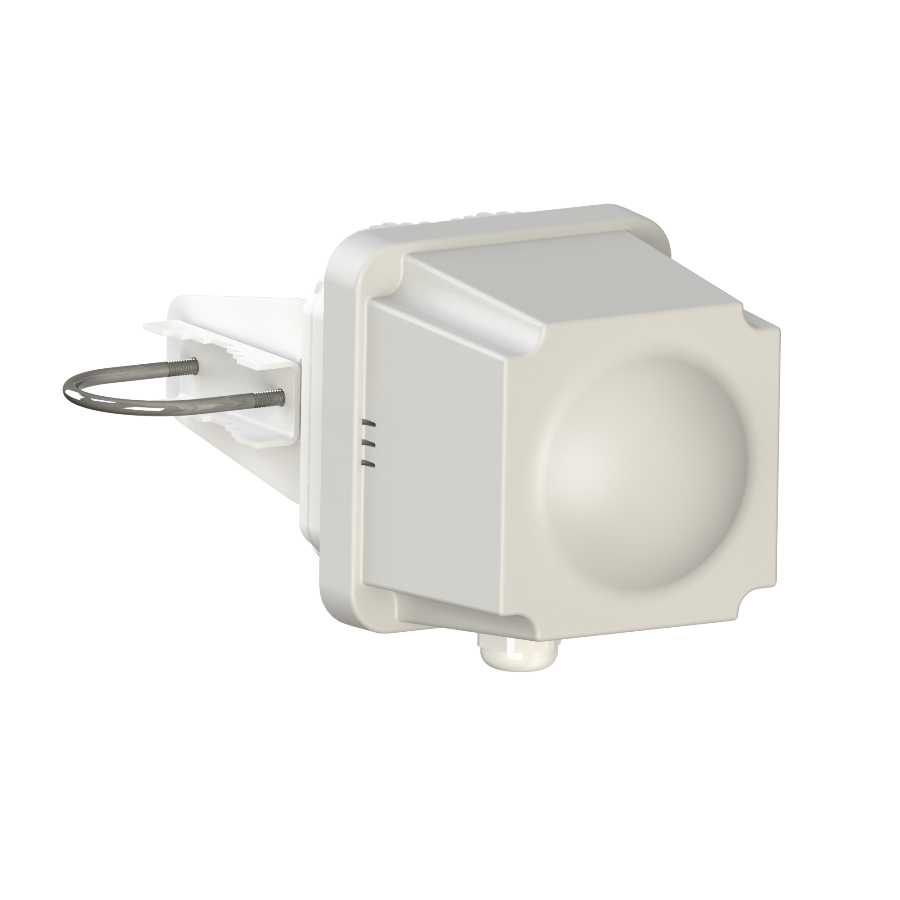

Tachyon Networks 33dBi Directional Antenna 6° X 6° Range PTMP Distance (TNA-301 as AP) 2km*
- SKU: TNA-AK-100
$50.00
+ $2.90 Tariff
- Manufacturer: Tachyon Networks
- Data Sheet: Download
Product Information
Tachyon Networks TNA-AK-100
33dBi Directional Antenna 6° X 6° Range PTMP Distance (TNA-301 as AP) 2km*
Specifications
Specifications TNA-AK-100
| TNA-303X CONFIGURATIONS | 100MM ANTENNA KIT |
| Recommended PTMP Distance (TNA-301 as AP) | 2km* |
| Beam-forming range | 6º x 6º |
| Antenna gain | 33dBi |
| 60 GHZ SPECS | |
| Operating modes | Station, Access Point (software configurable). |
| Max STA count per AP | Up to 32 stations |
| Max EIRP (base/100mm/250mm) | 38dBm / 55dBm / 60dBm depending on antenna kit and local regulations |
| Link encryption | AES 256 + GCMP |
| Frequency & supported channels | Full band: 57-71 GHz: channels: 1-6 Half channels: 1-11 (see notes on support site about half channel support) |
| Channel size options | Full (2 GHz), half (1 GHz) (see notes on support site about half channel support) |
| Station scheduling | TDMA: dynamic scheduling mechanism |
| 100mm Antenna Kit | 33dBi directional antenna with 3º beam @3dB and 5º beam @6dB |
| Duplexing | TDD |
| SOFTWARE SPECS | |
| Max MTU size | 7900 b |
| Networking mode | Transparent bridge |
| VLAN capabilities | Data VLAN (in station mode) & management VLAN |
| Other features | Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more |
| IPv4/IPv6 support | Both are supported |
| Management | Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request) |
| HARDWARE SPECS | |
| Interfaces | 1 x 2.5G ethernet, 1 x 1G ethernet |

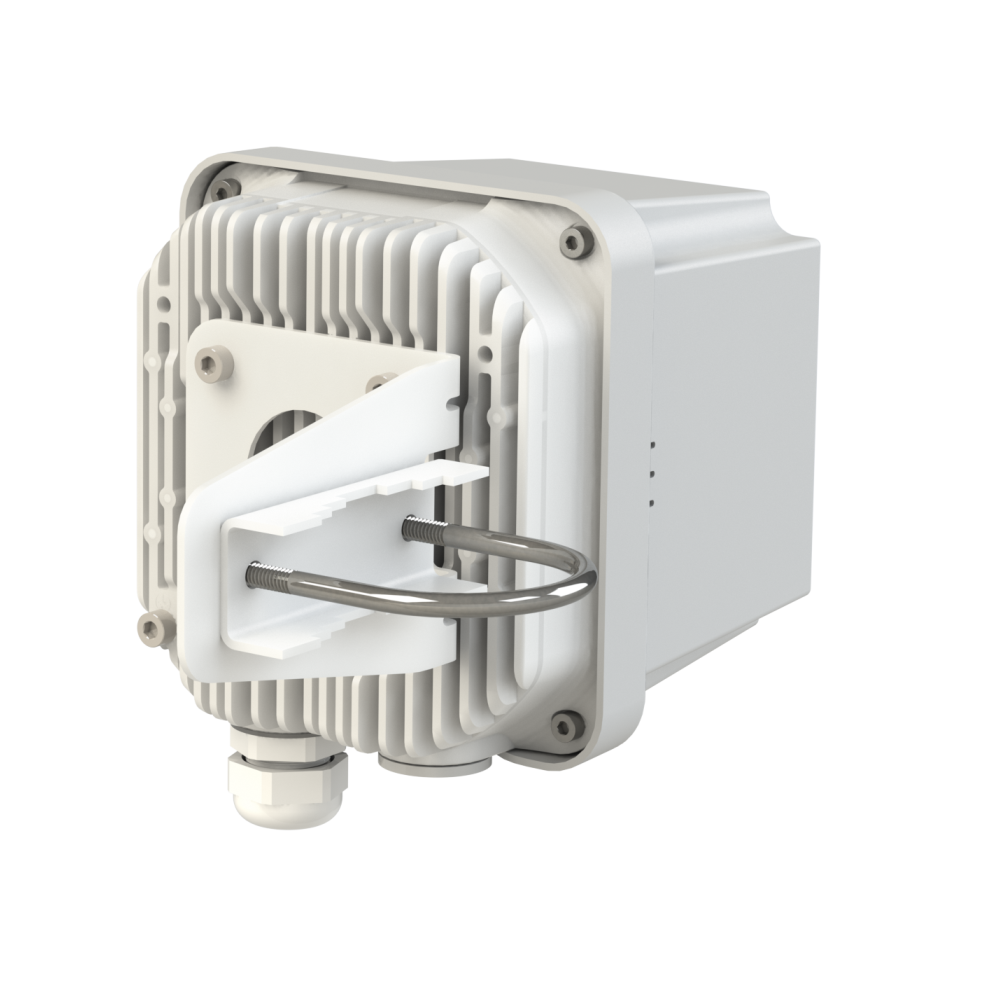

| Mount | Pole or wall mountable via mounting backplate |
| PoE input power | Active PoE 38-57VDC (passive injector included) |
| DC input power | 24-57VDC |
| Output power | On 1G port: passive PoE out w/max .5A |
| Max power consumption | 17W w/o PoE out in use, and 41W with it in use |
| Certifications | FCC: Z9W-TNA-303X; IC: 11468A-TNA303X |
| Operating temperature | -30°C - 55°C |
| Base Unit dimensions & weight | Height: 5" / 13cm, Width: 5" / 12 cm, Depth: 2” / 5.5cm, 15 oz / 425 g |
| LEDs | Ethernet link status, wireless status, signal level, & power |
