Product Information

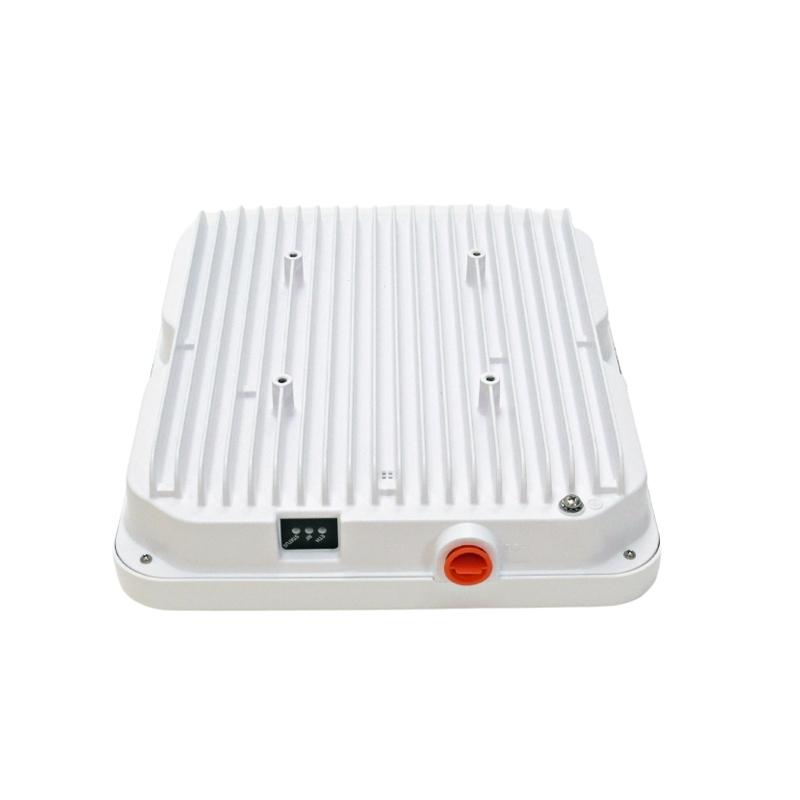

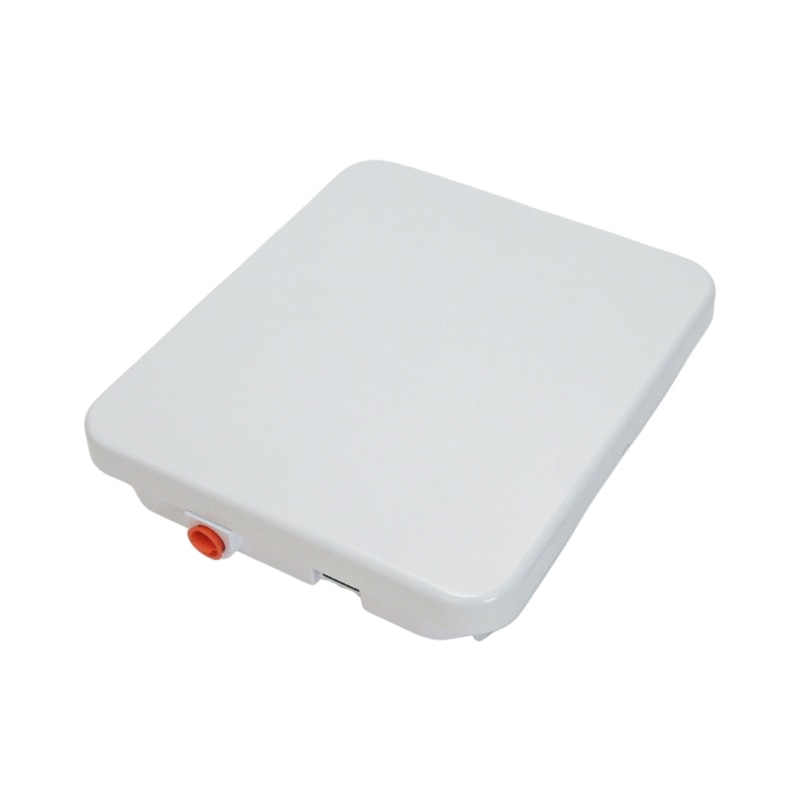

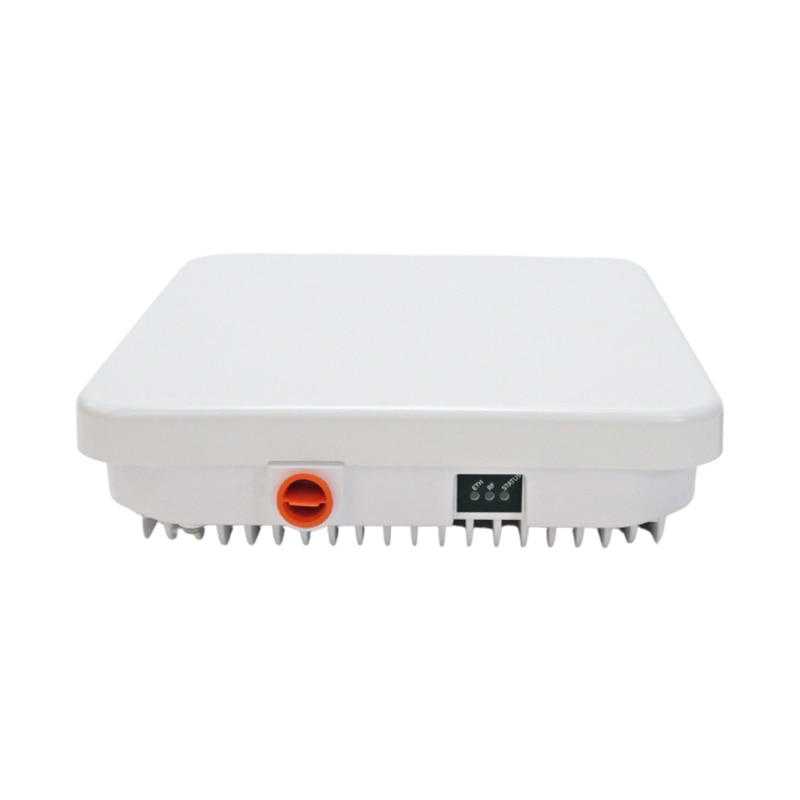

Tarana Wireless 35-0128-001B
G1 5GHz Remote Node (RN) with Integrated Antenna, FCC, Hybrid (New)
Are you tired of grappling with the digital divide that leaves vast segments of both developed and developing economies underserved? Tarana's groundbreaking Gigabit 1 Platform (G1) presents a game-changing solution, addressing the urgent need for robust broadband connectivity in today's evolving landscape of work, education, commerce, healthcare, and entertainment.
Traditional copper-based fixed access networks are struggling to keep up, while wireless alternatives face formidable technical challenges. Enter Tarana Innovation, with over a decade of dedicated research and development culminating in the G1 platform. Crafted from custom silicon to cloud-based service automation, it offers a fresh approach to fixed wireless connectivity.
Endorsed by tier-1 operators and proven in carrier-scale networks, Tarana's G1 platform introduces fundamental advancements in multi-radio performance, revolutionizing the economics of gigabit-class access delivery. Key features include:
- Dual carrier 2x40MHz for enhanced bandwidth
- 2x2 MIMO technology for improved signal reliability
- Up to 800Mbps aggregate throughput per link, ensuring lightning-fast speeds
- Full Tx/Rx digital beamforming with custom silicon integrated chip, optimizing signal transmission
- Auto antenna alignment for hassle-free setup
- PoE powered for simplicity and efficiency
Tarana's G1 platform also offers flexible licensing options and comprehensive support packages, including perpetual uncapped license upgrades and multi-year software, management, and support plans.
Don't let the digital divide hold back progress. Embrace Tarana's Gigabit 1 Platform and join the movement towards universal connectivity. Experience the future of broadband access today.
Specifications
Specifications
| Weight | 4.9 lbs |
| Dimensions (H x W x D) | 10.3 x 11.3 x 2.1 inches |
| Power consumption (typical at 55ºC) | 40 W |
| Power input | 48V 802.3bt PoE, Type 3, Part # 44-0027-001 (G1RN5AHB012) 48V Passive PoE Part # 44-0016-001 (G1-RN5ASI002, G1RN5ASI012) |
| Mounting | Band clamp for pole mount (1.5–2.5 inches OD); mount weights 1.2 lbs |
| Form factor | Outdoor, single enclosure with fully-integrated antenna, RF, and baseband |
| Antenna | Fully integrated |
| Interfaces | 1 Gbps Ethernet interface with PoE support, RJ45 pinout T568B |
| G1 radio network platform | Base node (BN) Remote node (RN) Tarana Cloud Suite (TCS) |
| Topology | Scheduled, concentrated multi-point |
| Duplexing | TDD |
| Downlink/uplink ratios (configurable network-wide) | Network profile 1 (up to 15 km range) g 4.5:1 Network profile 2 (up to 30 km range) g 4:1 Network profile 5 (up to 15 km range) g 2.67:1 Network profile 6 (up to 15 km range) g 1.75:1 |
| SLA profiles | Configurable per RN |
| Modulation | QPSK 1/2 to 256QAM 7.35/8 UL/DL |
| Spectral efficiency | 30 bps/Hz per BN, up to 90 bps/Hz per band, configuration dependent |
| Range (full rate, frequency dependent) | NLoS - Up to 3 km (varies depending on vertical asset height, frequency band, morphology, and target cell-edge data rate) LoS - Up to 30 km (varies depending on vertical asset height, frequency band, morphology, and target cell-edge data rate) |
| Recommended frequency reuse factor | Universal frequency reuse (k=1), enabled by advanced self-interference cancellation |
| Beamforming | Auto-convergent, retro directive |
| Interference management | Self-interference cancellation, Advanced Burst Interference Cancellation (ABIC) |
| VLANs | Per BN or RN for user data, and management VLAN, Subscriber VLAN pass through |
| QoS | DSCP, VLAN 802.1p |
| Latency (one-way average | <5 ms |
| Max Ethernet MTU | 2048 bytes |
| Compliance | RSS-247, FCC 15E, FCC Part 96, WINNF-TS-0122 |
| Standards and safety | IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22 |
| Data plane security | RF Link Encryption AES-128 |
| Tarana Cloud Suite (TCS) | Scalable microservices based multi-tenant network management Zero-touch provisioning and control of radios with streaming telemetry Firmware and configuration management 24x7x365 KPI monitoring and management Fault management and historical events Network analytics SAS and AFC domain proxy Northbound Rest-API for customer and operator portal (B/OSS) |
| Operating temperature range | 40°C to 55°C (-40ºF to 131ºF) |
| Environmental rating | IP67 |
SMS License (1 year required per RN)
