Product Information

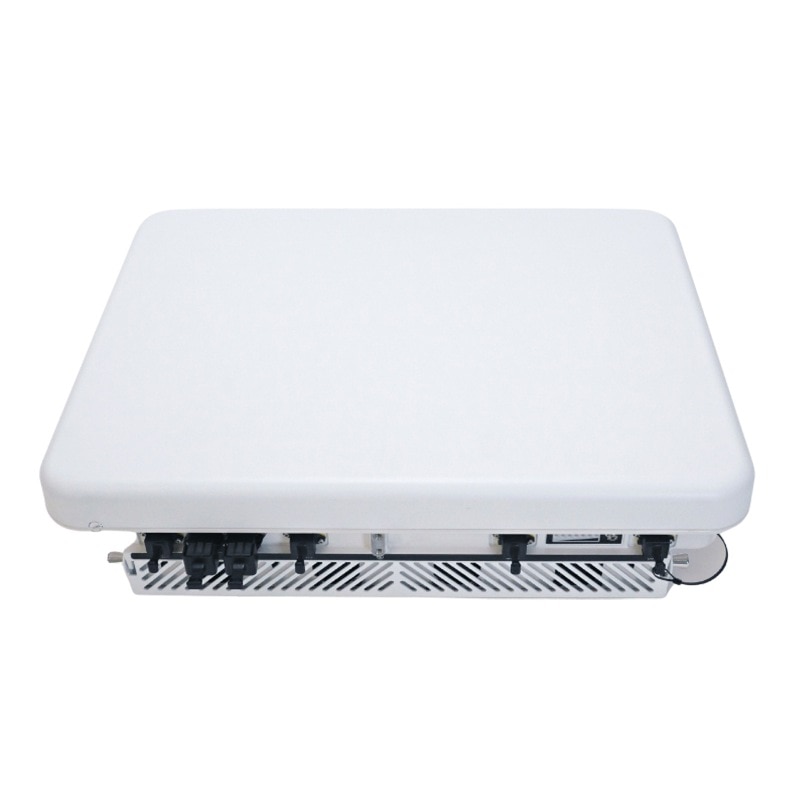

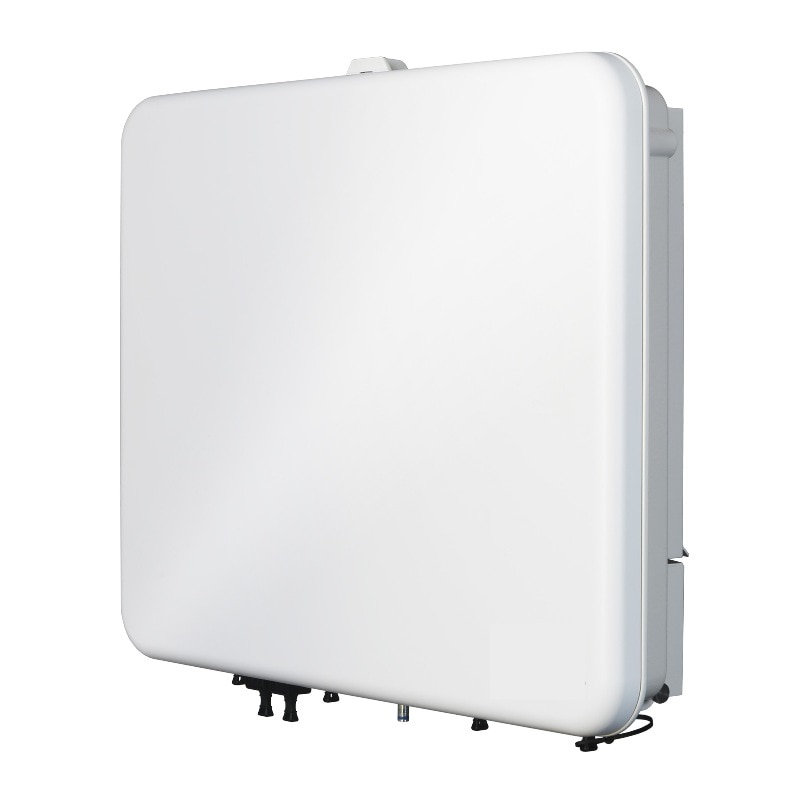

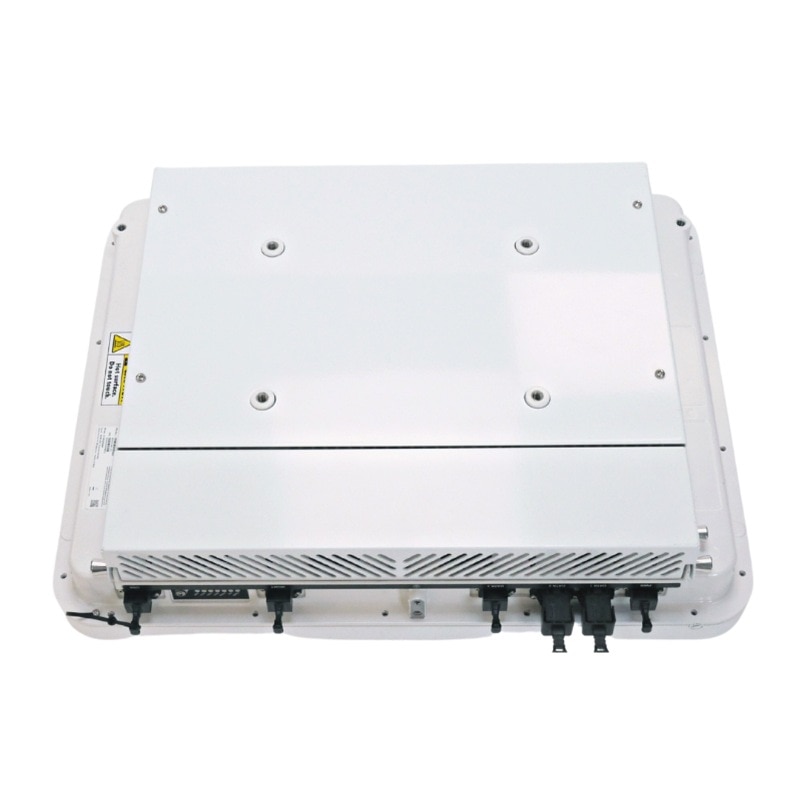

Tarana Wireless 35-0134-001
G1 5GHz Outdoor Base Node (BN) with Integrated Antenna, FCC
Large portions of both developed and especially developing economies remain underserved in an ongoing digital divide that makes real broadband ever more urgent, as evolving modes of work, education, commerce, health care, and entertainment increase dependence on great connectivity. Copper-based fixed access networks are increasingly exhausted. Wireless alternatives continue to fail in the face of the significant technical challenges in carrier-class fixed access, including pervasive obstructions, spectrum scarcity, interference, changing conditions, and unworkable deployment models.
Tarana innovation has solved all these problems. Our Gigabit 1 platform (G1) is powered by the results of more than 10 years of focused R&D, and crafted from its custom silicon up to its cloud-based service automation with a completely fresh approach to fixed wireless. Extensively validated by tier-1 operators and well proven in carrier scale networks, our fundamental advances in multi-radio performance completely transform the economics of delivering gigabit-class access. The G1 platform features the base node (BN), remote node (RN), and Tarana Cloud Suite (TCS) for management.
Features:
- Up to 800Mbps aggregate throughput per link
- Up to 9.6Gbps capacity/site / 80 MHz channel (using free, unlicensed spectrum)
- 1024 users/site (256 / sector)
- Industry-first cancellation of unlicensed-band interference
- Simple cellular deployment model
- ~2x cellular range in NLoS or LoS conditions
- Compact, integrated base node and low-cost remote node
- Enhanced TR101 Broadband Forum network architecture (no complex packet core required)
- Comprehensive cloud suite for planning, zero-touch config, monitoring, SDN management, and support automation
- Software-defined radios, enabling automated, cloud-managed performance upgrades
- Power consumption (typical at 55ºC)
Specifications
Specifications
| Dimensions HxWxD (inches) | 16.6 x 21.2 x 4.7 in (422 x 539 x 119 mm) |
| Weight (lb.) | 42 lbs (19 kg) |
| Power Consumption (Typical) | 275W |
| Radio Network Elements | Base Node |
| Topology | Scheduled, concentrated multi-point |
| Maximum # of Users | 256 (per BN) 1024 (per site with 4 BNs) |
| Channel Bandwidth | 80Mhz (2 x 40Mhz) |
| Aggregate Throughput (UL +DL) | Per Link 800Mbps Per BN 2.4Gbps Per site 9.6Gbps (4 BNs) |
| Duplexing | TDD |
| Downlink / Uplink Ratio | Configurable 2:1 or 4.5:1 (network-wide) |
| Modulation | QPSK 1/2 to 256 QAM 7.35/8 UL/DL |
| MIMO Streams Per Link | 1x1, 2x2 |
| MU-MIMO Streams at Aggregation Point | 6 MU-MIMO streams per BN 24MU-MIMO streams per site |
| Spectral Efficiency | 30 bps/Hz per BN75-90bps/Hz per band, configuration dependent |
| Range (full rate, frequency dependent) | NLOS: up to 3km LOS: Up to 15km |
| Recommended Frequency Reuse Factor | Universal frequency reuse (k=1) Enabled by advanced self-interference cancellation |
| Form Factor | Outdoor micro enclosure (fully-integrated antenna, RF, and baseband) 4 BNs for 360° coverage |
| Beamforming | Auto-convergent, retro-directive |
| Interference Management | Self-interference cancellation, Advanced Burst Interference Cancellation (ABIC) |
| Scheduler | Advanced 4D frame-based scheduling |
| Frequency Support | 5.150-5.250GHz (FCC/ISED) 5.725-5.850 GHz (FCC/ISED) |
| Latency (1-way avg) | < 5 msec |
| Model Numbers | BN 5GHz G1-BN5ASI002 |
| Compliance | RSS-247, FCC 15E, FCC Part 96, WINFF-TS-0122 |
| Safety | IEC 62368-1, IEC 60529, IEC 60950-1, IEC 60950-22 |
| Tarana Cloud Suite | Scalable Microservices based multi-tenant network management |

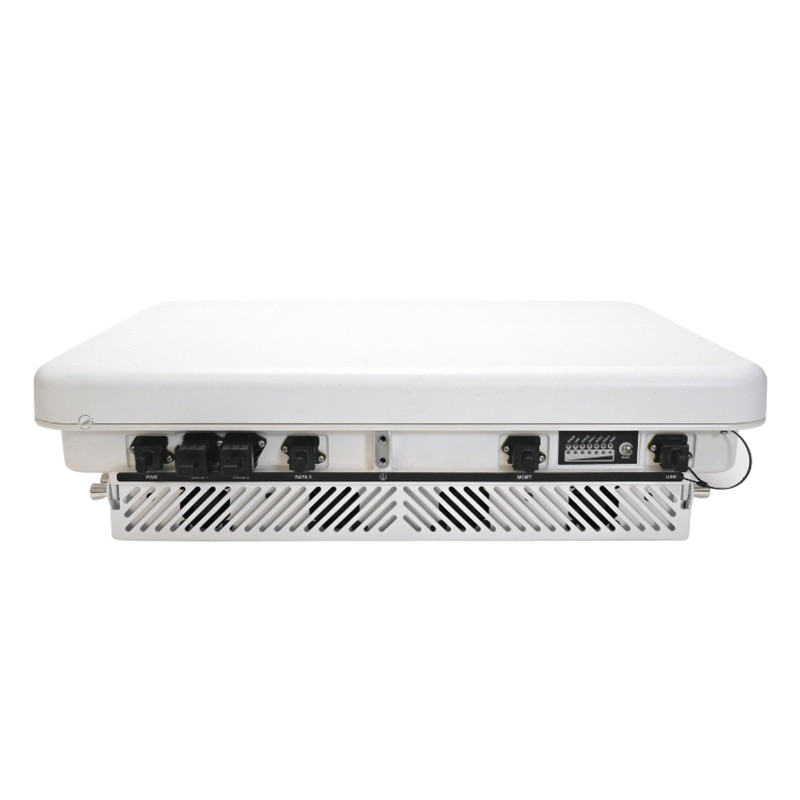

| Interfaces | Dual 10-Gbps SFP+ and one 1-Gbps data interfaces Additional 1 Gbps mgmt Ethernet interface. -48V DC Power |
| Environmental rating | IP67 |
