Tarana Wireless Outdoor Shielded Cat5e Ethernet Cable 5m
- SKU: 33-0007-005
$66.00
- Manufacturer: Tarana Wireless
- Data Sheet: Download
Product Information
Tarana Wireless 33-0007-005

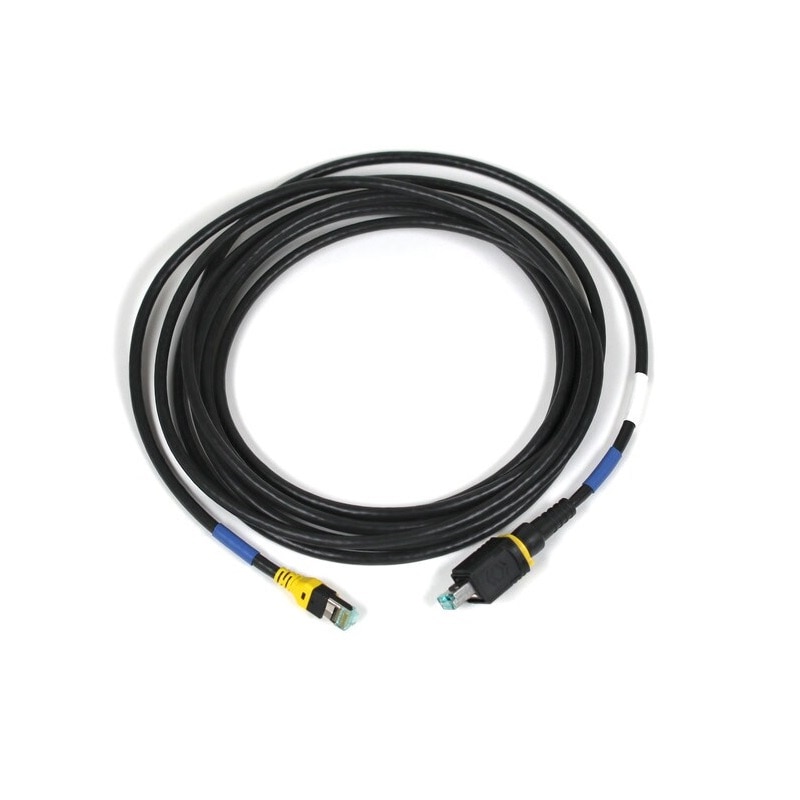

Outdoor Shielded Cat5e Ethernet Cable 5m Harting Push-Pull Connector. Used for initial setup of BNs, removed after setup.
Specifications
Specifications 33-0007-005
| Dimension | 15" x 15" x 16" inch |
| Weight | 0.76 lbs. |
| Wire Outer Diameter | 1.05 mm |
| Mating Cycles | ≤ 750 |
| Shielding | Fully shielded, 360º sheilding contact |
| Termination Method | Piercing termination |
| Locking Type | Push-pull |
| Number of Contacts | 8 |
| Conductor Cross-Section | 0.08–0.22 mm stranded |
| Conductor Cross-Section | AWG 28–24 stranded |
| Wire Outer Diameter | 1.05 mm |
| Cable Diamter | 5–6.5 mm |
| Limiting Temperature | -40ºC to 70ºC |
| Max Pulling Tension | 111.205 N |
| Min Bend Radius/Minor Axis | 63.500 mm |
