Tycon Power POE Switch Outdoor Enclosure
- SKU: ENC-SW-8x5
$62.65 $65.95
- Manufacturer: Tycon Power
- Spec Sheet: Download
Product Information
Tycon Power ENC-SW-8x5
POE Switch Outdoor Enclosure

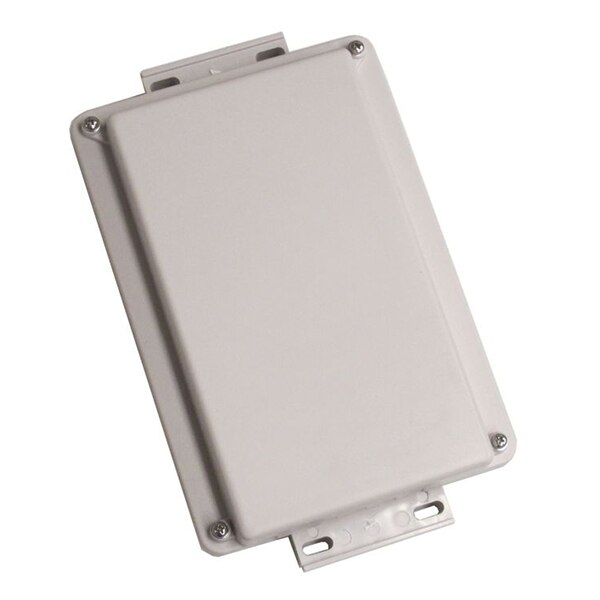

The ENC-SW-8x5 outdoor weatherproof POE switch enclosure is designed especially for the Tycon TP-SW series of POE switches. It accommodates the 5 port or 8 port switches. They provide an inexpensive and convenient way to locate the POE switch on a tower or antenna mast close to the equipment that uses it.

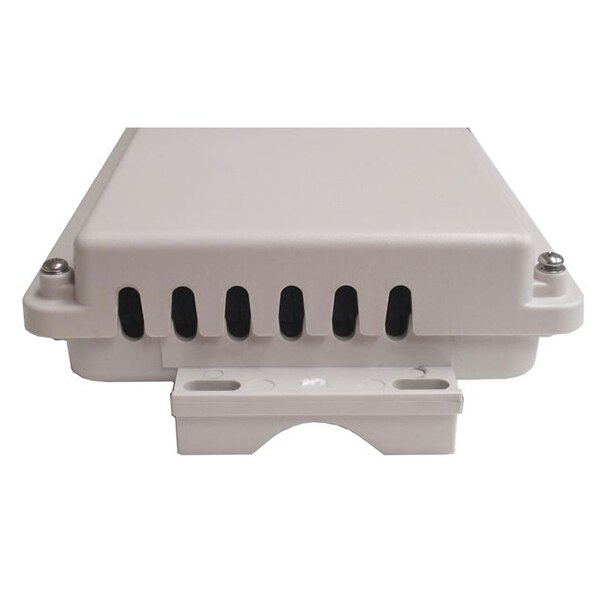

There are 6 cable feed-thru which can accommodate up to 12 CAT5 or CAT6 or power cables. The enclosure is made from UV and impact-resistant plastic for long life and worry-free operation. The enclosure can be pole or wall-mounted.
Features:
- For TP-SW series of POE switches
- Feedthru’s for up to 12 CAT5/6/Power cables
- Weatherproof / UV Resistant
- Mounts to wall or pole
Specifications
Specifications ENC-SW-8x5
| Weatherproof Rating | Nema 4X, IP65 |
| Temperature Rating | -50 to +85°C (-58 to +185°F) |
| Humidity (RH) | 0% - 100% |
| Inside Dimensions (LxWxH) | 222 x 133 x 45mm (8.75 x 5.25 x 1.75”) |
| Outside Dimensions (LxWxH) | 292 x 178 x 64mm (11.5 x 7 x 2.5”) |
| Weight | 567g (1.25 lb) |
