Tycon Power Outdoor Die Cast Enclosure 10x8x3"
- SKU: ENC-DC-10x8x3
$66.45 $69.95
- Manufacturer: Tycon Power
- Spec Sheet: Download
Product Information
Tycon Power ENC-DC-10x8x3
DieCast Outdoor Aluminum Enclosure, 10x8x3″, IP65, Wall/Pole Mount
The TPENC series outdoor enclosures are designed for applications that require a sturdy, weatherproof enclosure to house various electronics. They have gasket seals and are made from UV resistant materials for long service life. They can be wall or pole mounted. The TPENC-PL enclosure has a lockable closure to prevent unauthorized access.

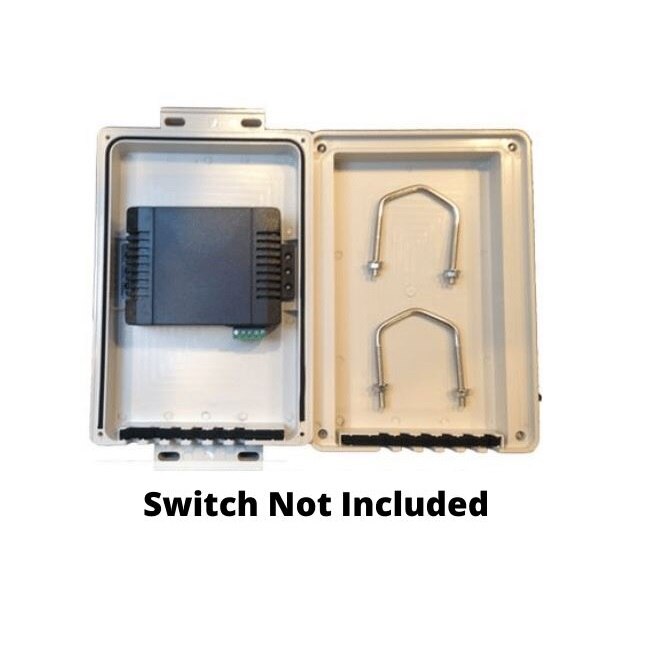

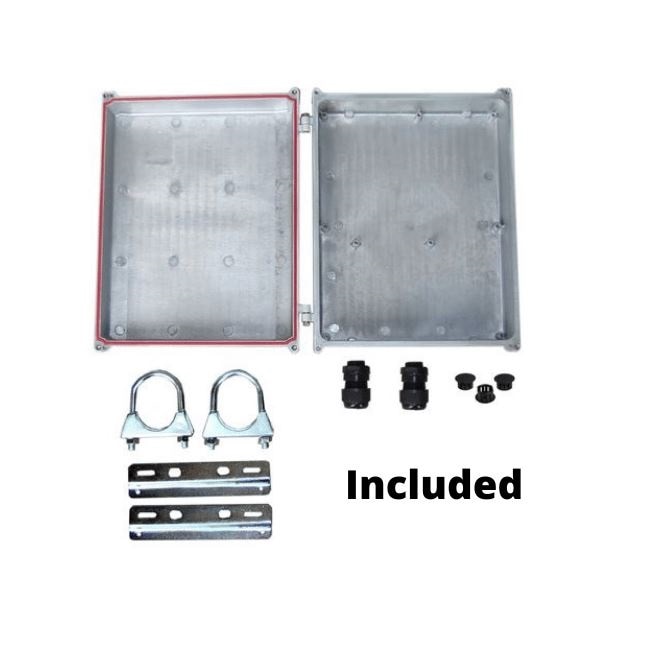

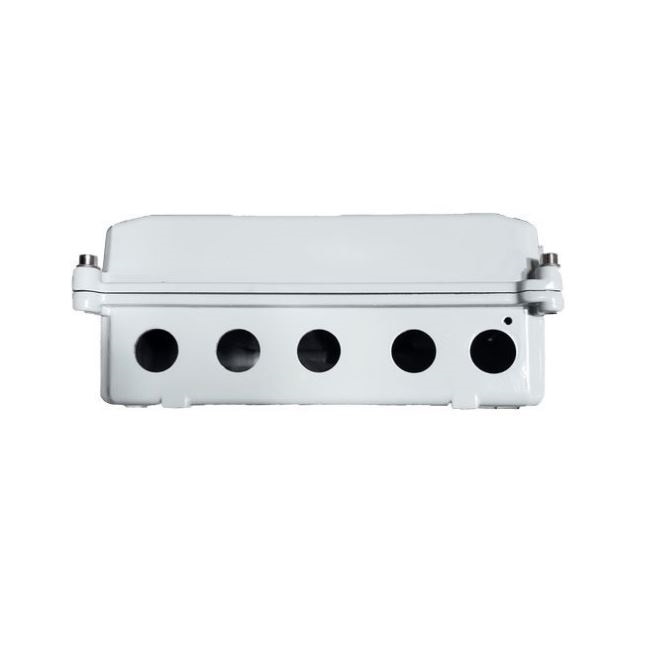

Features include a hinged cover for easy access and weatherproof feedthru's for cables and wiring. The TPENC-DC comes with an RJ45 feedthru which allows passing of an RJ45 connector to make the entire enclosure field replaceable. It also has a cutout for an N Bulkhead connector for attaching external antennas. The TPENC-PL has 3 weatherproof universal cable feedthru's.
Features:
- Weatherproof Nema 4X / IP65, UV resistant, outdoor enclosures
- Gasket sealed
- Weatherproof cable feedthru
Applications:
- Wireless Base Stations and Clients
- Surveillance Cameras
- Wireless Bridge and Repeaters
- Remote Sensors
- Outdoor Utilities
- Solar and Wind Power
Specifications
Specifications ENC-DC-10x8x3
| Enclosure Type | Die Cast Aluminum with powder coat paint |
| Weatherproofing | Nema 4X / IP65 |

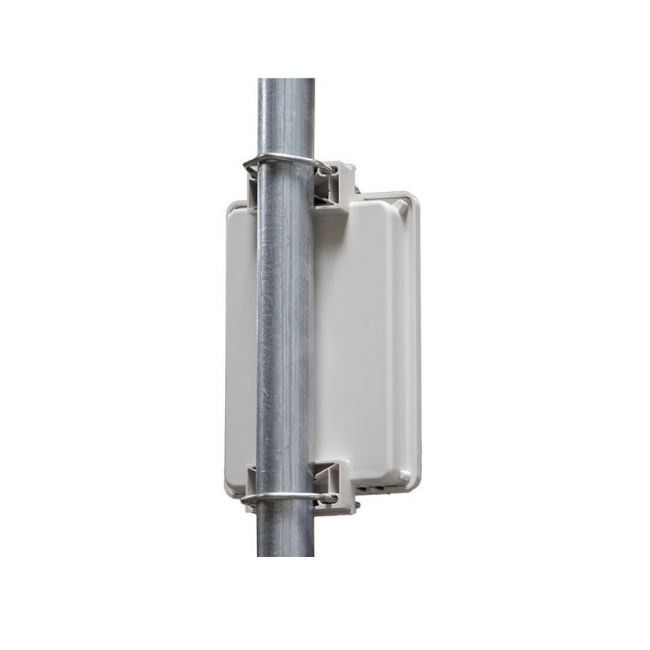

| Enclosure Mounting | Wall or pole mount with included U-Bolts for up to 1.6” |
| Interior Mounts | Qty 9 4mm threaded standoffs |
| Enclosure External Size | 11 x 8.5 x 3.5” (279 x 216 x 89mm) |
| Enclosure Internal Size | 10 x 7.75 x 3” (254 x 197 x 76mm) |
| Weight | 4lb (1.8kg) |
