Tycon Systems Weatherproof Aluminum Ground Mount Enclosure

US$‎1,709.95 US$‎1,799.95
  • SKU: ENC-AL-65x28x18
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: 4 In Stock    (updated live)
    4 In stock at Utah
US$‎1,709.95 US$‎1,799.95

Tycon Systems ENC-AL-65x28x18

Weatherproof Aluminum Ground Mount Enclosure

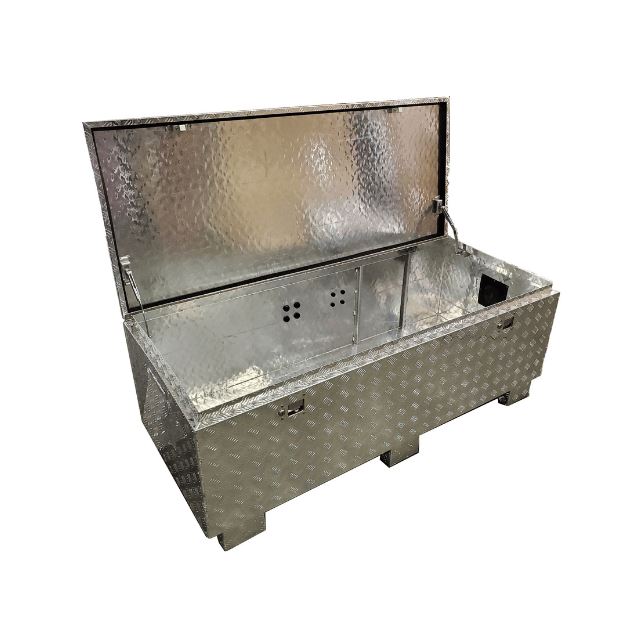

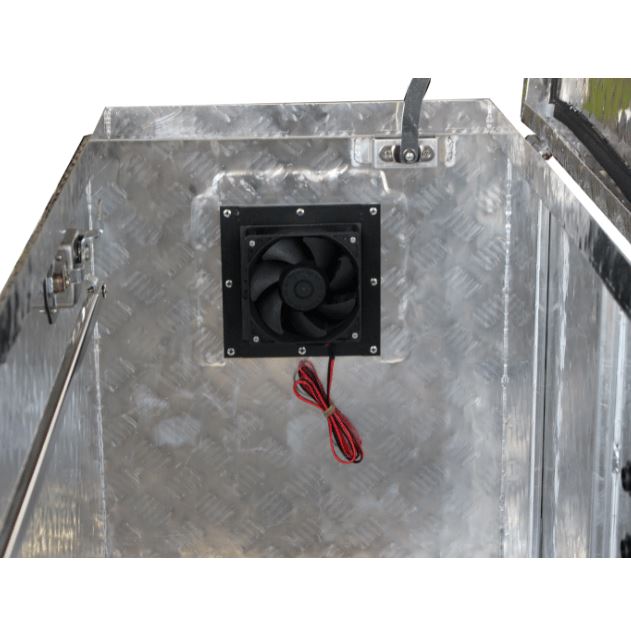

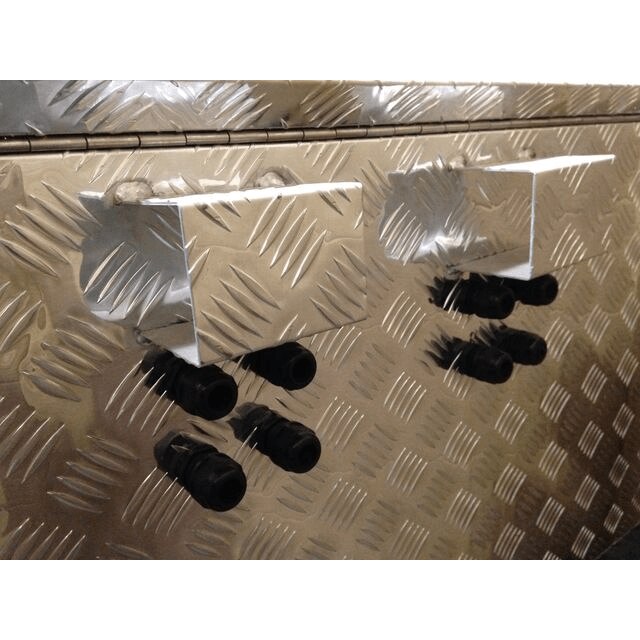

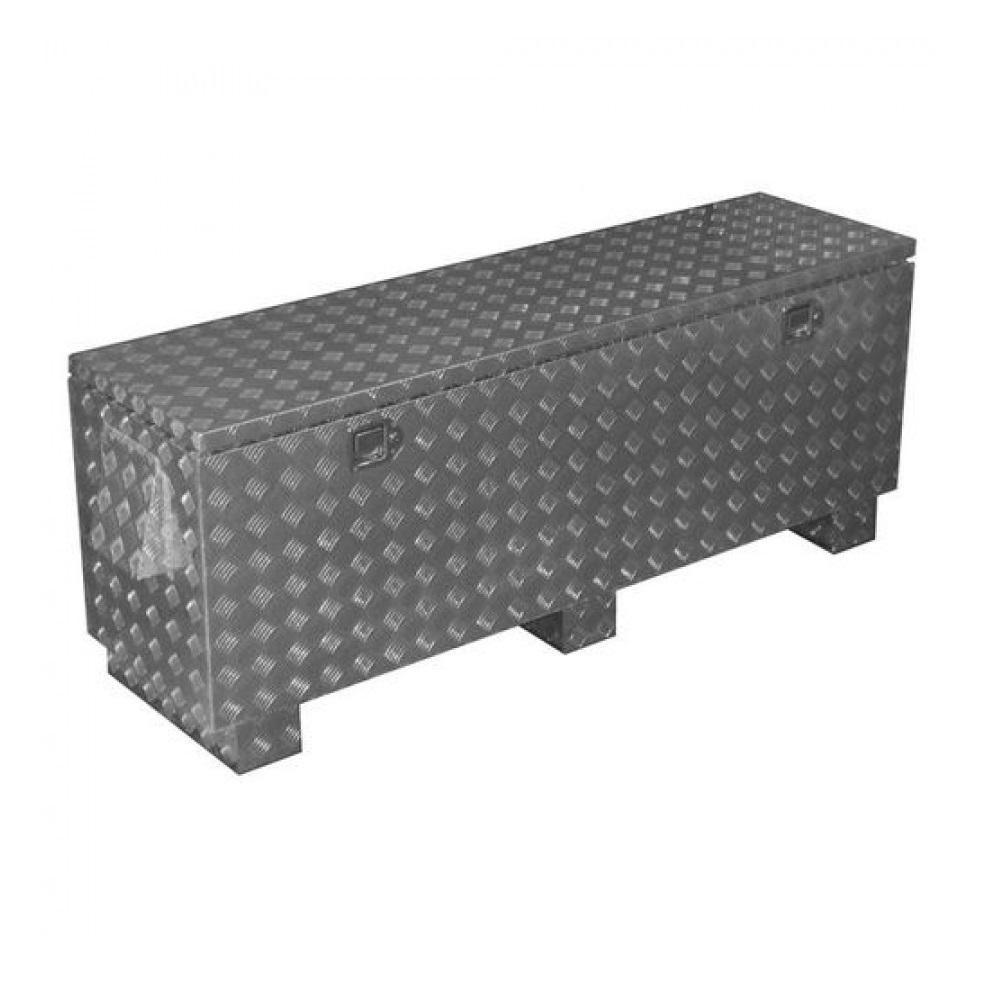

The sturdy outdoor enclosure is a gasket sealed aluminum enclosure designed for battery and equipment storage. It is vented and has two locking latches for security. The enclosures are designed to be mounted on a level pad or slab. There are 8x 20mm holes in the back panel to accommodate up to 8 Cable Glands (4 RJ45 Cable Glands and 4 Hole Plugs included). There is a security bracket on the back of the enclosure so it can be easily chained to the solar mount pole for security or any other static structure. The enclosure includes mounting features inside to mount DIN Rails or a metal plate for mounting of customer electronics. The bottom standoffs allow for easy maneuvering with a fork lift or pallet jack. The enclosure comes with a mounted PowerVent 24/48VDC 120mm fan with 45 deg C thermostat.


Features:

  • Weatherproof, UV Resistant, Outdoor Enclosure
  • Double Keyed Locking System
  • Diamond Plated Aluminum
  • Rubber Gasket Nipple Hinged Top
  • Dual Screened Weatherproof Vents
  • Heavy Duty Bottom Standoffs
  • Welded Security Shackle to Chain Lock in Place

Applications:

  • Battery enclosure
  • Backup Power Systems
  • Equipment enclosure
  • Equipment security

Specifications ENC-AL-65x28x18

TypeVented Enclosure
WeatherproofingIP65
Material2.0 mm Aluminum checker plated
Material Struts3.0 mm Aluminum Flat Plate
Material Back Rack4.0 mm Aluminum Flat Plate
Enclosure External Size69” x 30.25” x 23.5” (1753 x 768 x 597mm)
Internal Dimensions64.75” x 27.25” x 19” (1645 x 693 x 483mm)
Net Weight68 lbs. (31kg)
Warranty3 year
