  • Tycon Power 65x18x20" AL enclosure, hinged lid, locking closures with key, gasket, 2mm thick Alum.

Tycon Power 65x18x20" AL enclosure, hinged lid, locking closures with key, gasket, 2mm thick Alum.

US$‎455.95 US$‎479.95
  • SKU: ENC-AL-65x18x20
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: Direct Ship Item Ships direct from manufacturer usually same day Email me when this product is in stock!
US$‎455.95 US$‎479.95

Specifications ENC-AL-65x18x20

TypeVented Enclosure
Material2.0 mm Aluminum checker plated
Material Struts3.0 mm Aluminum Flat Plate
Material Back Rack4.0mm Aluminum Flat Plate
Enclosure External Size69” x 20.5” x 25” (1750 x 520 x 640mm)
Internal Dimensions64.5” x 17.5” x 19.5” (1638 x 444 x 495mm)
Net Weight59.5 lbs. (27kg)

Tycon Power ENC-AL-65x18x20

65x18x20" AL enclosure, hinged lid, locking closures with key, gasket, 2mm thick Aluminum, Checker Plate, 8 RJ45 Feedthru.

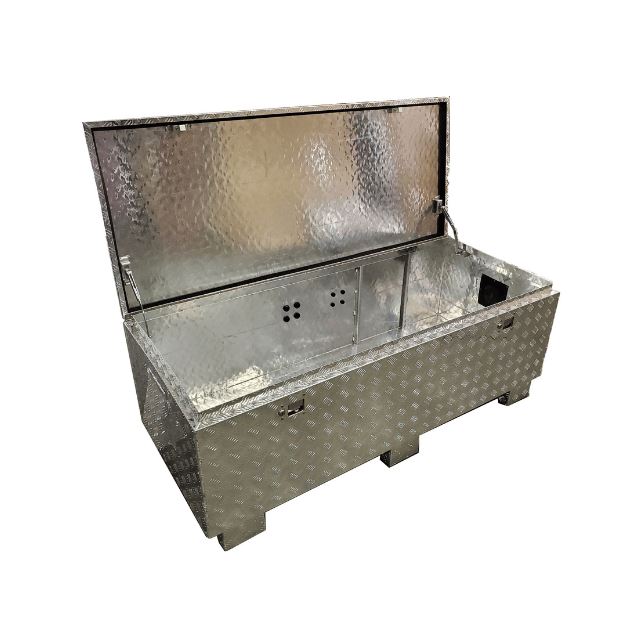

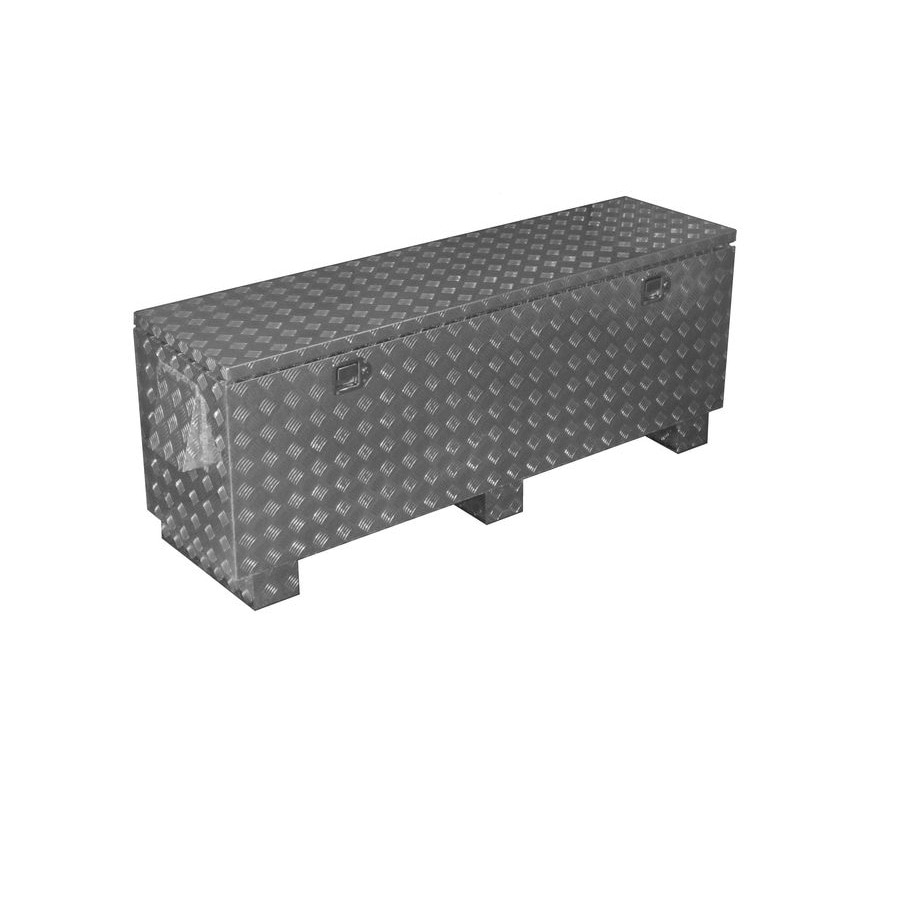

The ENC-AL-65x18x20 is a sturdy outdoor gasket sealed aluminum enclosure designed for battery and equipment storage. It is vented and has two locking latches for security. The enclosures are designed to be mounted on a level platform or slab. There are 8 x 20MM feedthru holes in the back panel to accomodate up to 8 cable glands (Qty 4 RJ45 cable glands and Qty 4 hole plugs are included). There is a security bracket on the back of the enclosure so it can be easily chained to a pole for security. The enclosure includes mounting features inside to mount DIN Rails or a metal or plywood plate for mounting of customer electronics. The bottom standoffs allow for easy maneuvering with a pallet jack or fork lift.

It meets NEMA 4X / IP65 weatherproofing standards.

Inside Dimensions are 64.5" Long x 17.5" wide x 19.5" tall. Weight: 60lbs Ships Fed Ex Ground


Features:

  • Weatherproof Aluminum Ground Mount Enclosure.
  • Double Keyed Locking System
  • Diamond Plated Aluminum
  • Rubber Gasket Nipple Hinged Top

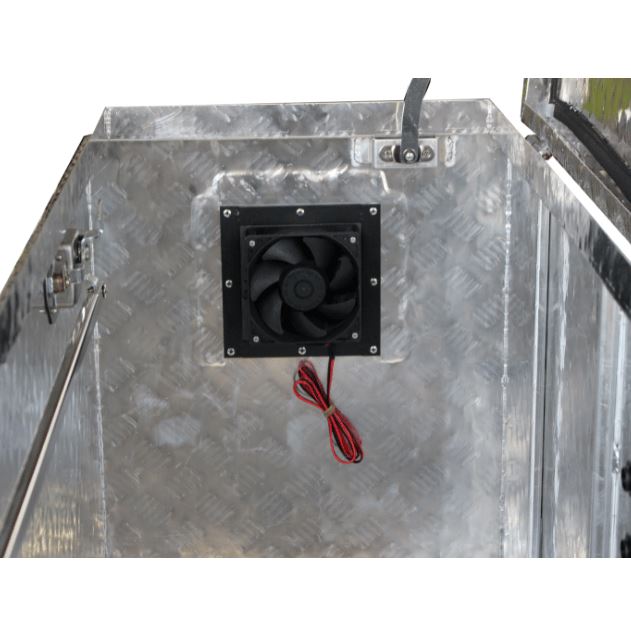

  • Dual Screened Vents
  • Heavy Duty Bottom Standoffs
  • Welded Security Shackle to chain lock in place

Applications:

  • Battery enclosure
  • Equipment enclosure
  • Backup Power Systems
  • Equipment security
