Ubiquiti UAP-AC-PRO-US

(0)No Reviews yet
US$‎142.44 US$‎149.00
  • SKU: UAP-AC-PRO-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
18936 in stock
College Station
11 In stock
Mississippi
18925 In stock

Product Information

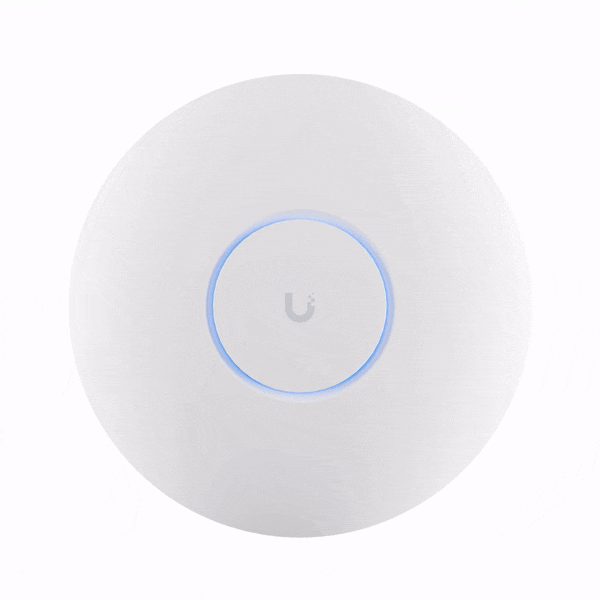

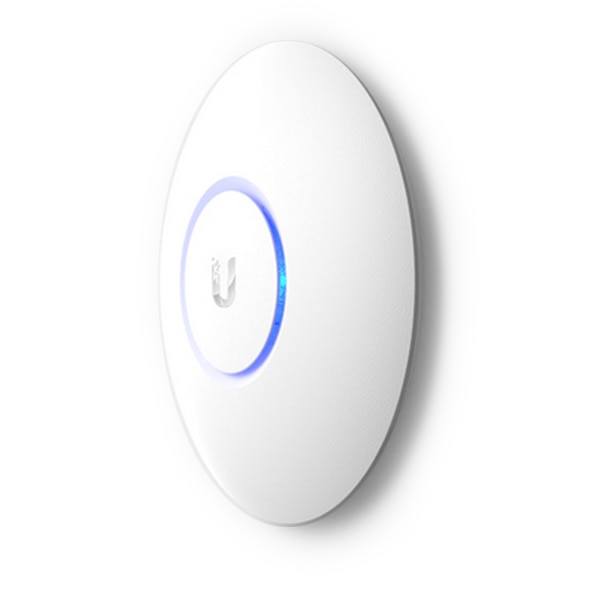

UAP‑AC‑PRO Ubiquiti UniFi AC Indoor/Outdoor Access Point - 802.11ac 3x3 MIMO

Up to 5X Faster with Dual-Radio 3x3 11AC MIMO Technology

The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands.

Designed for Optimal RF Performance

The newly redesigned UniFi Controller optimizes RF performance:

Versatile Design

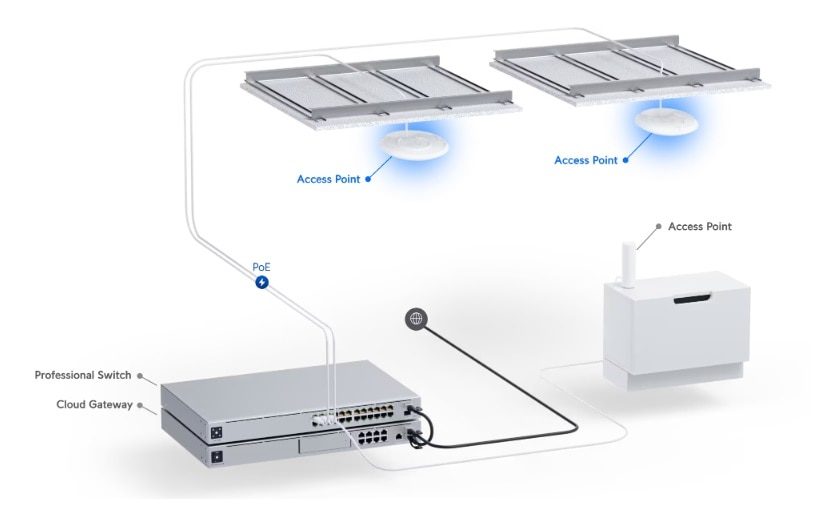

The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use. You can easily replace a standard UniFi AP using the same mounting hardware.

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UAP-AC-PRO APs while in the field.

Specifications

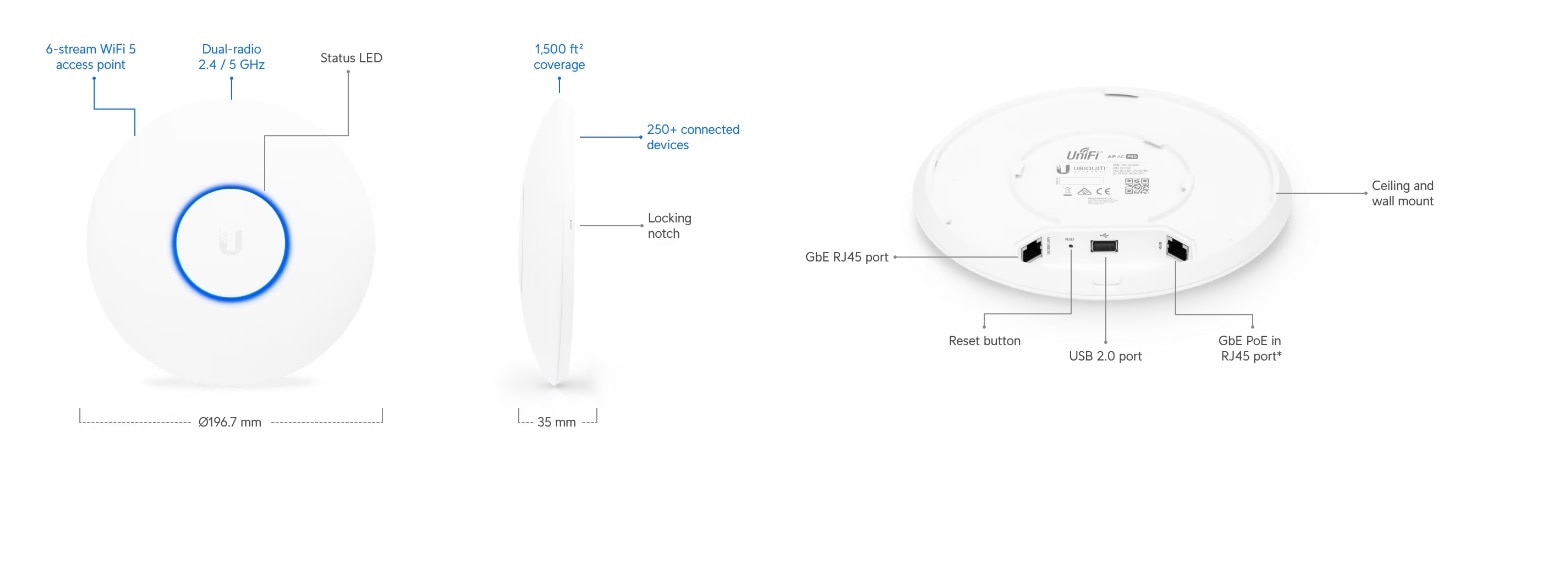

Dimensions196.7 x 196.7 x 35 mm (7.74 x 7.74 x 1.38")
Weight
With Mounting Kits
350 g (12.4 oz)
450 g (15.9 oz)
Networking Interface(2) 10/100/1000 Ethernet Ports
Port(1) USB 2.0 Port
ButtonsReset
Antenna(3) Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
Wi-Fi Standards802.11 a/b/g/n/ac
Power MethodPassive Power over Ethernet (48V), 802.3af/803.2at Supported (Supported Voltage Range: 44 to 57VDC)
Power Supply48V, 0.5A PoE Gigabit Adapter*
Maximum Power Consumption
With Optional Accessory
9W
20W
Maximum TX Power
2.4GHz
5GHz

22 dBm
22 dBm
BSSIDUp to Four per Radio
Power SaveSupported
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
CertificationsCE, FCC, IC

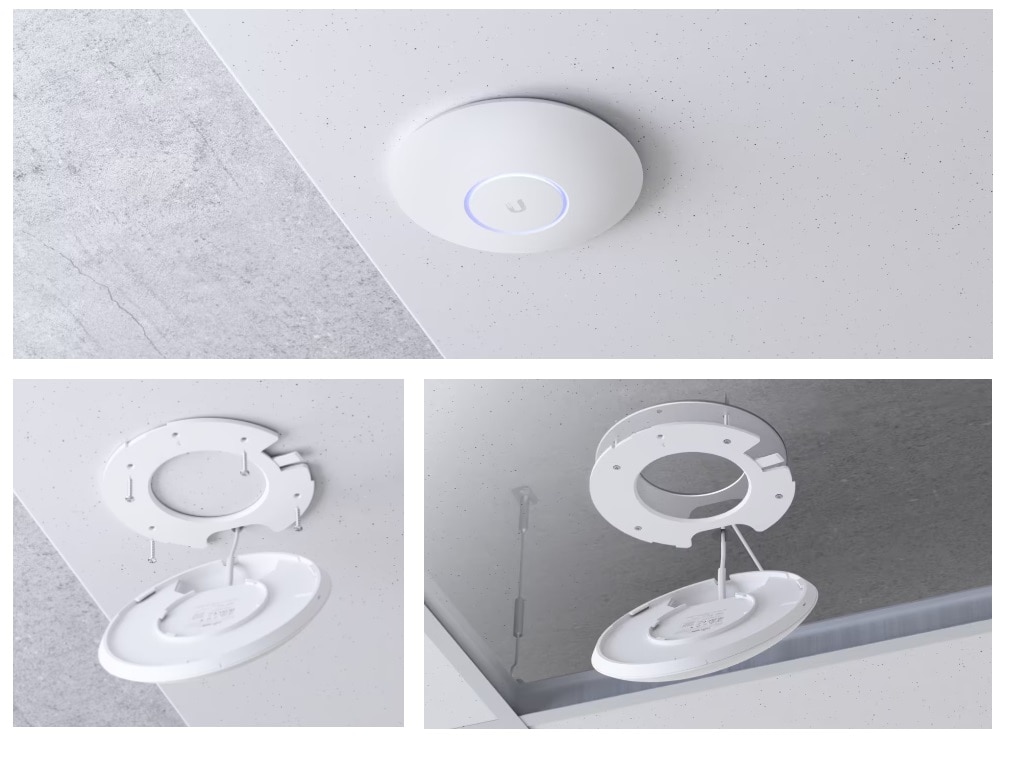

MountingWall/Ceiling (Kits Included)
Operating Temperature-10 to 70° C (14 to 158° F)
Operating Humidity5 to 95% Noncondensing

VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients200+

StandardData Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
