Ubiquiti 5GHz Litebeam AC Gen2 23dBi US

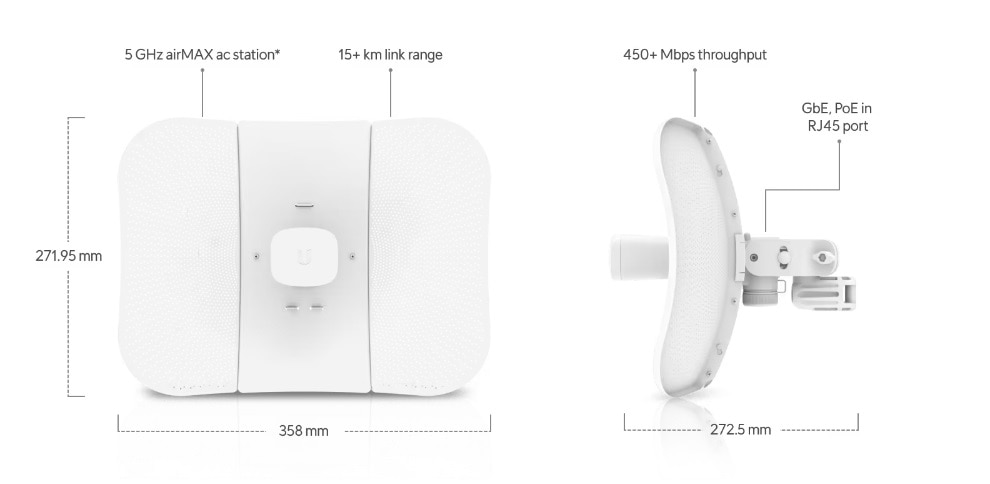

|Dimensions||358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73")|
|Weight||Without Mount 800 g (1.76 lb) |
With Mount 980 g (2.16 lb)
|Max. Power Consumption||7W|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Supported Voltage Range||24V ± 10%|
|Operating Frequency||Worldwide 2412 - 2462 MHz 5150 - 5875 MHz USA: U-NII-1 5150 - 5250 MHz |
USA: U-NII-2A 5250 - 5350 MHz
USA: U-NII-2C 5470 - 5725 MHz
USA: U-NII-3 5725 - 5850 MHz
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Processor Specs MIPS||74Kc|
|Memory||64 MB DDR2|
|Channel Sizes||PtP Mode 10/20/30/40/50/60/80 MHz |
PtMP Mode 10/20/30/40 MHz
|Enclosure Characteristics||Reflector (SGCC 0.6T) / Plastic: PC|
|Mounting||Pole-Mounting Kit (Included)|
|Wind Loading||275 N @ 200 km/h (61.8 lbf @ 125 mph)|
|Wind Survivability||200 km/h (125 mph)|
|ESD/EMP Protection||± 24 kV Contact / Air|
|Operating Temperature||-40 to 70° C (-40 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Certifications||CE, FCC, IC|
Ubiquiti: 5GHz Litebeam AC Gen2 23dBi US

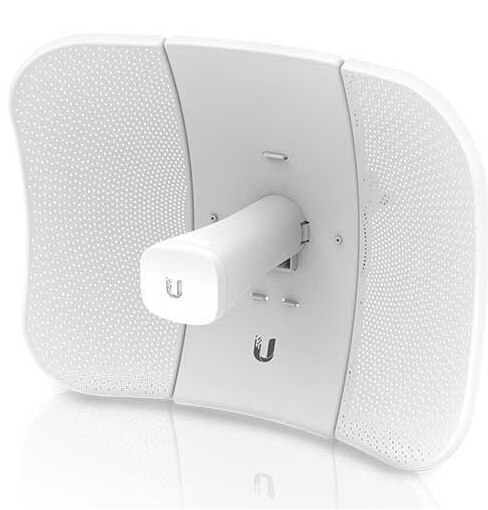

The Ubiquiti Networks LBE-5AC-Gen2 is a 802.11ac LiteBeam CPE. It uses both 2.4 and 5GHz frequencies with a 23dBi, and utilizes the new UMobile app for easy setup and installation.

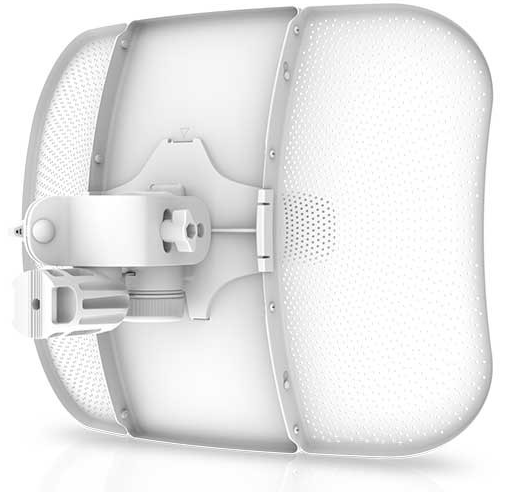

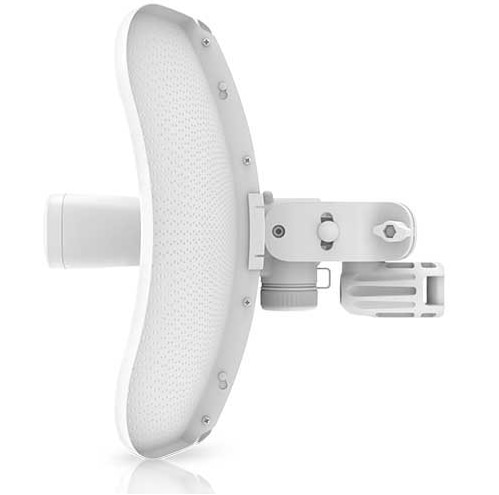

LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment.

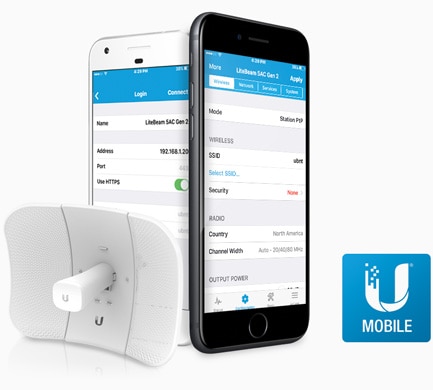

Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

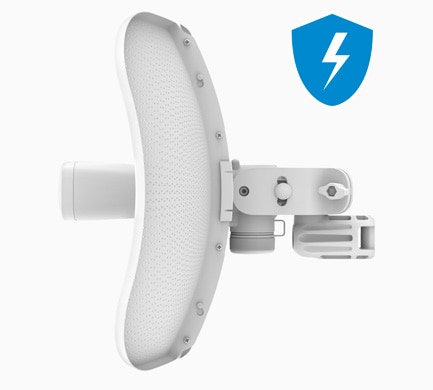

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

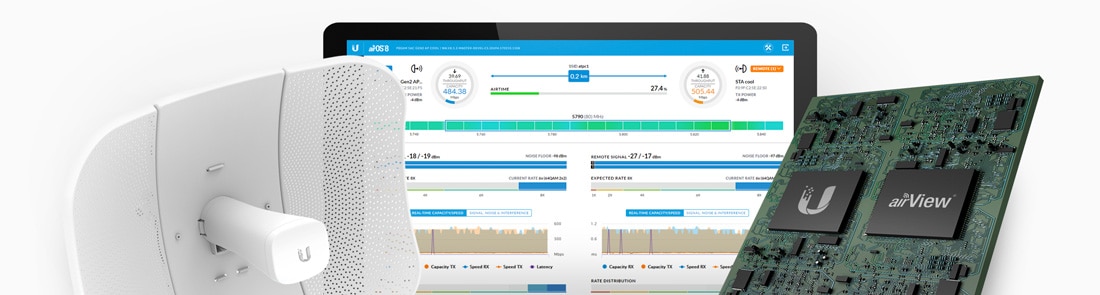

Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

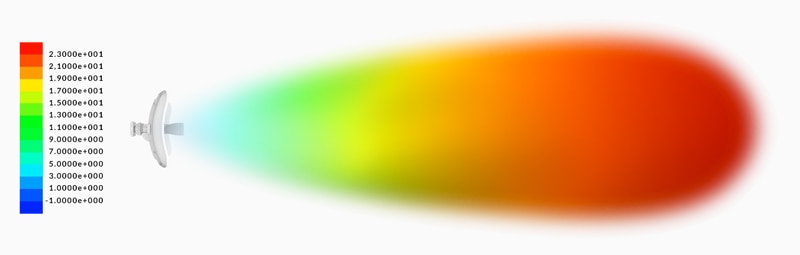

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

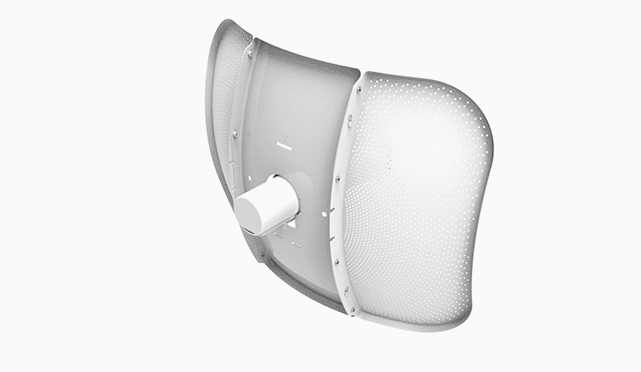

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

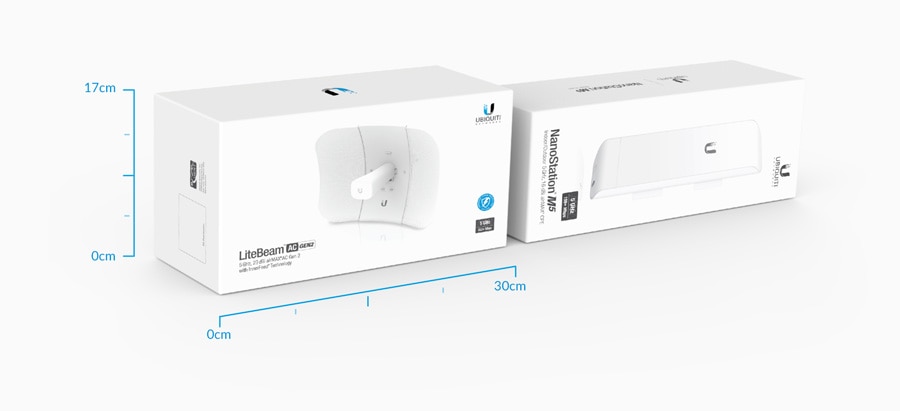

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.
