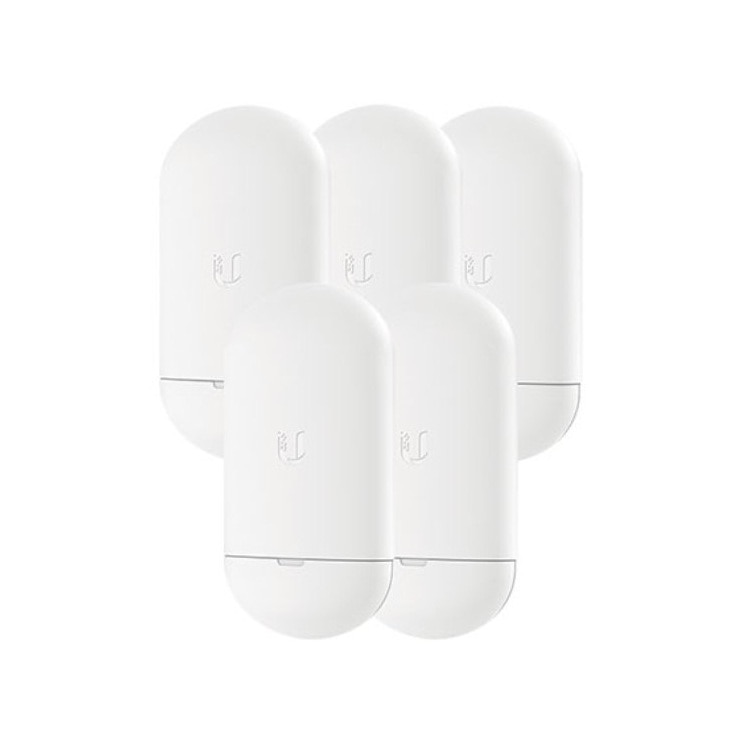

Ubiquiti 5GHz airMAX NanoStation 5AC Loco US 5Pk

  • SKU: NS-5ACL-5-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Start Guide: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

(click to select)

Specifications NS-5ACL-5-US

ThroughputUp to 450+ Mbps Real TCP/IP Throughput
Operating Frequency (MHz)5150 - 5250, 5725 - 5850
Management Radio (MHz)2412 - 2462
Power Supply24V, 0.5A Gigabit PoE Supply*
Max. Power Consumption8.5W
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Gain13 dBi
Networking Interface10/100/1000 Mbps Ethernet Port
Channel Bandwidths10/20/30/40/50/60/80 MHz
Processor SpecsAtheros MIPS 74Kc, 560 MHz
Memory64 MB DDR2
Cross-pol Isolation20 dB Minimum
Max. VSWR1.8:1
Beamwidth45° (H-pol) / 45° (V-pol) / 45° (Elevation)
PolarizationDual Linear
EnclosureOutdoor UV Stabilized Plastic
LEDs(1) Power
MountingPole-Mount (Kit Included)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-condensing

Ubiquiti NS-5ACL-5-US

5GHz airMAX NanoStation 5AC Loco US 5Pk

Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC loco takes the same concept to the future with sleek form factors, along with integrated airMAX® (MIMO TDMA protocol) technology and dedicated Wi-Fi management.

The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco gets maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC loco makes it extremely versatile and economical to deploy.


  • Real Time Reporting
  • Spectral Analysis
  • Advanced RF Analytics
  • Up to 450+ Mbps Real TCP/IP Throughput
  • Dedicated Wi-Fi Radio for Management
  • Versatile Mounting: Suitable for indoor and outdoor installations
  • Improved Surge Protection: The NanoStation AC loco utilize the latest ESD Protection to help protect against power surges.
  • Efficient Footprint: The radio and antenna are combined into a single body that takes up minimal space.
  • Quick Installation: No fasteners are required for pole‑mounting
