Ubiquiti 5 GHz LTU Pro (US Version)

(0)No Reviews yet
  • SKU: LTU-PRO-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download

Product Information

Ubiquiti 5 GHz LTU Pro (US Version)

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.


Features:

  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router mode support
  • Functions in a PtMP environment with the LTU-Rocket as the basestation

Specifications

Specifications LTU-PRO-US

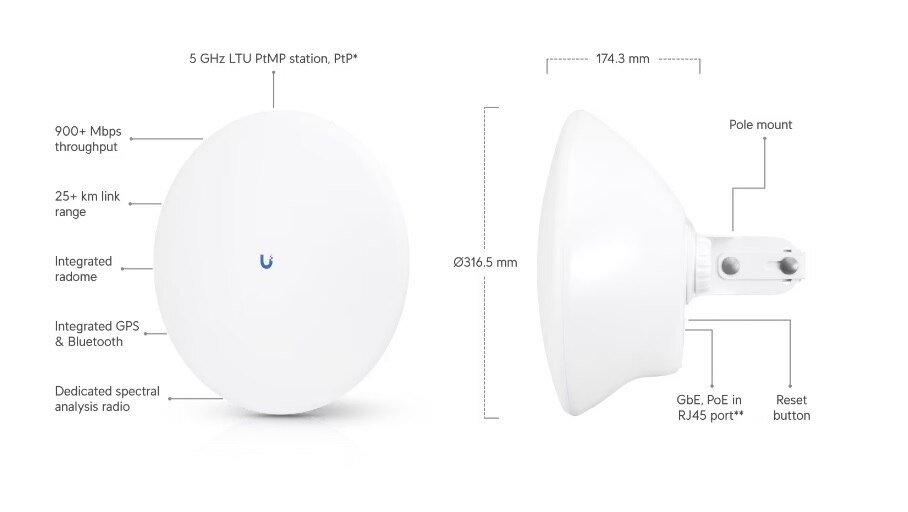

Dimensions 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86")
Weight 1.3 kg (2.87 lb)
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 9W
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range 22 -26V
Max. Conducted TX Power 22 dBm (per Chain)
Gain 24 dBi
Beamwidth 14°
Sidelobe Level -10 dB
Front-to-Back Ratio 27 dB

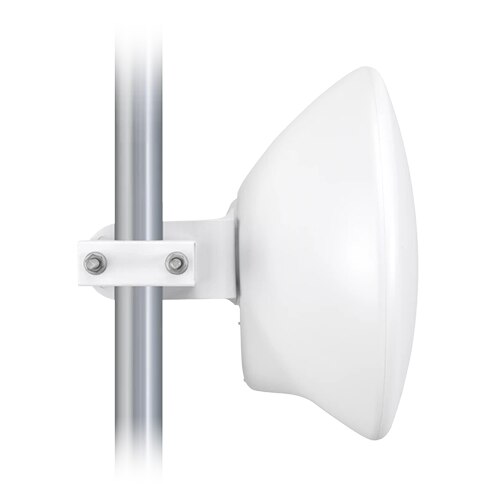

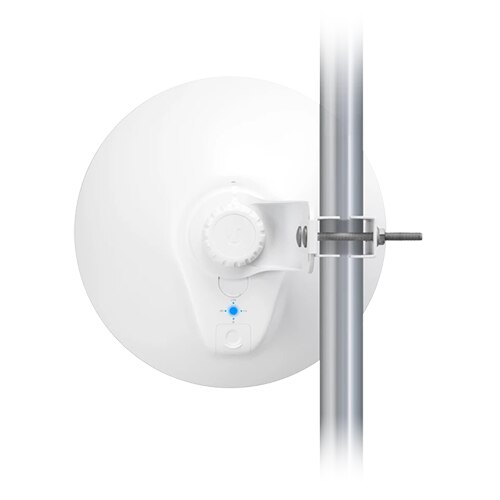

Mounting Pole-Mount (Kit Included)
Wind Loading 150 N @ 200 km/h (33.72 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 -90% Noncondensing
Certifications CE, FCC, IC
OPERATING FREQUENCY (MHZ)
Worldwide 2400 -2483.5* 4800 -6200*
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 5150 -5250 5250 -5350 5470 -5725 5725 -5850
EU 2400 -2483.5 5150 -5875
