Ubiquiti E7 Enterprise-Grade Indoor Access Point
- SKU: E7-US
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks E7-US
E7 Enterprise-Grade Indoor Access Point
Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.
Features:
- WiFi 7 with 6 GHz support
- 10 spatial streams
- Real-time spectral analysis for enhanced channel selection
- Dedicated spectral analyzer radio
- Long-range 6 GHz performance with AFC*
- 185 m² (2,000 ft²) coverage
- 1,000+ connected devices
- (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

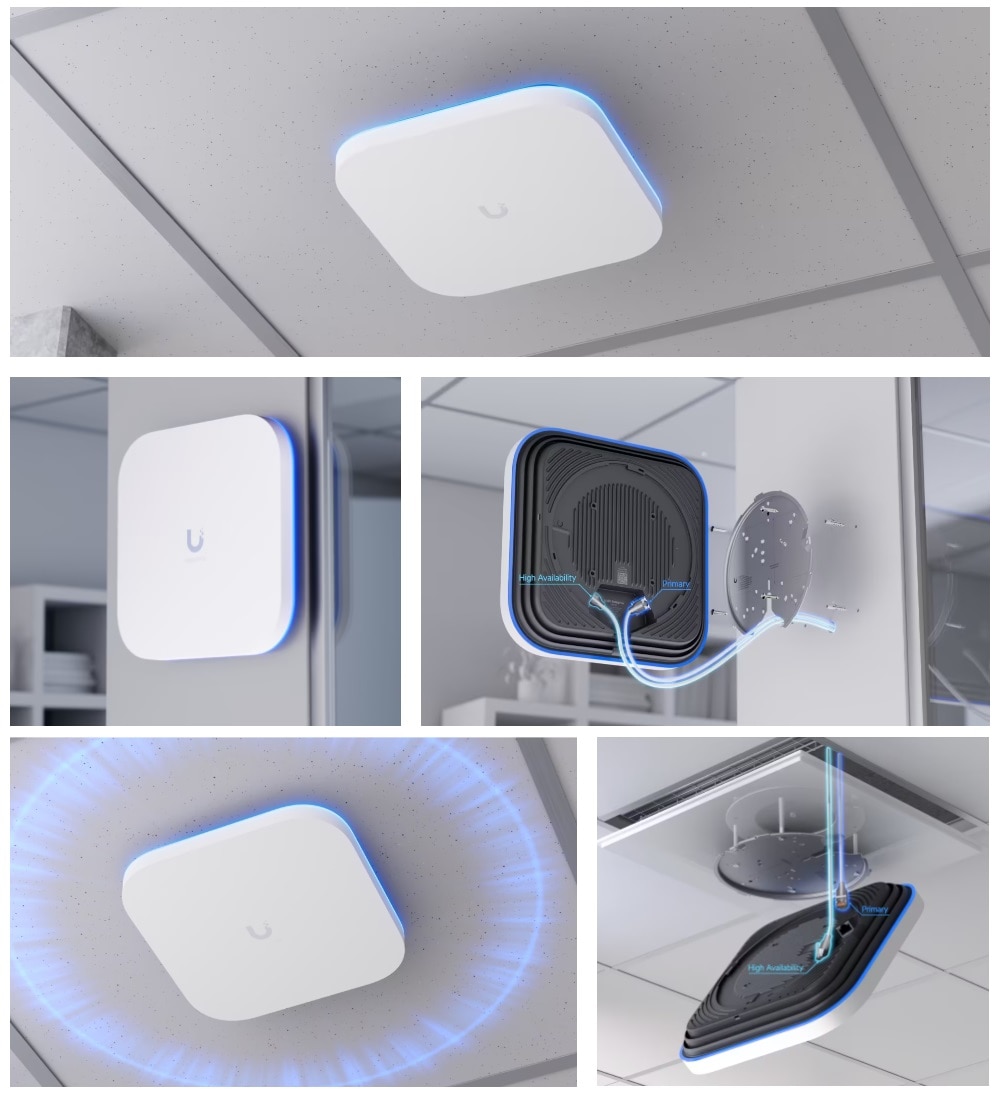

- Backwards compatible mounting system**
- Powered using PoE++
Specifications
Specifications E7-US
| Dimensions | 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7") | |
| Weight | 1.8 kg (4 lb) | |
| Enclosure material | UV-stabilized polycarbonate, aluminum alloy | |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) | |
| Hardware | ||
| Networking interface | (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE++ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 42.5—57V DC | |
| Max. power consumption | 43W | |
Max. TX power 2.4 GHz | 23 dBm | |
MIMO 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) | |
Max. data rate 2.4 GHz | 688 Mbps (BW40) | |
Antenna gain 2.4 GHz | 5 dBi | |
| Antenna | Internal with omni patterns | |
| LEDs | R/G/B | |
| Button | Factory reset | |
| Mounting | Wall/ceiling (Included) | |
| Ambient operating temperature | -30 to 50° C (-22 to 122° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 1,000+ | |
| Ubiquiti specific features | Dedicated spectral analyzer radio | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.6.9 and later | |
| UniFi OS | Version 4.0.20 and later |
