Ubiquiti Enterprise Campus 48 PoE
- SKU: ECS-48-PoE
$3,499.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

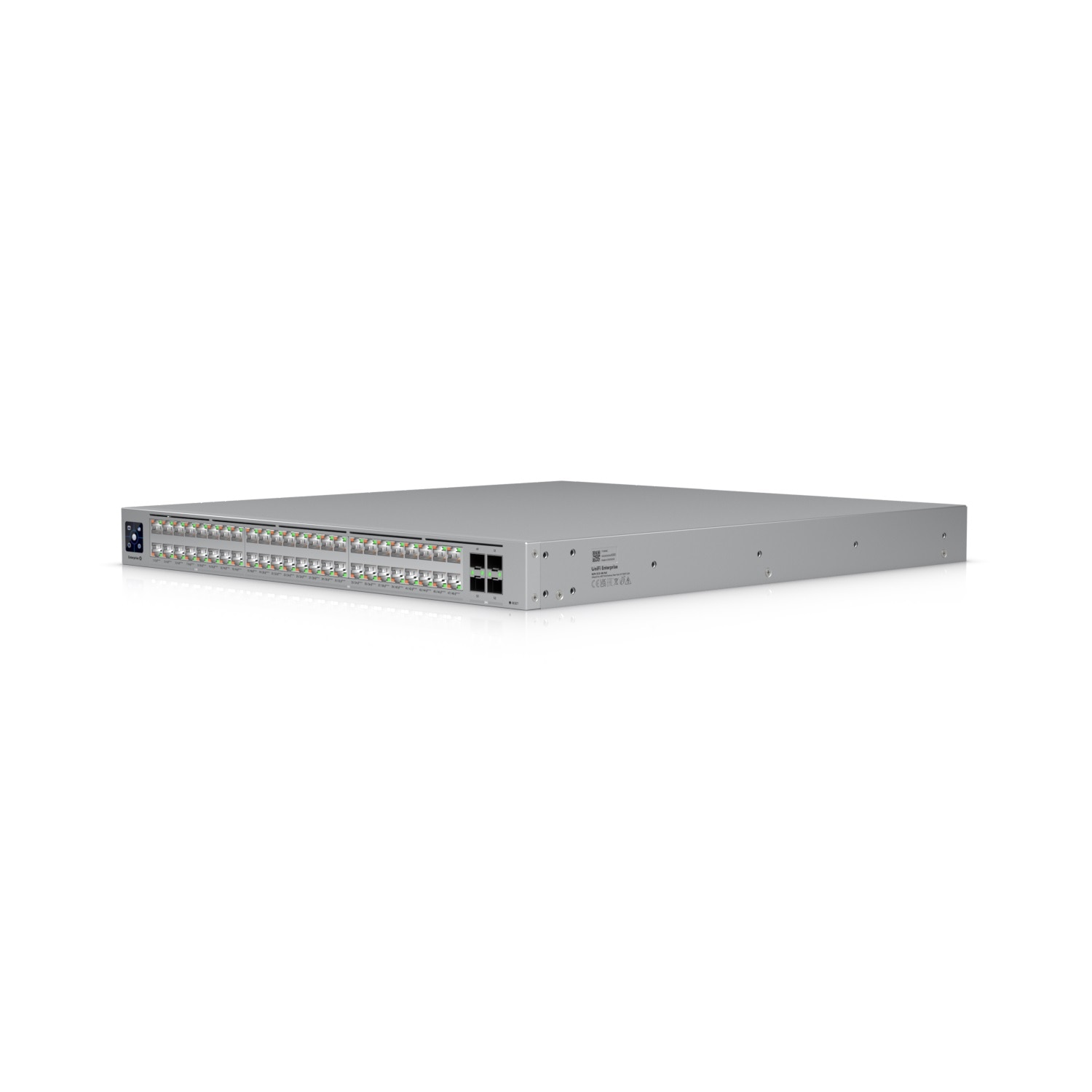

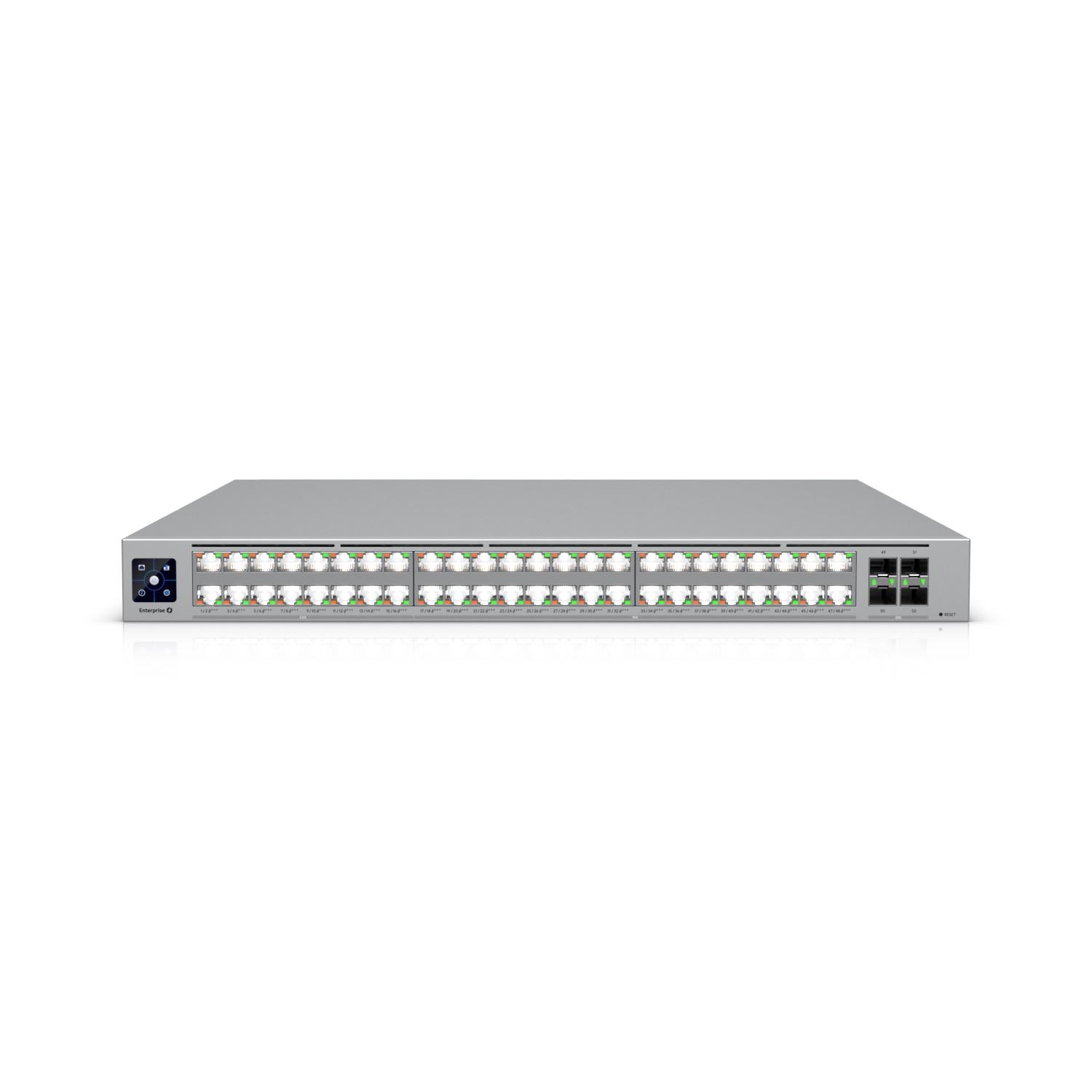

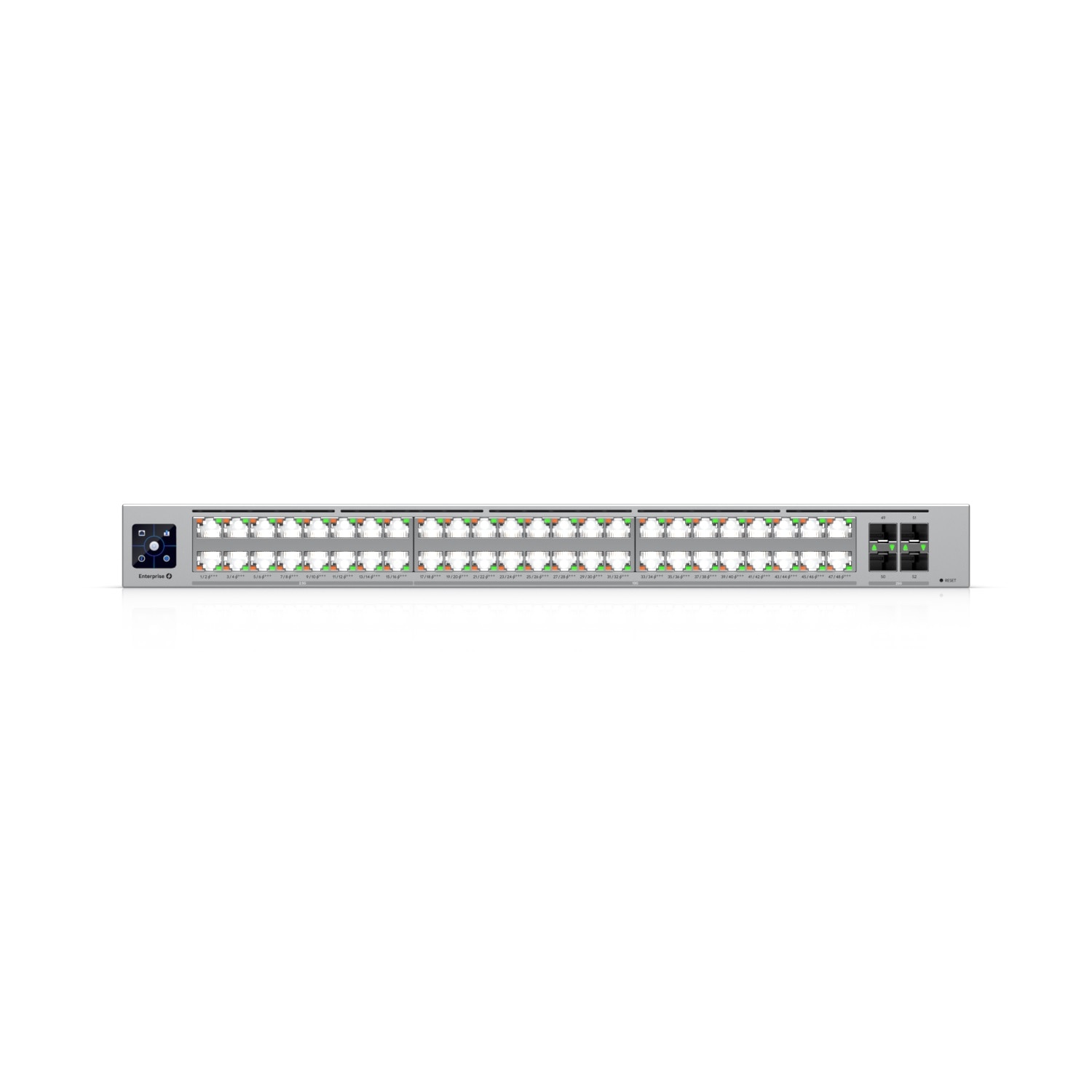

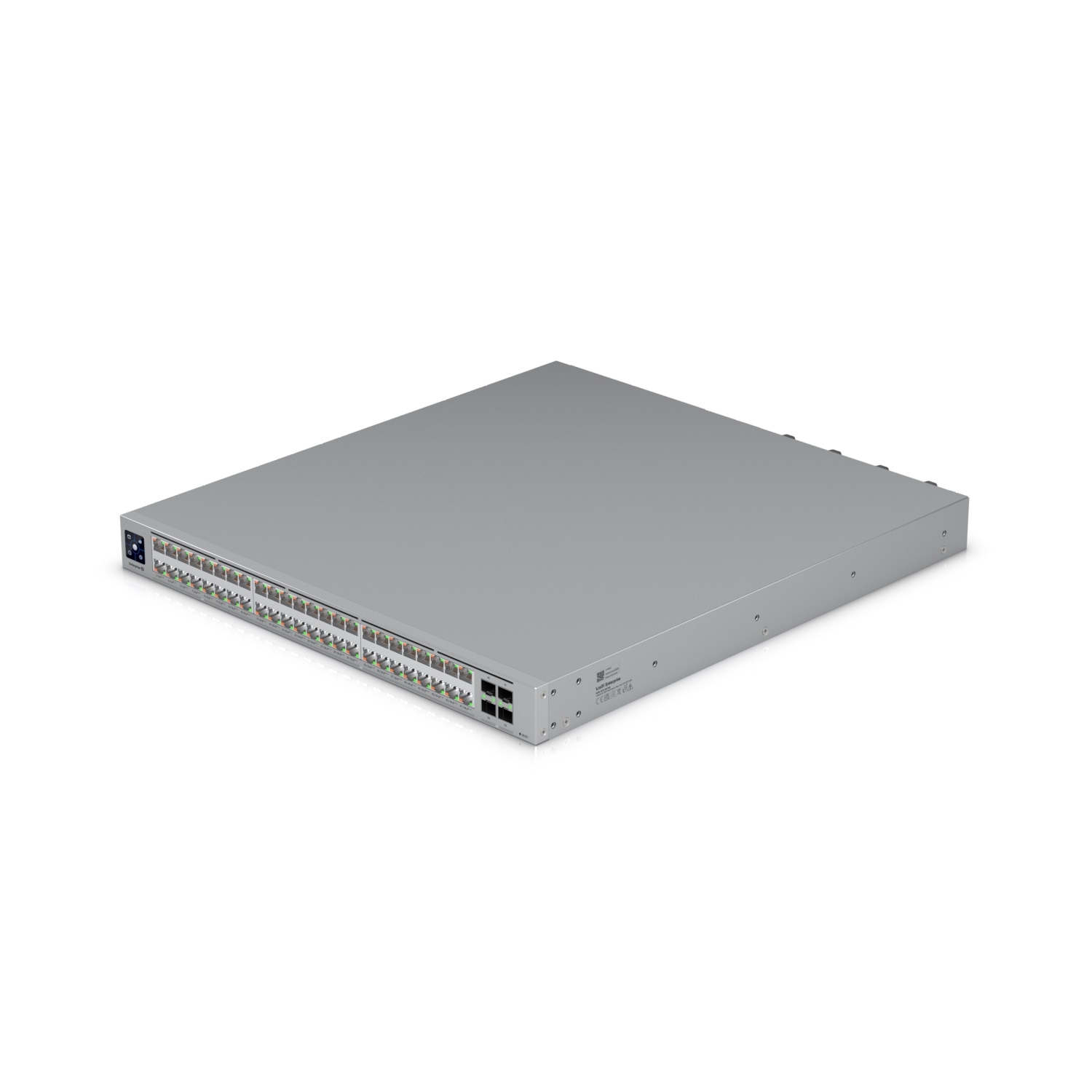

Ubiquiti Networks ECS-48-PoE
Enterprise Campus 48 PoE

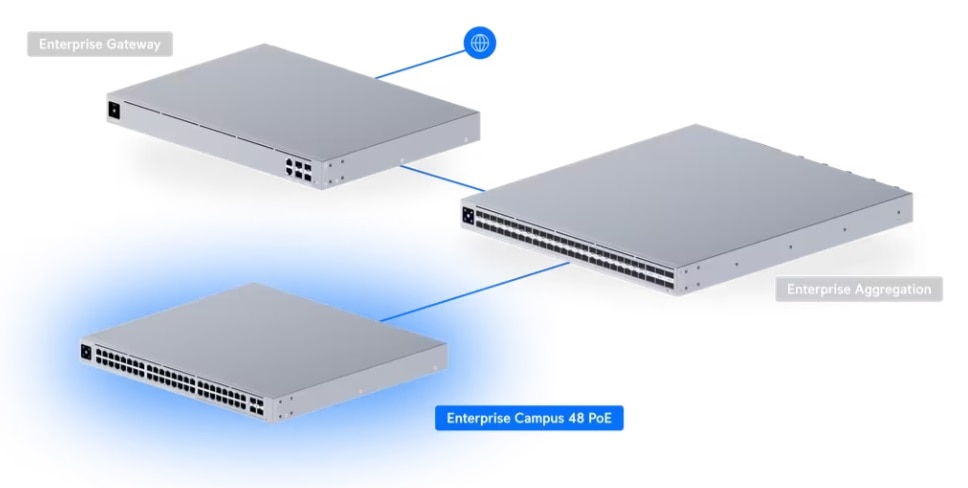

Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Features:

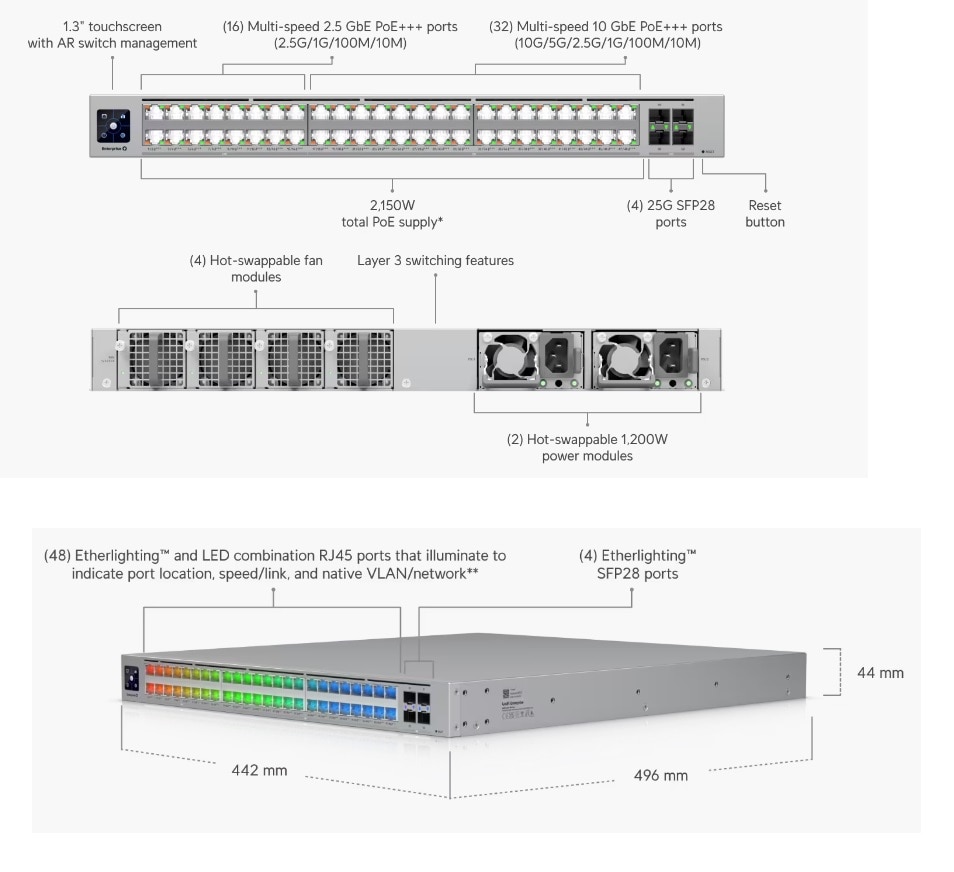

- (32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable)
- (4) 25G SFP28 ports
- Up to 2,150W PoE availability*
- (2) included hot-swappable power modules
- (4) included hot-swappable fan modules with one backup
Specifications
Specifications ECS-48-PoE
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
| Port Layout | |
| 2.5 GbE RJ45 | 16 (All PoE+++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 | 4 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W |

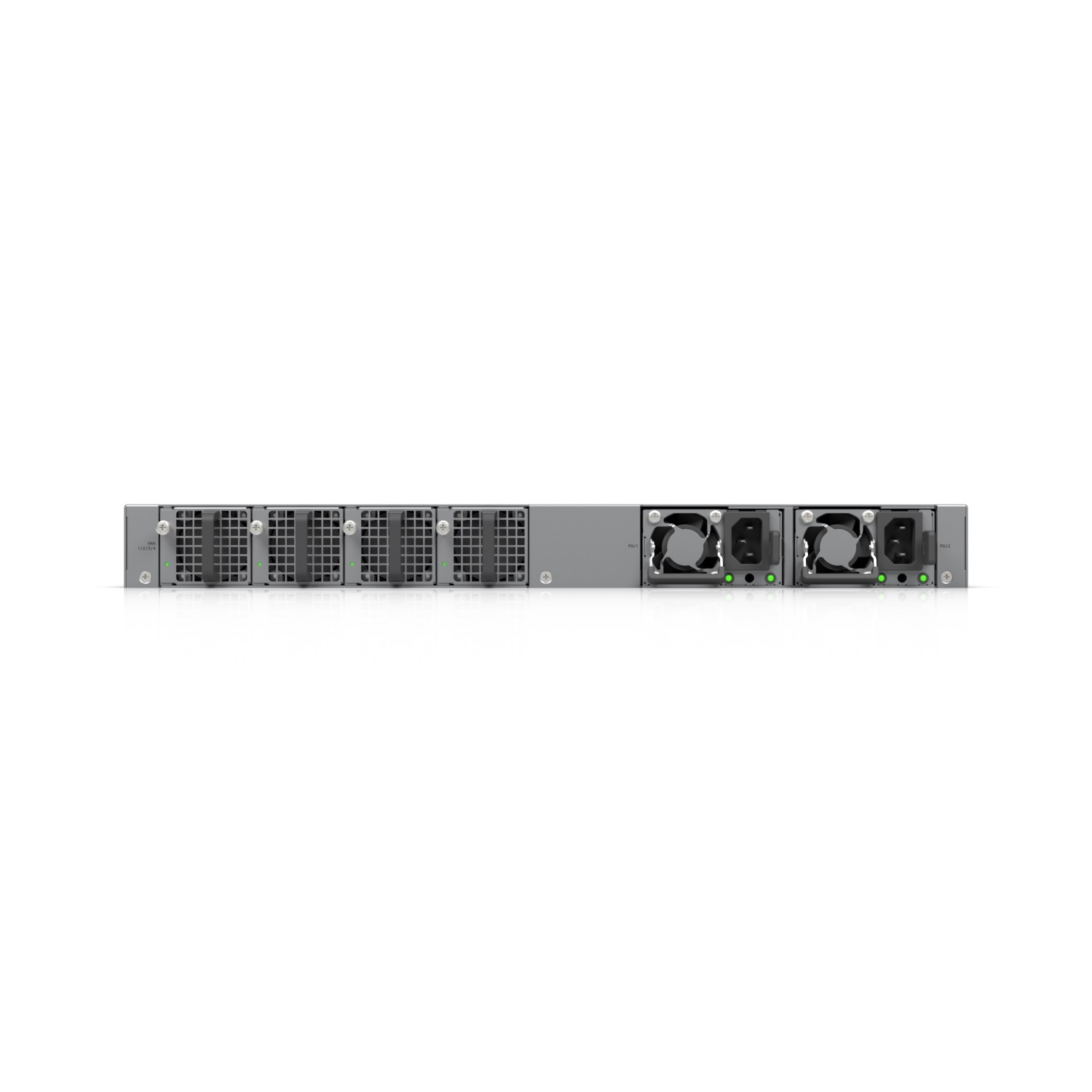

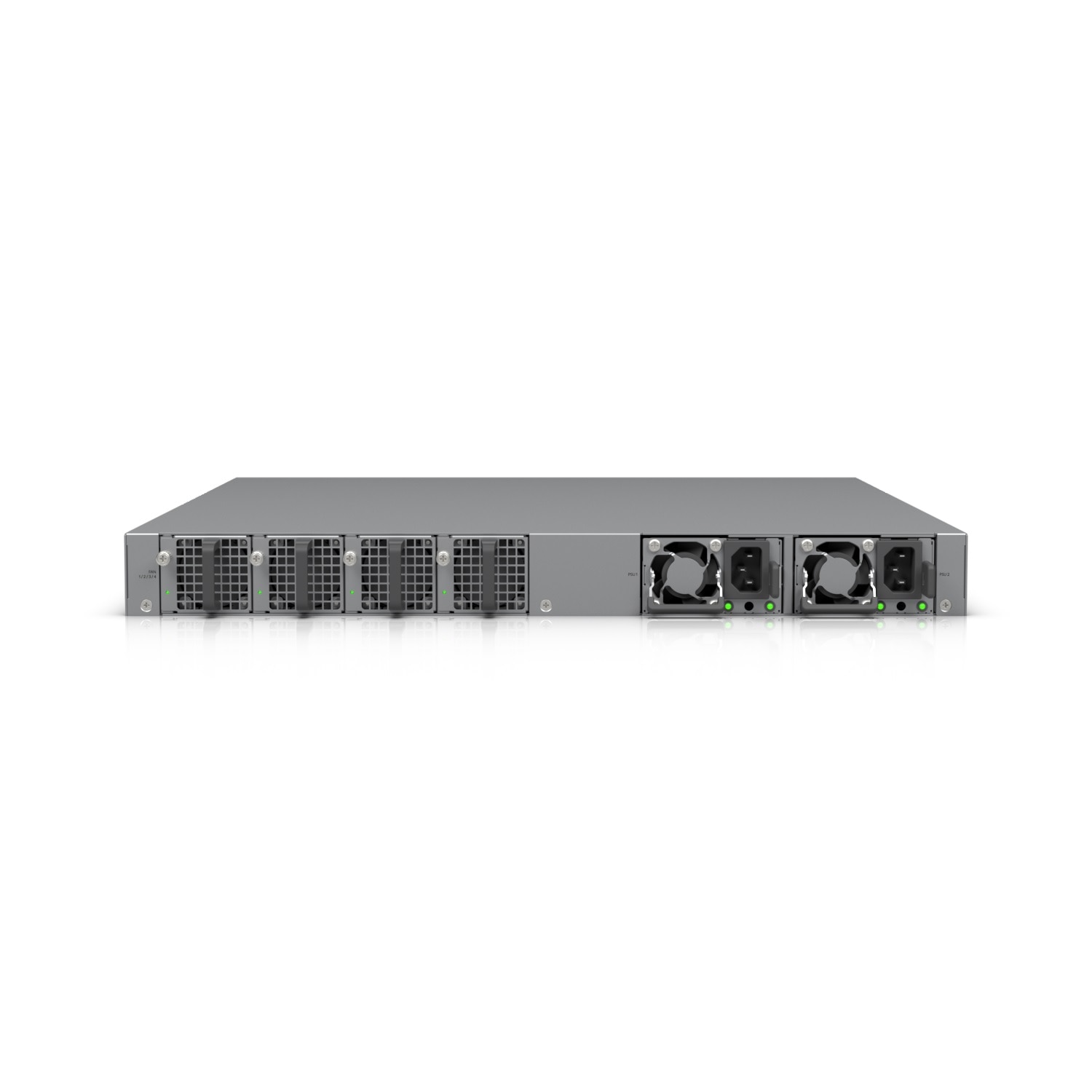

| Redundancy | (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U, Full-Depth) |

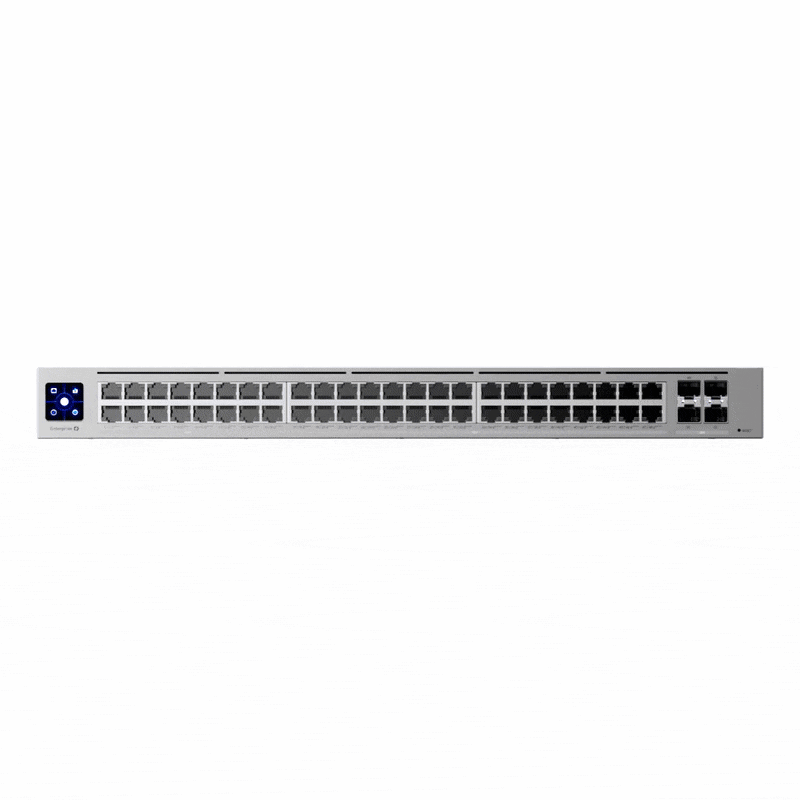

| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | |
| ARP Entries | 128,000 |
| IPv4 Routes | 256,000 |
| Packet Buffer Size | 8 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| PoE Ports | |
| PoE+++ | 48 |
| Max. PoE Wattage per Port by PSE | |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 250W (Excluding PoE Output) 2400W (Including PoE Output) |
| Power Method | (2) Universal input, 100—240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

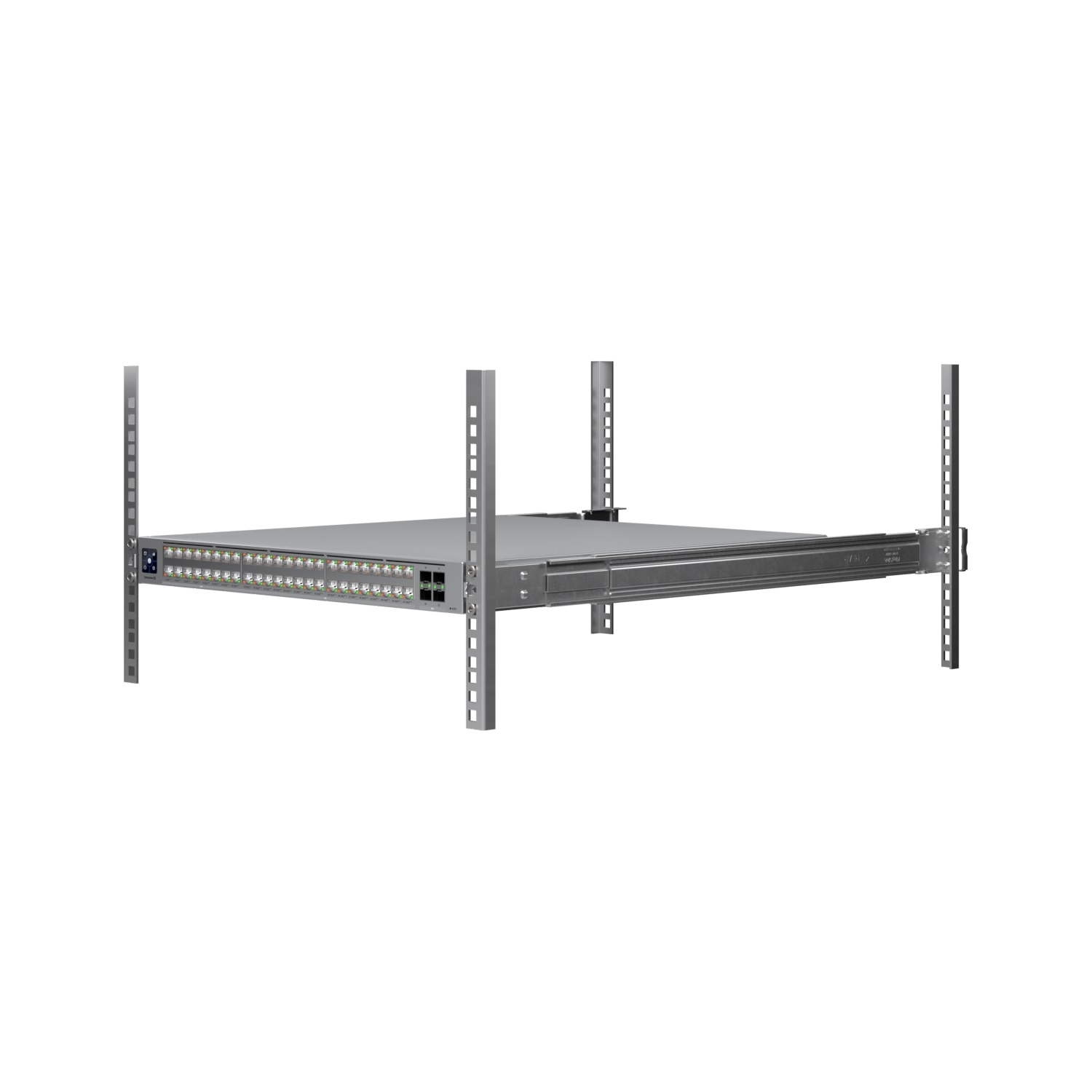

| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) hot-swappable fan modules |
| ESD/EMP Protection | Air: ± 30kV, contact: ± 19kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ | |
| Ethernet | Yes |
| SFP28 | Yes |
| LEDs | |
| Ethernet | Yes |
| System | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | |
| UniFi Network | Version 9.0.114 and later |
