Ubiquiti Enterprise Campus Aggregation
- SKU: ECS-Aggregation
$3,999.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

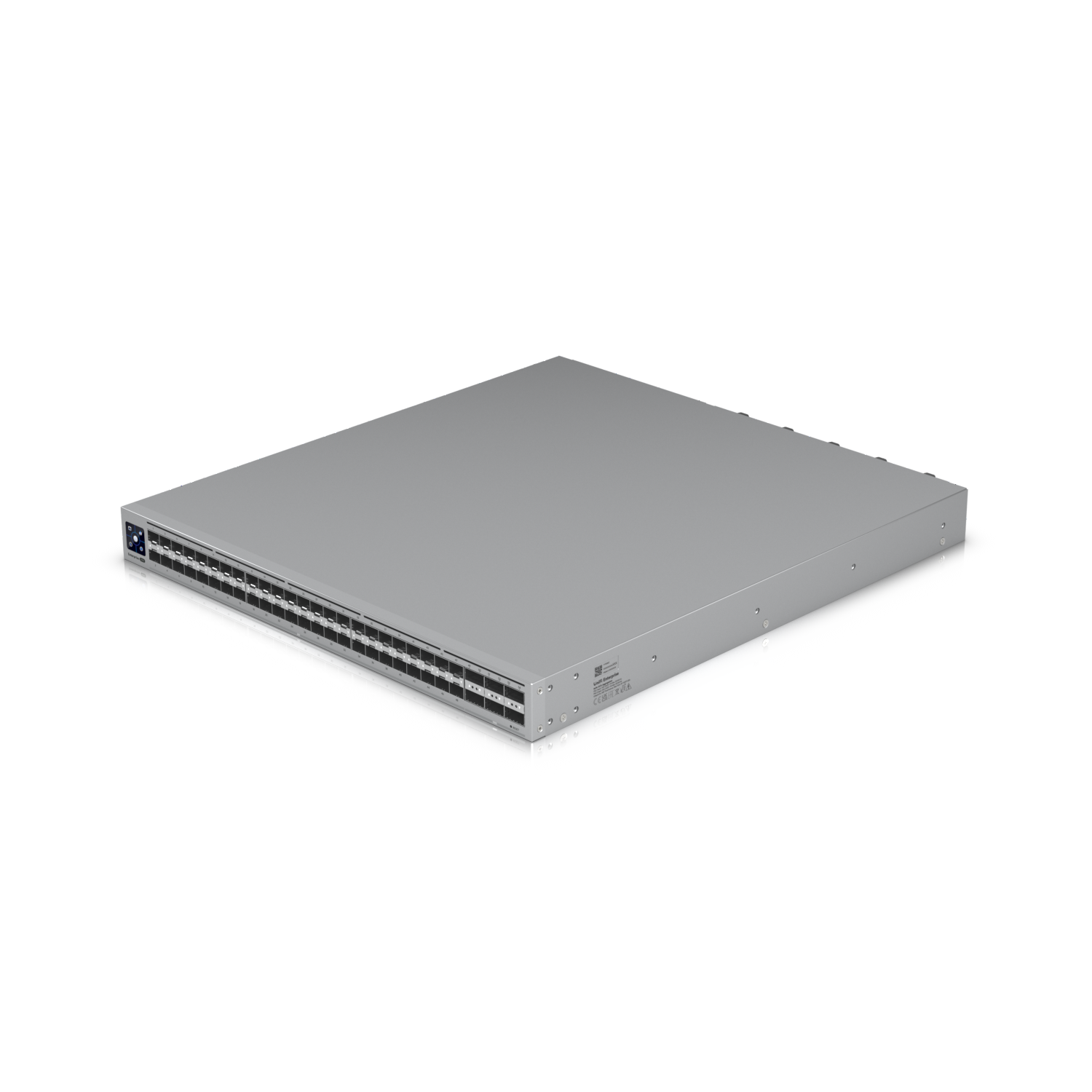

Ubiquiti Networks ECS-Aggregation
Networks ECS-Aggregation
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
Features:

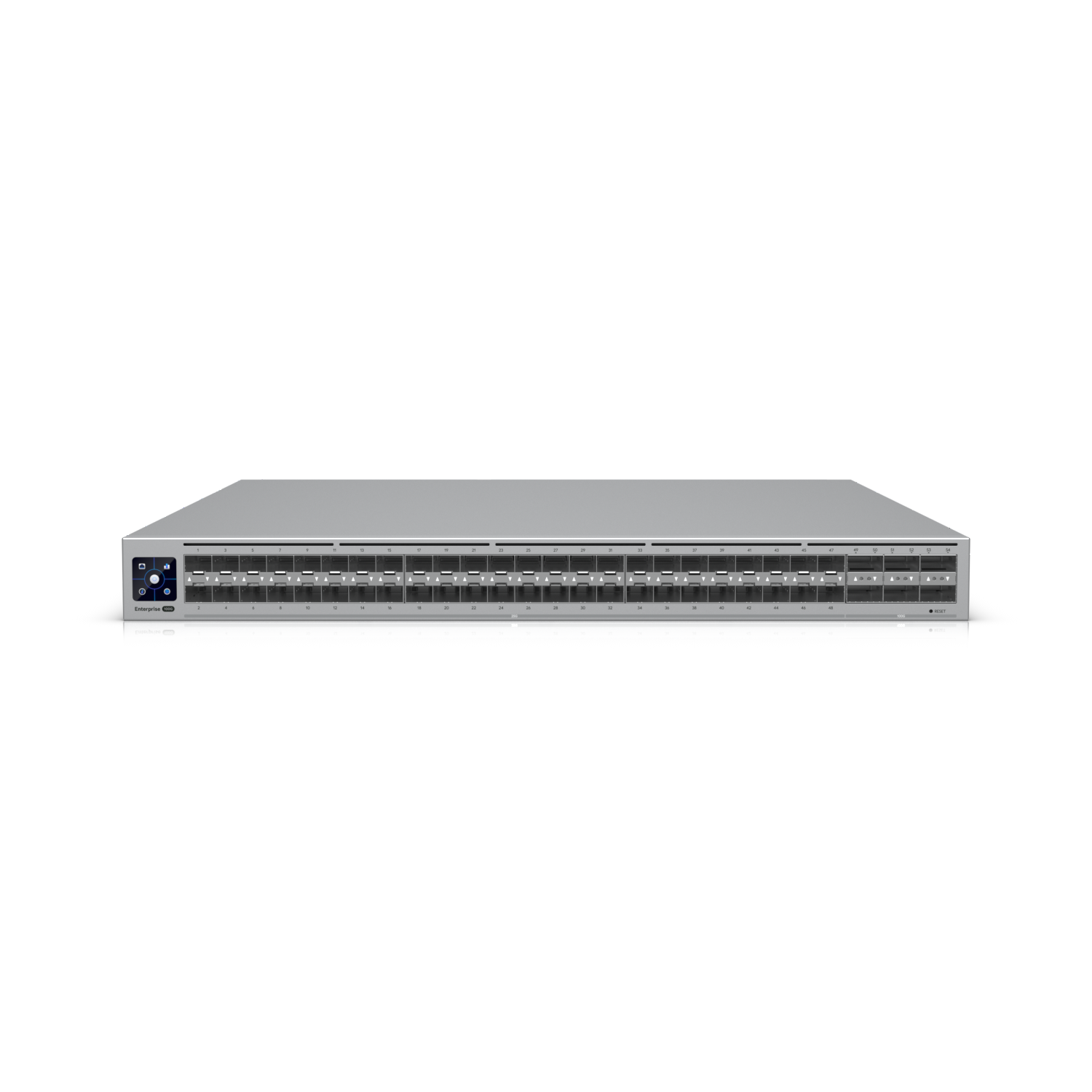

- (48) 25G SFP28 and (6) 100G QSFP28 ports

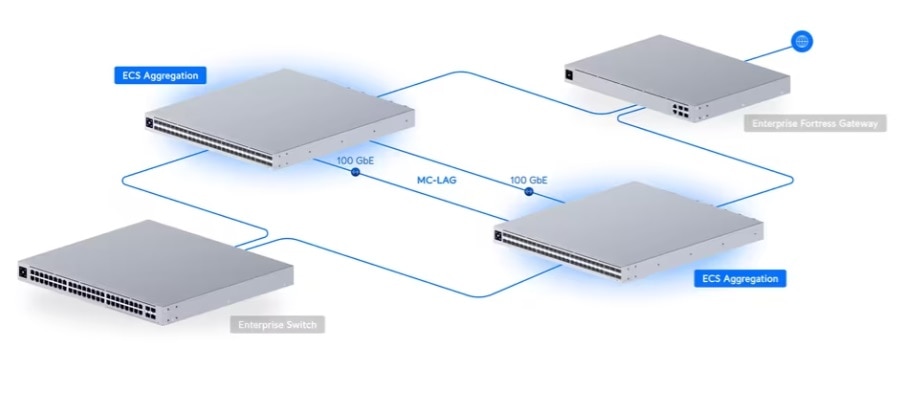

- Multi-Chassis Link Aggregation (MC-LAG) support*
- Layer 3 automatic failover (VRRP) support**
- BGP Dynamic Routing***

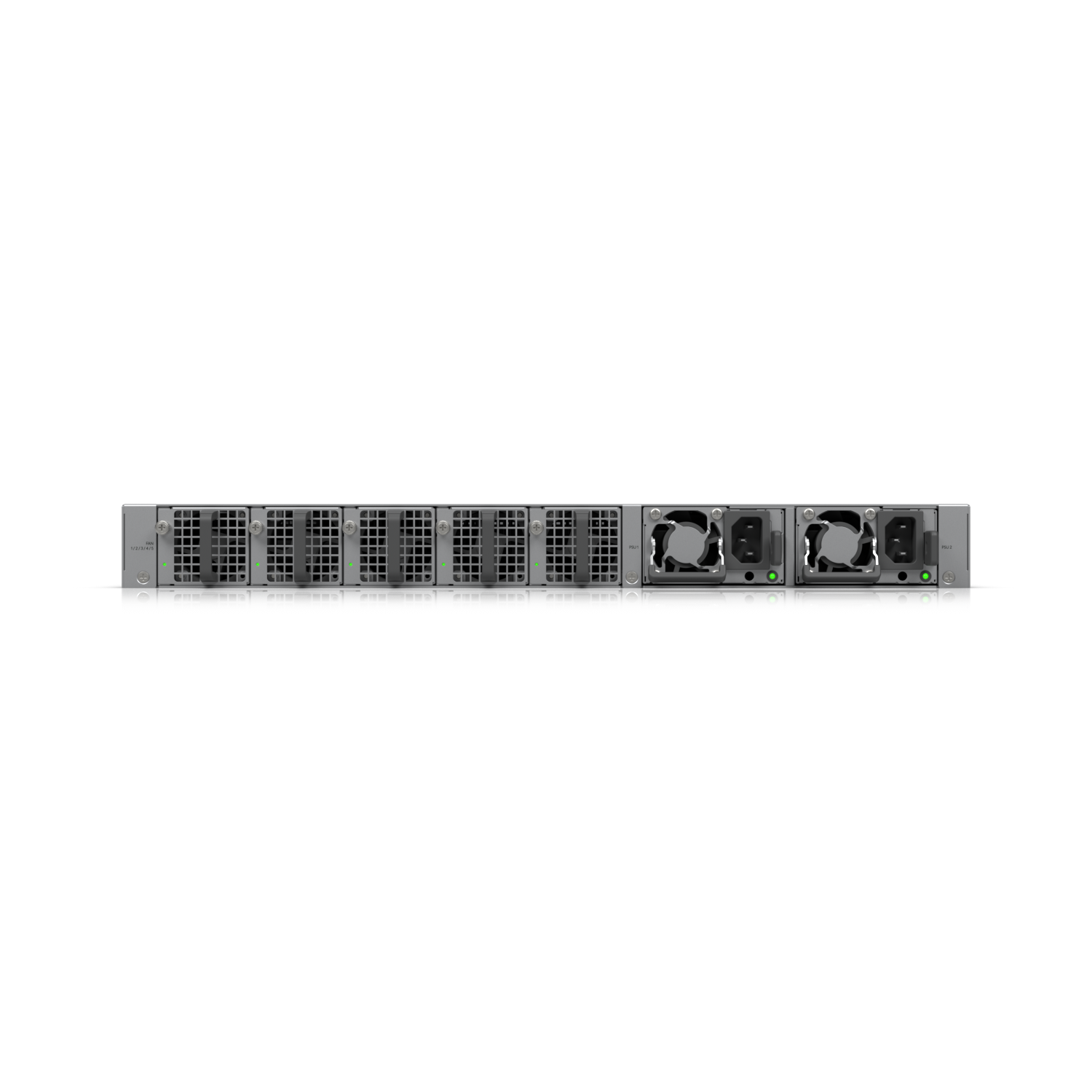

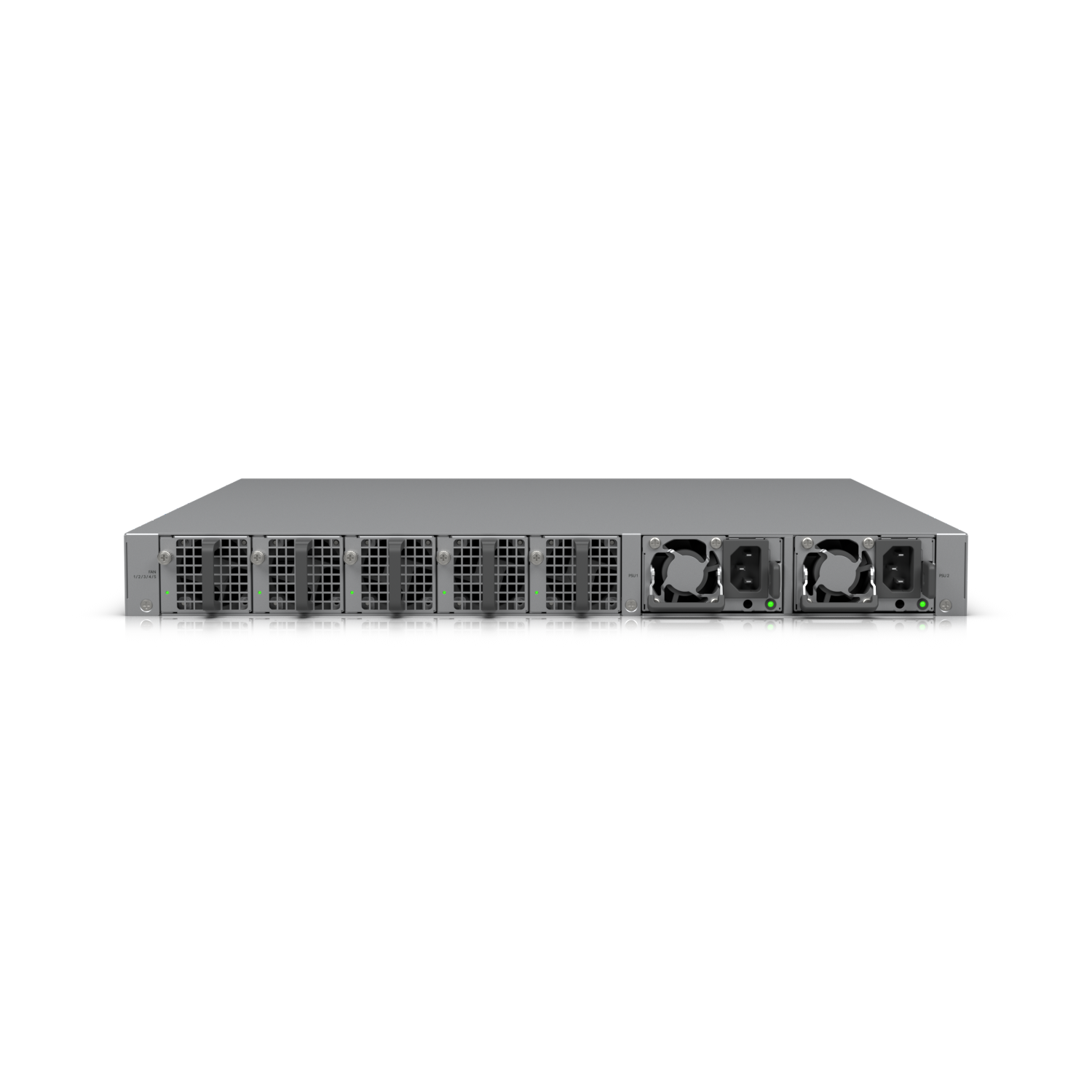

- (2) included hot-swappable power modules, with 1+1 redundancy
- (5) included hot-swappable fan modules, with 4+1 redundancy
Specifications
Specifications ECS-Aggregation
| Mechanical | |

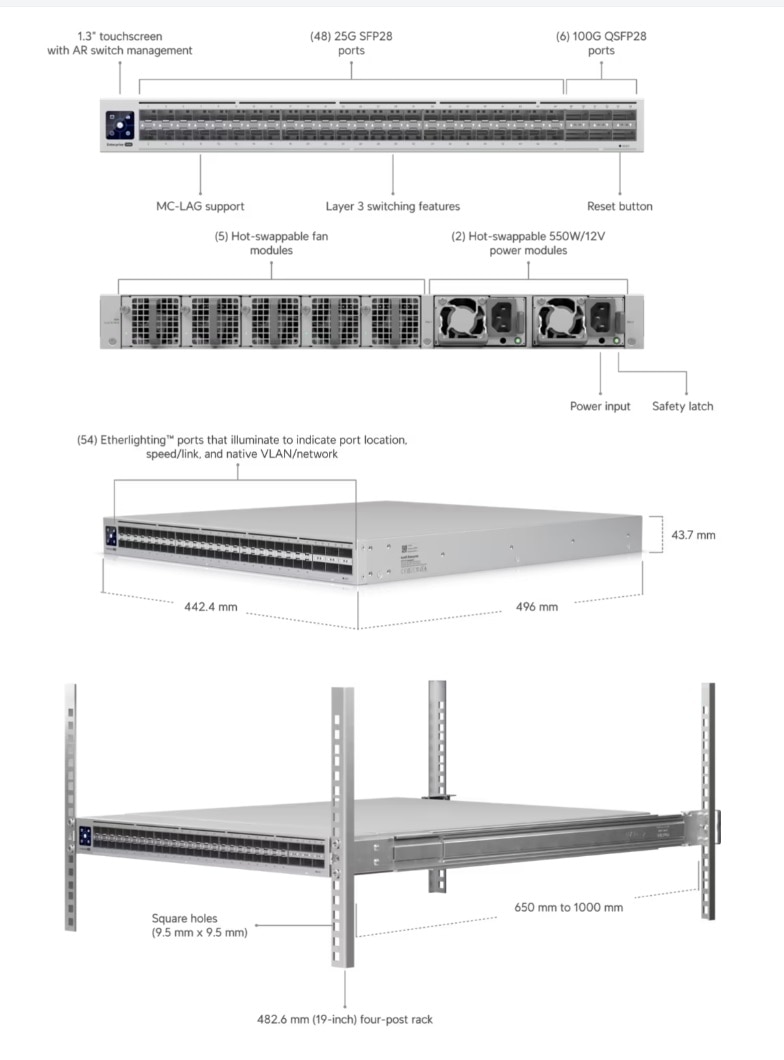

| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
| Weight | 9.9 kg (21.8 lb) |
| Enclosure material | SGCC steel |
| Slide rails support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (6) 100/40G QSFP28 ports (48) 25/10G SFP28 ports* |
| Total non-blocking throughput | 1.8 Tbps |
| Switching capacity | 3.6 Tbps |
| Forwarding rate | 2.3 Bpps |
| Power method | (2) Universal input, 100—240V AC |
| Power supply | (2) Hot-swappable AC/DC 550W power modules |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 340W |
| ESD/EMP protection | Air: ± 12kV, contact: ± 8kV |
| Services | SMB Layer3 100G/25G Fiber Switch |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs MC-LAG support |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Automatic failover (VRRP)* |
| Etherlighting™ | |

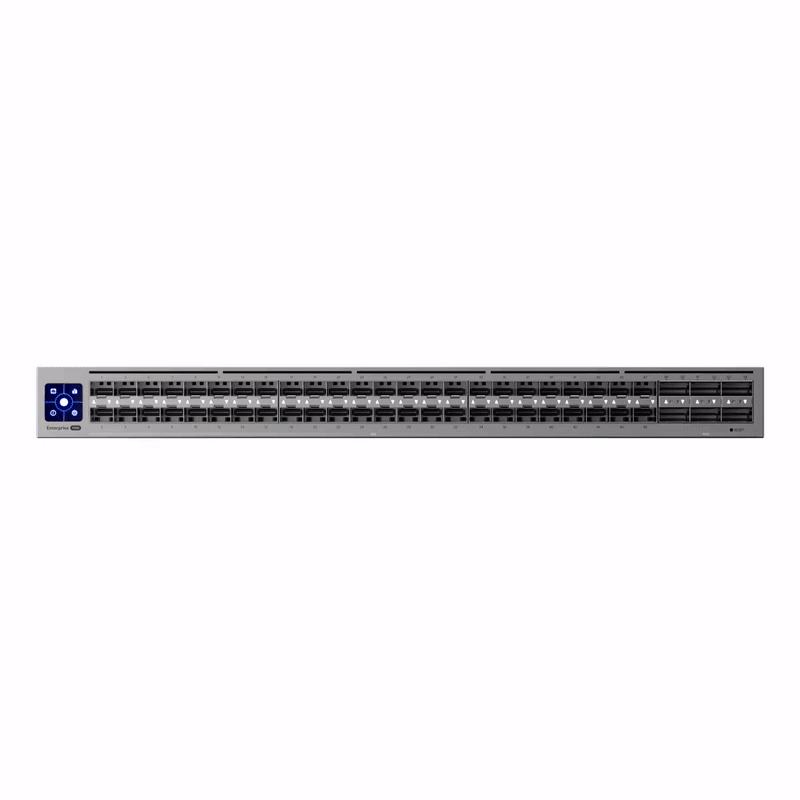

| SFP28/QSFP28 | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| Application Requirements | |
| UniFi Network | Version 8.5.6 and later |
