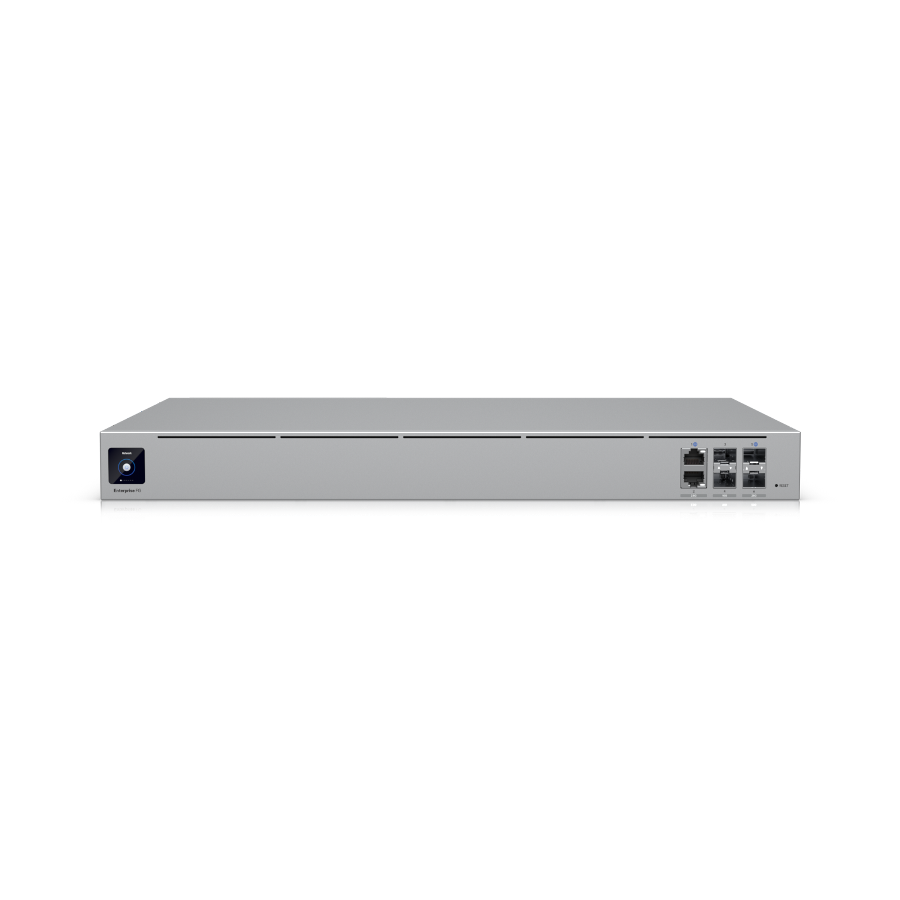

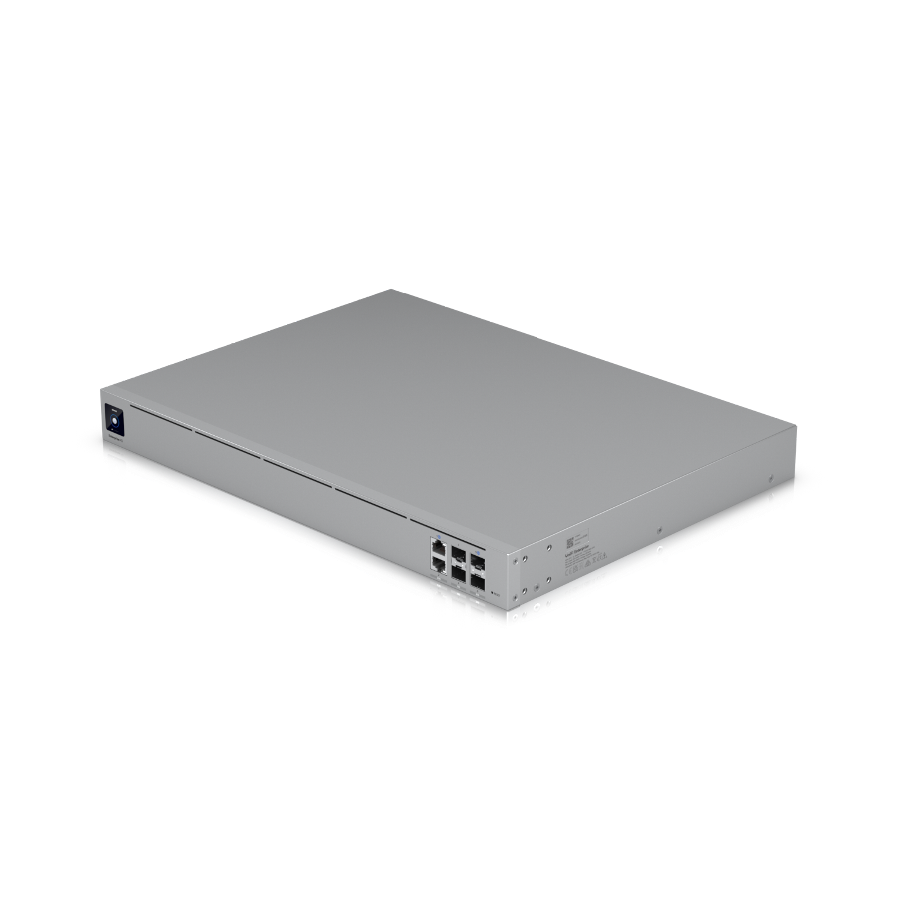

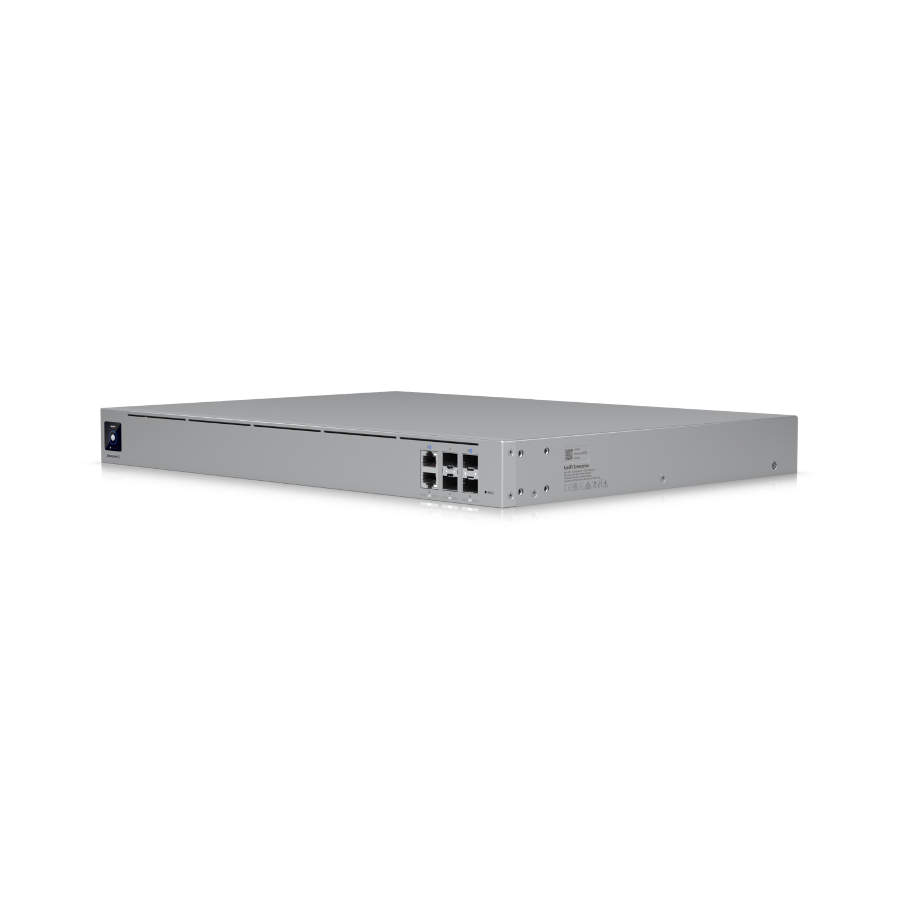

Ubiquiti Enterprise Fortress Gateway
- SKU: EFG
$1,999.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks EFG
Enterprise Fortress Gateway
25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability.
Features:
- Runs UniFi Network for full-stack network management

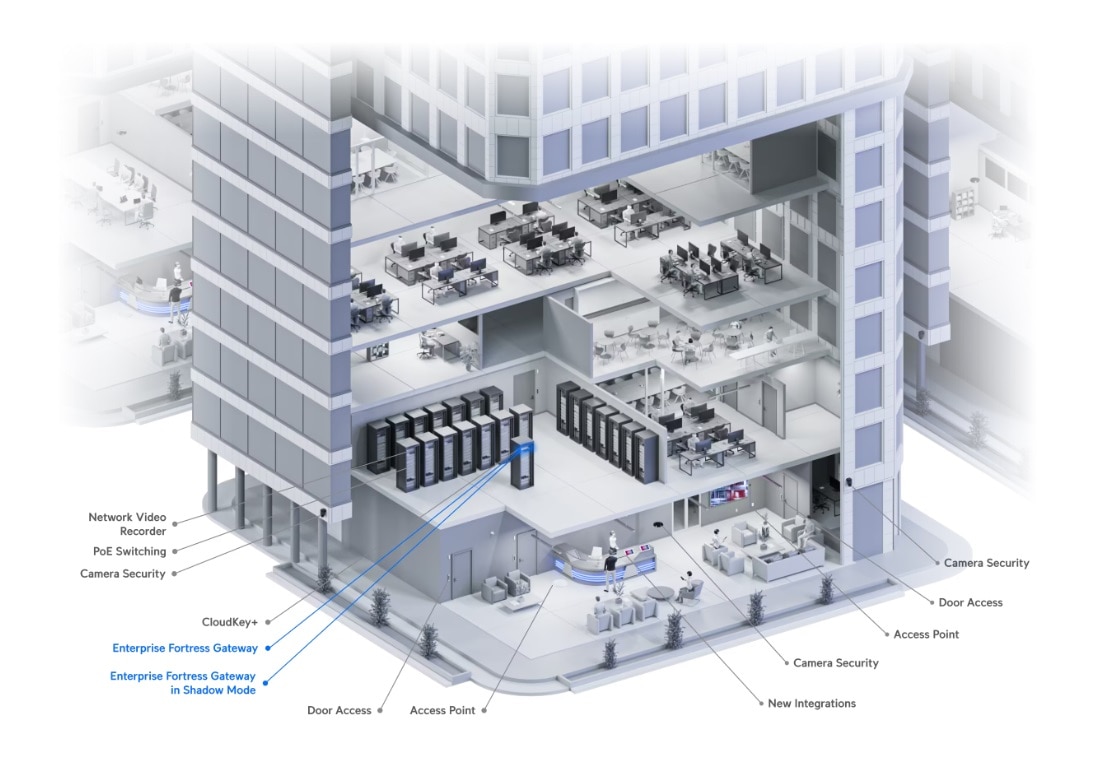

- Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)*
- 12.5 Gbps routing with IDS/IPS
- License-free, real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)
- (2) 25G SFP28**, (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN)
- (2) included hot-swap PSUs for power redundancy
- 1.3" touchscreen
- Includes 90 days of Professional Phone Support ***
Specifications
Specifications EFG

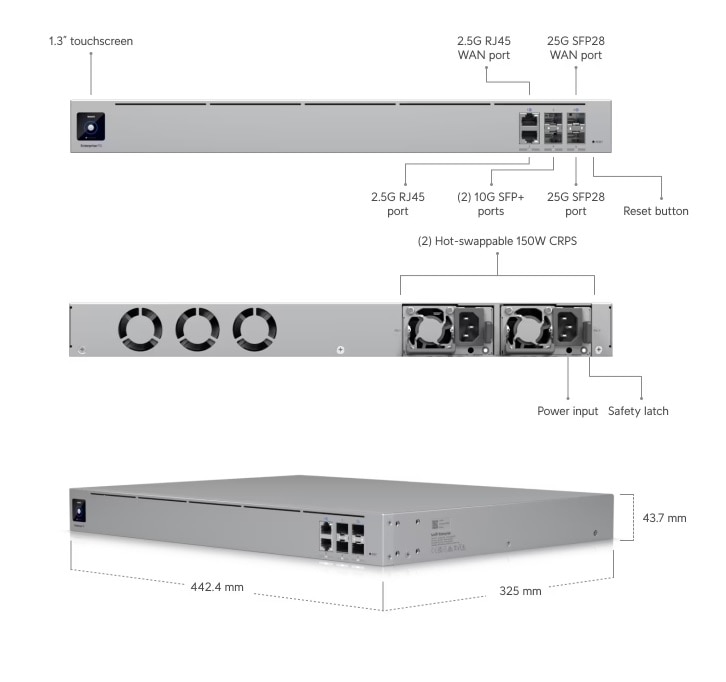

| Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") |
| Weight | 6.5 kg (14.3 lb) |
| Enclosure material | Aluminium CNC, SGCC steel |
| Hardware | |
| Processor | 18-core ARM® v8.2 at 2 GHz |
| System memory | 16 GB DDR4 DIMM |
| Management interface | Ethernet |
| Bluetooth | |
| Networking interface | (2) 25G SFP28 ports (2) 10G SFP+ ports (2) 2.5 GbE RJ45 ports Map any (2) interfaces to WAN |
| Power method | (1) Universal AC input, 100—240V AC, 7A Max., 50/60 Hz |

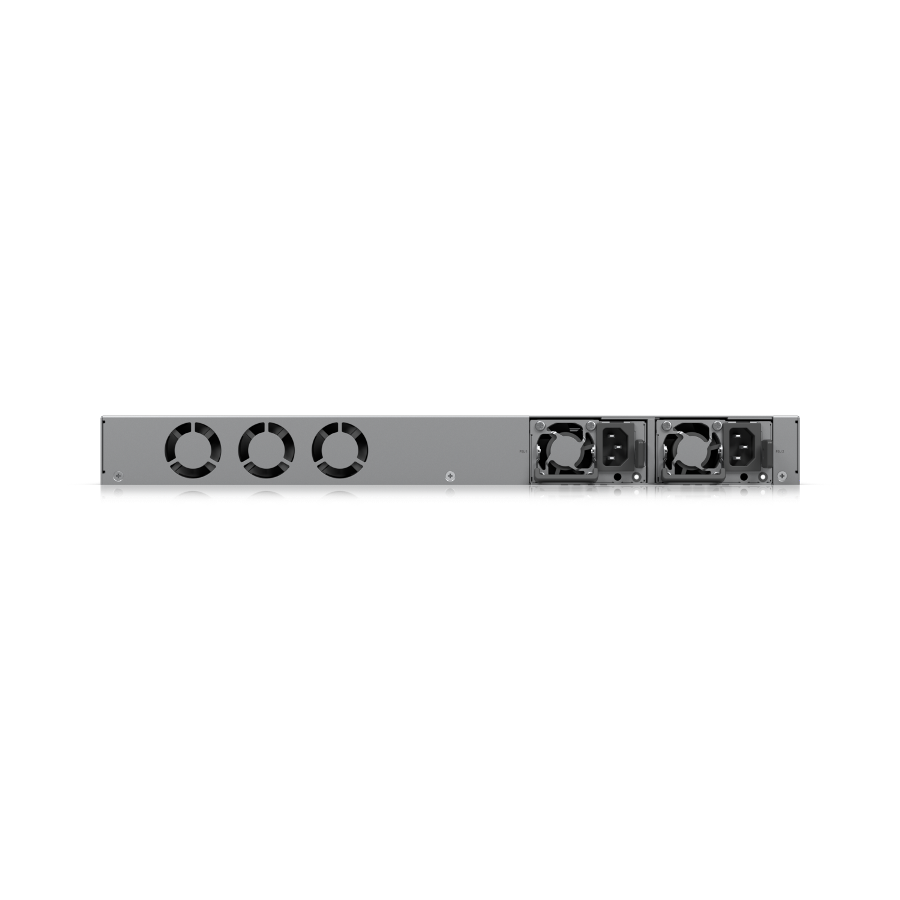

| Power supply | (2) Hot-swappable 150W CRPS |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 82W |
| ESD/EMP protection | Air: ± 8kV, contact: ± 4kV |

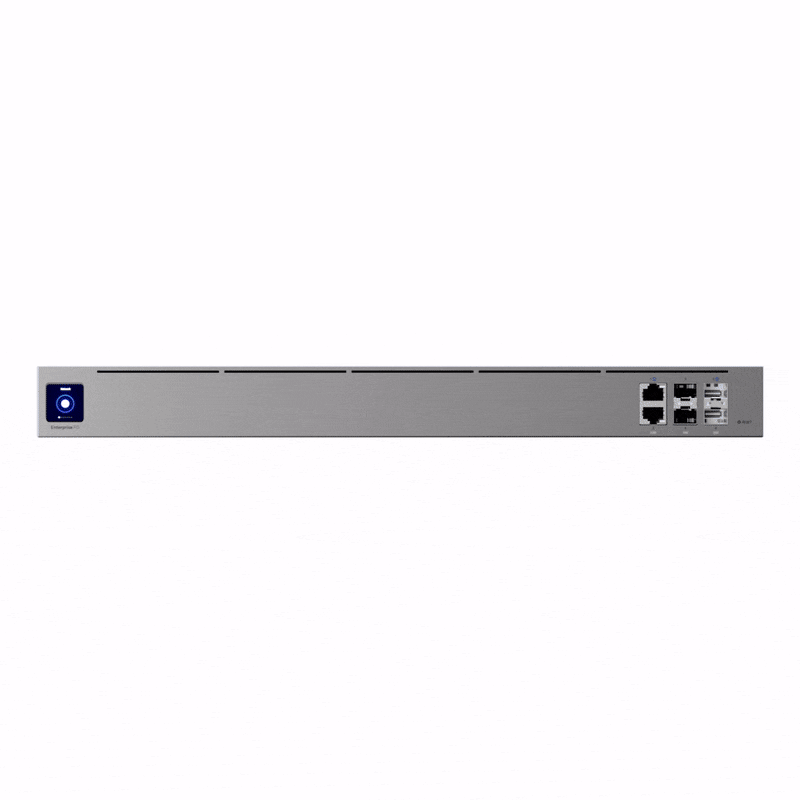

| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C (22 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Capacity | |
| UniFi devices | 500+ |
| Client devices | 5,000+ |
| Concurrent sessions | 1 million |
| New sessions / sec | 71,000 |
| SSL/TLS inspection concurrent sessions | 10,000 |
| IDS/IPS signatures | 80,000+ |
| Routing Throughput | |
| Firewall | 23.5 Gbps |
| IDS/IPS | 12.5 Gbps |
| VPN Server Single User Throughput | |
| UniFi Identity | 1.2 Gbps |
| Teleport | 1.2 Gbps |
| WireGuard | 1.2 Gbps |
| OpenVPN | 210 Mbps |
| L2TP | 280 Mbps |
| Site-to-Site VPN Single Tunnel Throughput | |
| Site Magic | 1.1 Gbps |
| OpenVPN | 120 Mbps |
| IPsec | 580 Mbps |
| VPN Client Single Tunnel Throughput | |
| WireGuard | 980 Mbps |
| OpenVPN | 180 Mbps |
| LEDs | |
| Ethernet | White: Link/activity |
| SFP+ | White: Link/activity |
| CRPS | Off: No AC power present |
| Software | |
| Mobile app | UniFi iOS™:Version 10.16.2 and later, UniFi Android™: Version 10.17.2 and later |
