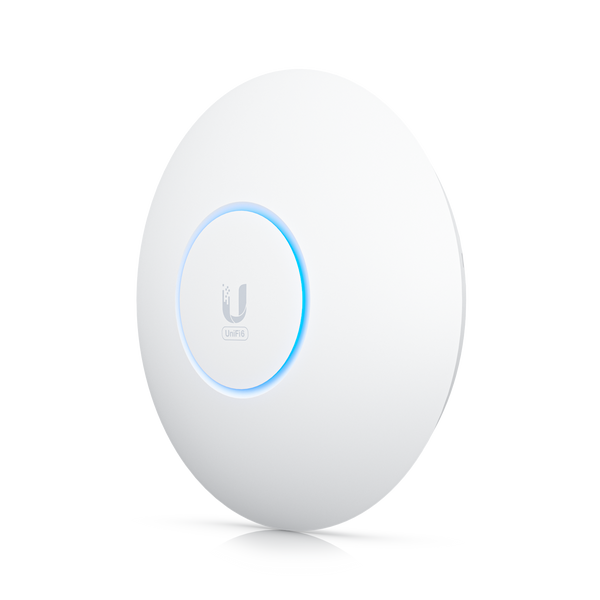

Ubiquiti Access Point U6 Enterprise

(0)No Reviews yet
  • SKU: U6-Enterprise-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Drawing Sheet:Download
192 in stock
College Station
20 In stock
Mississippi
172 In stock

Product Information

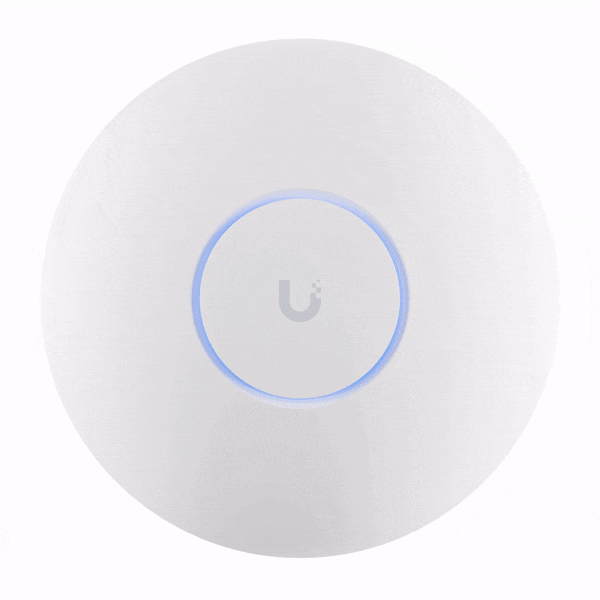

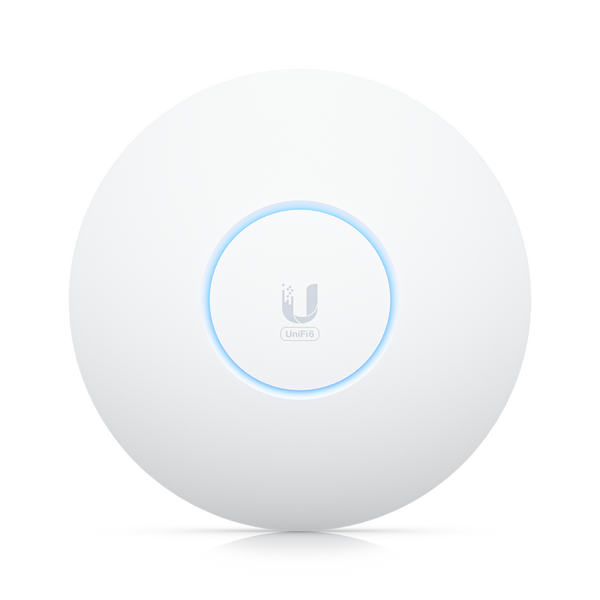

Ubiquiti Networks U6-Enterprise

Access Point U6 Enterprise

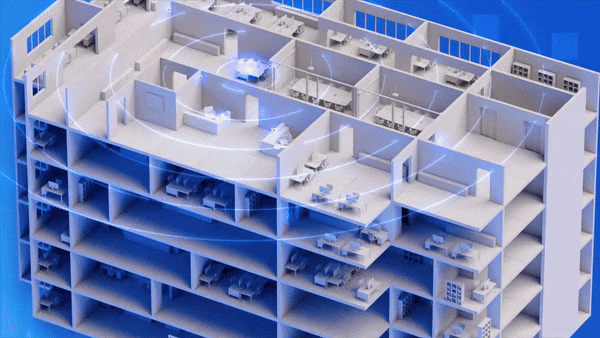

Powerful, ceiling-mounted WiFi 6E access point designed to provide seamless, multi-band coverage within high-density client environments.



Features:

  • WiFi 6 support (2.4/5/6 GHz bands)
  • 10.2 Gbps aggregate throughput rate
  • (1) 2.5GbE RJ45 port (PoE In)
  • Powered with PoE+
  • Use with our USW Enterprise switches for maximum throughput

Adopt the U6-Enterprise in Minutes with Your UniFi Network Application and:

  • Centrally manage multiple networks from an intuitive interface
  • Enjoy real-time device insights and deep configuration options
  • Upgrade device firmware remotely
  • Manage network users and guests with ease
  • Personalize the design, architecture, and privacy of guest hotspots
  • Set up devices quickly and manage them on the go with a powerful mobile app

Specifications

Specifications

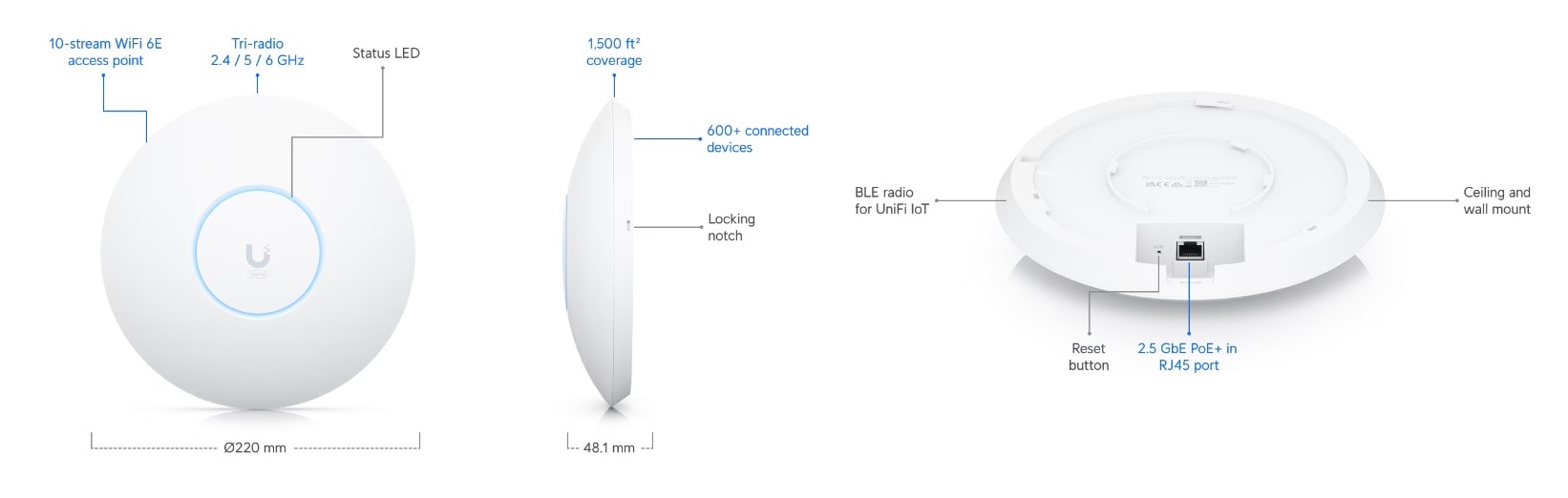

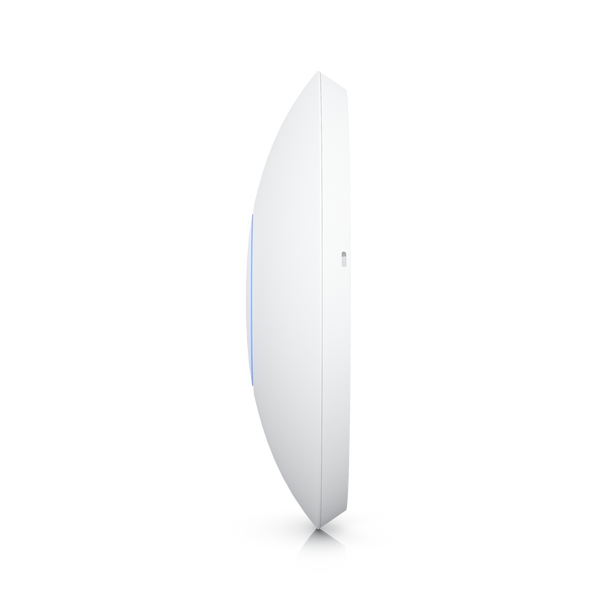

DimensionsØ220 x 48.1 mm (Ø8.66 x 1.89")
WeightWithout mount: 960 g (2.1 lb)
With mount1090 g (2.4 lb)
Enclosure materialsTop housing: plastic
Bottom housingAluminum

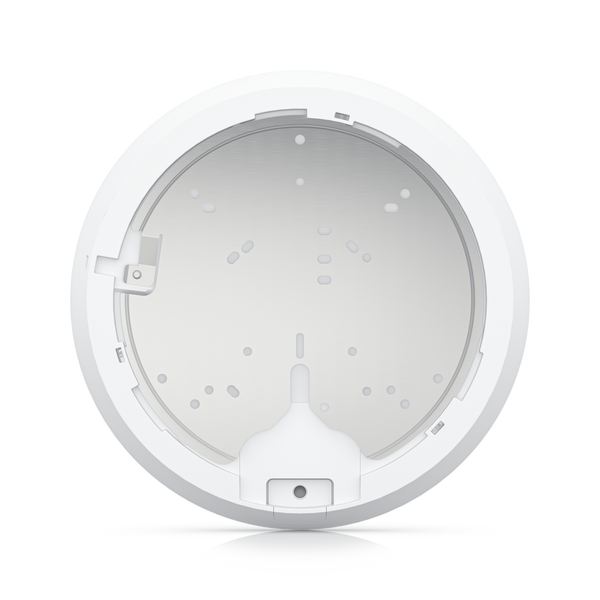

Mount materialSGCC steel
Hardware
Management interfaceEthernet
Bluetooth

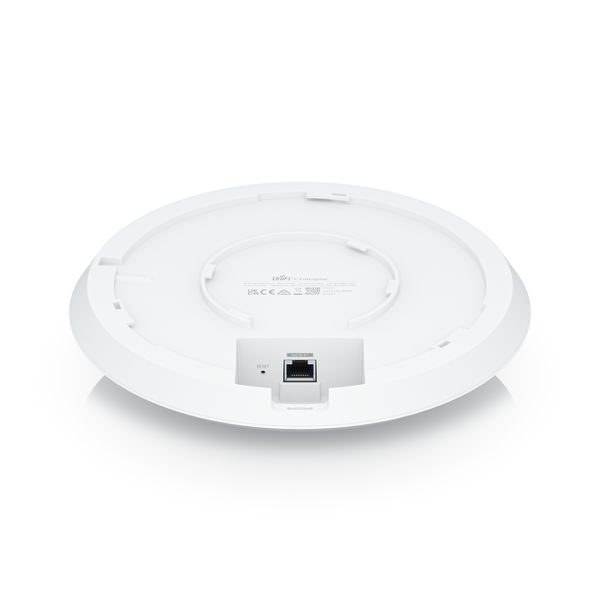

Networking interface(1) 2.5GbE RJ45 port
ButtonReboot and factory-reset
LEDW/B
Power methodPoE+
Power supplyUniFi PoE switch 48V, 0.5A PoE adapter (optional)
Supported voltage range44 - 57VDC
Max. power consumption22W
Max. TX power
2.4 GHz
5-7 GHz

22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz
6 GHz

573.5 Mbps
4.8 Gbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

3.2 dBi
5.3 dBi
6 dBi

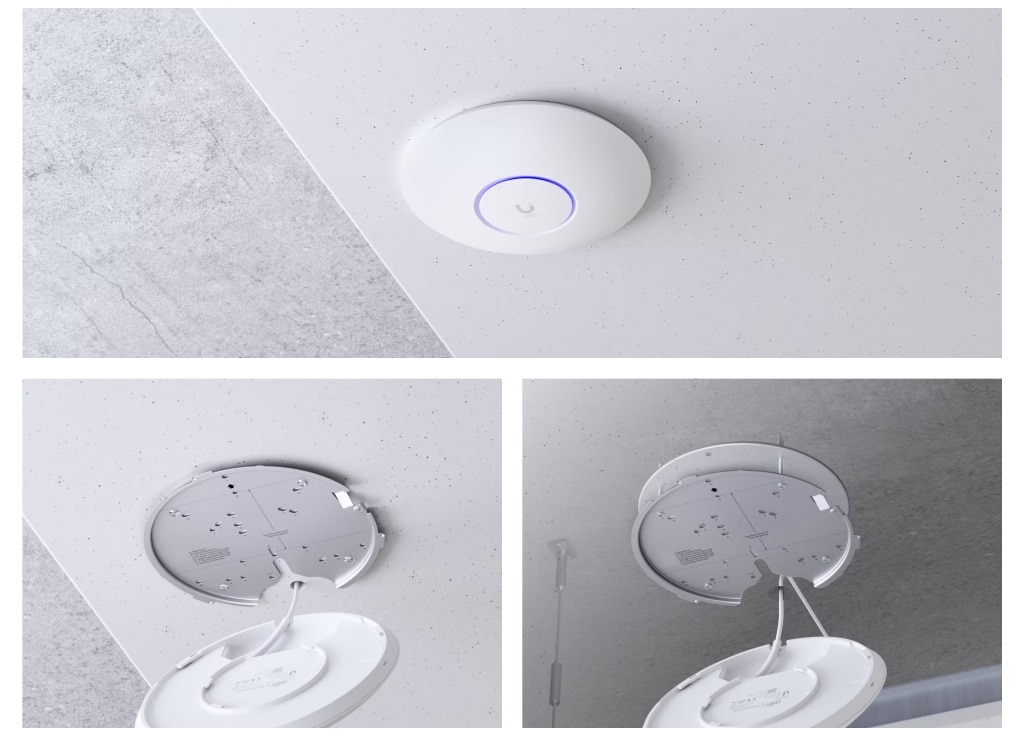

MountingWall/ceiling (included)
Operating temperature-30 to 60° C (-22 to 140° F)
Operating humidity5 - 95% noncondensing
CertificationsCE, FCC, IC
Software
WiFi standards802.11a/b/g WiFi 4/WiFi 5/WiFi 6/WiFi 6E
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID8 per radio
VLAN802.1Q
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients600+
Zero wait DFSYes
Supported Data Rates (Mbps)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
