  • Ubiquiti Networks UniFi Switch Gen2 10 Gigabit 24-Port

Ubiquiti Networks UniFi Switch Gen2 10 Gigabit 24-Port

  • SKU: USW-Pro-24-POE
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎699.00

Specifications USW-Pro-24-POE

Dimensions442.4 x 285.4 x 43.7 mm
(17.42 x 11.24 x 1.72")
Weight
With Brackets
4.30 kg (9.48 lb)
4.39 kg (9.68 lb)
Interfaces
Networking

Management

(24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput44 Gbps
Switching Capacity 88 Gbps
Forwarding Rate65.472 Mpps
Power Method
Universal Input
USP RPS DC Input

100-240VAC, 50/60 Hz
52VDC, 7.69A; 11.5VDC, 2.61A
Power Supply AC/DC, Internal, 450W
Voltage Range 100 to 240VAC
Max Power Consumption (Excluding PoE Output)50W
LEDs
System
RJ45 Data Ports
SFP Data Ports
Status
PoE; Speed/Link/Activity Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
PoE
Total Available PoE 400W
PoE Interfaces
Ports 1-16

Ports 17-24

POE+ IEEE 802.3af/at
(Pins 1, 2+; 3, 6-)
60W PoE++ IEEE 802.3bt
(Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per
Port by PSE
802.3at
802.3bt


32W
64W
Voltage Range
802.3af Mode
802.3at/bt Mode

44-57V
50-57V

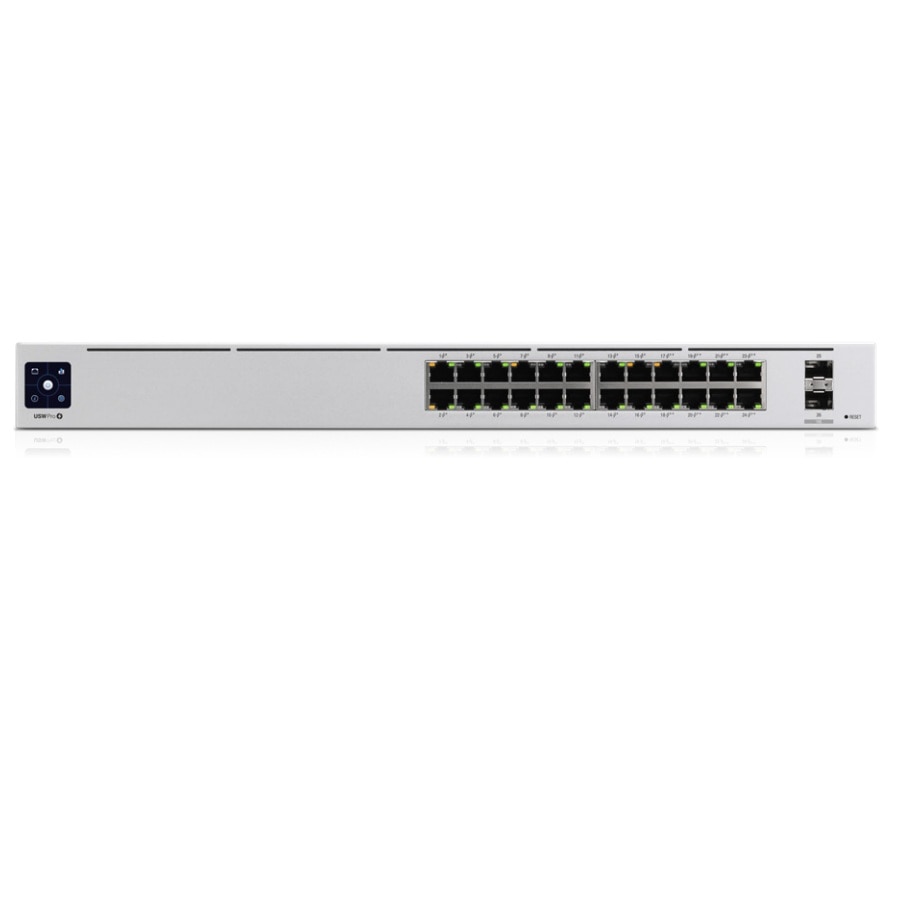

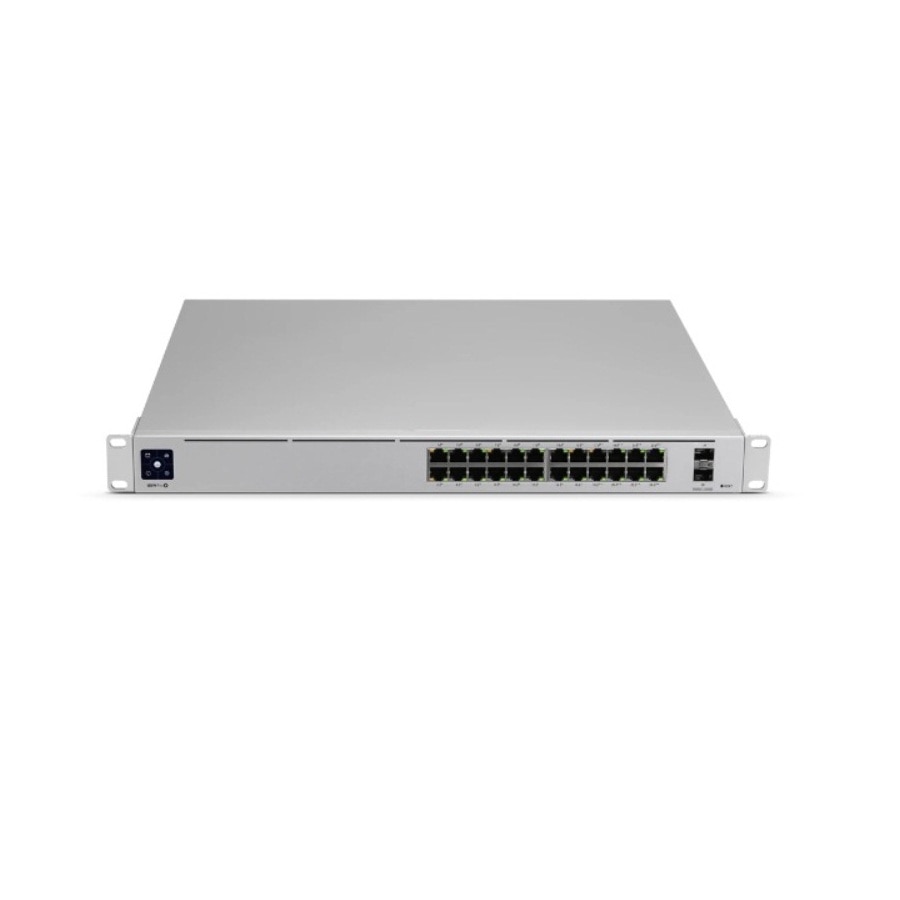

Ubiquiti Networks USW-Pro-24-POE

UniFi Switch Gen2 10 Gigabit 24-Port

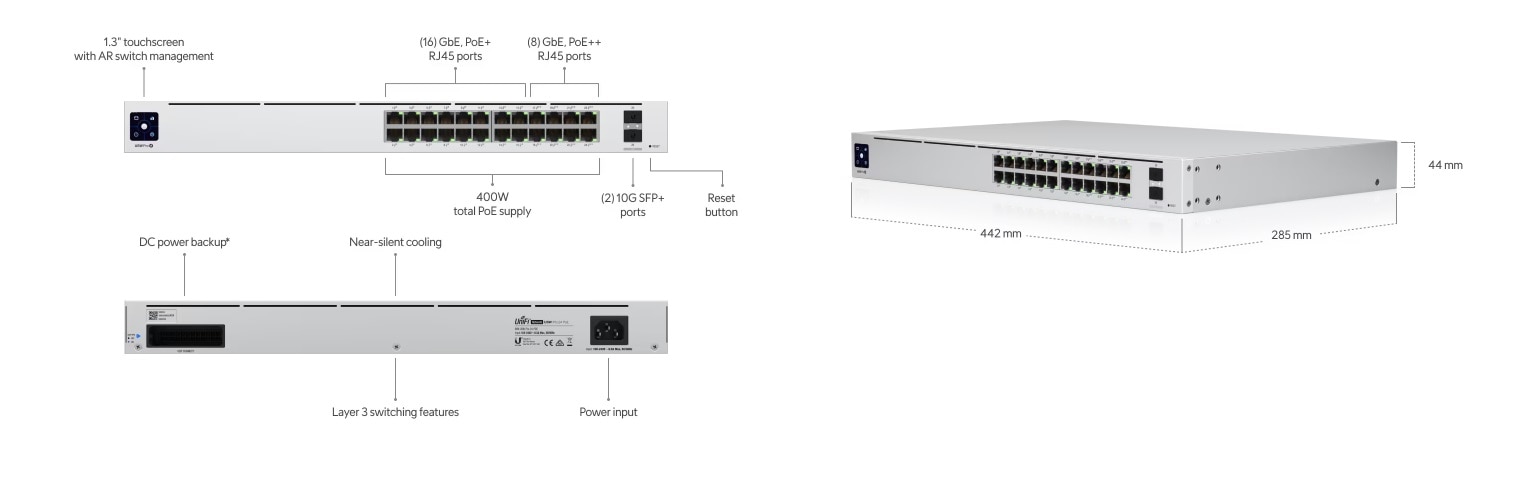

The USW-PRO-24-POE is a configurable Gigabit Layer2 and Layer 3* switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE ++ RJ45 Ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

*Note: Layer3 will be included in a future firmware upgrade


Features:

  • (16) Gigabit RJ45 ports with 802.3af/at
  • (8) Gigabit RJ45 ports with 802.3bt
  • (2) 1/10G SFP+ ports
  • 1U Rackmountable (hardware included)
