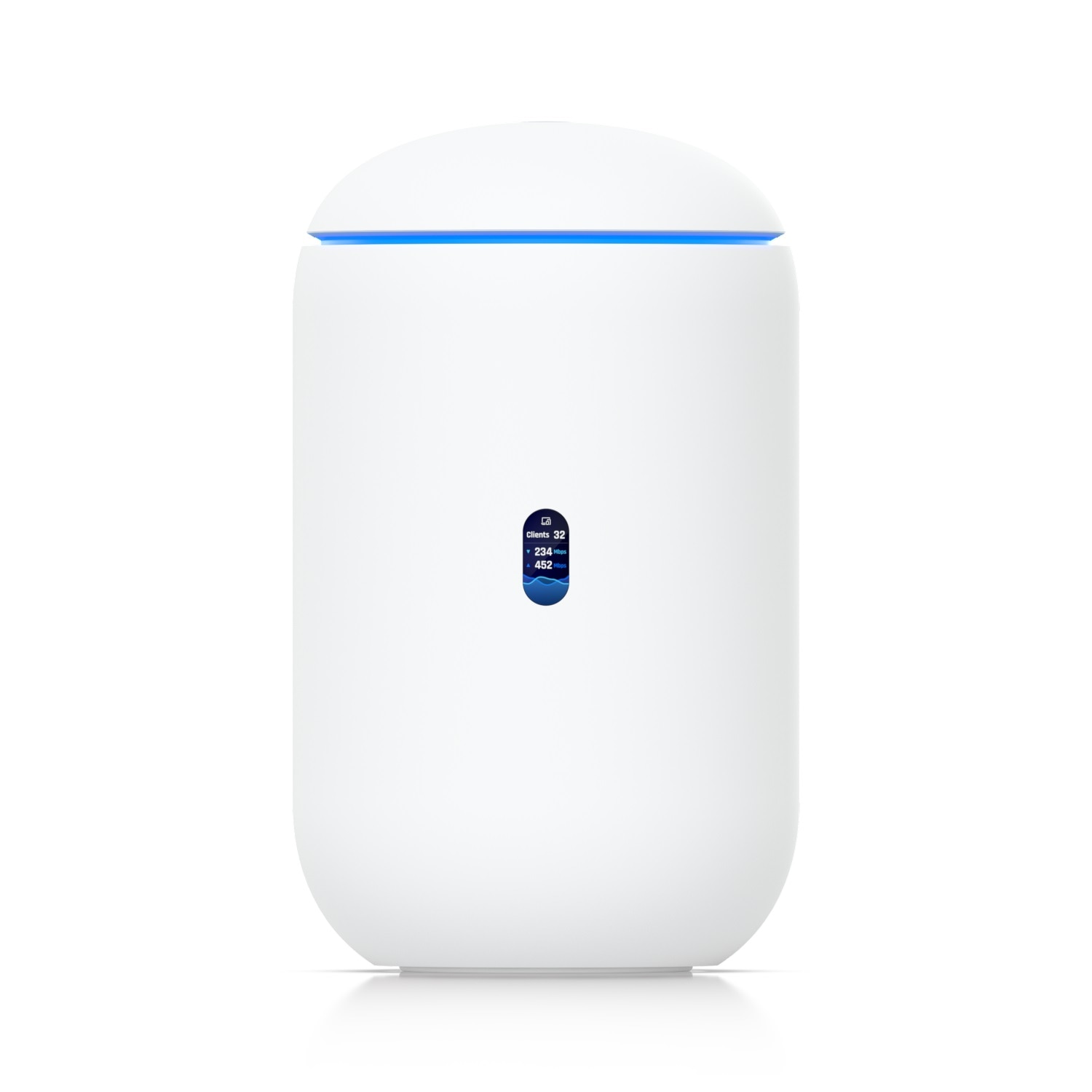

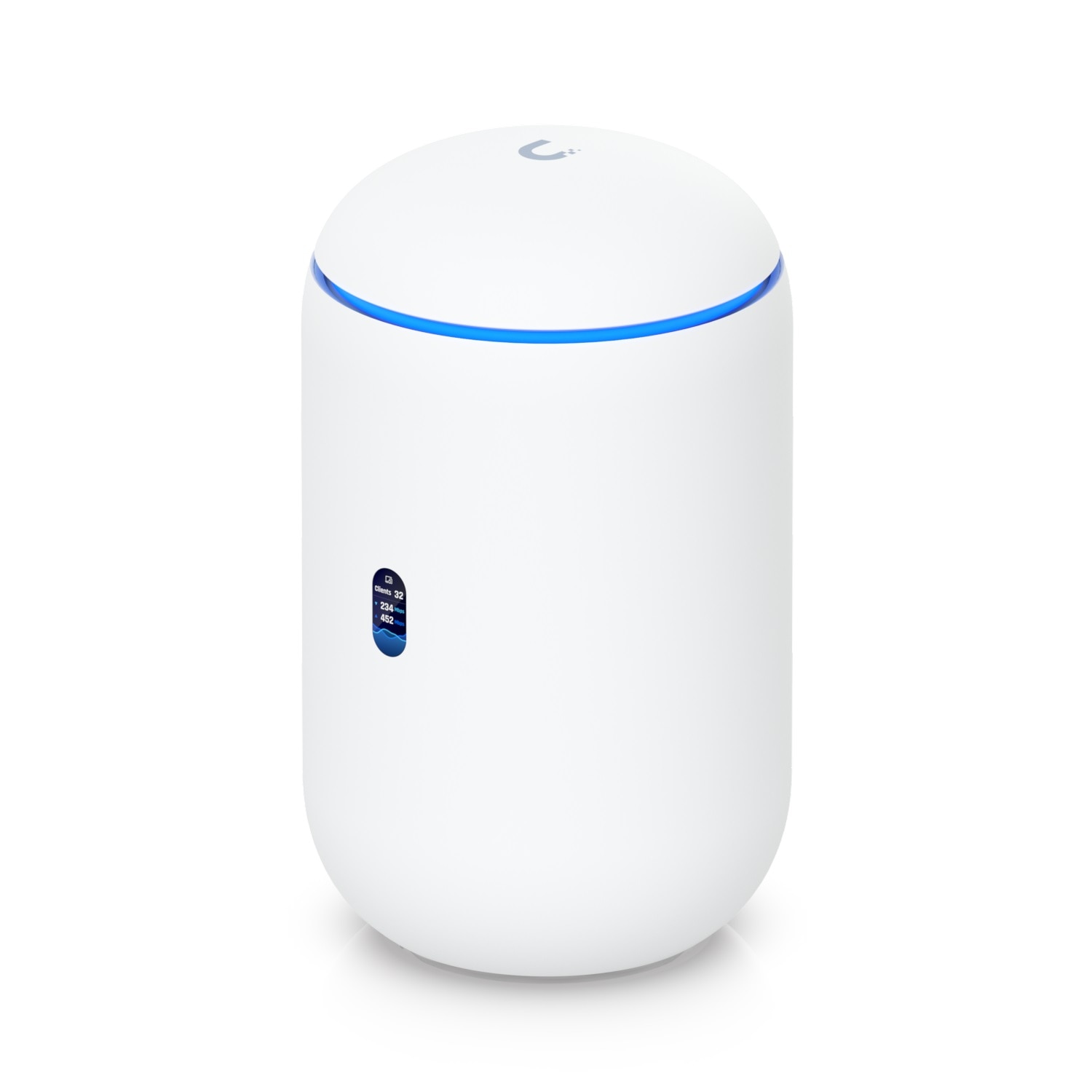

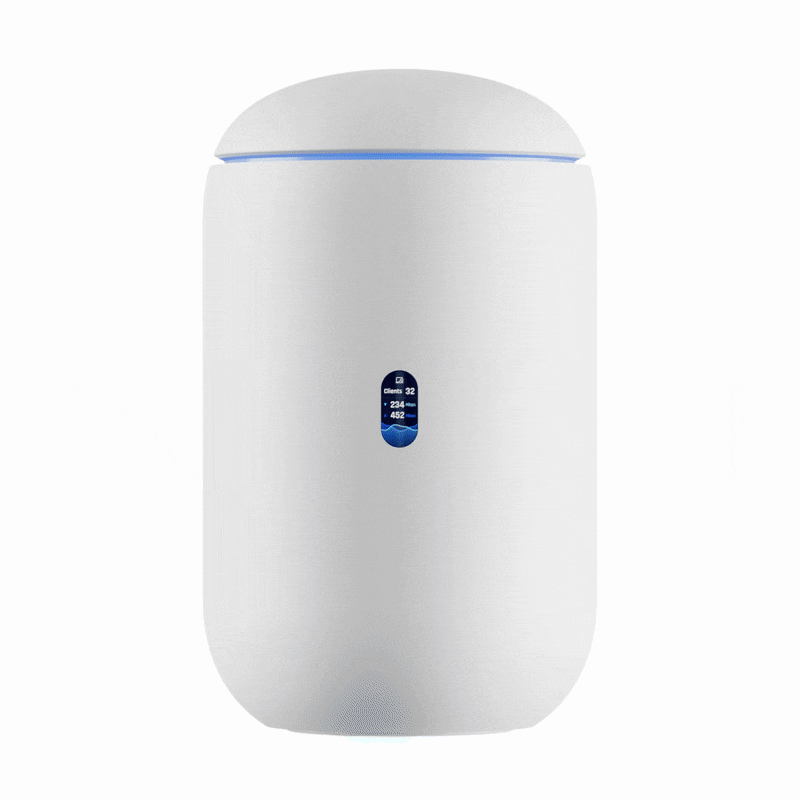

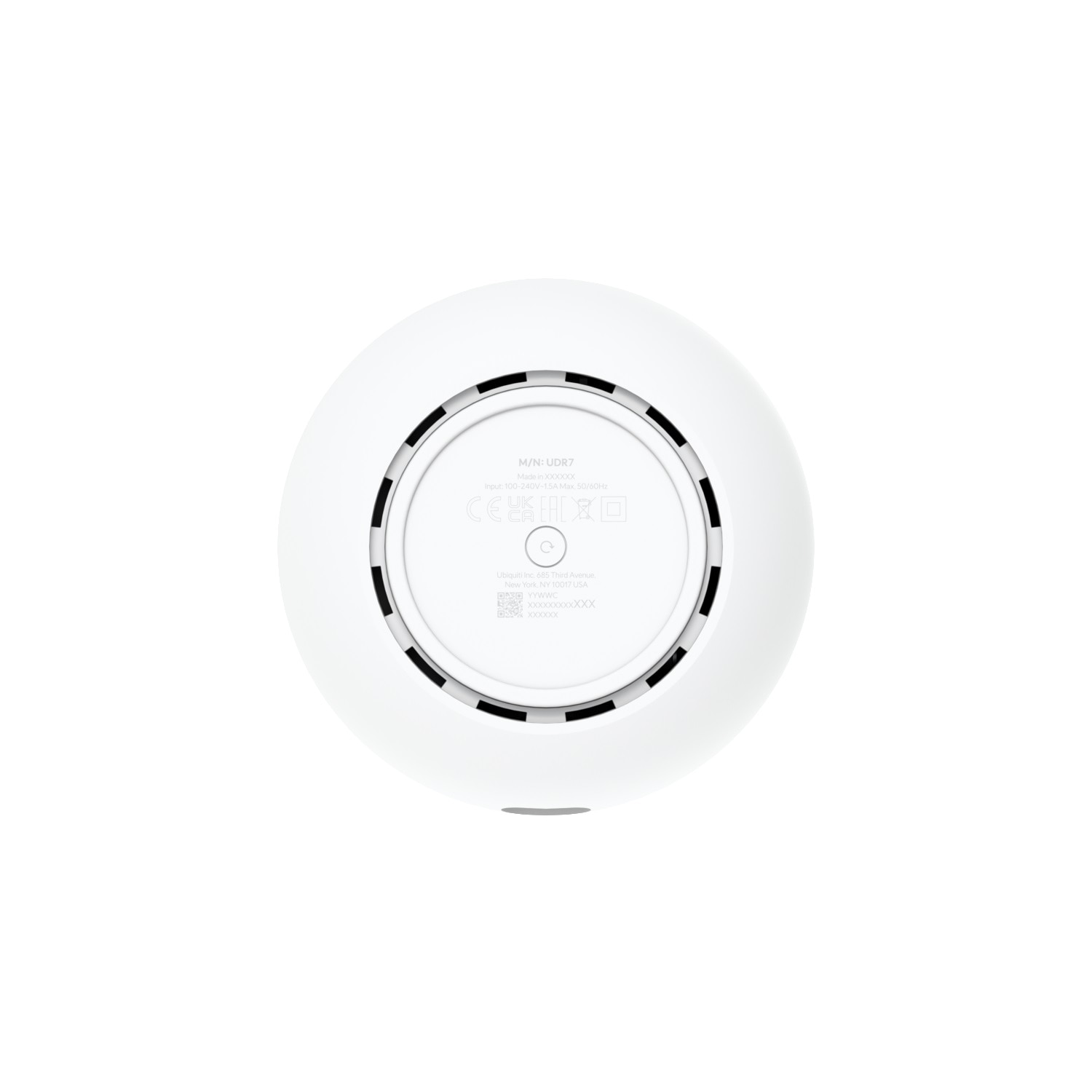

Ubiquiti UniFi Dream Router 7
- SKU: UDR7-US
$279.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Ubiquiti Networks UDR7-US
Ubiquiti UniFi Dream Router 7
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Features:
- Integrated 6-stream WiFi 7 AP with 6 GHz support
- Includes full UniFi application suite for device management

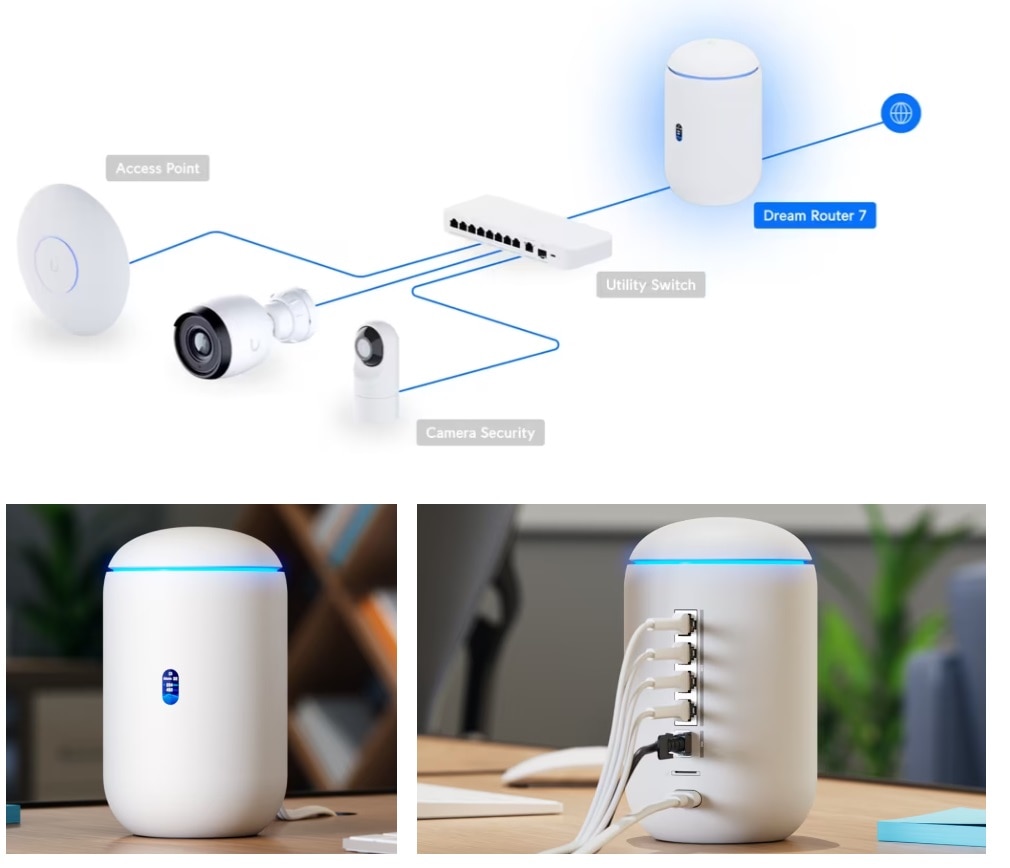

- Manages 30+ UniFi devices and 300+ clients

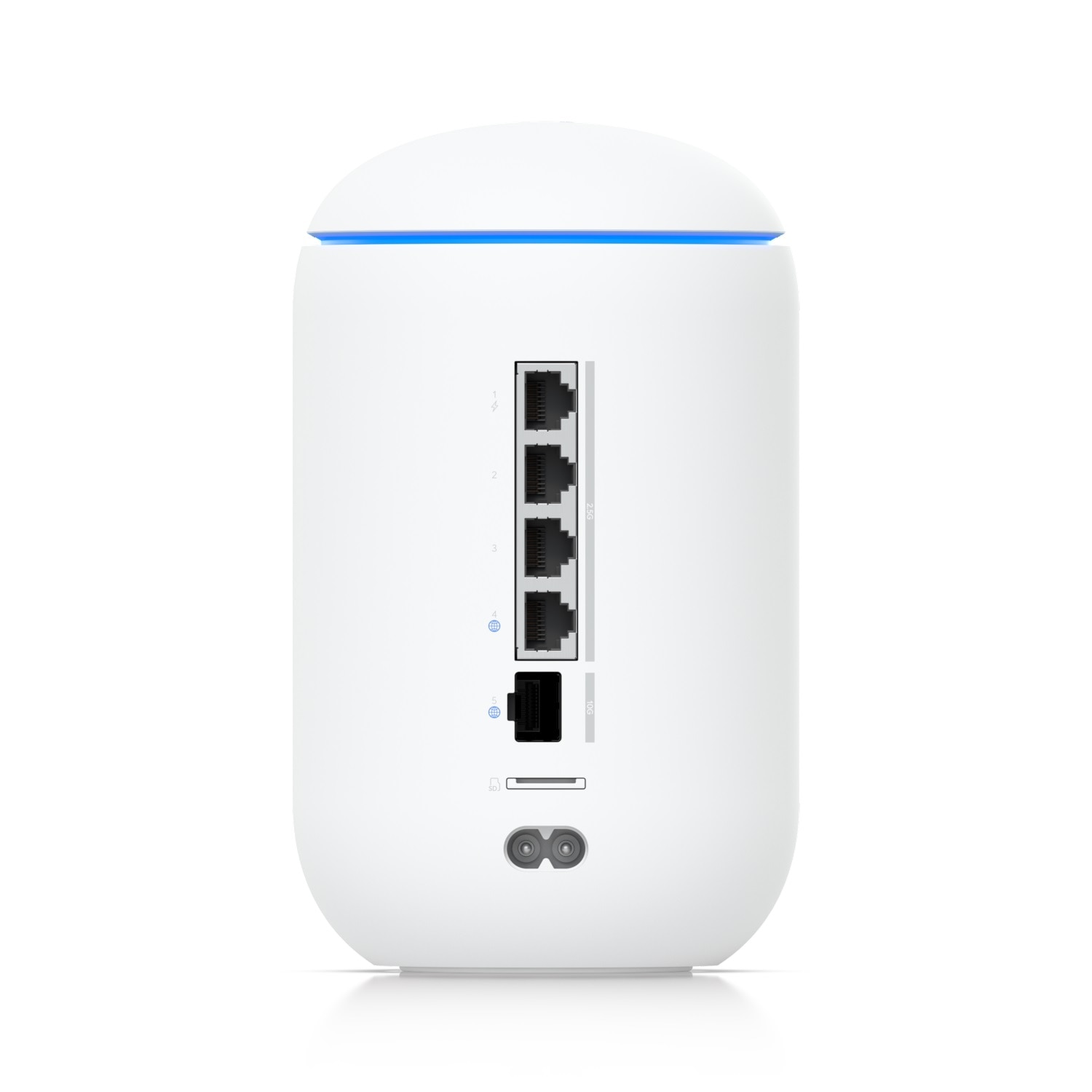

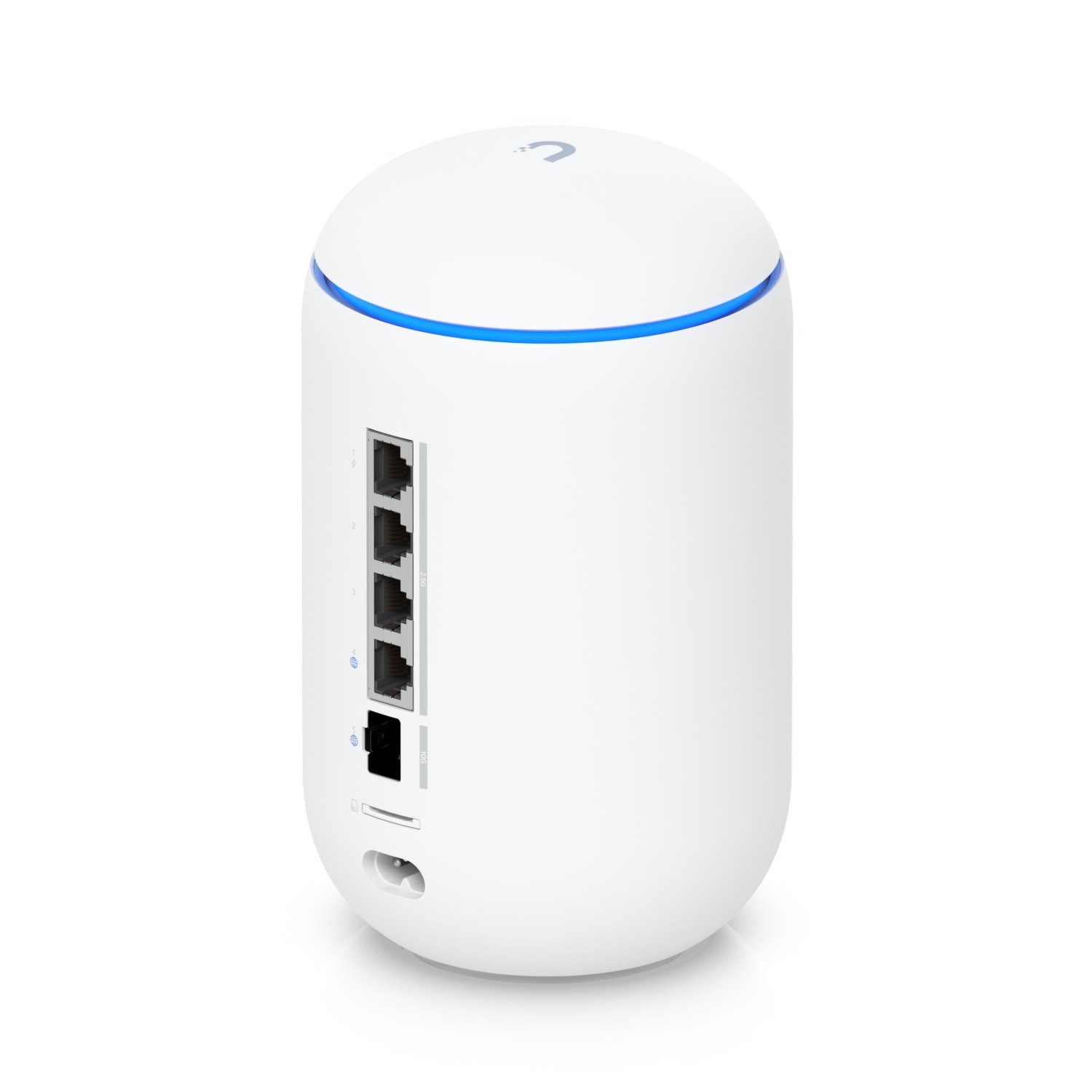

- Integrated 4-port switch with (1) PoE port
- (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
- 64 GB microSD storage pre-installed (upgradable)
Specifications
Specifications UDR7-US

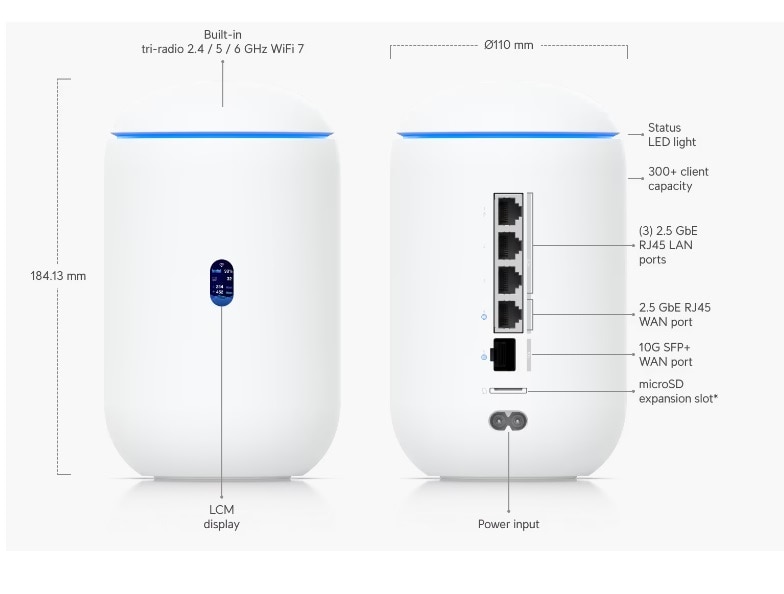

| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core Arm® Cortex® A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| Expansion slot | MicroSD memory card* 64 GB pre-installed microSD. |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: WAN: |
| PoE interface | (1) PoE (Pair A 1, 2+; 3, 6-) |
| IDS/IPS throughput | 2.3 Gbps |
| Power method | Universal AC input, 100—240V AC, 1.5A Max., 50/60 Hz |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 26W (Excluding PoE output) |
| PoE budget | 15.4W |
| Max. PoE wattage per port by PSE | 15.4W |
| Voltage range PoE mode | 44—57V DC |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 26 dBm 23 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 5 dBi 7 dBi 6 dBi |
| LCM display | (1) 0.96" screen |
| Button | Factory reset |
| LEDs | White/blue |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 4 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Application Requirements | |
| UniFi Network | Version 9.0.108 and later |
