Ubiquiti Networks UISP FIBER OLT XGS
- SKU: UISP-FIBER-OLT-XGS
$2,499.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks UISP-FIBER-OLT-XGS
An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
Features:
- XGS-PON 10 Gbps bi-directional capacity
- 2048 Client capacity (8 ports)
- (4) 25G SFP28 uplink ports
- 1U rack mount
- AC/DC power module redundancy support
Specifications
Specifications
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | 5.29 kg (11.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |

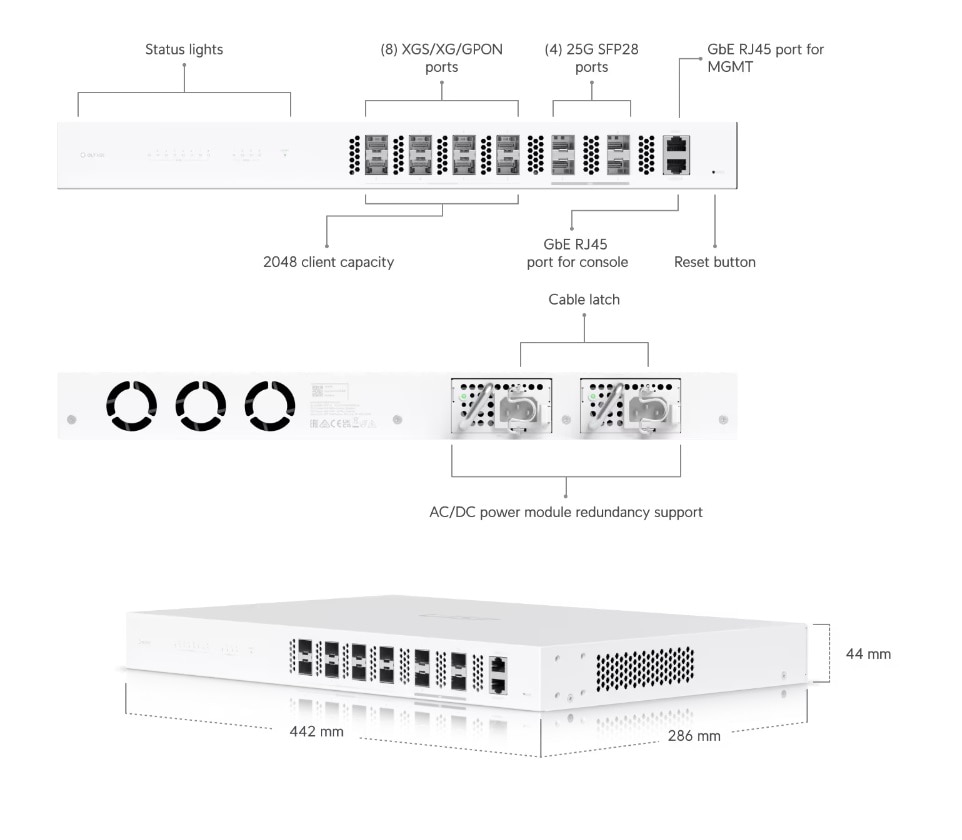

| Networking interface | (8) XGS/XG/GPON ports (4) 1/10/25G SFP28 ports* |
| Management interface | Ethernet out-of-band Ethernet in-band RJ45 serial console port Bluetooth |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 64 MB NOR + 512 MB NAND |
| Power method | (1) Universal AC input, 100-240V AC, 50/60 Hz |
| Power supply | (2) Hotswap AC/DC PSU |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 70W |
| Button | (1) Factory reset |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Slow blinking white: system is booting Fast blinking white: reset to default Blinking white/blue: system is upgrading Slow blinking blue: system is connecting to UISP Fast blinking blue: locate system Steady white: system is ready Steady blue: system is ready and connected to UISP |
| MGMT port | (1) White, steady on after link is up |
| PON ports | (8) Steady white: PON link |
| SFP28 ports | (4) White, steady on after link is up |
