Ubiquiti Networks UISP Fiber XGS-PON CPE

(0)No Reviews yet
  • SKU: UISP-FIBER-XGS
US$‎179.00
24 in stock
College Station
24 In stock

Product Information

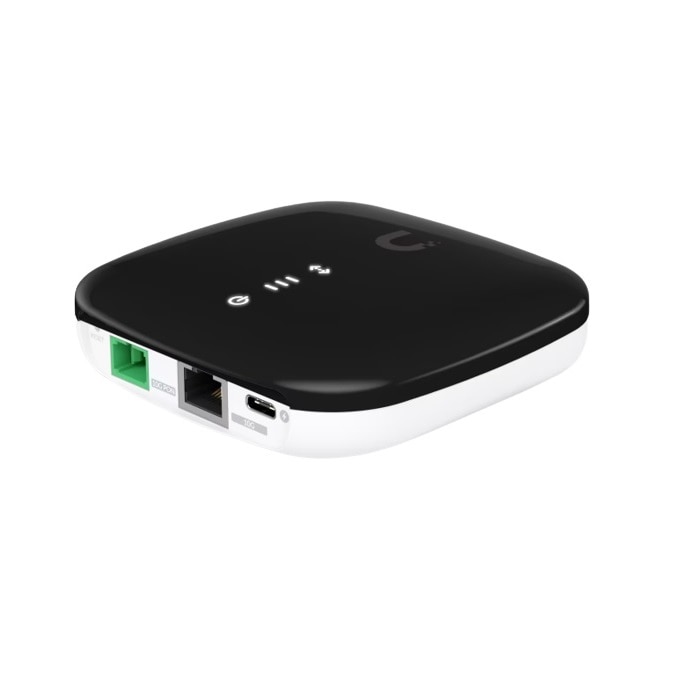

Ubiquiti Networks UISP-FIBER-XGS

UISP Fiber XGS-PON CPE

An optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

Note. This device is only compatible with the UISP Fiber XGS OLT. It cannot be used with third-party OLTs.

Features:

    Specifications

    Specifications UISP-FIBER-XGS

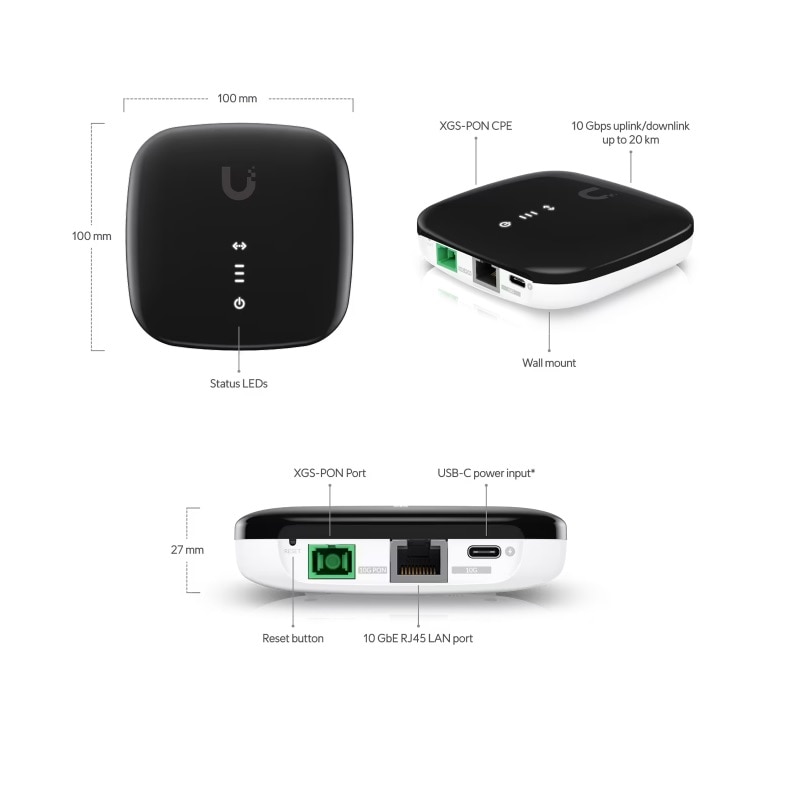

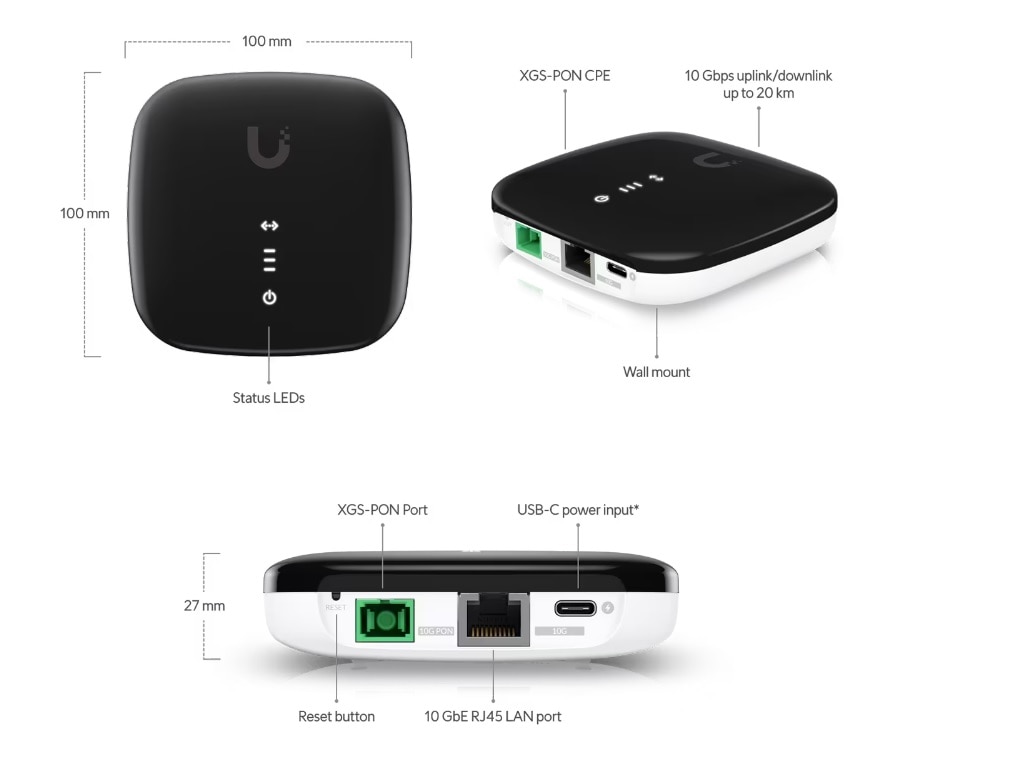

    Dimensions100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
    Weight220 g (0.49 lb)
    Enclosure materialUV-stabilized polycarbonate
    Hardware
    Networking interface(1) SC/APC, ITU-G.9807 XGSPON WAN port (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports
    Management interfaceEthernet in-band PON
    Memory256 MB DDR
    Onboard flash storage32 MB NOR
    Max. power consumption8W
    Power methodUSB-C 5V DC, 3A
    Power supply5V DC, 3A power adapter
    Supported voltage range5V DC power adapter
    Total non-blocking line rateDownstream: 9.95 Gbit/s Upstream: 9.95 Gbit/s
    Normal TX range of optical module4 to 9dBm
    Normal RX range of optical module-9 to -26dBm
    Button(1) Factory reset
    Operating temperature-15 to 45° C (5 to 113° F)
    Operating humidity10 to 95% non-condensing
    CertificationsCE, FCC, IC
    Fiber
    Operating wavelengthTX: 1,270nm RX: 1,577nm
    Line codeScrambled NRZ
    Physical reach20 km

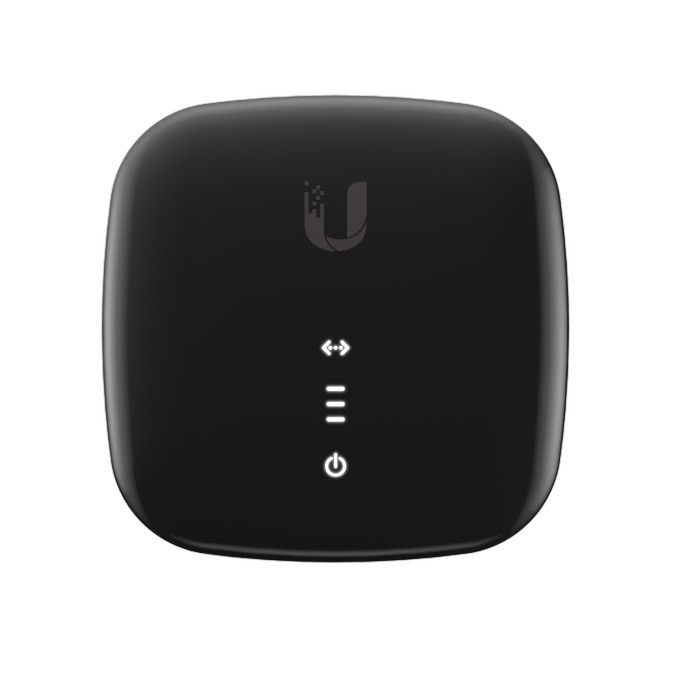

    LEDs
    PowerWhite: ON
    EthernetSteady white: link up Blinking white: activity OFF: link down
    PON status(3) signal LEDs
    All-OFF: bootup
    1x orange: signal too low (< -27 dbm)
    1x white: signal low (>= -27 dbm)
    2x white: signal good (>= -24 dbm)
    3x white: signal strong (>= -12 dbm)
    1x orange + 2x white: signal too strong (>= -9 dbm)
    3x orange: no signal
    LEDs alternate between orange + white + orange and a signal strength indicator: no authority
    Software
    Management applicationUISP: Version 1.5.7 and later
