Ubiquiti Swiss Army Knife Ultra

(0)No Reviews yet
  • SKU: UK-Ultra-US

Product Information

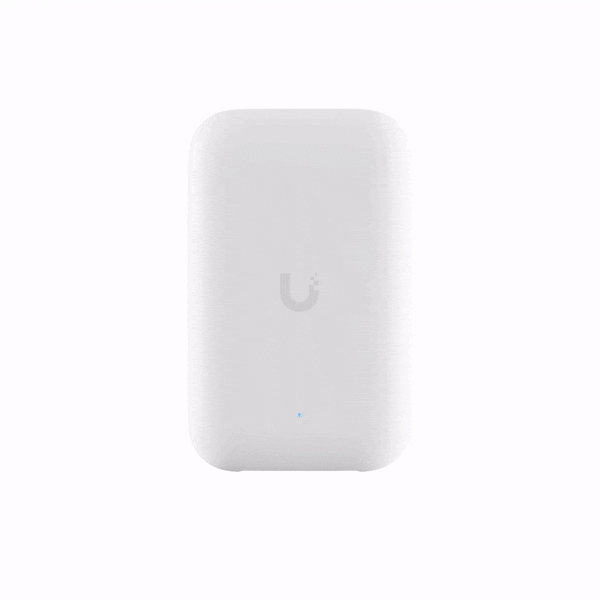

Ubiquiti Networks UK-Ultra

Swiss Army Knife Ultra

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.


Features:

  • WiFi 5
  • 4 spatial streams
  • 115 m² (1,250 ft²) coverage with internal antenna
  • 200+ connected devices

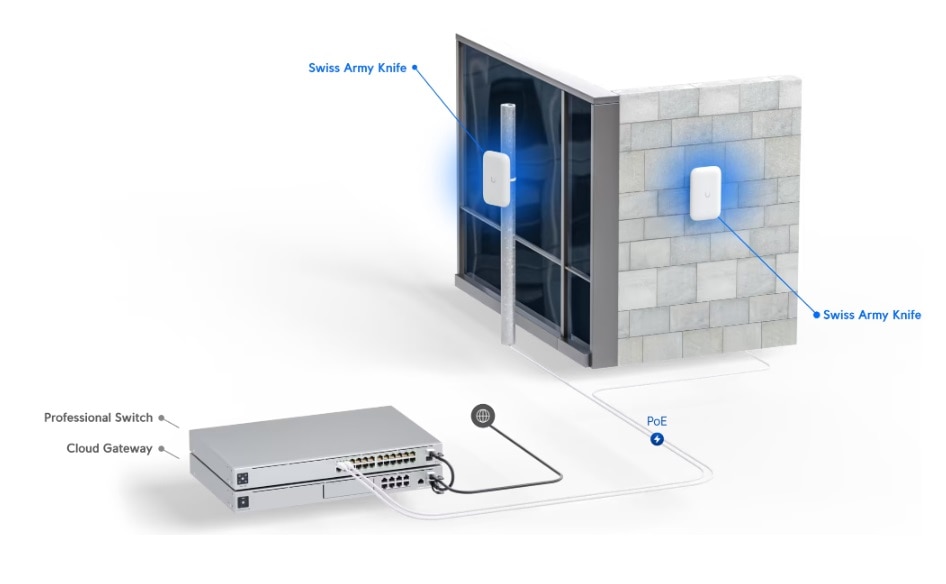

  • Powered using PoE
  • GbE uplink

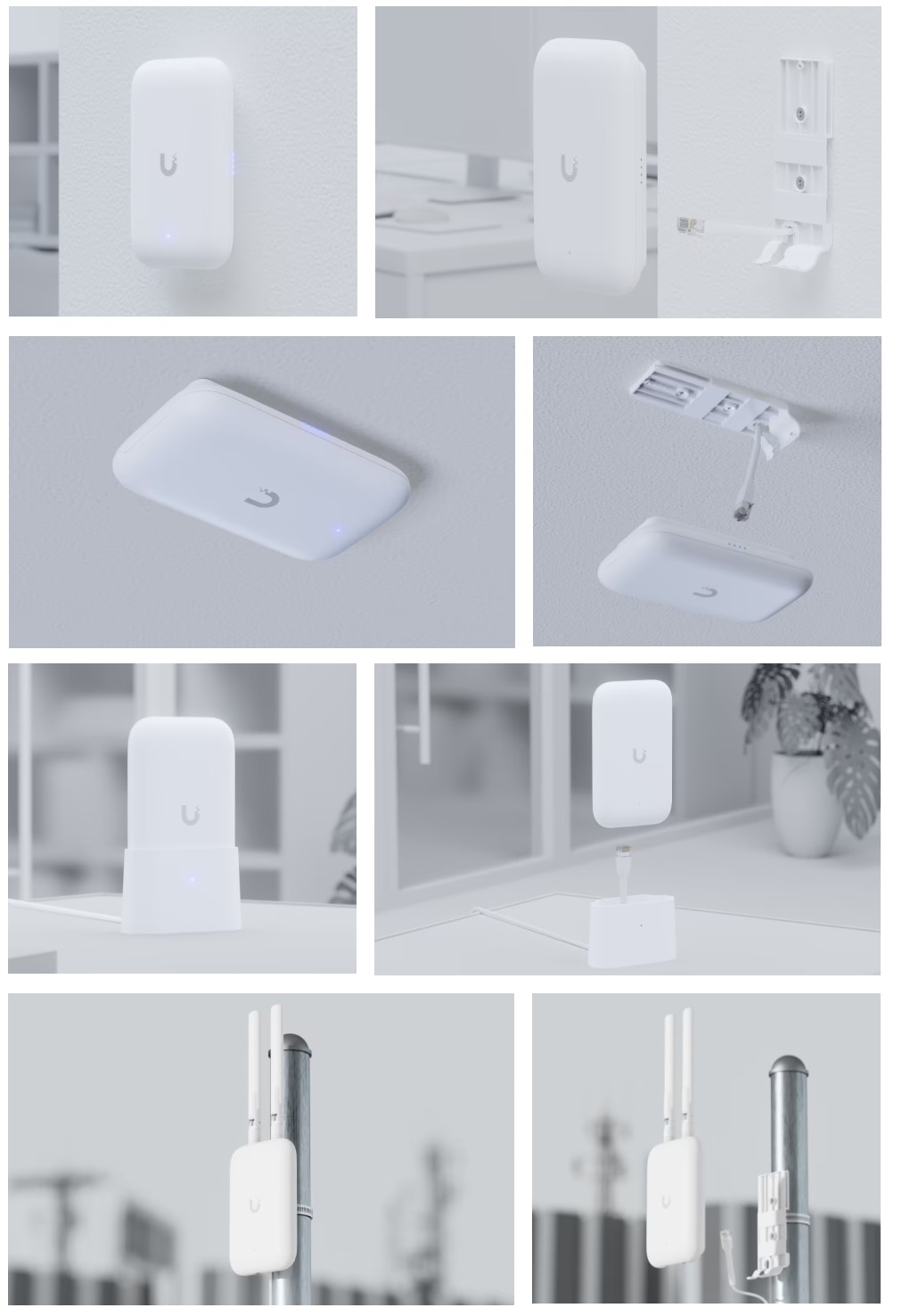

  • Versatile wall, ceiling, and pole mounting
  • (2) RP-SMA connectors for optional external antennas
  • Weatherproof (outdoor exposed)

Specifications

Specifications UK-Ultra

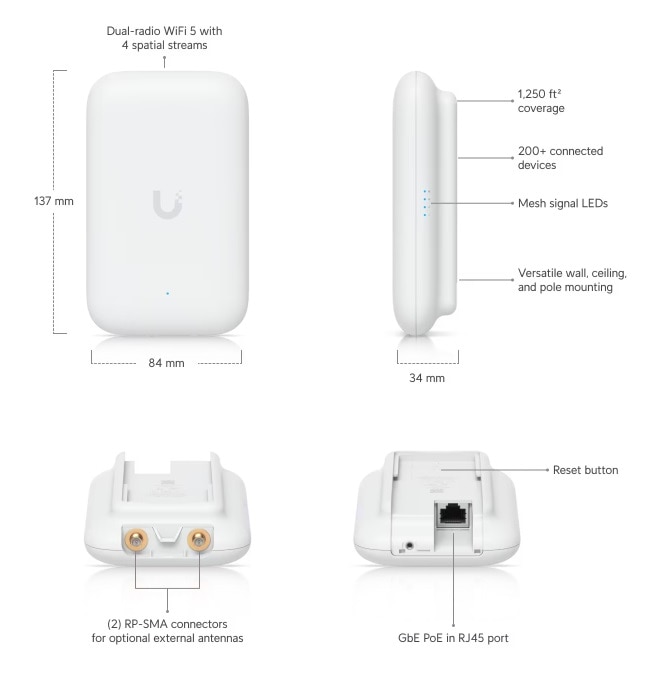

Dimensions137 x 84 x 34 mm (5.4" x 3.3" x 1.3")
Weight173 g (6.1 oz)
Enclosure materialUV-stabilized polycarbonate
Mount materialPolycarbonate, SGCC steel, plastic
Pole mount diameter1~2" on pipe outer diameter
Wind survivability33.2 N at 200 km/h (7.5 lbf at 125 mph)
WeatherproofingIPX6
Hardware
Networking interface(1) GbE RJ45 port
Management interfaceEthernet
Power methodPoE
Power supplyUniFi PoE Switch
Supported voltage range44—57V DC
Max. power consumption8W

Max. TX power

2.4 GHz
5 GHz
6 GHz

20 dBm
20 dBm

MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2

Throughput rate
2.4 GHz
5 GHz
6 GHz

300 Mbps
866.7 Mbps

Antenna gain
2.4 GHz
5 GHz
6 GHz

4.7 dBi
6.1 dBi

Antenna(1) Internal antenna (2) RP-SMA connectors for optional external antennas
LEDs(1) Power: white/blue (4) Mesh signal: blue
ButtonFactory reset
MountingWall, ceiling, pole (Included)
Ambient operating temperature-40 to 60° C (-40 to 140° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Software
WiFi standards802.11a/b/g/n/ac
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID8 per radio
VLAN802.1Q
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients200+
Supported Data Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Application Requirements
UniFi NetworkWeb: Version 8.0.7 and later
iOS™: Version 10.11.1 and later
Android™: Version 10.10.1 and later
