Ubiquiti Network Video Recorder Pro
- SKU: UNVR-PRO
Product Information
Ubiquiti Networks UNVR-PRO
Network Video Recorder Pro
The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.
The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.
Features:

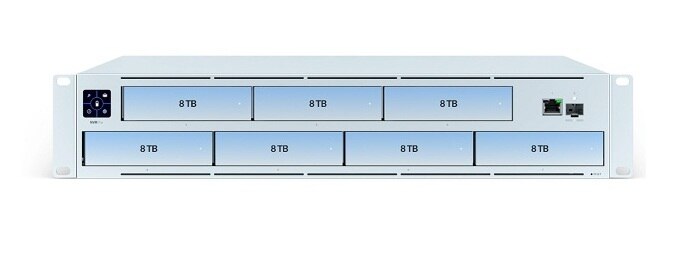

- (7) 2.5"/3.5" HDD bays
- (1) 10G SFP+ port
- (1) GbE RJ45 port

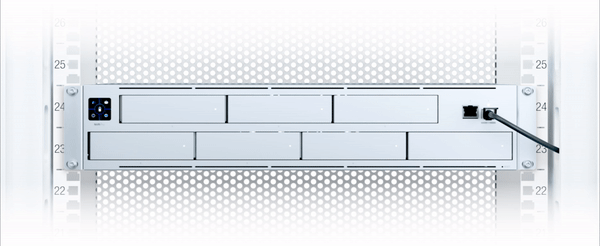

- 2U-sized, rack-mountable console (kit Included)
- 1.3" touchscreen with video event previewing*
- Pre-installed UniFi Protect application
- Simple, Bluetooth-powered setup via the UniFi Protect mobile app
- Automated RAID 1, 5, or 10 HDD configuration
- Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
- Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android)
Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in our list of incompatible models.
Optimize your camera security
The UNVR Pro is designed to support the most demanding, multi-camera systems.
- Immense Storage Capacity: Install up to seven multi-terabyte HDDs (2.5 or 3.5")
- Fast Fiber Connectivity: Create high-speed connections to your Protect cameras and UniFi devices
- Plug & Play Design: Run UniFi Protect instantly after setup
- Instant Data Protection: Protect your drive data with automatic HDD configurations
- Reliable Backup Power: Keep your UNVR Pro running through power failure
- Ample HD and 4K video storage: Access high-resolution recordings when you need them.
Ample HD and 4K video storage
Access high-resolution recordings when you need them.
Reclaim your power
Stay operational through sudden power failure by connecting to the USP RPS* or Switch Mission Critical**
More ways to monitor what matters most

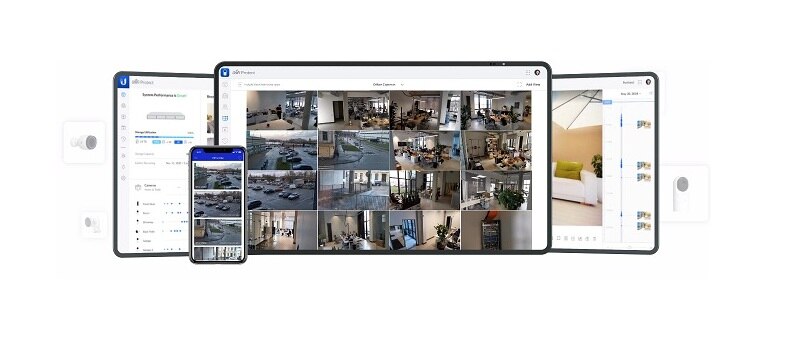

Instantly view live feeds, access recordings, and manage your cameras with UniFi Protect.
Specifications
Specifications UNVR-PRO

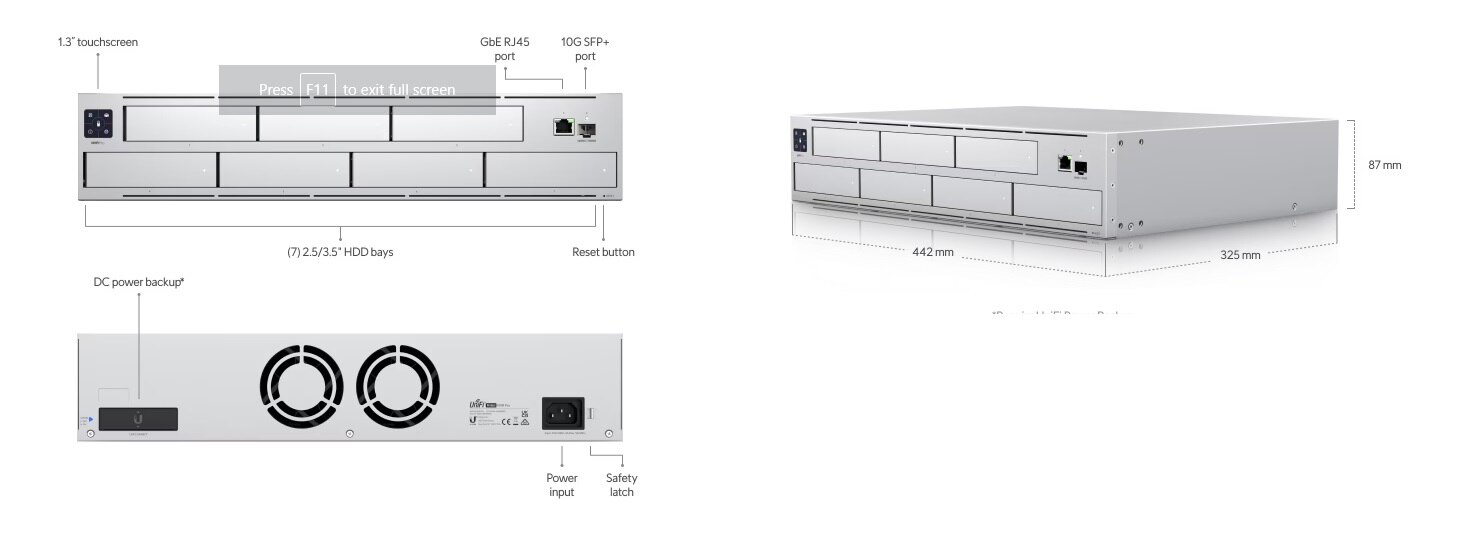

| Dimensions | 442 x 325 x 87 mm (17.4 x 12.8 x 3.4") |
| Weight | Without Rackmount Brackets: 9.2 kg (20.28 lb) |
| With Rackmount Brackets | 9.45 kg (20.83 lb) |
| Enclosure Material | SGCC Steel |
| Mount Materials | SGCC Steel |
| Hardware | |
| Max. Power Consumption | 160W |
| Max. Power Budget for Drives | 135W |
| Power Method | (1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 13.91A |
| Power Supply | AC/DC, Internal, 200W |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet |
| RF Interface | (1) Bluetooth v4.1 |
| LCM Display | (1) 1.3" Touchscreen |
| Bootup Animation | Bootup in Progress |
| Firmware Upgrade Icon | Firmware Upgrading |
| Steady White | Factory Defaults, Awaiting Adoption |
| Steady Blue | Device is Adopted |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | FCC, CE, IC |
| LEDs | |
| Ethernet | White: 10/100/1000 Mbps |
| SFP+ | White: 1/10 Gbps |
| HDD | Amber: Disk Error, White: Disk Detected |
| RPS | Blue: Ready |
