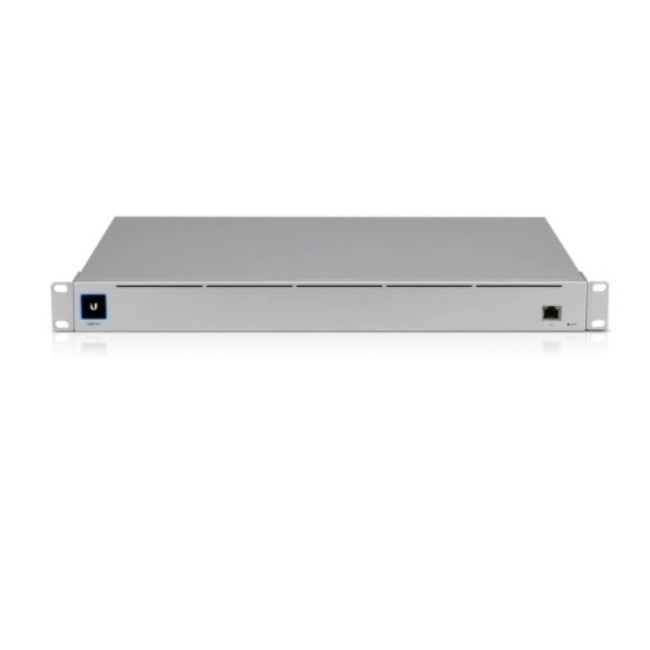

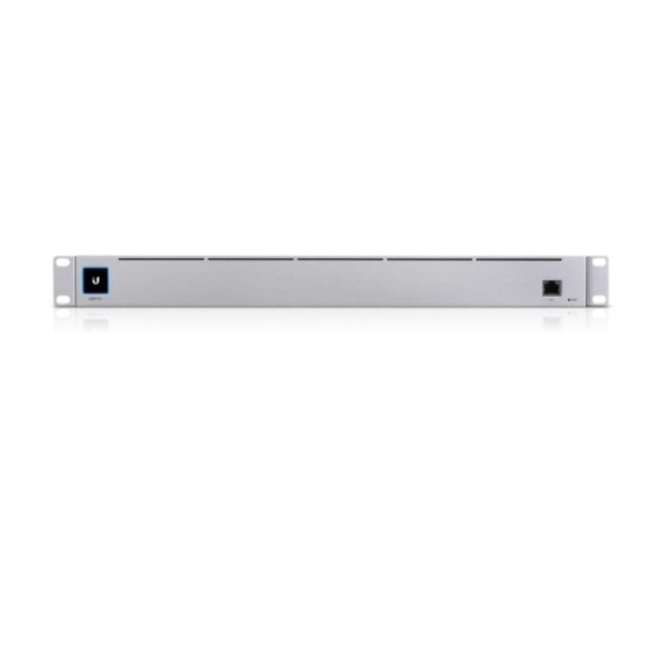

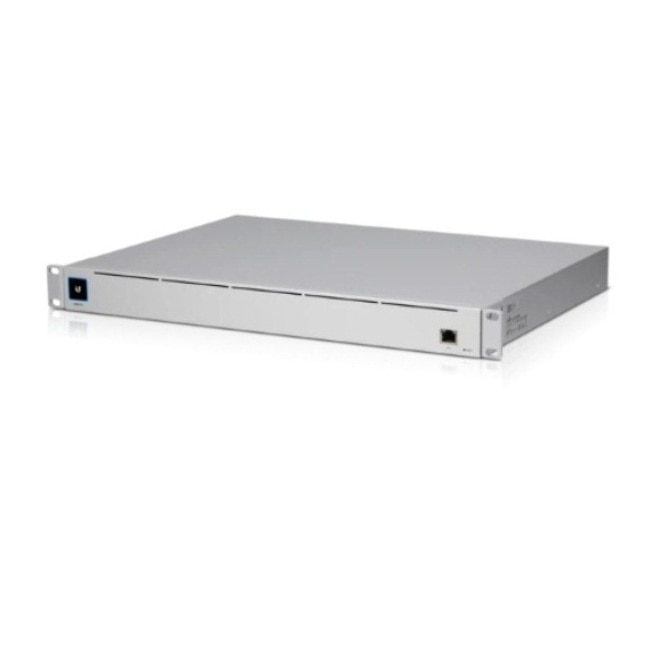

Ubiquiti UniFi Redundant Power System
US$399.00
- SKU: USP-RPS
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks USP-RPS
UniFi Redundant Power System

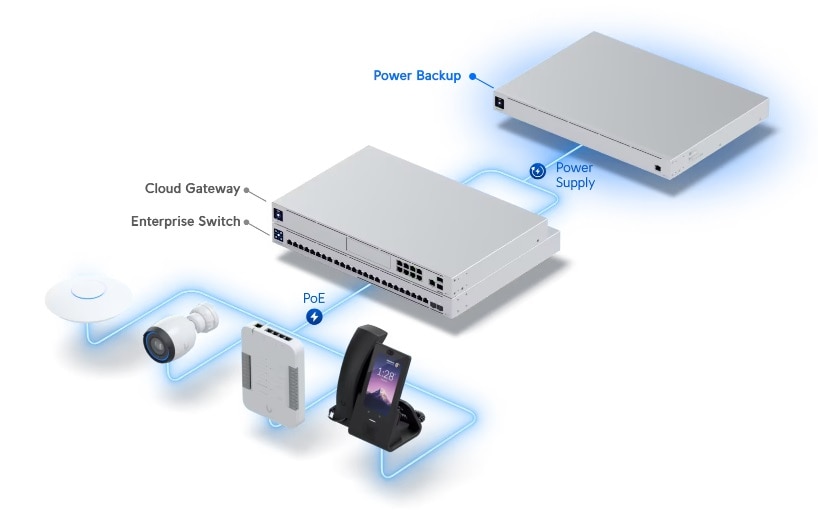

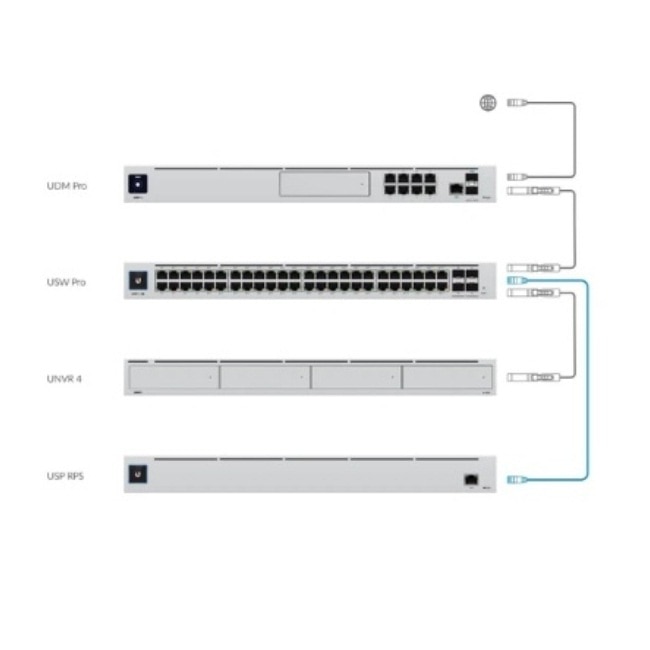

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.
Features:
- (6) USP DC output ports
- (1) Ethernet port

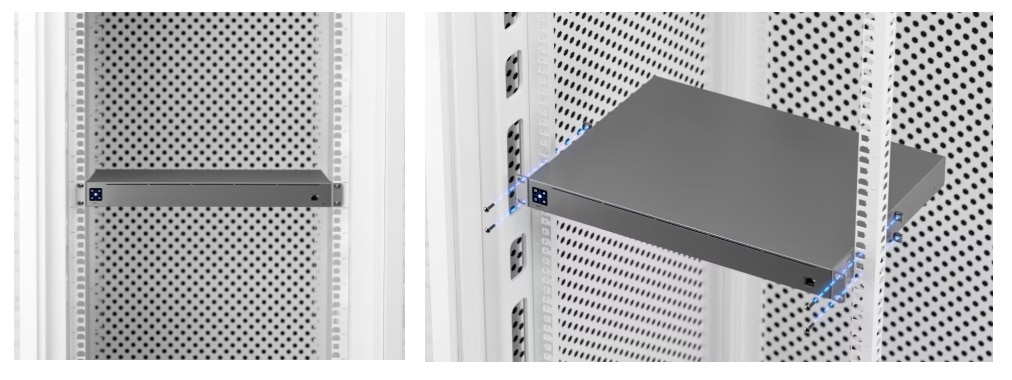

- 1U Rackmountable (kit included)

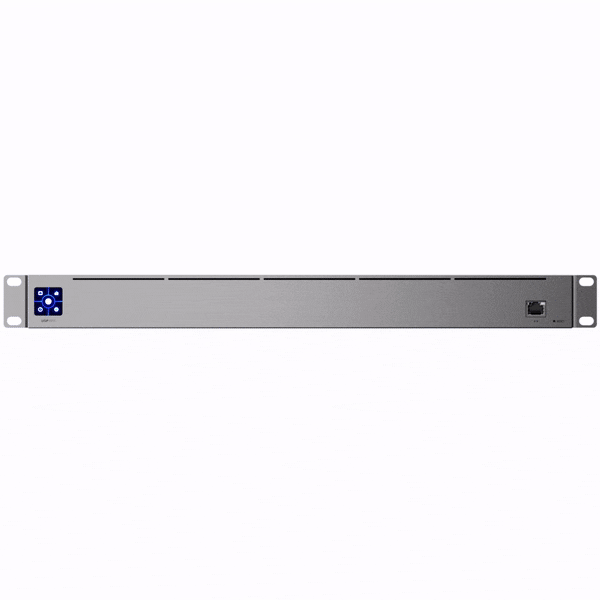

- 1.3" Touchscreen display with status information
- Managed by UniFi Network Controller version: 5.12.11 or later
Specifications
Specifications USP-RPS

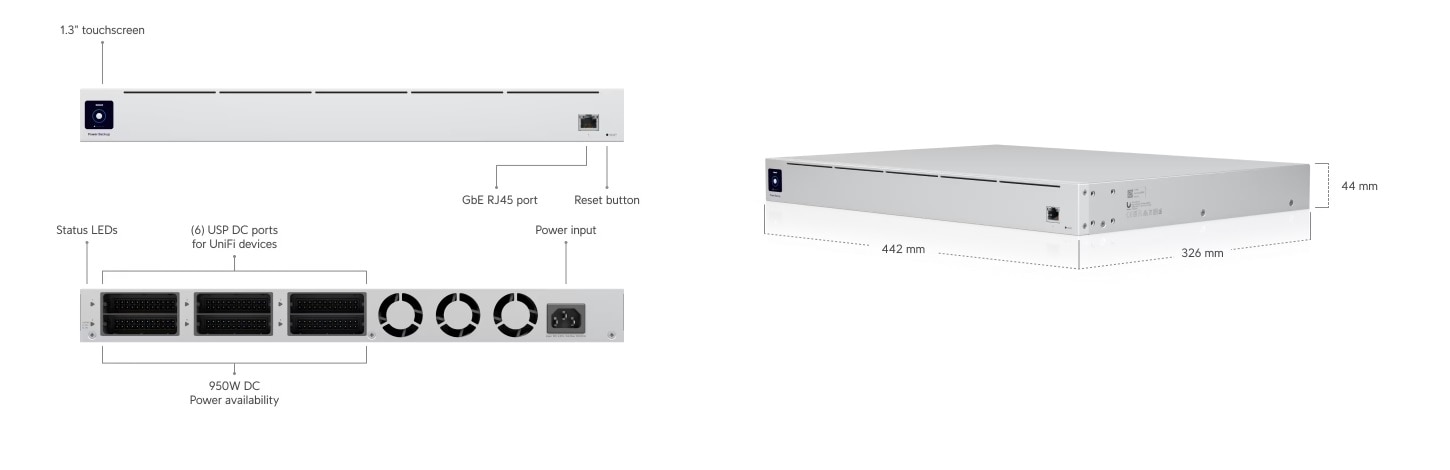

| Dimensions | 442.40 x 325.60 x 43.70 mm (17.42 x 12.82 x 1.72") |
| Weight With Mount Brackets | 5.500 kg (12.13 lb)5.590 kg (12.32 lb) |
| Interfaces | |
| Networking | (1) 10/100/1000 Mbps RJ45 Port |
| Management | Ethernet In-Band |
| Power Output | (6) RPS DC Ports |
| Max. Power Consumption | 995W |
| Power Method | (1) Universal AC Input, 100 to 240VAC |
| Power Supply | Internal 350W AC/DC Internal 645W AC/DC |
| Supported Voltage Range | 100 - 240VAC |
| Display | 1.3" Color Touch Panel |
| LED | |
| System | Status |
| RJ45 | Link/Activity |
| USP RPS | Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Total Output Power | |
| 52VDC | 11.54A (600W) |
| 11.5VDC | 30.44A (350W) |
| Max. Output Power per RPS Port | |
| 52VDC | 11.54A (600W) |
| 11.5VDC | 30.44A (350W) |
