  • Ubiquiti UniFi Switch 24 Gigabit Ethernet ports

Ubiquiti UniFi Switch 24 Gigabit Ethernet ports

  • SKU: USW-24
  • Manufacturer: Ubiquiti Networks
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
US$‎225.00

Specifications USW-24

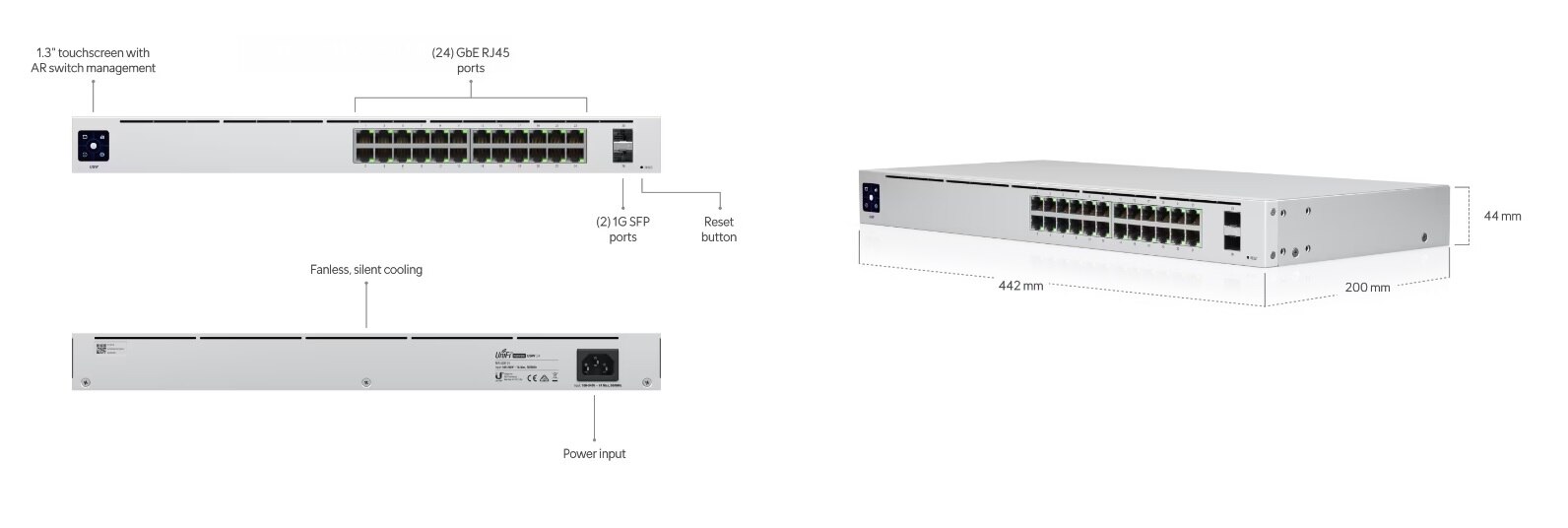

Dimensions442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72")
Weight
With Rackmount Brackets
2.70 kg (5.95 lb)

2.79 kg (6.15 lb)
Interfaces0
Interfaces Networking

Management
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports Ethernet In-Band
Power Method100-240VAC, 50/60 Hz, Universal Input
Power SupplyAC/DC, Internal, 36W
Supported Voltage Range100 to 240VAC
Max. Power Consumption25W
LEDs
RJ45 Data Ports
SFP Data Ports

Speed/Link/Activity
Link/Activity
ESD/EMP ProtectionAir: ± 16 kV, Contact: ± 12 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 45° C (23 to 113° F)
Operating Humidity10 to 90% Noncondensing
CertificationsCE, FCC, IC

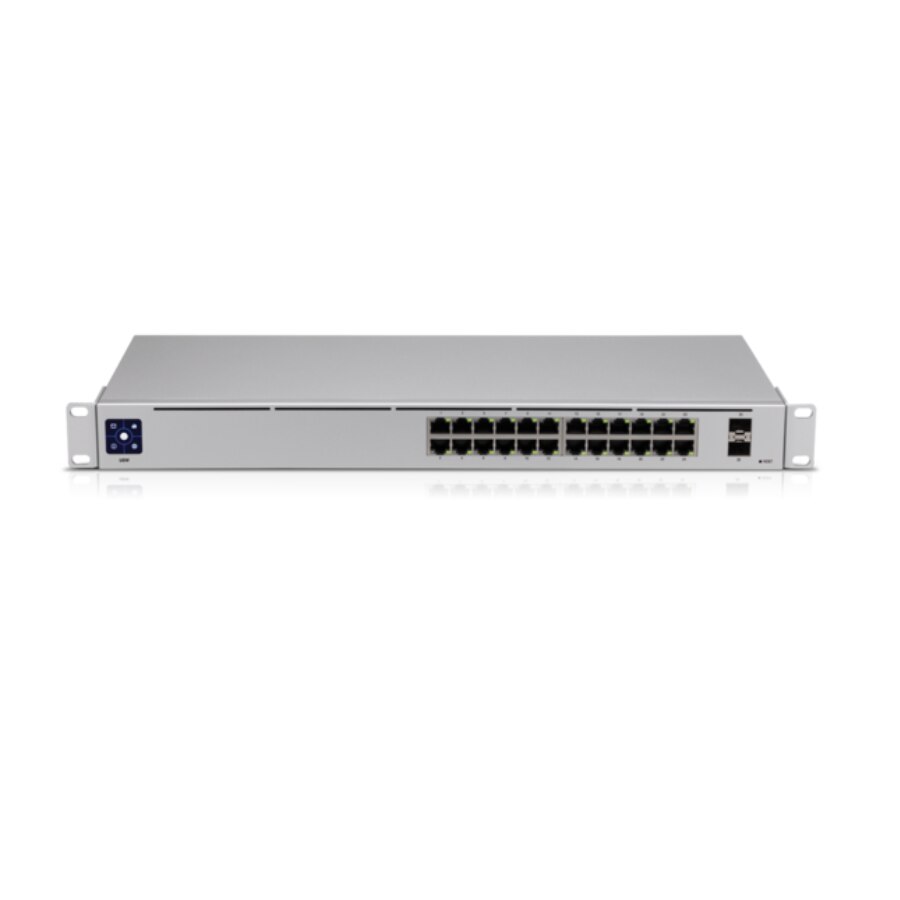

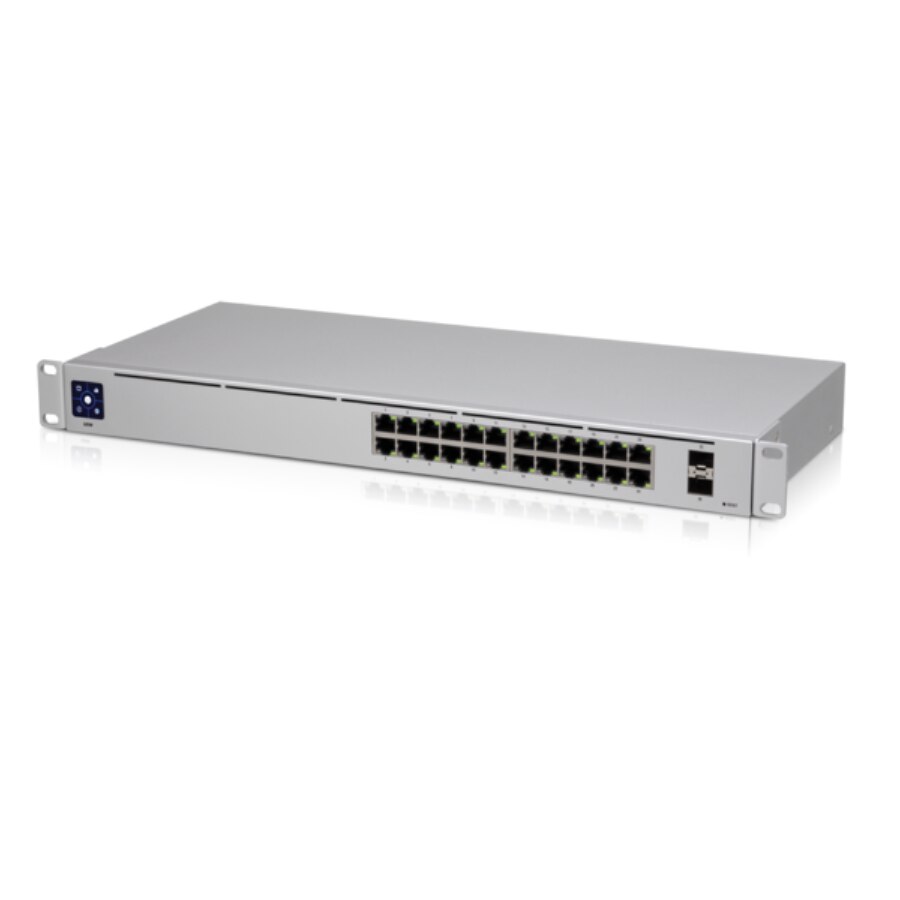

Ubiquiti Networks USW-24

UniFi Switch 24 Gigabit Ethernet ports

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.


Features:

  • (24) Gigabit Ethernet Ports
  • (2) Gigabit SFP Ports
  • 1.3" color touchscreen for status information
  • Managed by UniFi Network Controller

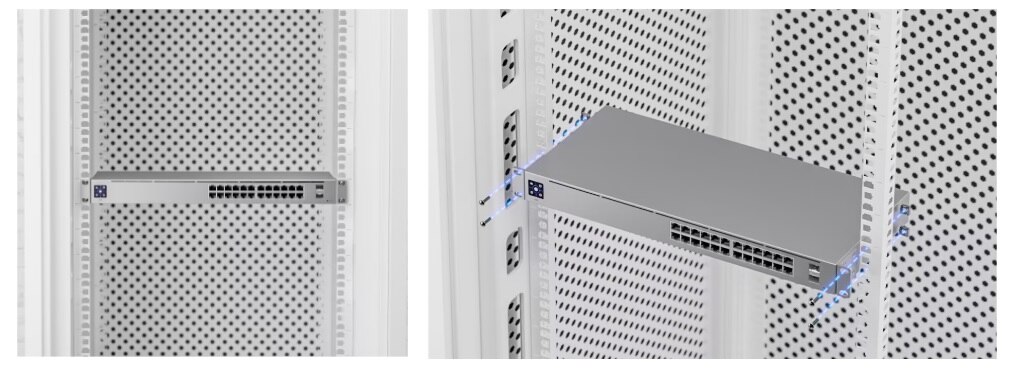

  • 1U rackmountable (kit included)
  • Managed by UniFi Network Controller version: 5.12.32 or higher

Works with UniFi Network Controller

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support
