Ubiquiti 5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

  • SKU: USW-Flex-Mini
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 7 In Stock    (updated live)
US$‎29.00

Specifications USW-Flex-Mini

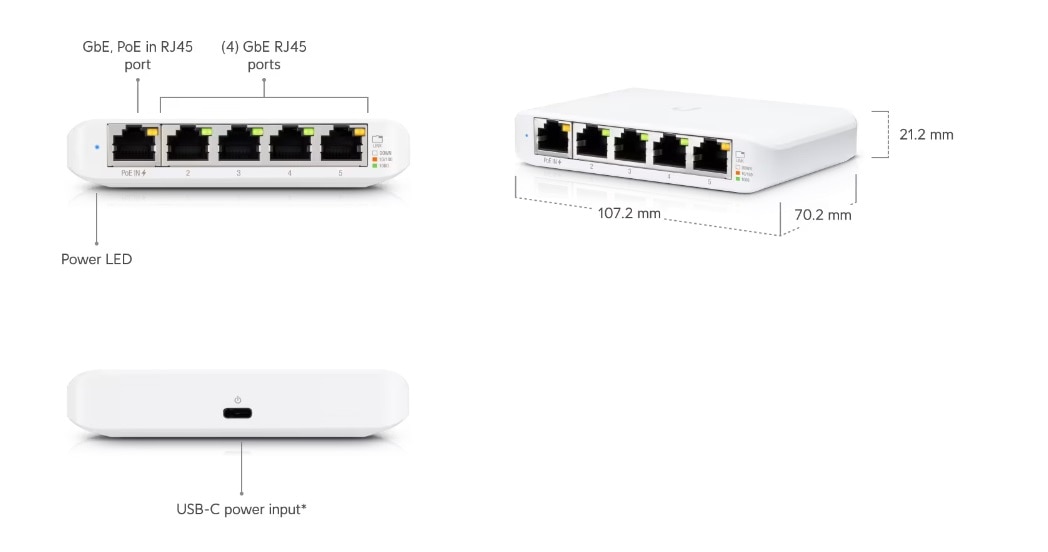

Dimensions107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83")
Weight150 g
(5.29 oz)
Networking Interfaces(5) 10/100/1000 Mbps RJ45 Ports
PoE In Interface802.3af/at PoE (Pins 1, 2+; 3, 6-)
Max. Power Consumption2.5W
Power MethodUSB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply5V, 1A Power Adapter*
Voltage Range
USB Type C
802.3af/at PoE
4.7 - 5.2VDC
44 - 57VDC
LEDs
System
RJ45 Data Ports
Status
Link/Speed/Activity
ESD/EMP Protection± 16kV Air, ± 12kV Contact
Operating Temperature-5 to 45° C (23 to 113° F)
Operating Humidity10 to 90% Noncondensing
CertificationsCE, FCC, IC

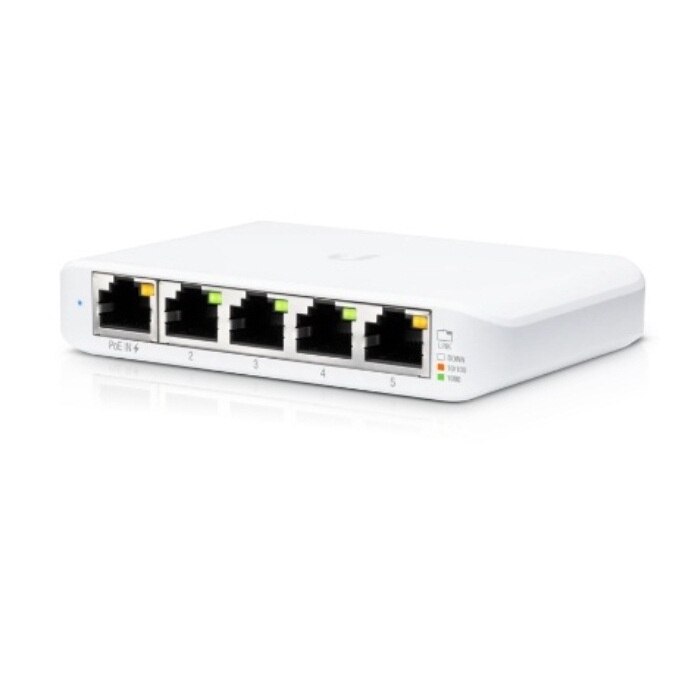

Ubiquiti Networks USW-Flex-Mini

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

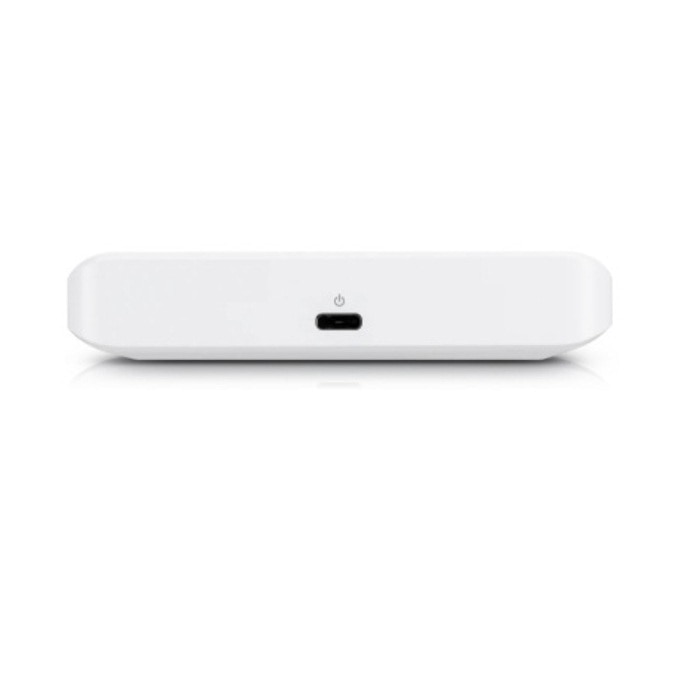

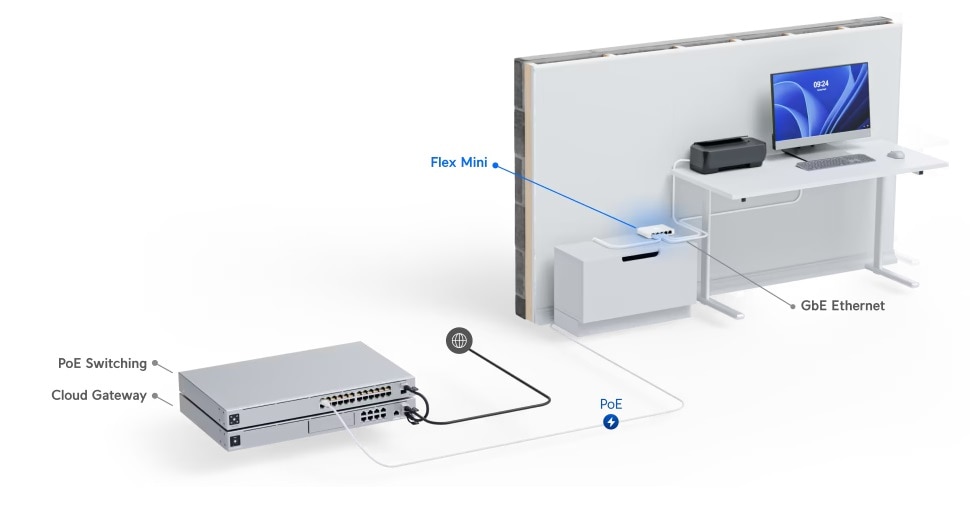

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

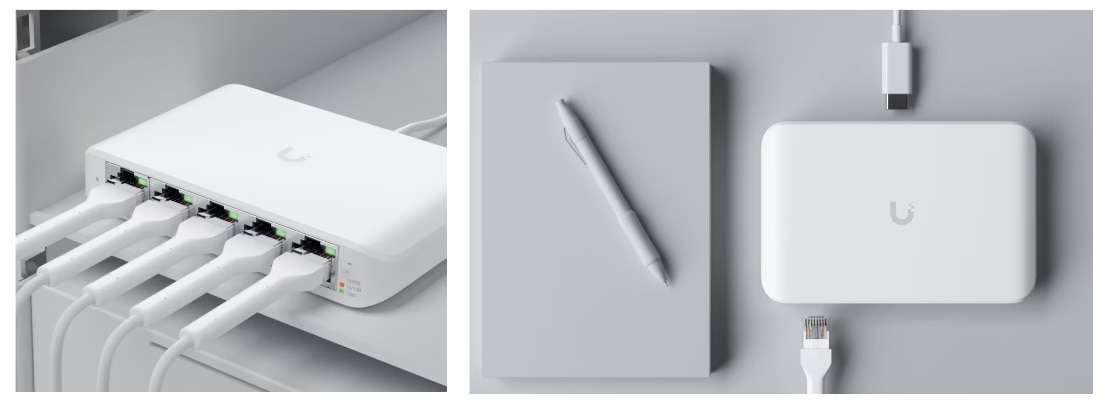

Compact Desktop Design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

Copper Connectivity

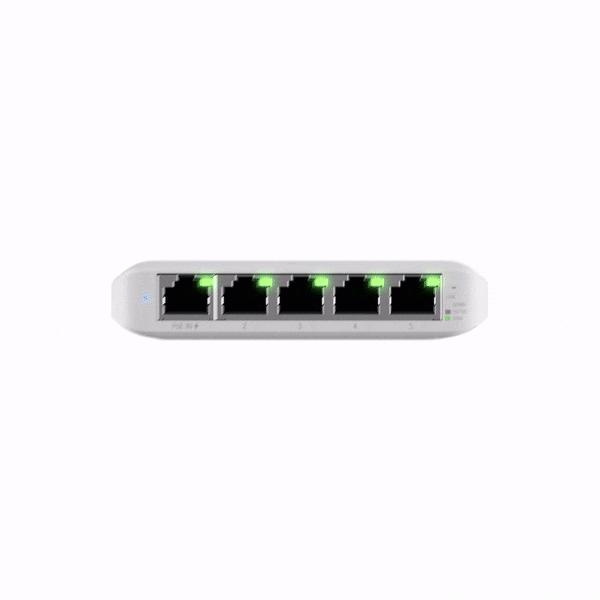

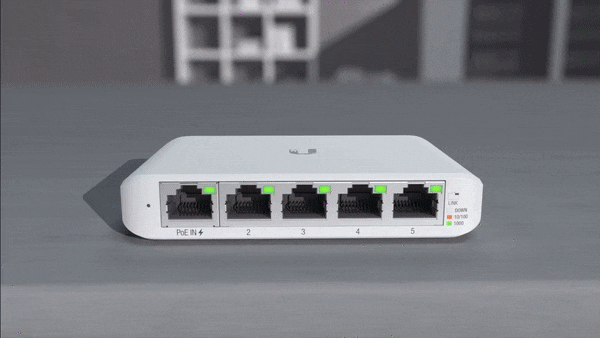

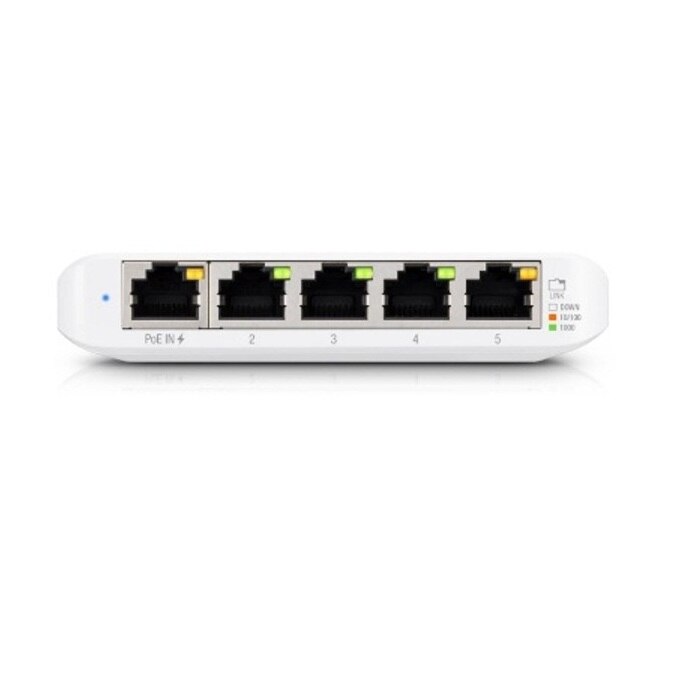

Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter*.

Switching Performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.


Features:

  • Compact 5-Port Gigabit Switch
  • Powered by 802.3af/at PoE or USB Type C
  • Compact Desktop Footprint
  • Energy-Efficient Design
