  • Ubiquiti Networks UISP Wave Long-Range 60 GHz PtMP station

Ubiquiti Networks UISP Wave Long-Range 60 GHz PtMP station

(0)No Reviews yet
  • SKU: Wave-LR
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide:Download
40 in stock
College Station
40 In stock

Product Information

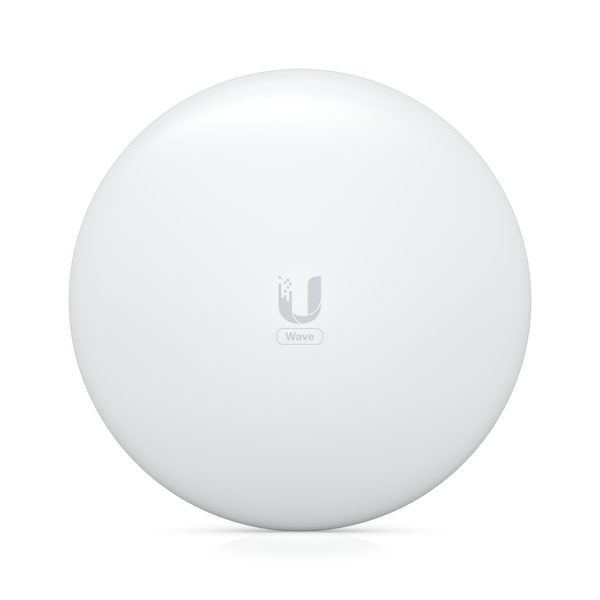

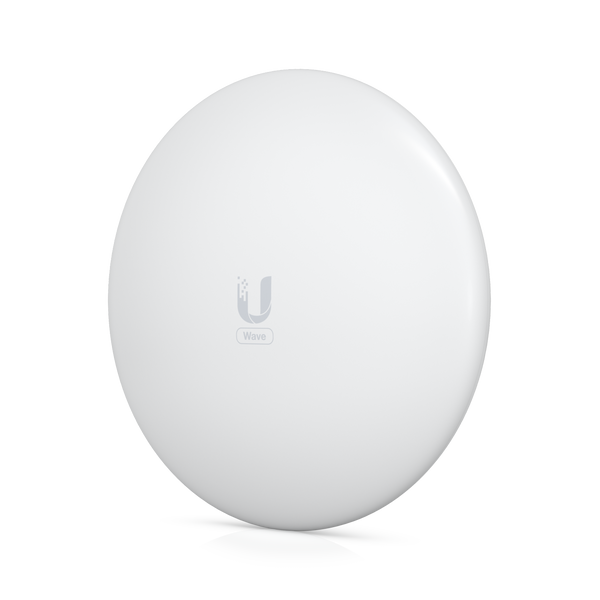

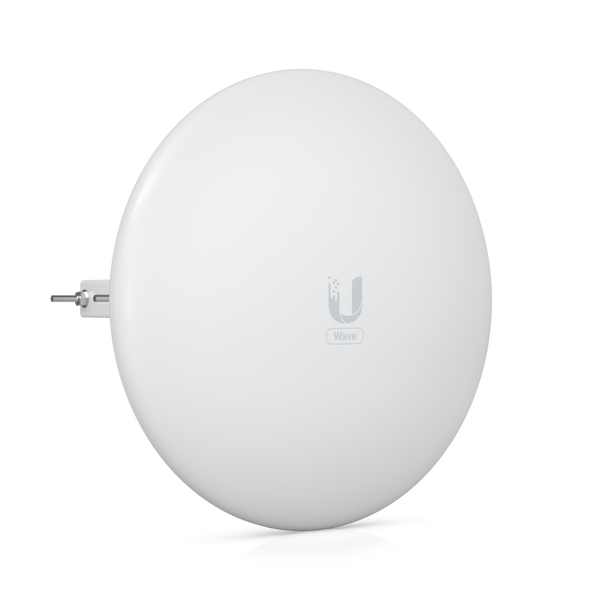

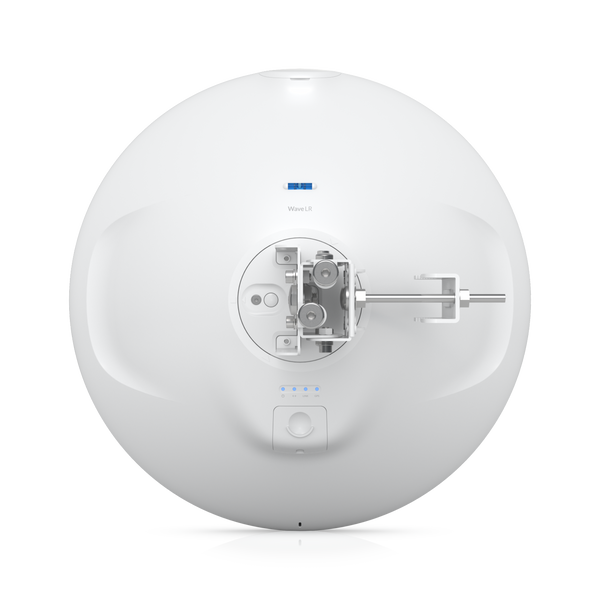

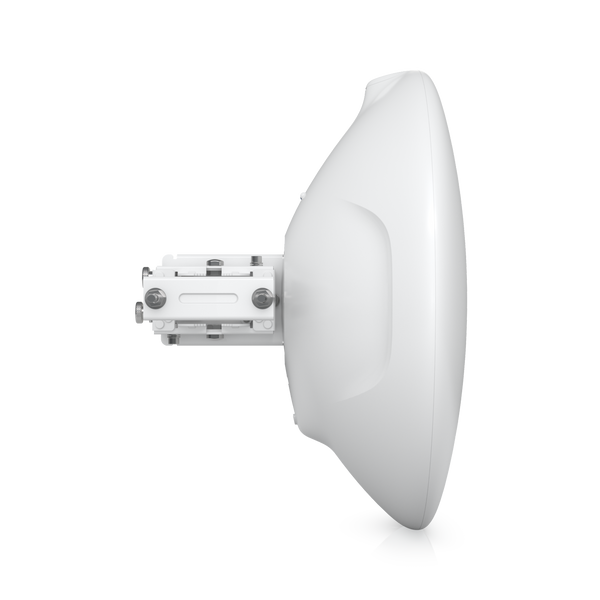

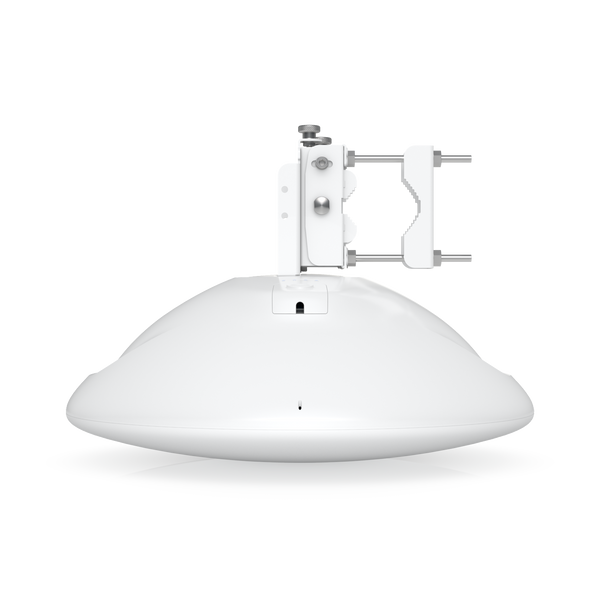

Ubiquiti Networks Wave-LR

UISP Wave Long-Range 60 GHz PtMP station

Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Features:

  • 5 GHz backup radio
  • Link range: up to 8 km
  • Router mode support
  • Integrated GPS antenna
  • Link planning support via ISP Design Center

Specifications

Specifications Wave-LR

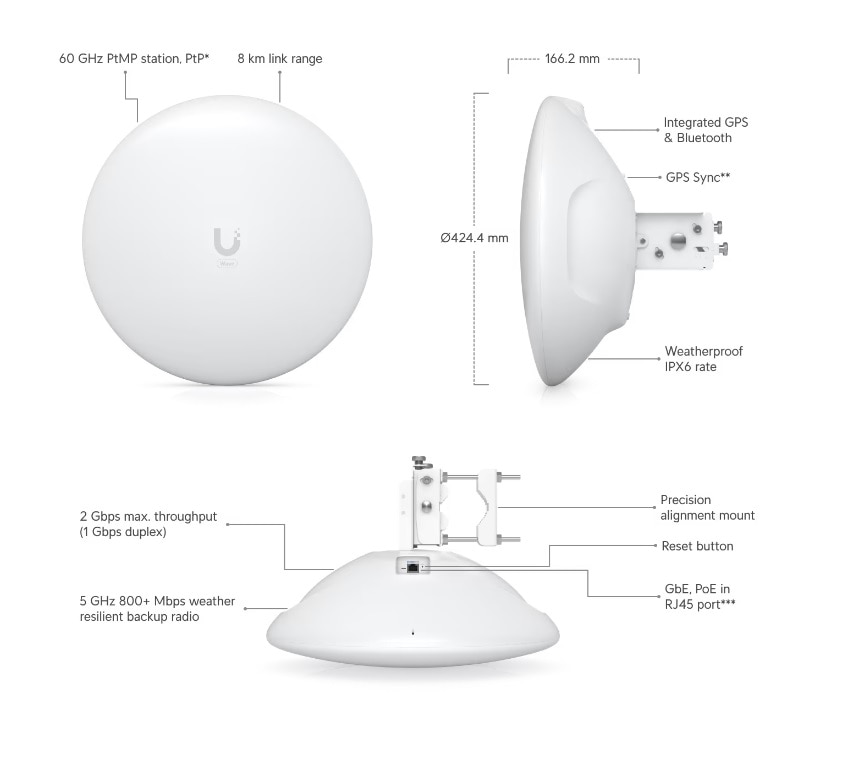

DimensionsØ424.4 x 166.2 mm (Ø16.7 x 6.5")
WeightWithout mount: 2.59 kg (5.7 lb) With mount: 3.79 kg (8.4 lb)
Enclosure materialUV stabilized plastic
Mount materialGalvanized steel
Pole mount diameter25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading286 N at 200 km/h (64.3 lbf at 125 mph)
WeatherproongIPX6
ProcessorDual ARM® Cortex -A53 cores at 1GHz
MemoryDDR3L 512MB
Networking interface(1) GbE RJ45 port
Max. power consumption18W
Power method48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply48VDC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch
ButtonFactory reset
LEDsPower, Ethernet, GPS, link
Operating temperature-40 to 60° C (-40 to 140° F)
Operating humidity5 to 95% noncondensing
CerticationsFCC, IC, CE
Software
OSairOS
Operating modePtMP station
Ubiquiti specic featuresIntegrated 60 GHz radio, discovery protocol, Wave technology
ServicesUISP, ping watchdog, NTP client, SNMP
ToolsAntenna alignment, discovery utility, ping, trace route, speed test
NetworkBridge/Router mode
Software managementBluetooth managementfor easy setup over UISP app WEB UI
Minimum software requirementsAny modern web browser/iOS or Android based smartphone
